EU Ship No Tax 2024 Xhorse VVDI Benz VVDI MB BGA Tool for Mercedes Benz Key Programming with 1 Year Unlimited Tokens

Produktbeschreibung

Xhorse VVDI MB BGA Tool for Mercedes Benz Key Programming with 1 Year Unlimited Tokens

Highlights:

1. Contains 1 Year Unlimited Tokens
2. Fastest Benz Password Calculation Speed.
3. Support Renew and Write EIS and ELV (Unlock ELV Function)
4. Language Supported: English, Polish, Spanish, Chinese
5. Can Calculate Benz BGA Key Password and Add New Mercedes BGA Keys
6. Support Benz Key, Read Password and Prepare New Key via IR.
    Support Benz BGA Key Online Calculator
    Support BGA Keys, NEC Keys (Include 51, 57 Version) etc., Work Fast
7. All NEC Keys Support on Board Write and Erase, NEC V051,V057 support on board get password
8. Password Calculation: Read EIS under OBD mode will check car power automatically. Avoid lost data in EIS
9. Support FBS4 Disable Key Function (Other Function->FBS4 Disable Key)- Support W166/ W205/ W213/ W218/ W222/ W246 Type
10. Support All Key Lost: W166, W197, W212, W218, W246, W206, W210, W204, W207, W166, W203, W463, W639, W246, W212, W212(old), Some W216, W164 2009- , W164, W221, W215, W220, W230 and some others.
11. EIS/ ELV Test Line Adding 3 More New Cables Support VVDI MB: Gearbox computer refresh diagnostic lineHanging lever computer refresh diagnostic line.

Notes:

1. Support Online Generate Key File
2. VVDI MB Tool Power Adapter Work with VVDI Mercedes W164 W204 for Data Acquisition is no in the package,if you want it, you need to order
3. It Supports Password Calculator Function. It takes 4 minutes to collect data, and 2 minutes to calculate.
When You Use VVDI MB BGA Tool to Calculate Password for BENZ Vehicle, You needs 1 Token for Once Calculate. (For All Key Lost, Needs 2 Tokens). Other Functions are Free to Use
4. This VVDI MB Tool Contain 1 Year Unlimited Tokens, But After 1 year, How Can You Get the Tokens?
1) If You Have XC-Mini Condor Key Cutting Machine (CONDOR XC-MINI or Ikeycutter XC-MINI Plus), you can get A Free Token everyday
2) If You Have Condor Key Cutting Machine (Condor XC-002 or Condor Dolphin XP-005), you can also get A Free Token everyday
3) You Can Buy 1 Token for VVDI MB BGA Tool Password Calculation or One Year Unlimited Tokens, If You Need More Tokends
4) Buy VVDI BE Key Pro Improved Version: 1 VVDI BE Key Pro = 200 Points = 1 Token for VVDI MB, please exchange the token yourself in APP.
5. Tokens Need for VVDI MB Tool:
* For W166, W212, W246, W212(old), W204, W207, W216, W164 2009-
All key lost, need 2 tokens when calculate successfully
* For W164, W164 2009-, W166, 197, 212, 218, 246, W169, 209, 211, W172, 204, 207, 212(old), W216, W221, W639 2009-
Add key, need 1 token for each calculation



Description:

Xhorse VVDI MB Tool is mainly for mercedes benz key programming, it is used for key reading and writing, EIS tools, password calculation, key file preparing, ESL tools, ECU/ Gearbox renew and many special functions. It comes with 1 year free unlimited tokens and free update online lifetime.

Supported Key Types:

1. Support Key Types Display:
1997-200 705 Moto
2001-2005 NEC
2006-2010 NEC
2011-BGA

2. Model Support IR/ OBD:
W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906

3. Keys Version Supported:
v03, v06, v08
v05, v07, v09
v59,v61



Functions

1. Read write key
Identification key, IR read & write BE key
Red V51,V57 version's key password by NEC adapter
Read activate blank BGA(OCF4)key,
key current Hash(repair)
Renew, write into the used NEC KEY
Write smart key ect.

2. Password calculation
OBD read and calculate all (FBS3) can protocol EIS password
Support BGA Key, NEC Key,V51,V57 version password calculation
Support all key lost W164,W216,W166,W211,W212,W246,W212(OLD),W204,W207 ECT
Online calculation key password,work fast.

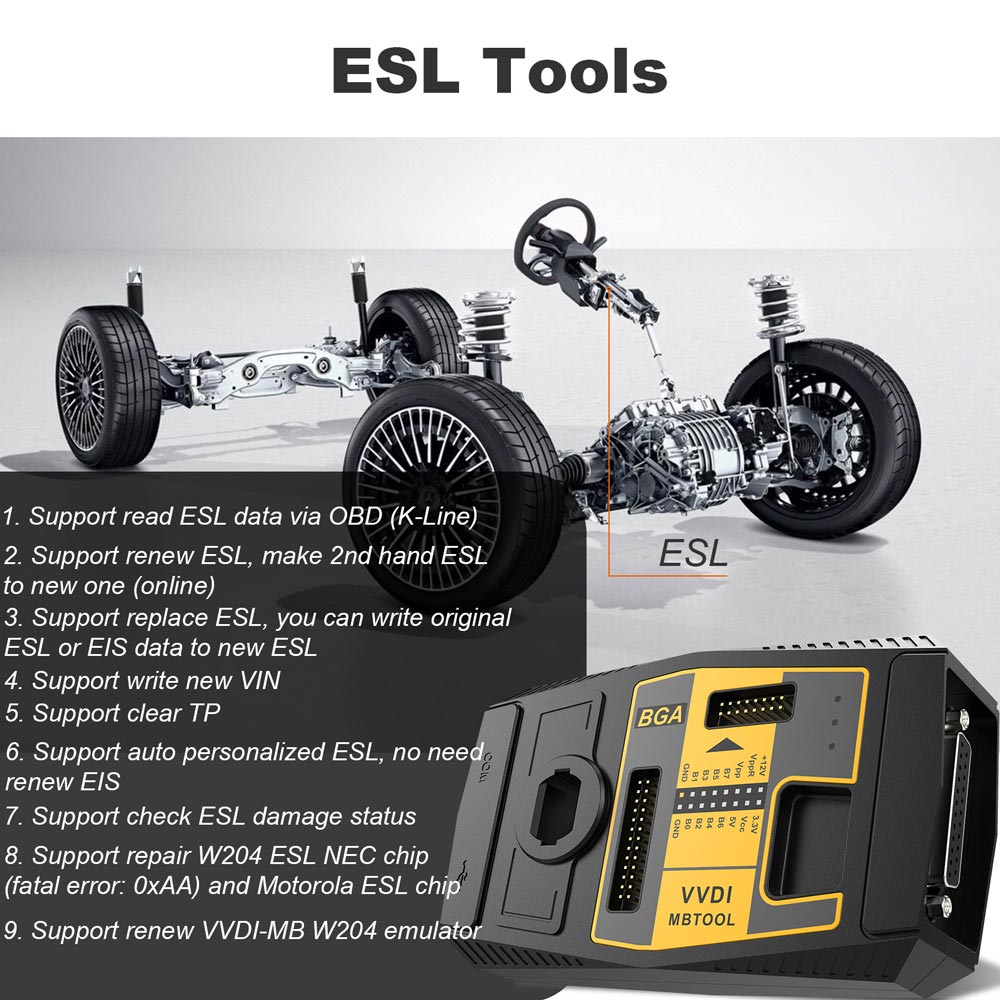

3. ESL TOOLS
OBD (K line) Read Data, Renew ESL, Replace ESL (no need to renew EIS)
Check ESL damage, Repair W204 ESL

4. Read/ Write Gateway
Support OBD repair KM:W204,W207,W211,W251,W154,W212,W221,W216,W166,W172,W232,W205 etc.
Support reading & writing gateway EEPROM and Flash:W211,W164,W204,W207,W212,W221,W216 etc.

5. EIS Tools

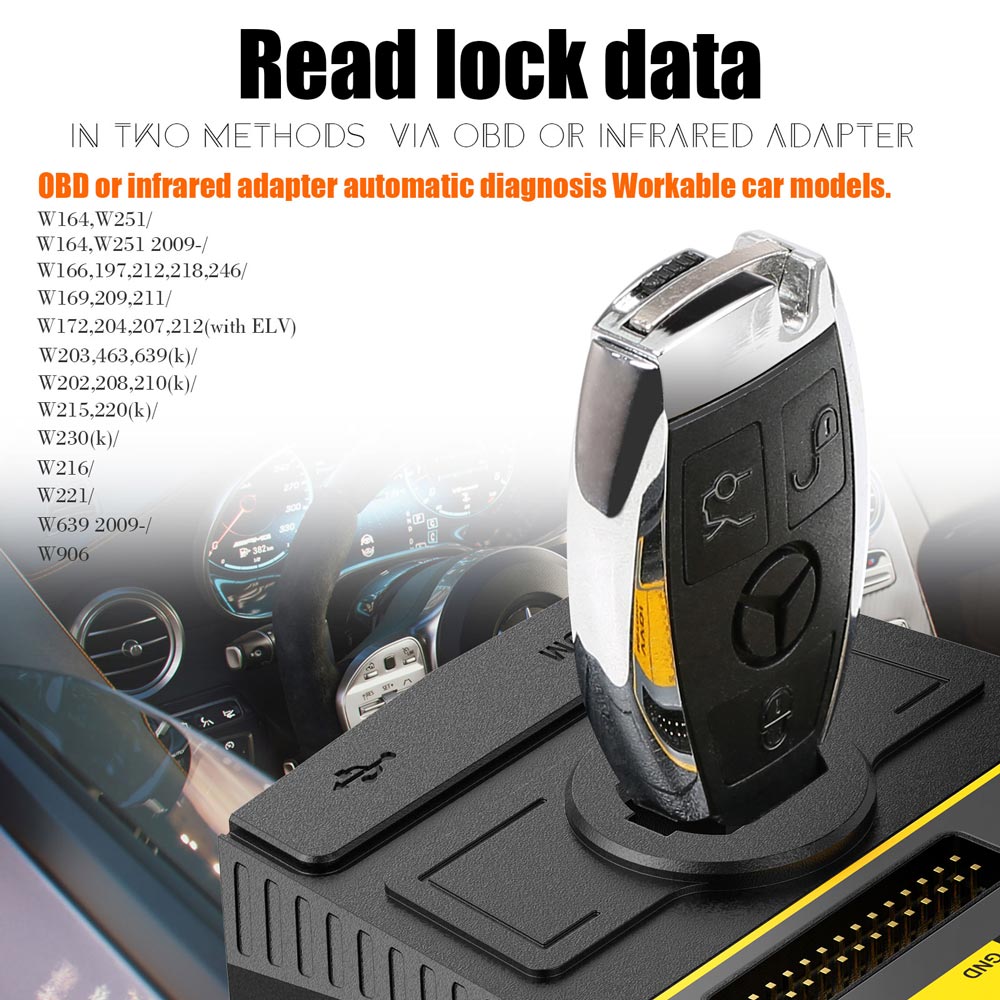

Read & write EIS by OBD or IR,OBD auto detect, access to W164,W209,W211 without gateway
Rread the old Motorola EIS (K-Line)'s password
Renew EIS, replace EIS, enable key, disable key, personalize W204 ESL
Test EIS status, working key etc.

6. Prepare Key File
Online generate V11,V41,V51 version's key file
support Motorola EIS EEPROM file, with high efficiency, 100% successfully generate

7. Program ECU/ Gearbox/ ISM
Support renew ECU, gearbox and ISM, write VIN, personalized etc.



1 Year Unlimited Tokens for Xhorse VVDI MB Tool

Support One Year
Yearly Subscription Activation Free Token
No real shipping.  Pls give us Serial Number after paid.

VVDI MB Tool Tokens
Password calculation can get key password through EIS and working key (online)
CAN protocol EIS all support password calculation
Support BGA keys and other NEC keys
Support calculate password for NEC v51, v57 keys. No soldering, safe method.
Data acquisition time depends on the key version. It needs about 3.5 - 13 minutes
BGA version need about 5 minutes, some versions only need 3.5 minutes
Calculate time in server: 30 seconds – 1 minute

How to Check the Tokens?

If you have condor mini/xc-007 key cutting machine,after you bind condor with VVDI MB Tool,it will display free token.
If you purchase the tokens,after we inform tokens are OK,you can see payed tokens times.



How to Use VVDI MB BGA Tool?

Step 1: Connect VVDI MB BGA Tool to vehicle,and run VVDI for Benz BGA software to read and save EIS data

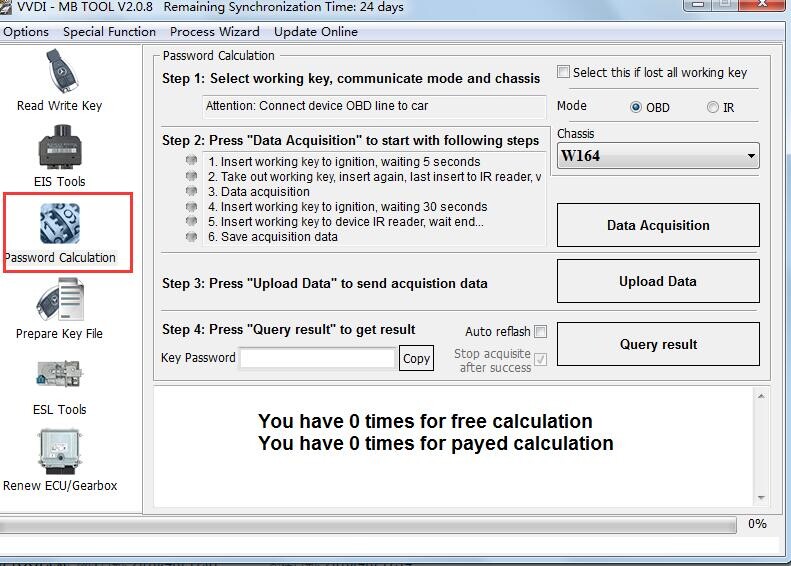

Step 2: Select Password Calculation,choose chassis to click "Data Acquisition",then save data file
Step 3: Upload the data file you save just now in step 2,then calcute the password
Step 4: Back EIS Tool menu,and read EIS data,then paste password then save new EIS data fiel with password.
Step 5: Go to "Prepare Key File", click "Load EIS file" to load new EIS file with key password
           Then click "Prepare key file",then it will prepare all keys and complete
Step 6: Go to "Read Write Key",put new blank BGA key into coil to identify,then write the data fiel into key.
Step 7: Now the last thing is to synchronize the new key to car



How to Combine VVDI MB Tool and VVDI2 in Xhorse App?

Run upgrade kit, device connect to PC by USB cable, read device,Select'Binding',customer will get QR code automatically,Login Xhorse APP, enter 'Account'--‘Combine device',
Then scan the QR code to combine to account.

How to Update VVDI MB Software & Firmware?

Update Software
This function require internet support
Use "Menu ->Update Online->Software Update" to obtain VVDI-MB TOOL latest software version, the software version require firmware version etc.
Press Download Link will download the latest software
If there's no display for software version, shutdown your firewall and antivirus programs, try again.

Update firmware Steps:
1) Connect VVDI – MB TOOL to PC with USB cable
2) Choose VVDI – MB TOOL firmware version from Firmware List
3) Press button Update Online, wait the progress end
4) If failed to get firmware list or get something like "communicate with server error!" while update your device, close antivirus and firewall programs, try again. Change your internet provider once failed again
5) DON'T shutdown your PC or disconnect USB cable while update device

FAQ:

Q1: suport all key lost
A1: Now support all key lost : w204, w207,W166, W246, W212, W212(old),some W216, W164 2009-

Q2: I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
Can any one test?

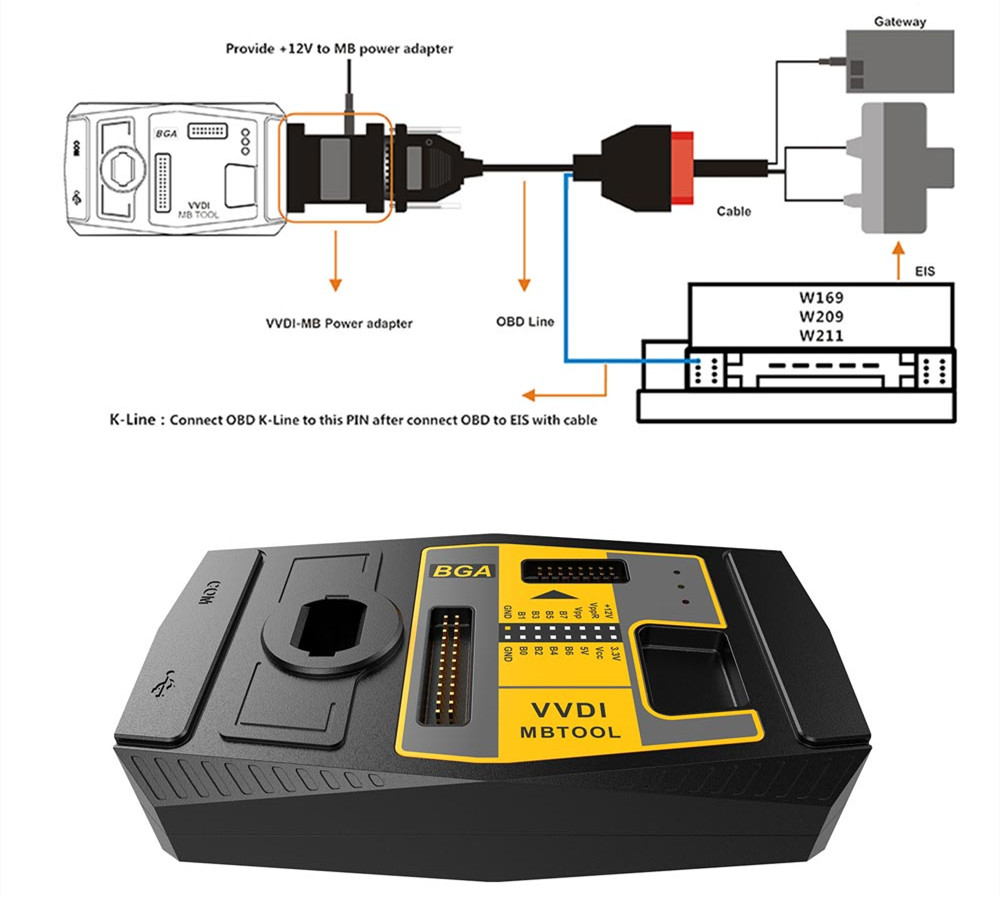

A2: Read eis via obd for W164, W169, W211, W209, require gateway connected

Q3: I bought EIS W221 lock with a key from the lock from one machine. I have read the PSW. I will make a complete loss of W221 key in the future. Describe step by step procedure
A3: you have uesd/2nd-hand EIS with working key,you can do like this for W221 all key lost
1). read all key lost EIS data-> save EIS data
2). read used EIS data enter password,get erase password->renew used EIS.
3). load step1 EIS data to renewed EIS with password->write EIS data
4). load EIS data(with key password)->prepare key file
5). input new key to device IR reader->load key file->write
6). insert new key to EIS->EIS will learn the new key->key learn success
By the way,if your all key lost W221 is motorola EIS,not need to change EIS,remove eis get eeprom by programmer (VVDI PROG). then load eeprom to VVDI MB TOOL prepare key file.

Q4: I have a w204 All key lost and i program a new EIS with VVDI, the ignition doesn't come on or crank, but the steering can lock and unlock. can someone guide me what to do
A4: about W204 all key lost (change new EIS), refer to following steps,maybe helpful:
1). Read EIS data via obd,then Save EIS data
2). Adapt ESL:Read ESL data->Get Erase Password->Renew ESL
3). Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data
4). Personalize W204 ESL
5). Load EIS data(with Key Password)->Prepare Key File
6). Input new Key to device IR reader->Load Key file->write
7). Insert new Key to EIS->EIS will learn the new key->key learn success

Q5: First time today it took much longer than 8 hours to Unlock NEC.
Now I cannot personalize this ESL back because it is just not calculating key password. I have working key but it keeps failing to Calculate password. I have done about 6 or 7 times already.
Is there some problem in this V2.1.7 Or is the server having issues
A5: All sorted out. All done by VVDI but it took so many times to calculate password. Had to do aqcuisition maybe 8 times or so. The NEC is also unlocked. Then wrote ESL and personalised and ll is working fine. Customer will take it over the weekend to fit as the car is more than 500km away.
If they can see why recently is the VVDI suffering with password calculation on W204.
Solution: about 8 times online calculation,the point is data acquisition,each time if acquisition without valid data means need one more time again.

Q6: What other accessories do I need to work with VVDI MB
A6: Tokens: needed when calculating a Key Password (Internet connection required)
NEC Adapter: newer version of the NEC adapter that adds support for KeylessGo
ELV (ESL) Adapter: optional adapter needed to unlock ELV and program keys to the W204 chassis
ELV (ESL) Emulator: can replace a damaged ELV module
Cables for MB: various cables needed when doing work away from the vehicle (not needed if you are with the vehicle)
Gateway Adapter: needed when working on W164, W169, W209, or W211 chassis away from the vehicle (not needed if you are with the vehicle)
VVDI Prog: optional module that adds EEPROM functionality

VVDI Benz BGA tool Feedback:

I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successfulW639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK

Only support parts of HC05, HC08 motorola eis(K line),if cannot support will show error, need to remove eis get eeprom. we have tested W215 ok, but not means all W215 can support.in fact only support parts of this type.

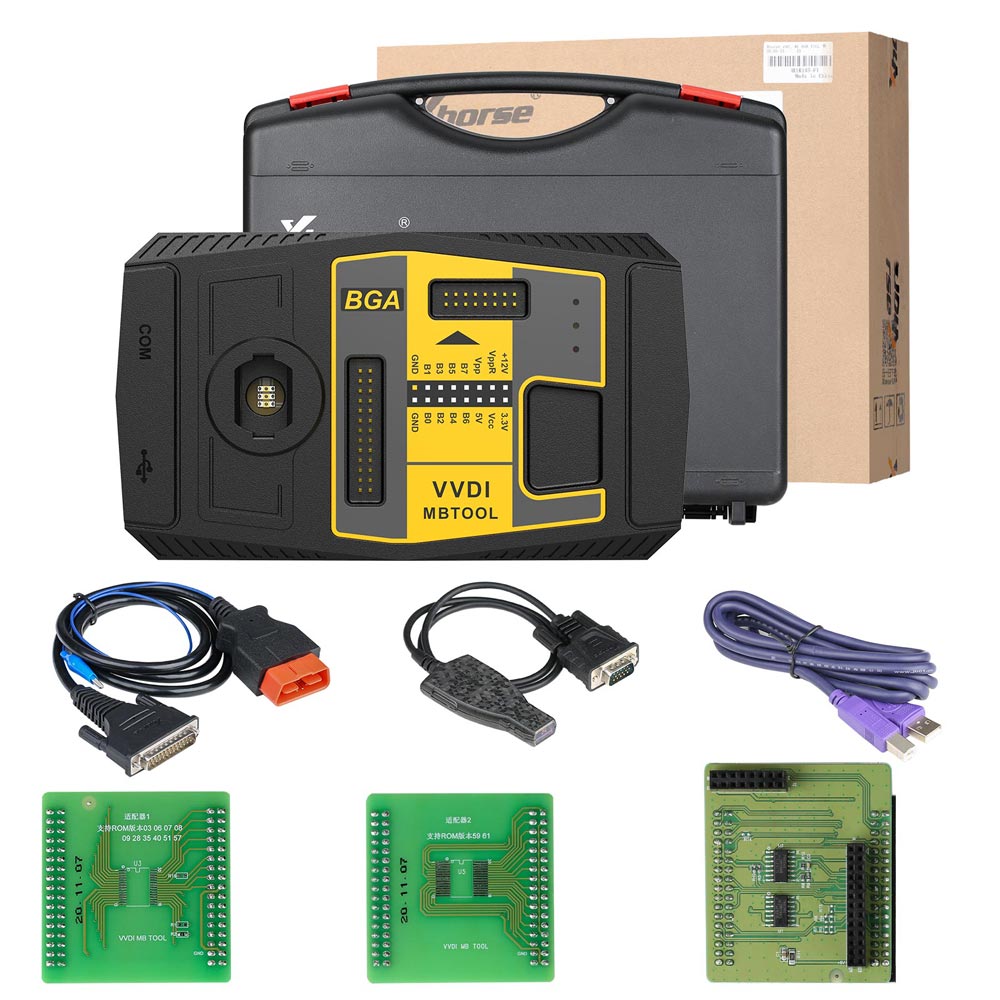

Package List:

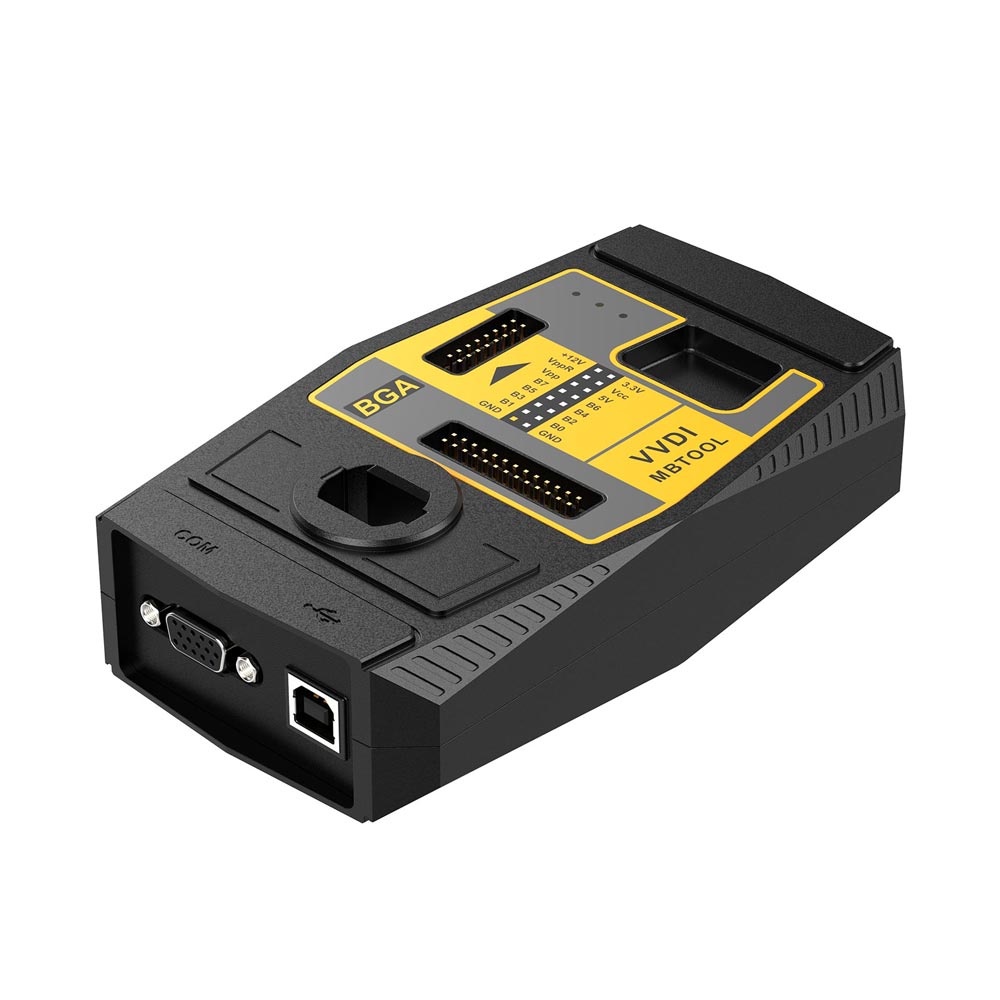

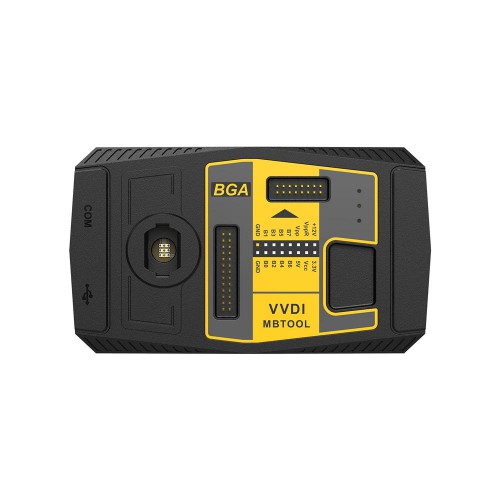

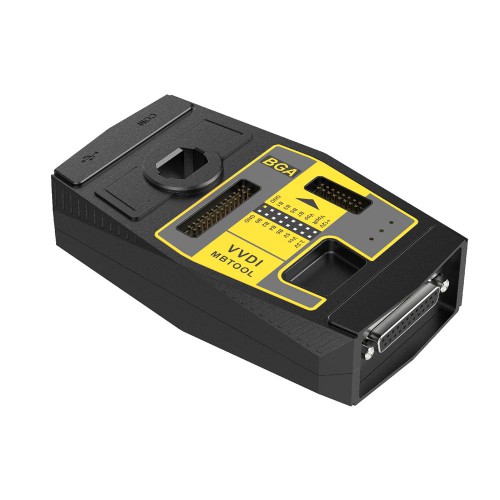

1. VVDI-MB TOOL device

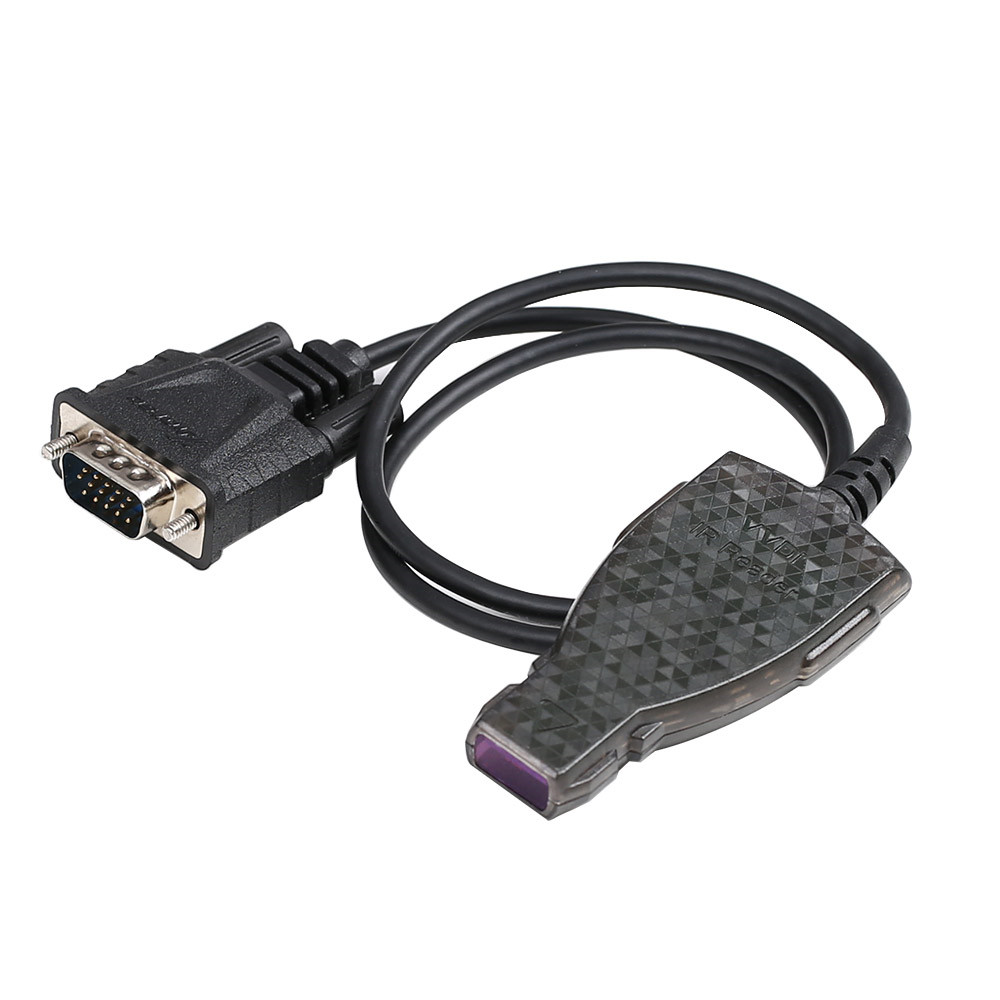

2. IR adaptor
3. USB cable
4. NEC adaptor 1
5. NEC adaptor 2
6. NEC adaptor base PCB
7. K Line in OBD line
8. OBD line
9. Plastic Box
10. Carton Box







---
