Original Xhorse IKeycutte Condor XC-002 XC002 Manually Key Cutting Machine With 3 Years Warranty

Produktbeschreibung

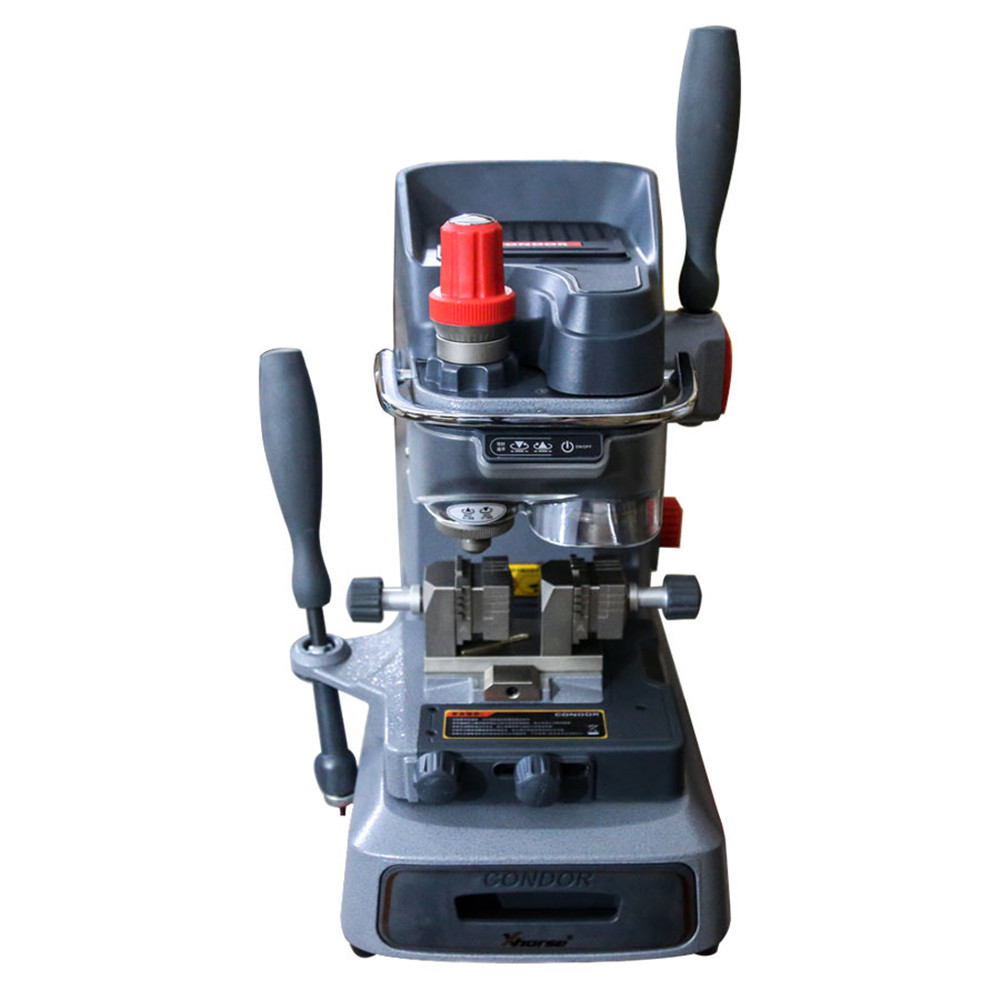

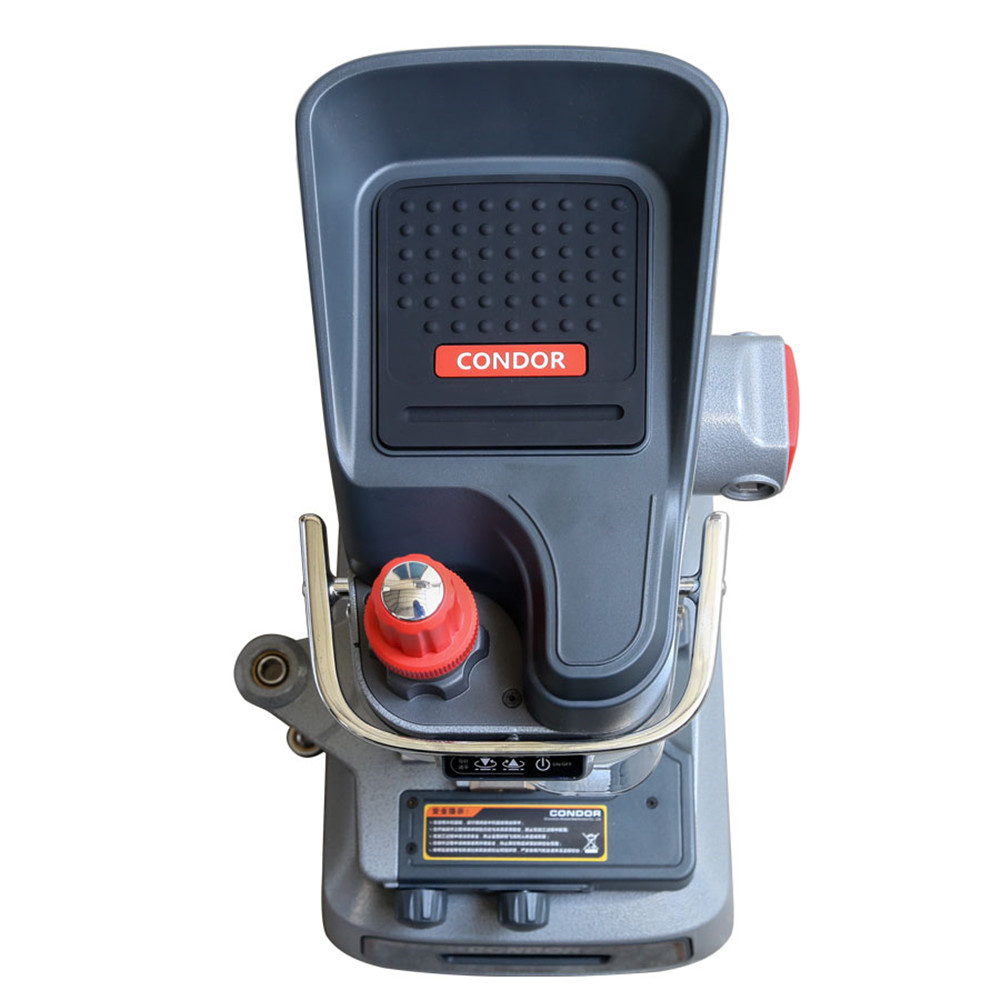

Original Xhorse IKeycutte Condor XC-002 Manually Key Cutting Machine

XC-002 Mechanical Key Cutting Machine is a professional device. It enables locksmiths to copy and process keys more efficiently and accurately for vehicles or civil use. The careful reading of this manual before use is a quite crucial precondition for safety.

Highlights:

1. With 3 Years Warranty
2. Precision-Machined High-Strength Aluminum Die-Casting Chassis
3. Convenient and Practical Ergonomics Handle Design
4. Patented Rotating Clamp Design Supports Many Different Key Types
5. Modular Components for Easy Disassembly and Maintenance
6. Renishaw Line Detection System, Column Cross Guide Rail

Note:

If You Purchase The Condor XC002, We Can Authorize One Free Token Every Day for Your VVDI MB.
If You Have Both Condor XC002 and Condor XC Mini, We Can Provided 2 Free Tokens for Your VVDI MB Tool Every Day.
Just Need to Contact us and Offer The Device Serial Number of VVDI MB or You Can Choose This Value Bundle (SL355-SK185), Save More Money.

XC-002 Main Features:

1. Ergonomic design provides better user experience
2. Aluminum-casting body make it more reliable and durable
3. Adjustable high-speed motor ensures the stability and fluency of operation.
4. Built-in indicator lights make the height level adjustment easier
5. Cross rail guarantees the accuracy
6. Supporting track and dimple cutting, that can process special keys
7. More key types are available because of 4-side rotary clamp

Condor XC-002 Advantages:

1. Ergonomic Design
CONDOR Mechanical Key Cutting Machine ergonomic design for customers After deep studying of user habits, achieved the best balance from optimal design and continuous improvement of all Aspects, such as Material, length, radian, Grip feeling, strength of control, feedback level, operation fluency. Excellent performance contributes to a veritable locksmith weapon.

2. Superior Machine Components
CONDOR Mechanical Key Cutting Machine is composed by high leve machine components, ensuring the high reliability of the indicators key cutting fluency and accuracy. korea-made Bearing cage with high stability, cross railtested by British Renishaw online testing system, japan-made materials key cutter with special coating contribute to perfect cutting.

3. Humanized Function
CONDOR Mechanical Key Cutting Machine built-in height level adjustment indicator light, Spindle height fxed function and cutting table stop design, setting motor speed by manual and including double-ended probe, supports track, dimple, other special keys and more humanized functions.

4. Manufacture Process
CONDOR Mechanical Key Cutting Machine is aluminum-casting body, more reliable and stable. Mainly mechanical units manufactured by germany-made DMG CNC machine, ensures the accuracy of machine structure and for cutting keys

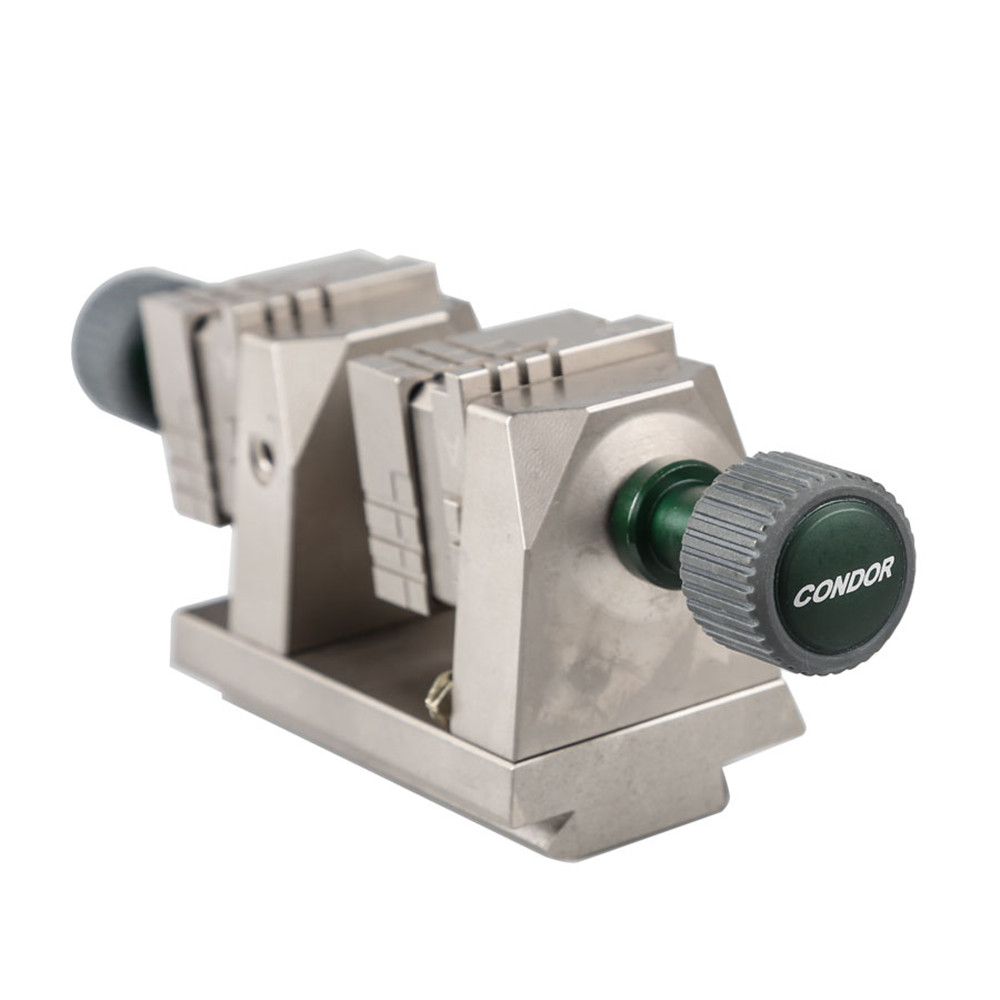

5. Clamp
CONDOR Mechanical Key Cutting Machine with independent researched and developed four in one clamp, a unique four-sided rotation design. Users can select different sides to work according to different key blanks. Easy and simple for cutting different keys.

6. Power/ Motor Specification
CONDOR Mechanical Key Cutting Machine built-in super power 200 Watt motor with max speed 10000rpm, supports setting speed by manual, according to different key blank materials Ensure machine with high effcient work.

7. Technical Support
XHorse technical support team is professional and effcient, online technical support for free. three-year warranty and lifelong after-sale perfect service guarantee customers trouble free operation of machine. Customer feedback and suggestion are appreciated.

Comparison Between Condor XC-002, XC-MINI and XC-007


Xhorse Condor cutting machines	Condor XC-002	Condor XC-MINI Plus	Condor XP-007
Automatically/ Mechanically	Mechanically/Manually	Automatically	Automatically
Lost key	Not support	Support	Support
Touch screen	No screen	7" Capacitive	Large screen
Cut key for car	Yes	Yes	Yes
Cut house key	Can cut a small part of house key	No	No
Internal software	NO	Yes	Yes
Language	It is mechanical, no specific language	Portuguese/ Spanish/ French/ Germany/ Russian/ Czech/ Arabic/ Turkish/ Dutch/ Polish/ Bulgarian/ Norway/ Slovakia/ Italian/ English/ Chinese (English is the default language, after receive the machiche, send SN to seller for reset other language)	English, Chinese
Stand-alone	Yes, no need connect to computer	Yes, no need connect to computer	Yes, no need connec to computer
Input Voltage	220VAC	90V–264VAC	AC110V/220V
Input Frequency	50Hz	47~63Hz	47~63Hz
Consume	200W	200W	220W
Display		1024*600	800*480
Spindle Speeds	8000-10000rpm	9000rpm	12,000 rpm
USB		USB2.0	USB2.0
Working Temperature	0~50℃	0~50℃	0~50℃
Humidity	10~90%	10~90%	10~90%
Warranty	1 year	3 years	1 year

How to Get Condor XC-002 Key Cutting Machine Serial number?

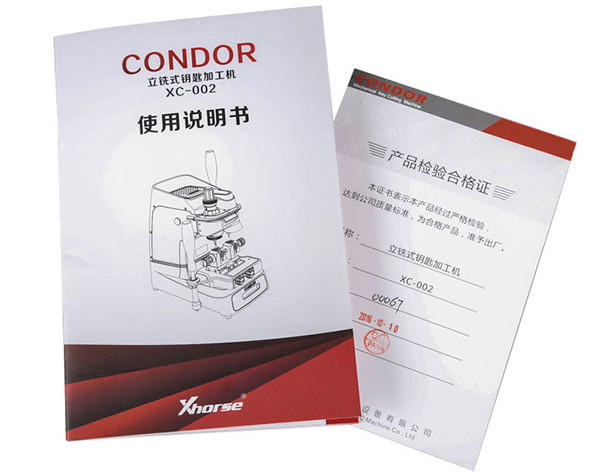

When you bind condor with vvdi mb tool, it needs to provide two number of condor XC-002 (SN: MK********   NO********), please check from document like following pic,or on the main body of XC-002

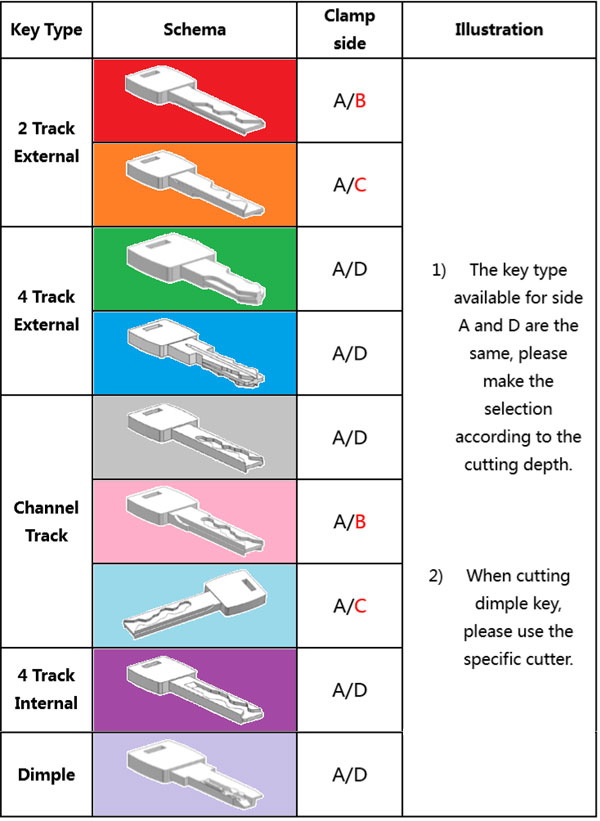

How to use Condor XC-002 key clamp?



How To  Insall and Use the XC-002?

1 INSTALLING MAIN HANDLE



1) Insert the bottom of main handle into installing hole, which is by the right side of the machine body. Then cover the screw cap and rotate the handle clockwise until tightened.
2) If fully tightened, the main handle should be fix at a certain position and unable to move up or down.
3) If rotate the handle 180 degrees counterclockwise, the height of tracer and cutter can be changed freely

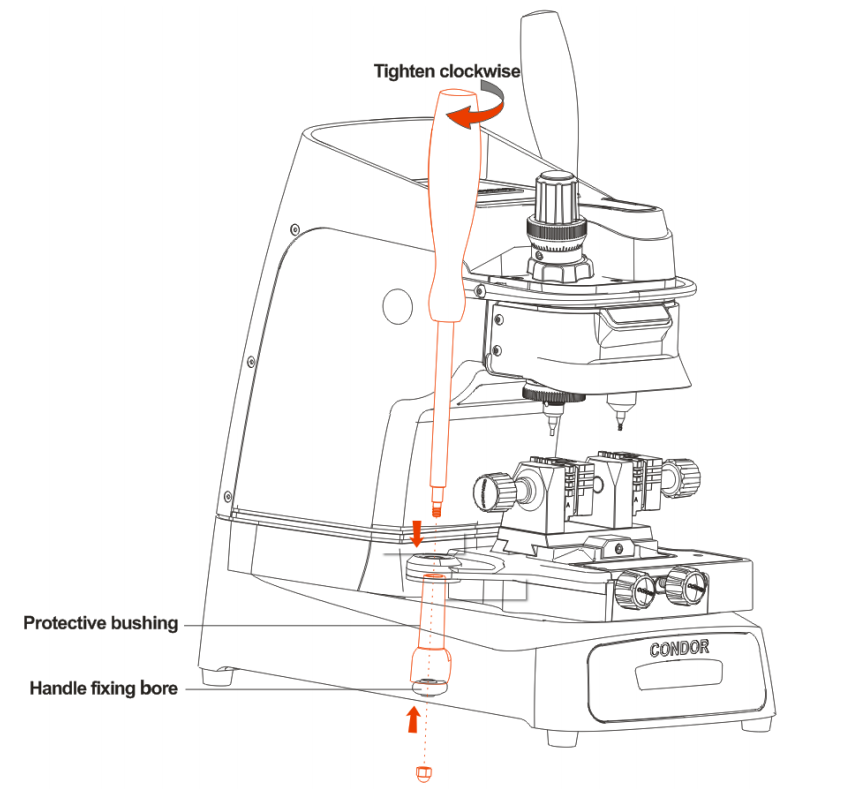

2 INSTALLING SUB-HANDLE



Insert the bottom of sub-handle into the installing hole, which is by the left side of the machine body. Put on the protective bushing and then plug in the lower bearing bore to avoid moving. Cover the screw cap and rotate the handle clockwise until tightened

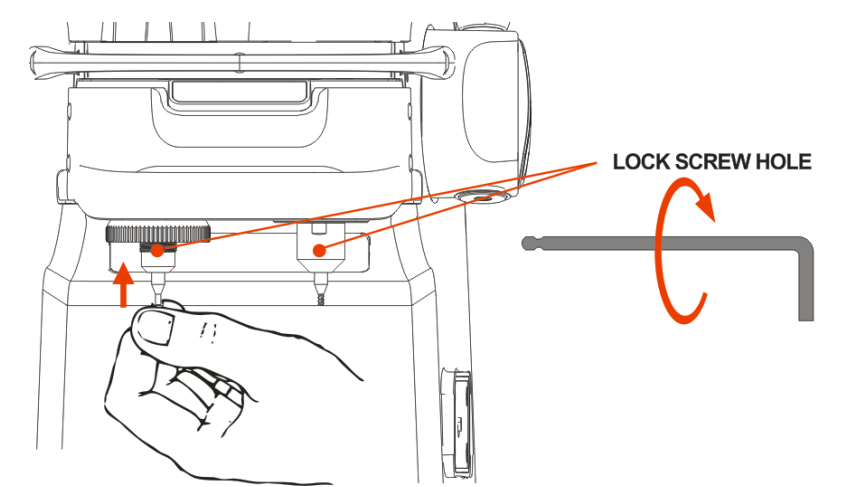

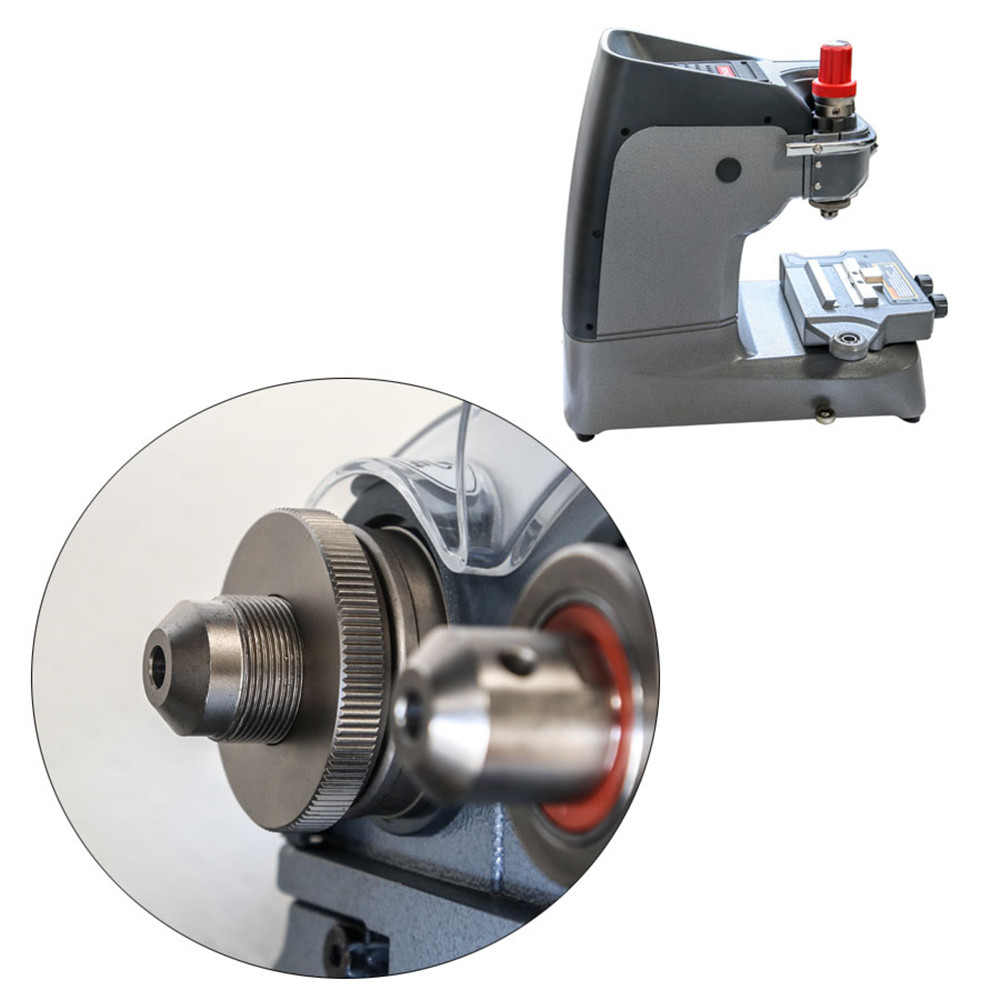

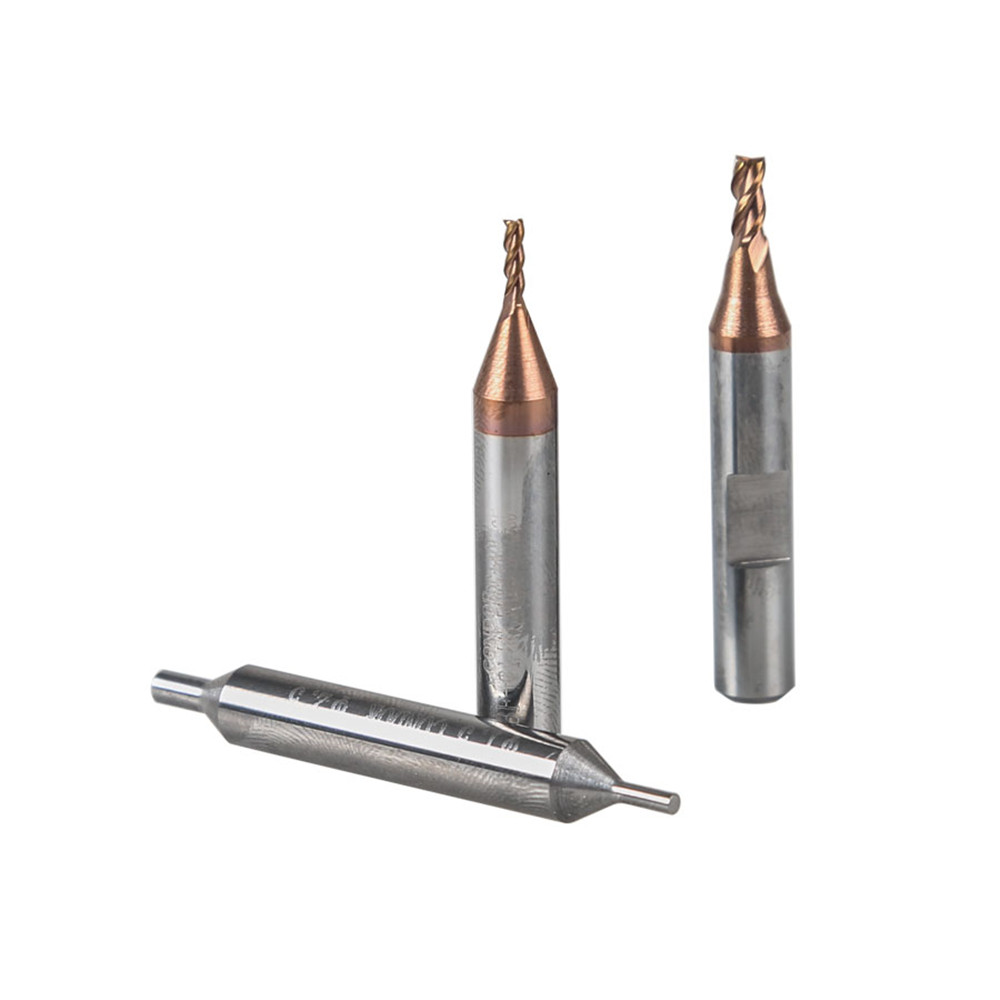

3 INSTALLING AND REMOVING PROBE/ CUTTER



1) The left one is tracer and the right one is cutter. Put the tracer and cutter into the hole and to the top limit position. Then use 2.5mm Allen wrench to turn the lock screw clockwise respectively till the tracer and cutter are both tightened.
NOTE: When using 1.5mm cutter and 2.5mm cutter, tracer and cutter must select the top with the same diameter for processing.

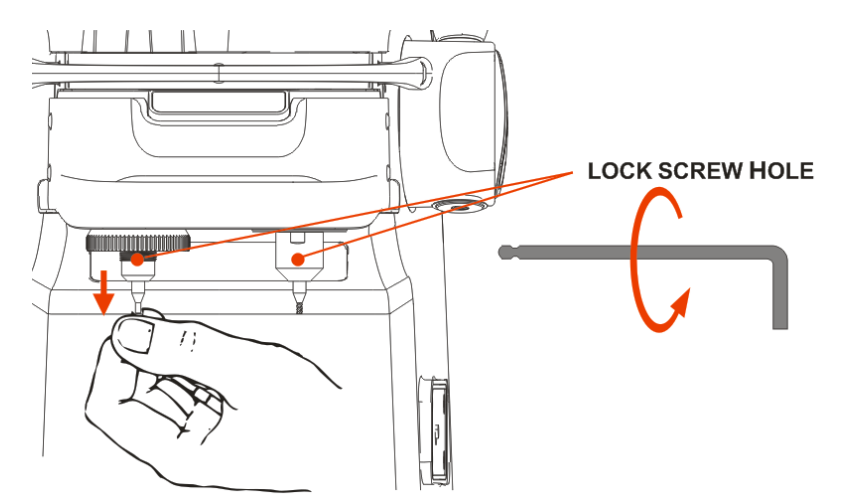

2) Insert the wrench into the hole, turn the lock screw counterclockwise, and then remove trace and cutter

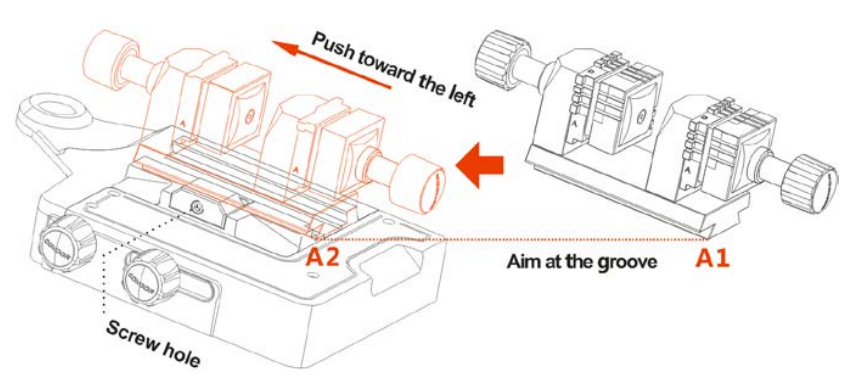

4 CLAMP INSTALLATION



Aim the bump (A1: underneath the clamp) at the cutting bench's groove (A2), push toward the left until A1 and A2 (shown above) are fully overlapped. Then use 4mm Allen wrench to tighten the screw.

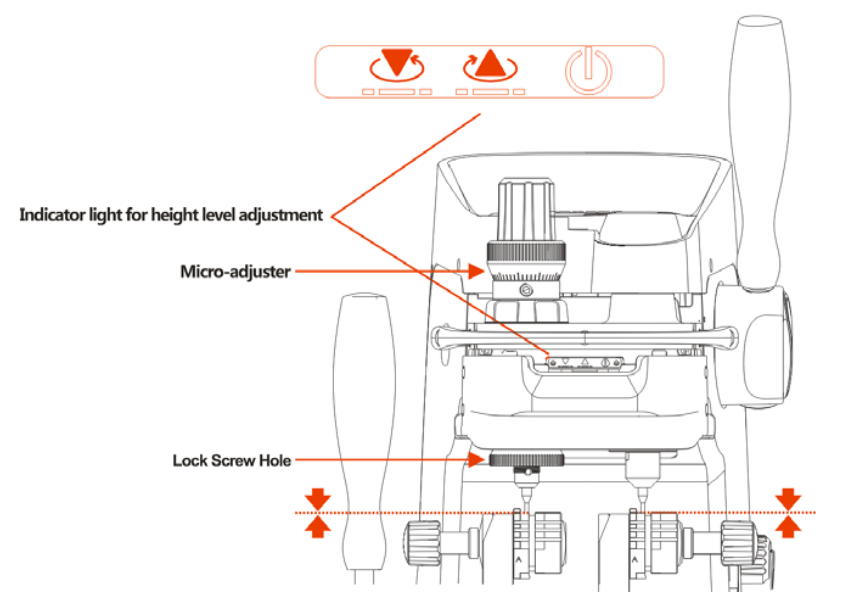

5 PROBE/CUTTER HEIGHT LEVEL ADJUSTMENT



1) When the installation finished, push the main handle.
If the tracer is higher than cutter, the indicator light on the left will turnon.
2) If the tracer is lower than cutter, the indicator light on the right will turn on.



3) According to the signal of indicator light, rotate the Micro-adjuster until tracer and cutter's tops have both touched the clamp. In other words, they are at the same height. Then two indicator lights will on, adjustment finished.

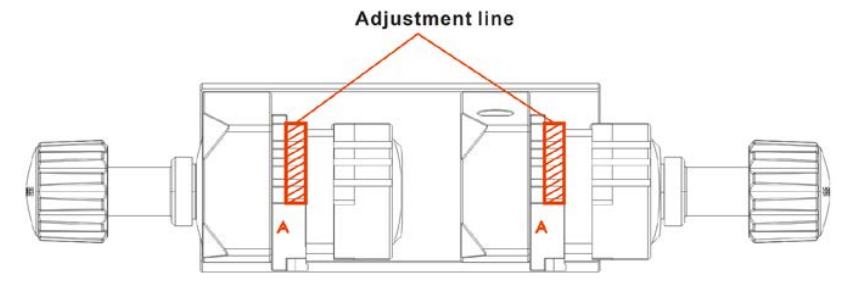

NOTE: During the height level adjustment, main clamp and sub-clamp must at the same side.

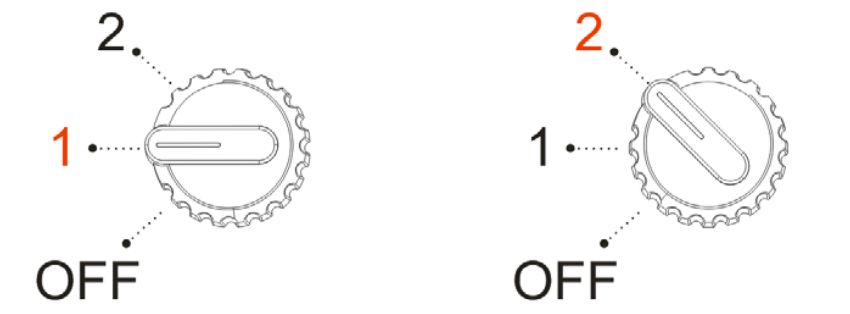

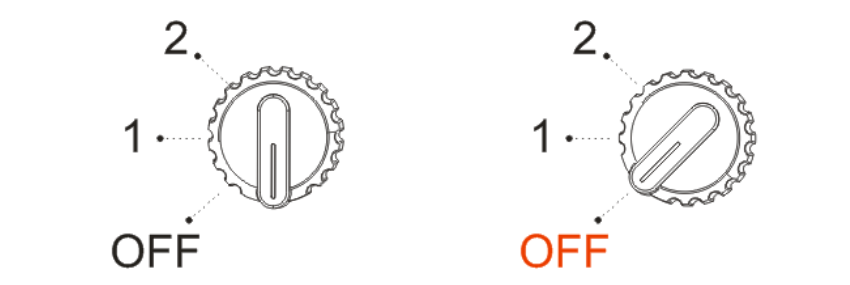

6 ROTATION SPEED ADJUSTMENT

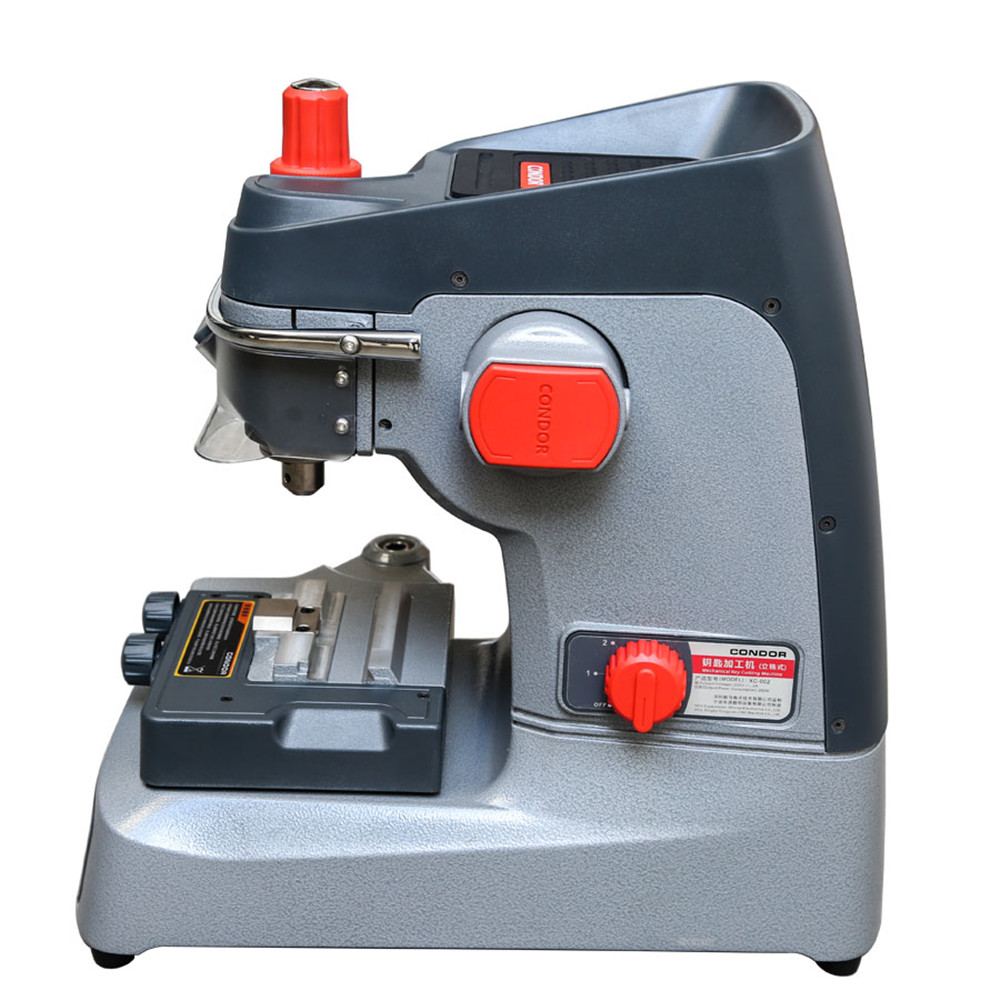

Rotation adjustment knob locates at the right side of the machine. There are two gears to control the rotating speed of motor.



1) When the adjuster is at the neutral gear, motor stays at "Turnoff" mode; when it points to "OFF", the light will be on, means the machine is ready to work



2) When the adjuster points to "1", the motor rotates at a low speed, about 6000rpm; when it points to "2", the rotation speed is higher, about 8000rpm.



Specifications:


Input Voltage	90-240V AC
Input Frequency	50Hz
Consume	200W
Motor Rotation Speed	Max 10000rpm
Travel of Spindle	27mm
Packing Dimensions	L595xW550xH375mm
Machine Dimensions	L298xW445xH525mm
Spindle Speeds	8000-10000rpm
Noise Decibel	77dB
Working Temperature	0~50℃
Humidity	10~90%
Motor Torque	1st gear,torque 0.4N 2nd gear,torque 0.3N

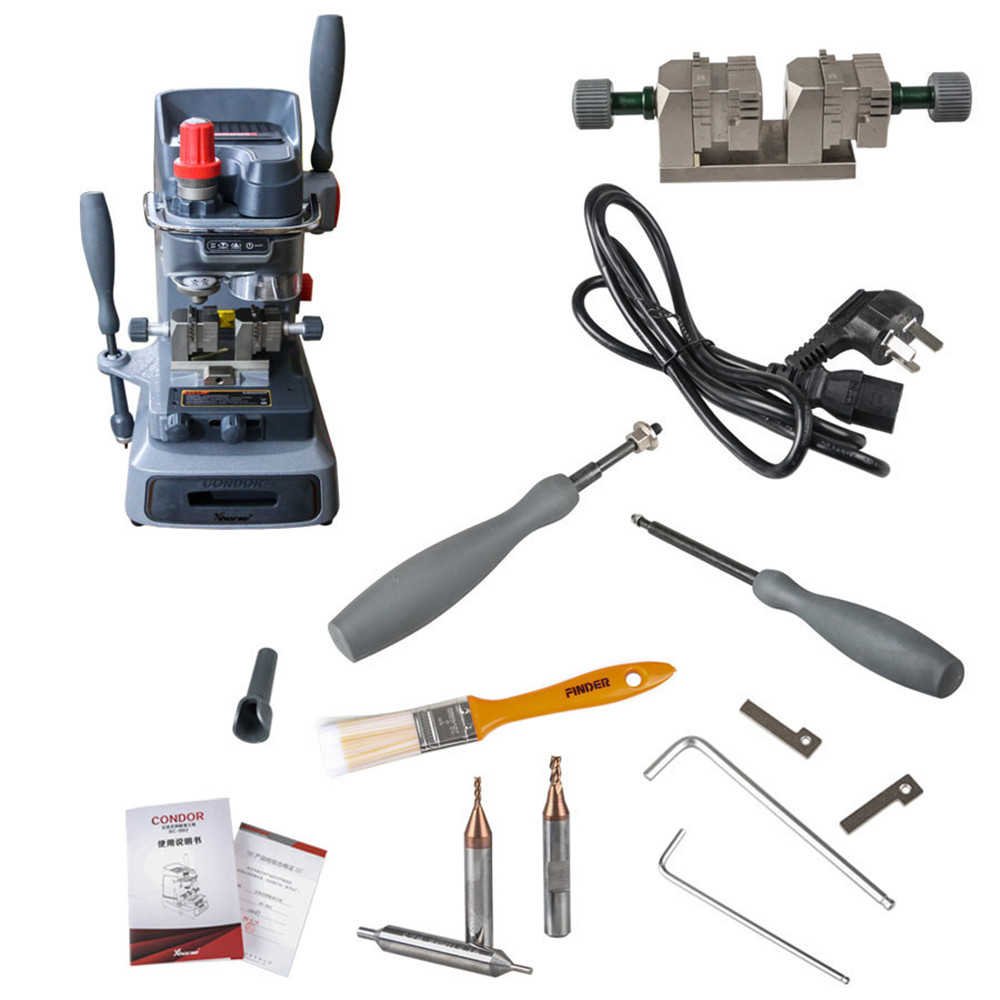

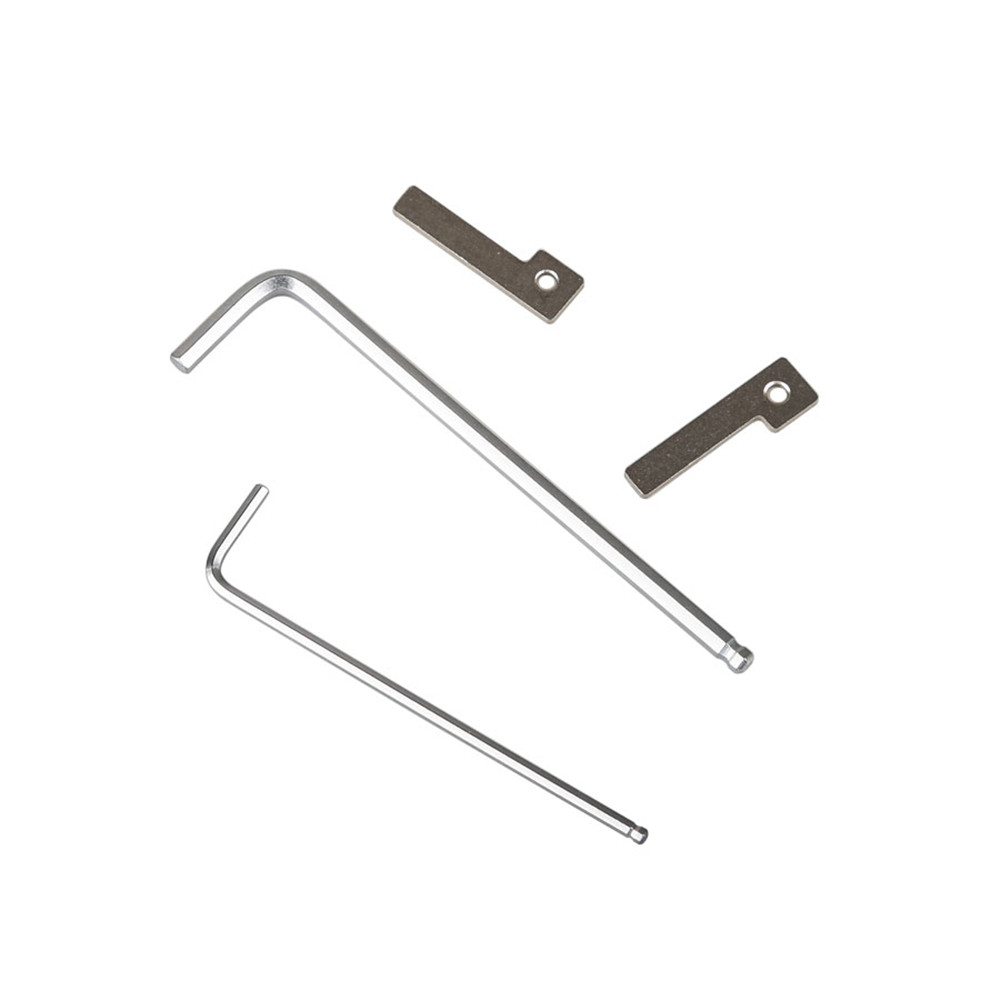

Package List
