EU Ship No Tax Xhorse VVDI MB Tool Power Adapter Work with VVDI Mercedes for W164 W204 W210 Quick Data Acquisition

Produktbeschreibung

VVDI MB Tool Power adapter work with VVDI MB for Quick Data Acquisition

Notes:

1. Newly add W202/ W208/ W210 (KLine)

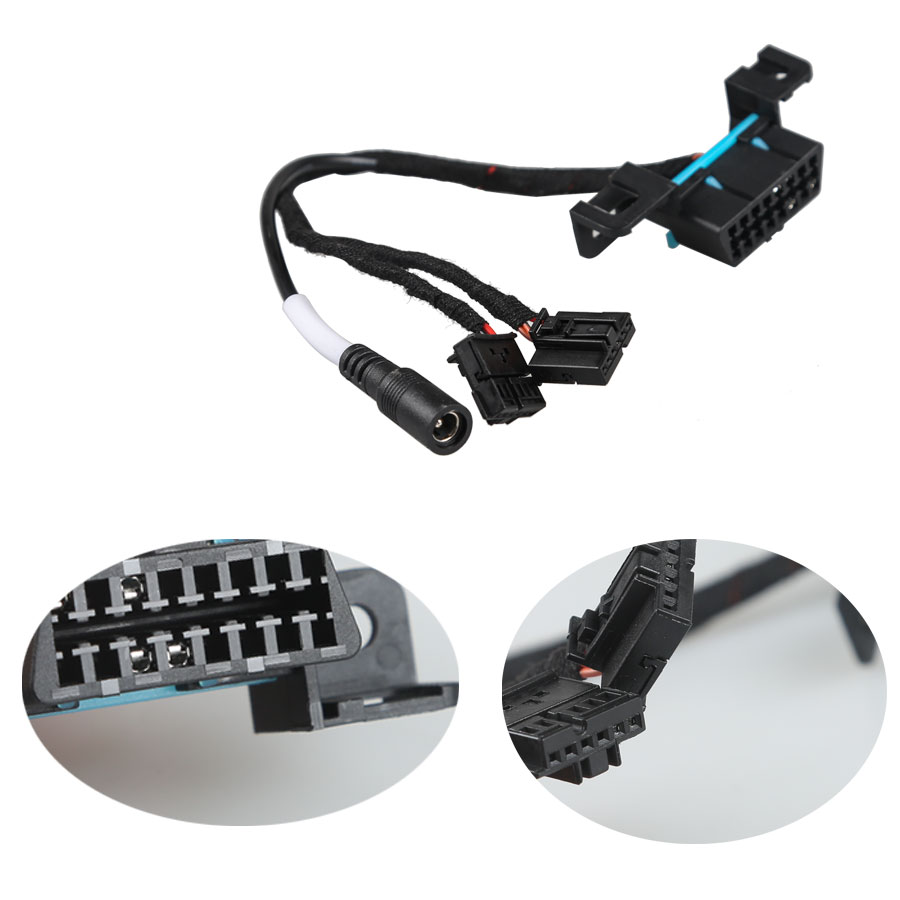

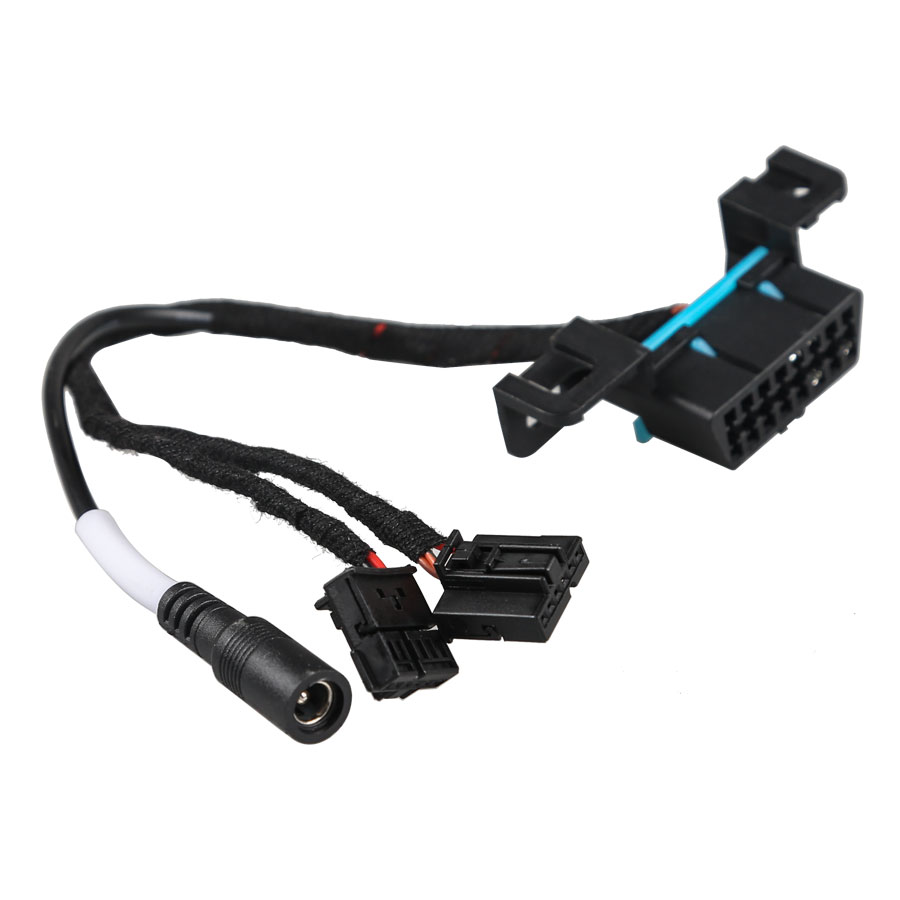

2. Adding W164 Direct Cable (W164 Gateway Adapter for Mercedes). If you bought power adapter, no need to buy W164 gateway.
3. Can Work Together with VVDI MB BGA Tool for W204 W207 W216 W164 W202 W208 W210 Data Acquisition

Advantages:

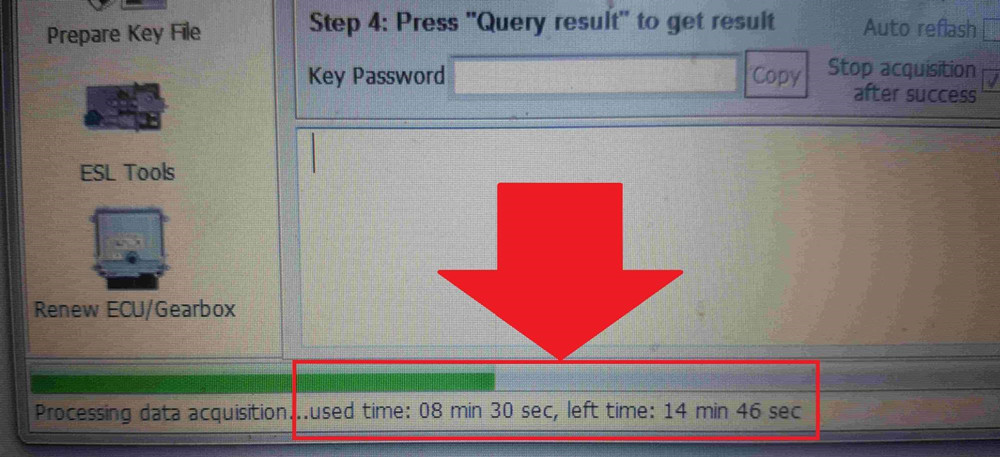

1. VVDI MB Tool Power Adapter Only Need 18 Minutes to Data Acquisition for W204, W207 All Key Lost; without this adapter will cost 150 minutes for data acquisition, save much time nearly 2 hours
2. VVDI MB Tool Power Adapter for W216, W164 2009- All Key Lost Data Acquisition, No Need to Replug IR Adapter Many Times, without this adapter need to replug IR adapter 500 times
3. VVDI MB Tool Power Adapter Support Gateway Emulation Function, without real gateway you can use this adapter directly OBD cumminication with W164,164 2009-,W209,W211 (require special connection cables)
4. VVDI MB Tool Power Adapter Working on FBS3 Type All Key Lost and Gateway Emulation, Support C Class, E Class, CL, CLK, ML, GL, GLK Types etc....

VVDI MB Tool Power Adapte Accessories Illustration:

* W204, W207 optional item fast data accquisiton
* W164, W216 insertion free
* W164, W209, W210, W211 gateway emluation function



Supported Benz Type List:

 Support W202/ W208/ W210 (Kline) get key password (ADD KEY and All KEY LOST, 15-30minutes)
 Support W203/ W469/ W639 (Kline) get key password (ADD KEY and All KEY LOST, 15-30minutes)
 Support W169/ W209/ W211 (Kline) get key password (All KEY LOST, 15minutes)
 Support W639 2009-/ W906 get key password  (All KEY LOST, 15minutes)

Add New Type for Calculate Password While All Key Lost:

Support W230 get key password  (All KEY LOST, 20 minutes-1 hour)
Support W169 type2 get key password (All KEY LOST, 15 minutes)
Support W164/ W251 -2009 (NEC chip) get key password (All KEY LOST, 30 minutes)

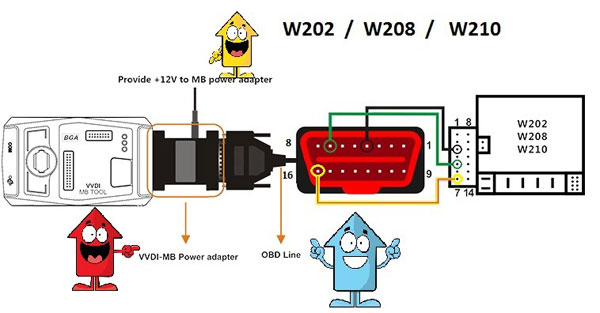

VVDI MB Power Adapter W202/ W208/ W210 Connection

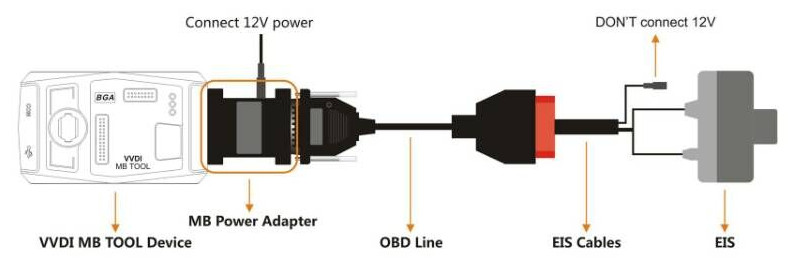

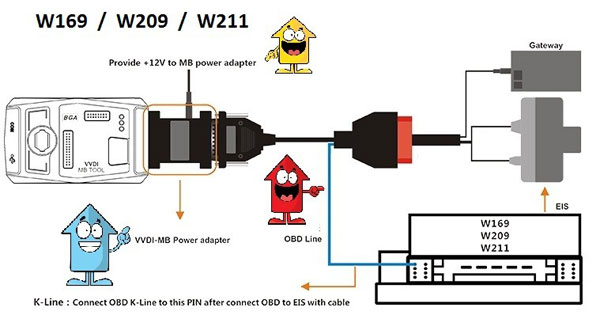

VVDI MB Power Adapter W169/ W209/ W211 Connection

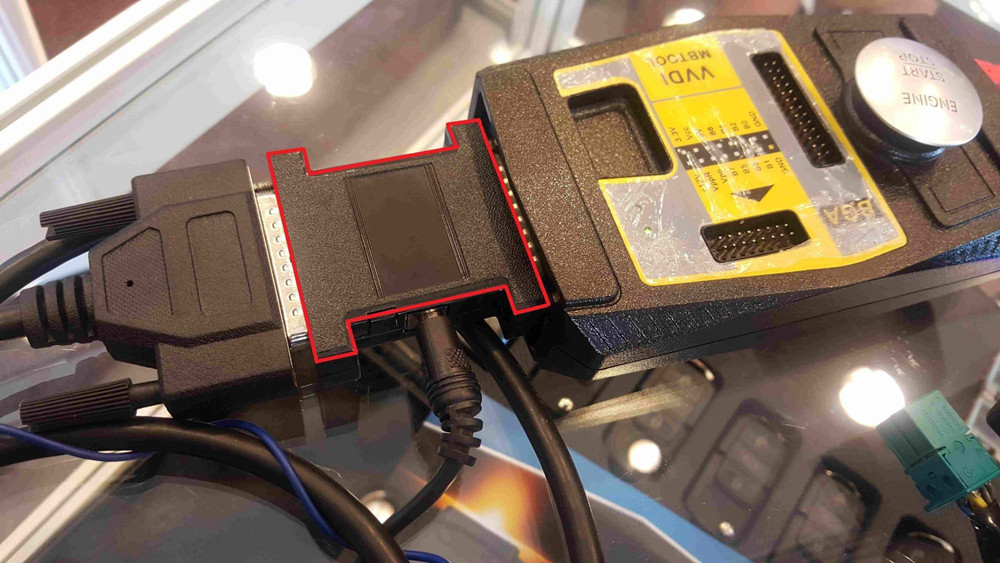

VVDI MB Tool Power Adapter Works with W164:

New Xhorse POWER adapter for W204 and W164/ 251/ 216/ 221 2009-up all key lost
Tested new Xhorse VVDI MB Tool power adapter for faster reading data acquisition in case ALL KEY LOST…  working like charm…

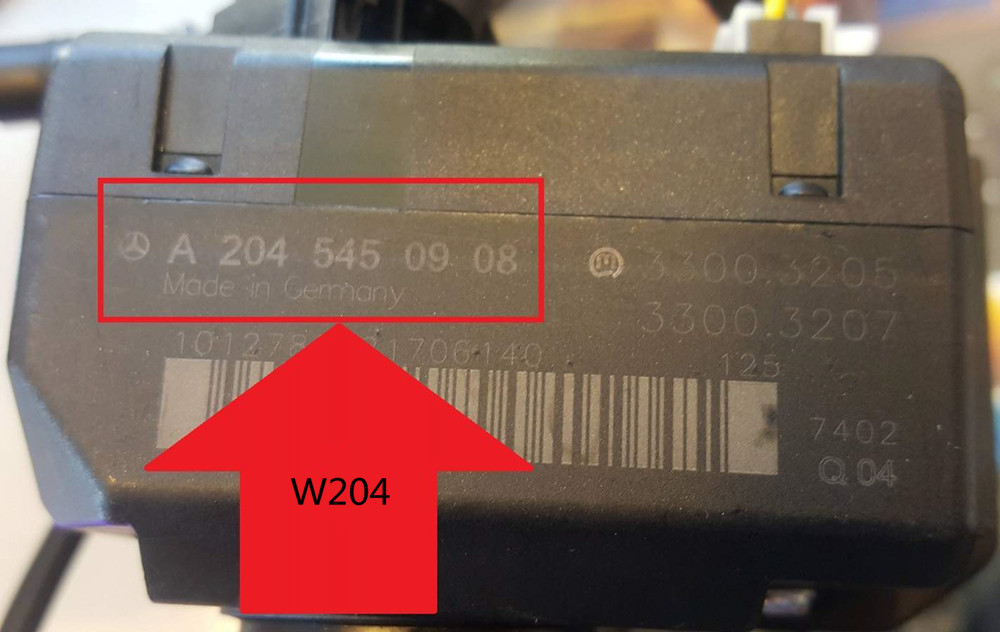

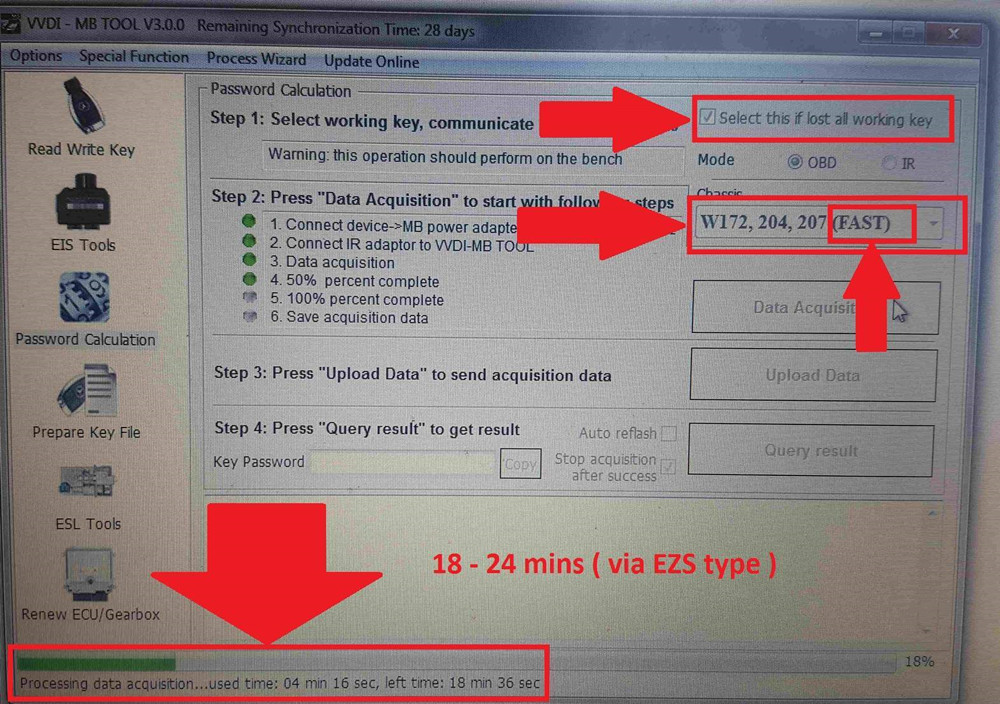

Time by W204/ 207 shorted from 2,5 hours to 18-24 mins
by W164/ 251/ 221/ 216 from 2009 and up no more need so much times insert-remove-insert-remove IR adapter to and from EIS






Package List

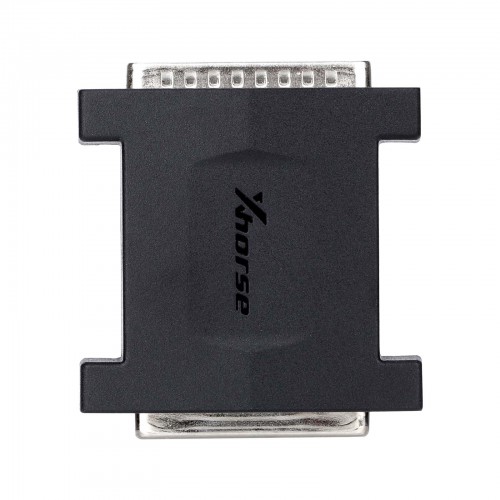

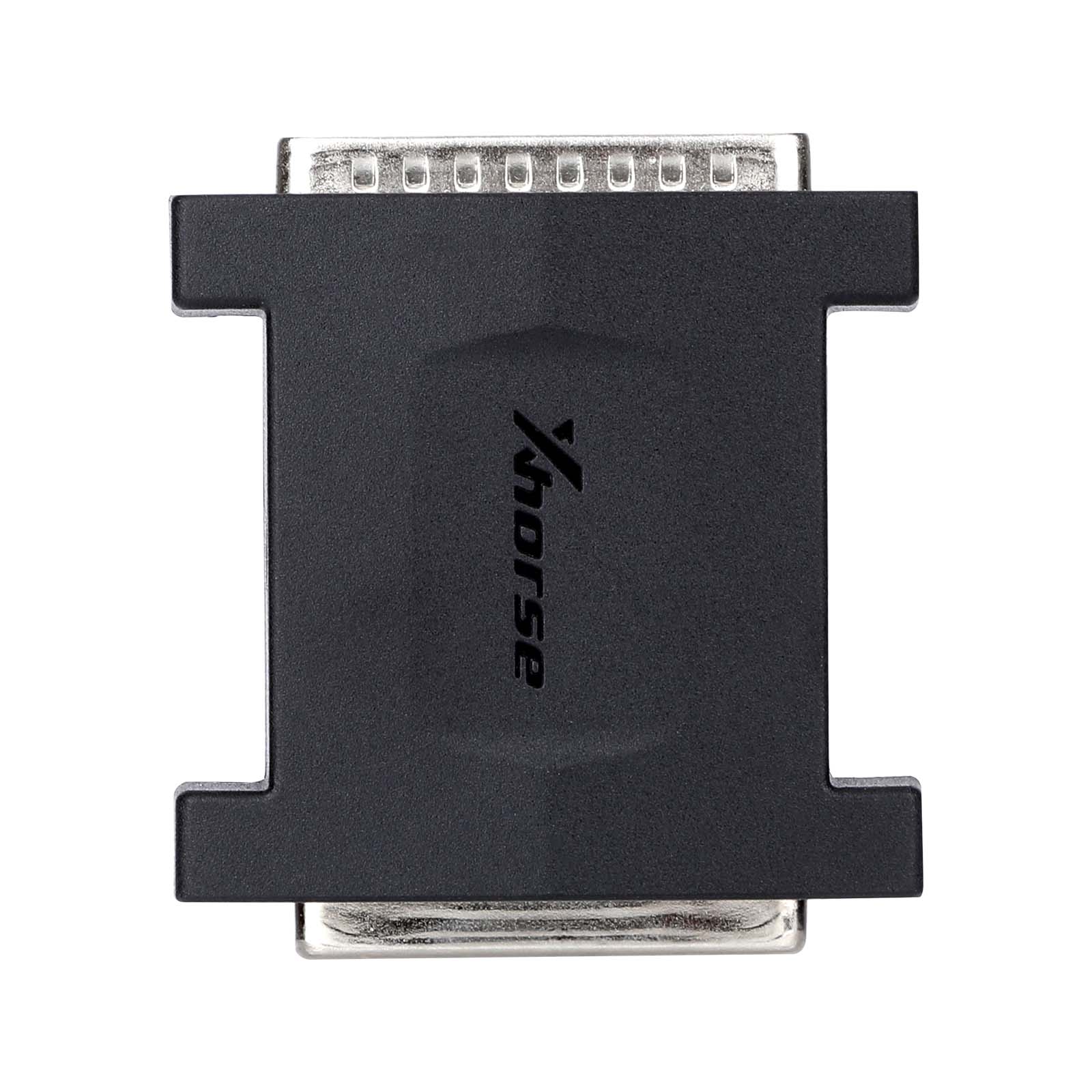

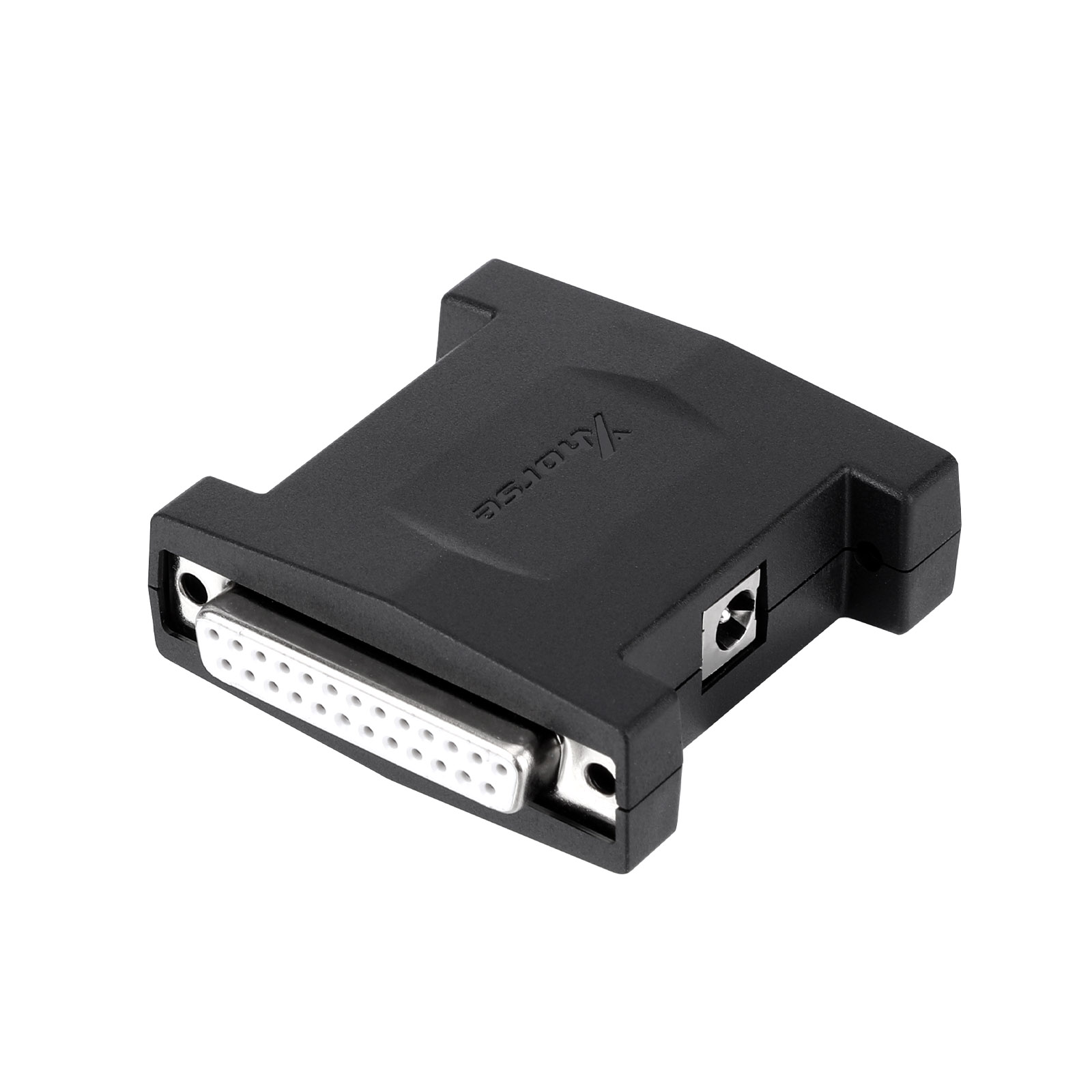

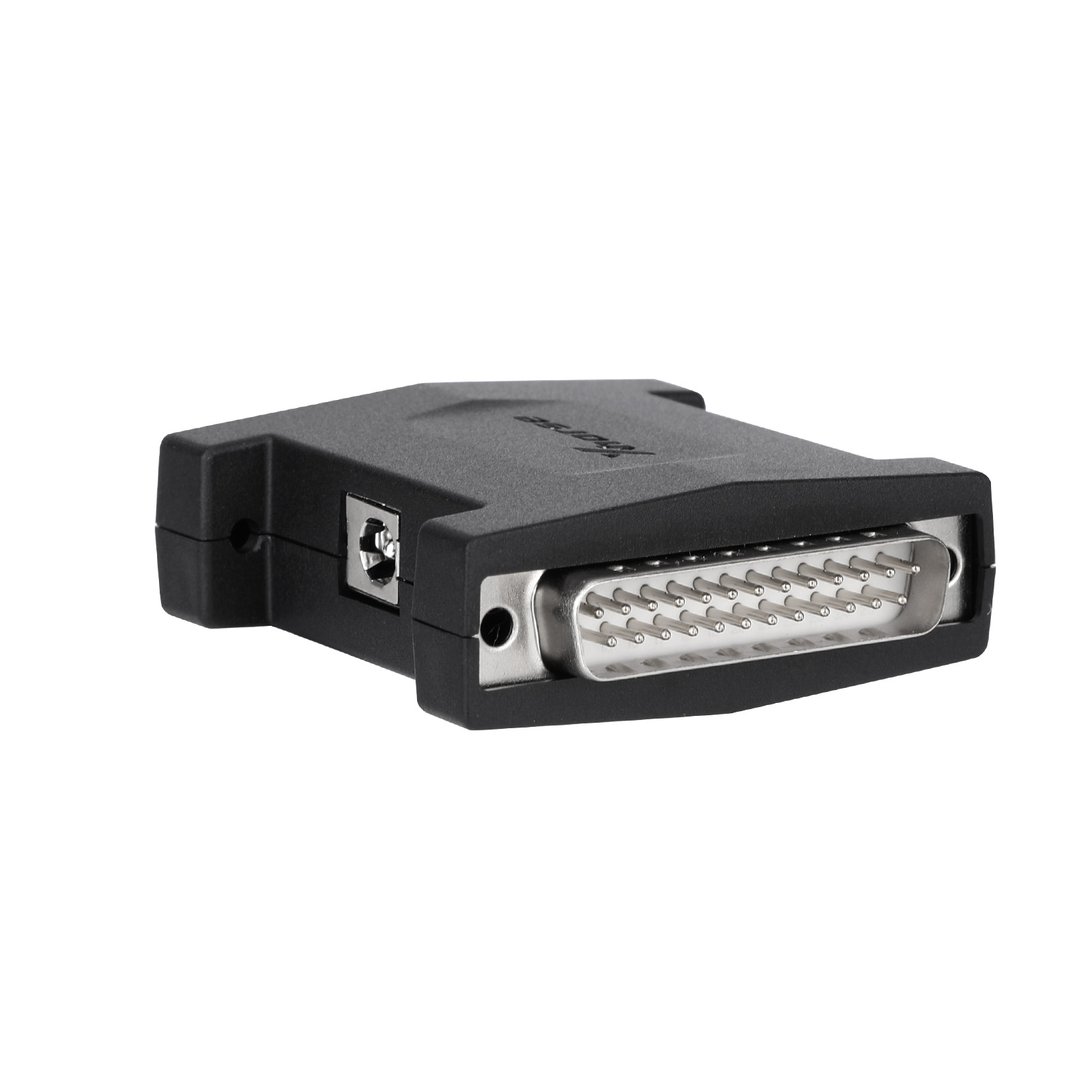

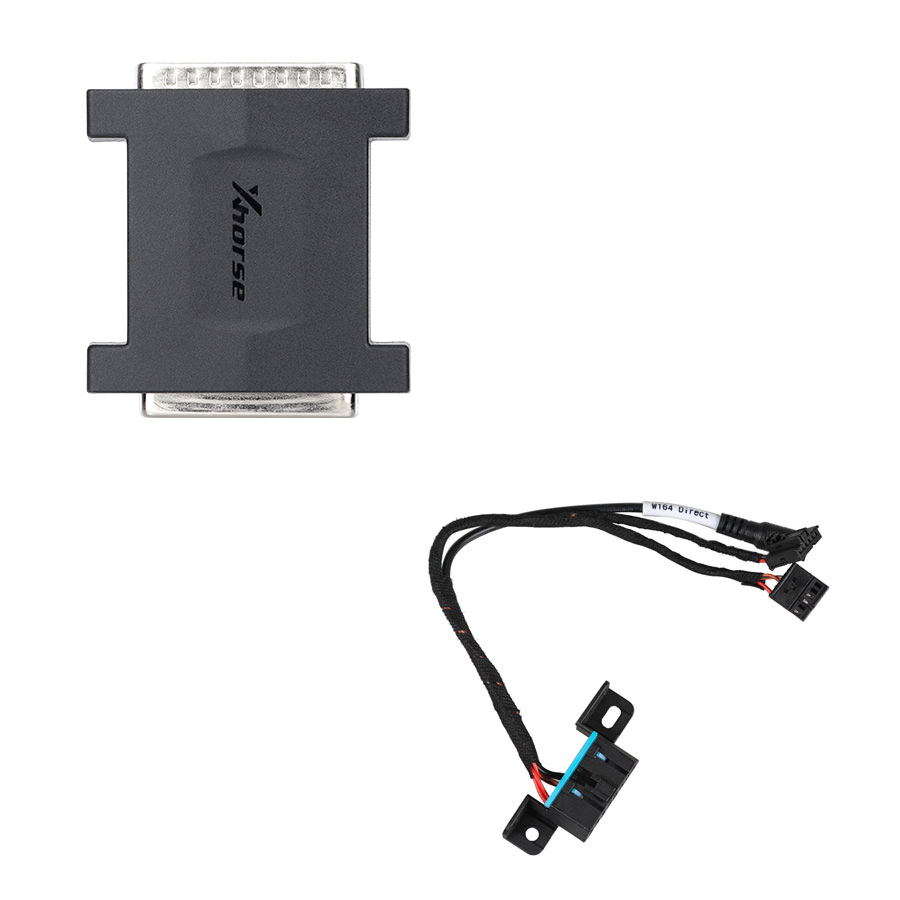

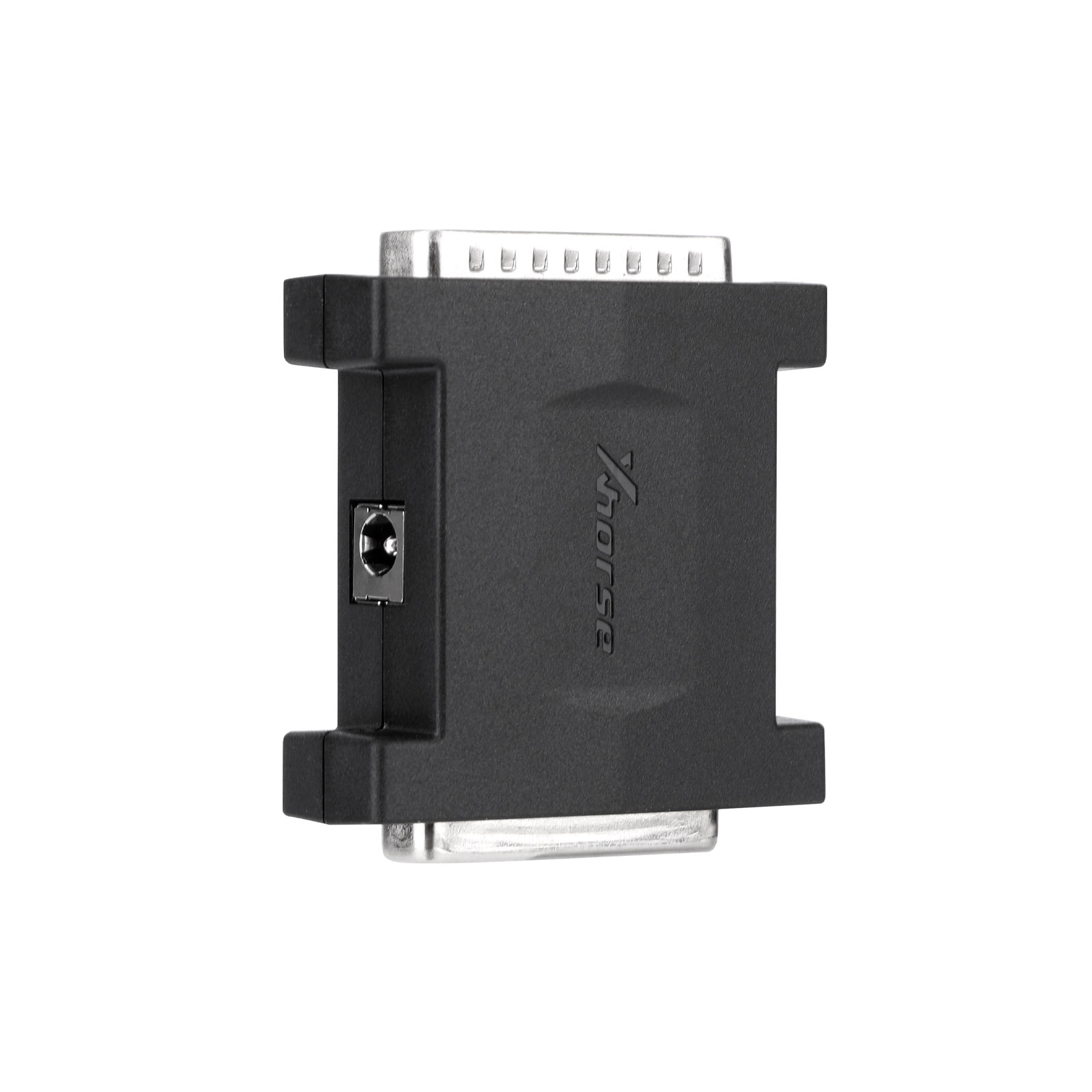

1pc x Xhorse VVDI MB TOOL Power Adapter







---
