Produktbeschreibung
VVDI KEY TOOL MAX is a professional smart device with multi-function, Bluetooth and WI-FI communication interface are integrated inside, which is convenient for connecting the Xhorse Key Cutting machine, MINI OBD TOOL, and other products to do specific operations. It adopts HD LCD screen with clear interface, easy to use and flexibility.
XHORSE VVDI KEY TOOL MAX Remote Programmer and Chip Generator
VVDI Key Tool Max is covers the same functions as the original VVDI Key Tool, like key cloning, remote generate, copy transponder etc., but on a robust Android tablet with optimized memory and processing power for future-proof updates. It features added ability to control the Condor Dolphin and to connect to the upcoming Mini OBD Tool, which contains immobilizer programming and diagnostic functions. The underlying goal here is to provide you a single platform which will guide you through creating a functional key and get it programmed to the vehicle.
Highlights:
1. Covers All VVDI Key Tool and MINI Key Tool Functions
2. Newly Added IC Copy Function, and Unlock Toyota Smart Key 128bit Function.
3. Lifetime Free Update, You Can Update on Xhorse APP Directly or Use
Xhorse Comprehensive Upgrade Tool.
4. Supported Language: English, German, French, Spanish, Italian, Korean, Polish, Portuguese, etc, Free to Switch
5. Get Free ID48 96bit Function. Please use the VVDI Max tool to generate Xhorse new remote key 10pcs, after collect points, 1 hour later, the server will open ID48 96bit function free.
6. Can Connnect The Condor Dolphin to Cut The Key without Useing Mobile Phone, and to Connect to the Mini OBD Tool, which contains immobilizer programming and diagnostic functions.
7. Buy KEY Tool Max+ MINI OBD Tool Bundle Can Not Only Match The Chip Remote Control of Imported Domestic Cars, Smart Card, But Also Toyota H Chip will be Released First on KEY TOOL MAX. VVDI Mini OBD Tool provides universal key programming functions & remote programming via OBD connect with Key Tool MAX
Supported Transponders
* ID 46/ ID 48 (96bit)/ Toyota H (8A) online calculation
* Transponder generation and clone of over 850 car models
* Special transponders and special cars and old car models
Supported Remotes
* Support Remote Generation, smart key generation for over 200 car brands, nearly 6000 remotes
* HCS/ Fix code clone, non-HCS rolling code clone, fix code editing
* PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fix code editing
Supported Vehicle List:
Asia
Acura Besturn Brilliance Chang An Chery China Immobox Daewoo Daihatsu Geely Great Wall Haima Honda Hyundai IKCO Infiniti Isuzu Kawasaki Kia Lexus Mazda Mitsubishi Nissan Proton SaicMotor Saipa SsangYong Subaru Suzuki Tata Toyota Yamaha
Europe
Alfa Romeo Aprillia Aston Martin Audi Bentley BMW Citroen Dacia DAF Ducati Ferrari Fiat Gilera Iveco Jaguar Lancia LOV MAN Maserati Mercedes Benz Opol Peugeot Piaggio Polonez Porsche Renault Rover Saab Scania Seat Skoda Smart TagAZ UAZ VAZ Volvo VW
North American
Bombardier Buick Cadillac Chevrolet Chrysler Dodge Ford GMC Jeep Lincoln Oldsmobile Pontiac

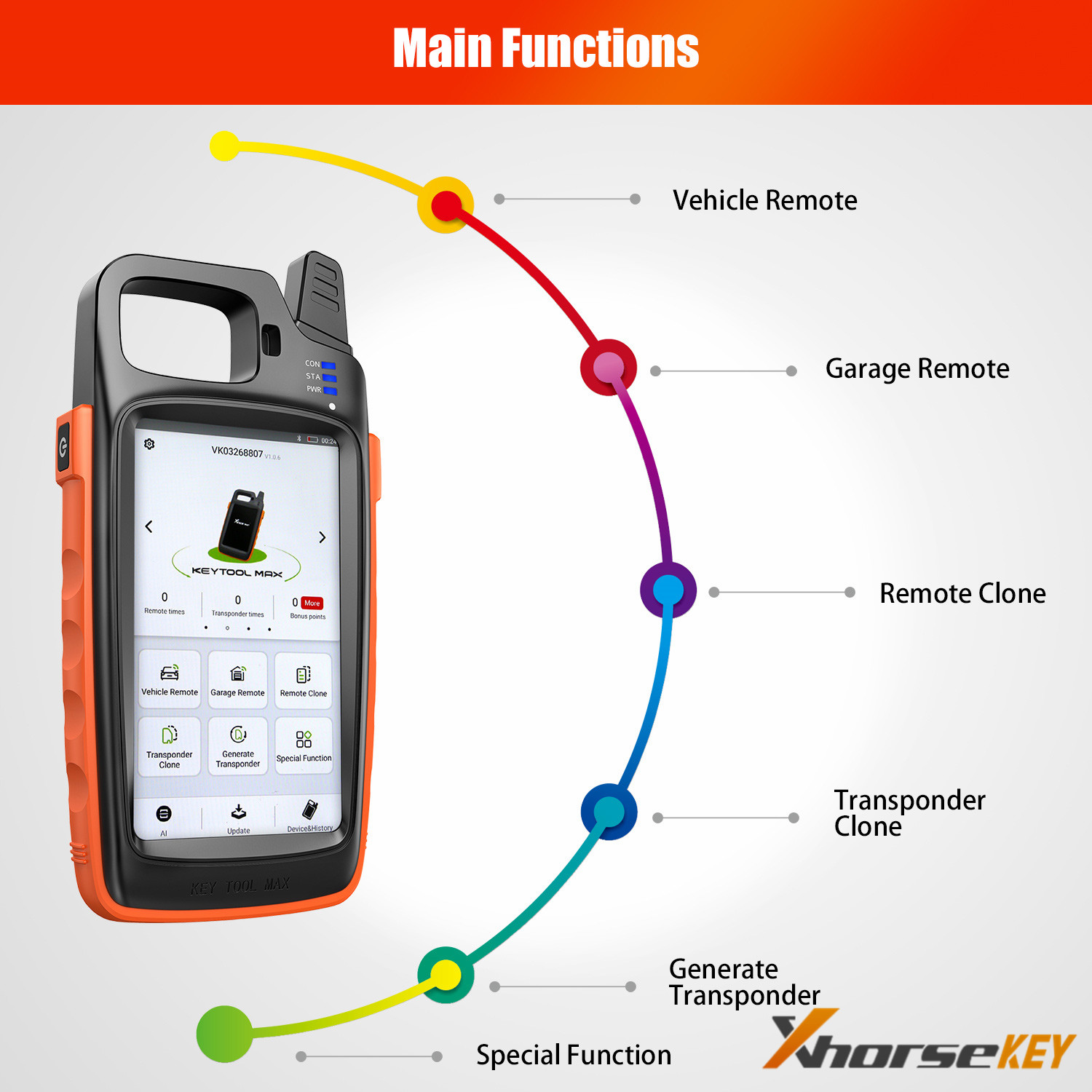

Functions:

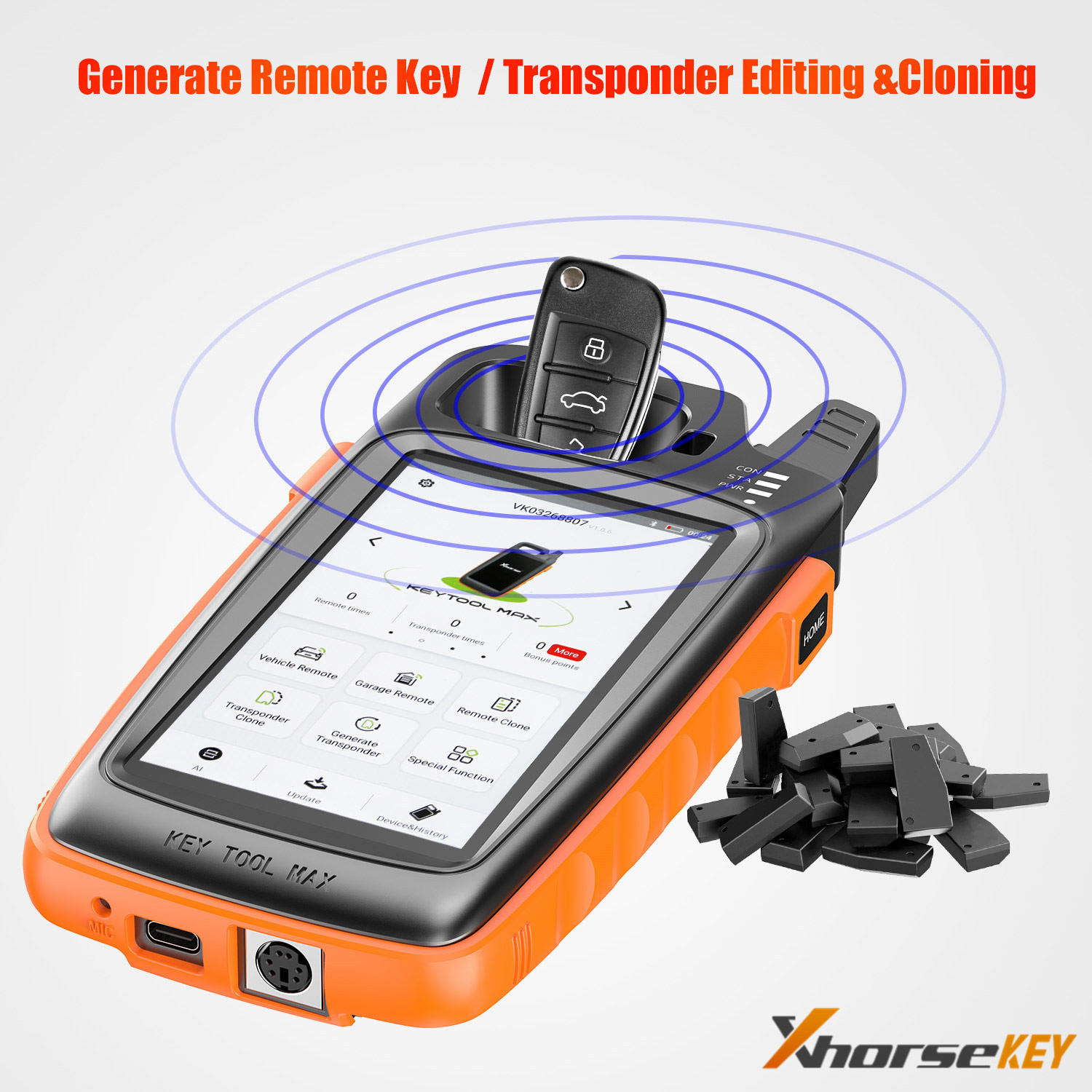

1.Transponder Editing & Cloning
Support identify most of the immobilizer transponders launched on the transponder market.
Support Editing and Copy of most common transponders.
2. Generate Transponder
Support generate immobilizer transponders for over 850 car models of 80 brands worldwide;
Support generate immobilizer transponders and write immobilizer data, especially for some special car models, old car models, etc.
3. Frequency Detection
Support the power test within the range of 300-450MHz;
4. Generate Remote
Support remote generation of over 2000 vehicle models of 200 brands worldwide;
Support HCS/ Fixed code cloning, support non-HCS rolling code cloning, support fixed code editing such as PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X, etc.
5. Generate Garage Remote
Support recognize and copy common ID & IC cards for unlocking Community door locks.
6. Work with DOLPHIN XP-005
KEY TOOL MAX can be connected with the DOLPHIN XP-005 via Bluetooth; The operating screen of KEY TOOL MAX can fulfill the same function of the DOLPHIN XP-005 to perfectly complete automatic key cutting work.you will no longer need to use a mobile phone, just use the Key Tool MAX screen to perform all Dolphin functions.
KEY TOOL MAX can be connected with Dolphin XP-005 key cutting machine via bluetooth to be used like operating screen of Dolphin XP-005. We will update more info once Key Tool Max release,please excepting!
7. Frequency Detection and Copy Remote
Support the power test within the range of 300-450MHz.
8. Rich Database
The Built-in abundant and thorough database which covers key pictures, transponder types, key blanks, and remote matching data, etc.
9. Copy Access Card
Support recognize and copy common ID & IC cards for unlocking Community door locks.
10. Toyota H Transponder
Activate the function of Toyota H transponder generation;
11. Remote Renew
VVDI Max if you need the function,please choose free with Renew Cable,then use renew function is OK.
12.Connect to MINI OBD Tool

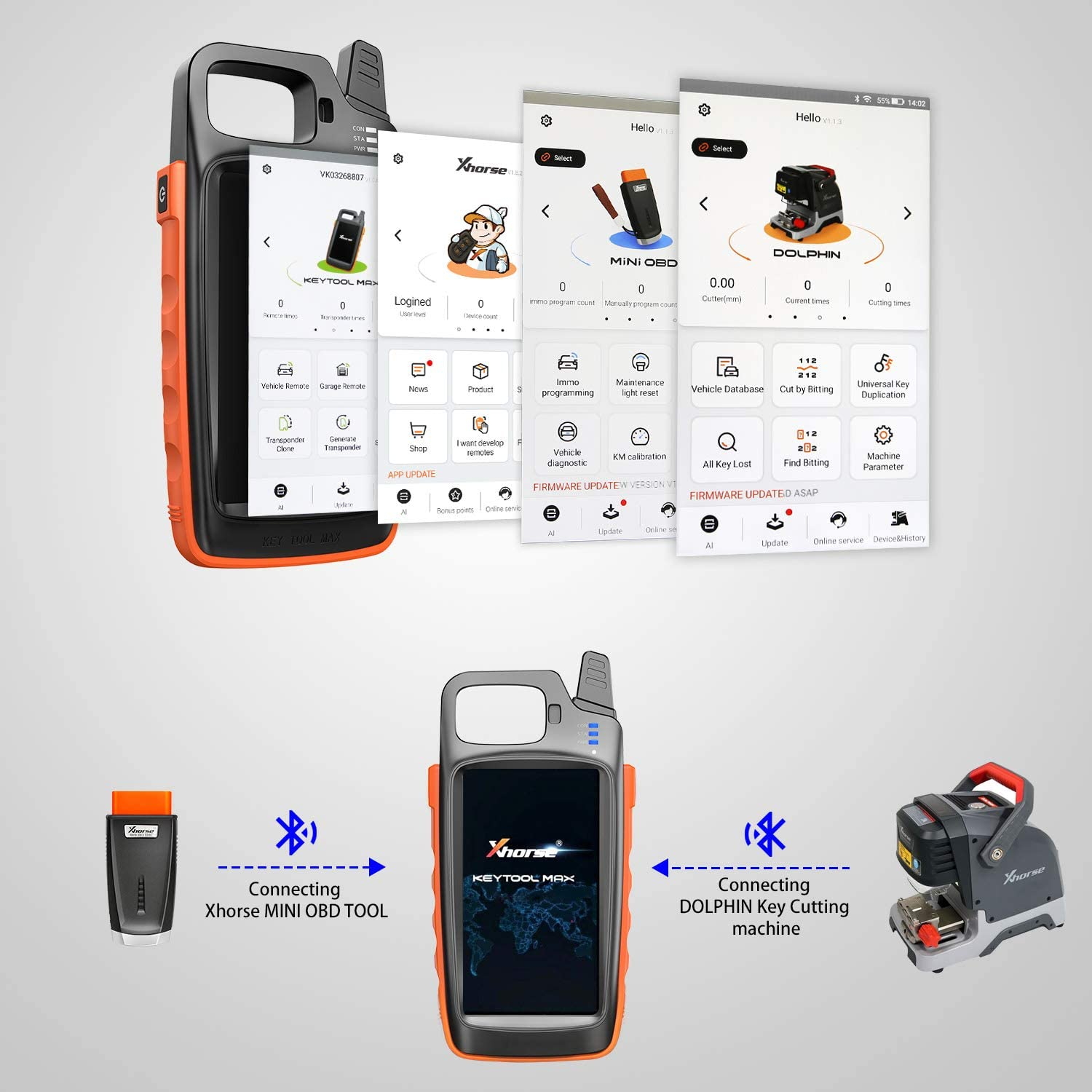

There are 3 ways for KEY TOOL MAX connect to MINI OBD TOOL: USB TYPE-C Cable, WIFI, Bluetooth
When You Use VVDI Key Tool Max First Time, You Need to Activate and Combine The Device.
Detail Steps are as below:
1. WIFI Connection;
2. Enter the mobile phone number for verification;
3. Enter the phone verification code to enter;
4. Enter the verification code binding again;
5. Device binding successful, setting completed, ready to use.

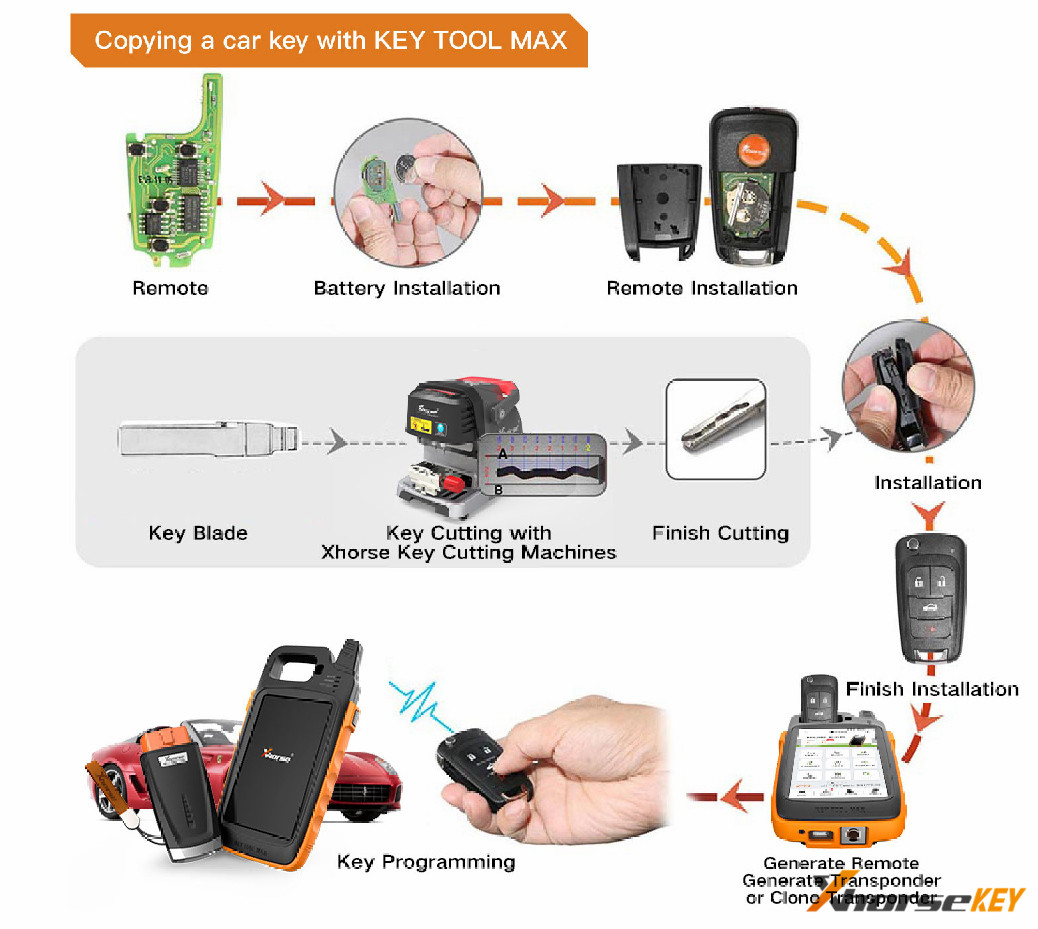

How to Use VVDI Key Tool Max?
Step 1: Read the vehicle data (VIN & immobilizer) via OBD utilizing the soon-to-be released Mini OBD Tool.
Step 2: View the remote and transponder chip information for the vehicle you're plugged into and instantly generate your chip and key.
Step 3: View the proper keyway for cutting on the Dolphin and cut your blade (once you've Lishi'd to determine your cuts).
Step 4: Take your completed key back to the vehicle for immobilizer programming
Note: The MINI OBD TOOL & Dolphin Key Cutting Machine need to additional purchase.
3 Ways for KEY TOOL MAX Connect to MINI OBD TOOL:
1: USBTYPE-C cable
2: WIFI
3: Bluetooth
1) Click on the [Select] on the HOME page, available device will be shown on the screen, choose device to connect according to Serial Number
2) Software will detect current device with software interface connection status, WLAN connection status and WIFI connection status.
How to Update VVDI KeyTool Max & Mini OBD Tool:
1. Download the Xhorse Upgrade Kit.
Install it on PC, make sure Internet-connected online.
2. Connect white USB cable provided on Mini OBD Dongle to PC USB.
Just follow on pop-up screen instruction.
This stage do not switch ON your KeyTool Max.
The upgrade kit will Auto Detect your device and update to the next version.
3. IMPORTANT Update Firmware version in sequence do not jump to the latest Version number.
Do it step by step until you get the latest version.
4. Switch on Your Key Tool Max and Pair (Bluetooth) with Mini OBD Tool
then you can get screen pop-up menu on Key Tool Max.
How to Use The FILE MAKE KEY Function?
*Only on KeyTool Max*
1. Click Special Function
2. Select IMMO data tool
3. Select Car brand and model
4. Select Country
5. Click Load
6. Open a browser window, enter the URL, address http://i.xhorse.com/#/
7. Scan the QR code with the Xhorse App
8. Click Quick login, scan PC QR code
9. Scanned the QR code successfully. Then click Confirm login.
10. Upload the file based on your needs.
11. Click My Data
12. Select the uploaded file
13. Take the next step based on users’ needs
14. Select the Key Information, then click Prepare dealer key
15. File Make Key is now done.
Xhorse VVDI Mini Key Tool v.s. VVDI Key Tool Max
Item |
VVDI Mini Key Tool |
VVDI Key Tool Max |
Generate Remote and Smart key |
Yes |
Yes |
Support language |
English/ Chinese/ Spanish/ French / Hindi/ Hebrew/ Italian/ Thai/ Polish/ Portuguese/ Korean / Indonesian
|
English/ French/ Spanish
Notice: you are required to get other languages from the local dealer.
|
Wifi connection |
Yes |
Yes |
Program and Immo Transponder |
Yes |
Yes |
Generate Special Transponder |
Yes |
Yes |
Renew Remote |
Yes |
Yes |
Generate and Copy Garage Remote |
Yes |
Yes |
Frequency Detection and Copy remote |
Yes |
Yes |
Connect to Xhorse Key Cutting Machine |
No |
Yes |
ID48 96bit function |
Yes (Free, one token free everyday one year)
|
Yes (You are required to generate 10 new Xhorse remotes to collect points. Then you can obtain the function automatically.)
|
Support OBD matching transponder remote/ smart card |
No |
Yes, by working together with Mini OBD tool.
|
Recognize and copy Access card (IC copy) |
No |
Yes |
Work with VVDI Mini OBD |
No |
Yes |
Support update |
Yes (Update through Xhorse upgrade kit or Xhorse APP)
|
Yes (Update on its own machine)
|
Immo programming |
No |
Yes, must link VVDI Key Tool Max with the extra MINI OBD adapter. |
Notice:
not all vehicles cover the functions of IC copy and IMMO programming. These functions are determined by the specific vehicle and year.
VVDI Key Max Review
Review 1:
This tool has allowed me to start a side business providing keys and programming them for people looking to save some money. It's worked pretty well for the most part, but it's definitely no replacement for a professional key programmer like the Autels and Xtools. The cloning feature is pretty sweet so you can copy transponders from immobilizer keys. Definitely had some failures on some cars where this tool just doesn't communicate with the vehicle.
Reivew 2:
Great product!Im a small car dealership and this tools is very handy for clone keys .Fast shipping and everything was as was described
Review 3:
The device arrived on time. We'll test. Looks good. This seller is really top. Any questions you steal from him, he will just give you a neat answer. The device works perfectly and the mini obd is just top. You also get a lot of pardon updates. This seller really knows what he I really recommend everyone to buy from him.
Review 4:
The VVDI Key Tool Max is that a good tool for keys and can the do pincode read The moest Cars that i do key learning Fiat Peugeot Citron ford Renault Opel Audi Seat Skoda vw Kia And most of the chips are not xhorse
FAQ:
Q: Does Xhorse VVDI Key Tool Max need to be online to copy the Toyota 8A? And how about the token?
A: if you use Xhorse super chip, server will be token free. for other chips need to charge 100 bonus points.
Q: What is difference of VVDI Max and VVDI MINI?
A: VVDI key tool max contain screen , it can work with VVDI MINI OBD Tool and Dolphin XP005.
VVDI key tool maxand vvdi mini transponder/ remote function is almost the same, But for some keys need to generate online then you can only use the vvdi2 or vvdi key tool max
VVDI key tool max ID48 96bit function needs to generate 10 xhorse remote keys to get. But VVDI MINI ID48 function is free,and one token free everyday for 1 Year.
Q: How to activate the 96bit 48 clone function?
A: Please use the Key Tool Max to generate Any Xhorse remote key 10pcs. After collect bonus points,server will open ID48 96bit function freely after one hour
Q: Xhorse VVDI Key Tool Max can't clone any remote control?
A: for special clone, it only supports wired remotes
Q: I was wondering if the Xhorse VVDI Key Tool Max and the mini obd tool would allow me to delete that key fob from my vehicles memory and deter those people from stealing my car since the key unlocks and starts the car? my car is 2014 Chevy Sonic sedan.
A: sorry, the vvdi key tool max can't support it
Q: Does vvdi key tool max support all key lost for Toyota Camry?
A: Yes, it can support
Q: How can I update the firmware?
A: Please connect the vvdi key tool max to your laptop
Download the update kit from the APP, then choose the vvdi key tool max, and update it to the latest version
Q: Vvdi keytool max can generate 2013 Ford Explorer 80 bit chip?
A: yes, it can generate ford 80 bit chip
Q: can vvdi key tool max do all key lost for 2020 corolla H?
A: it can't support

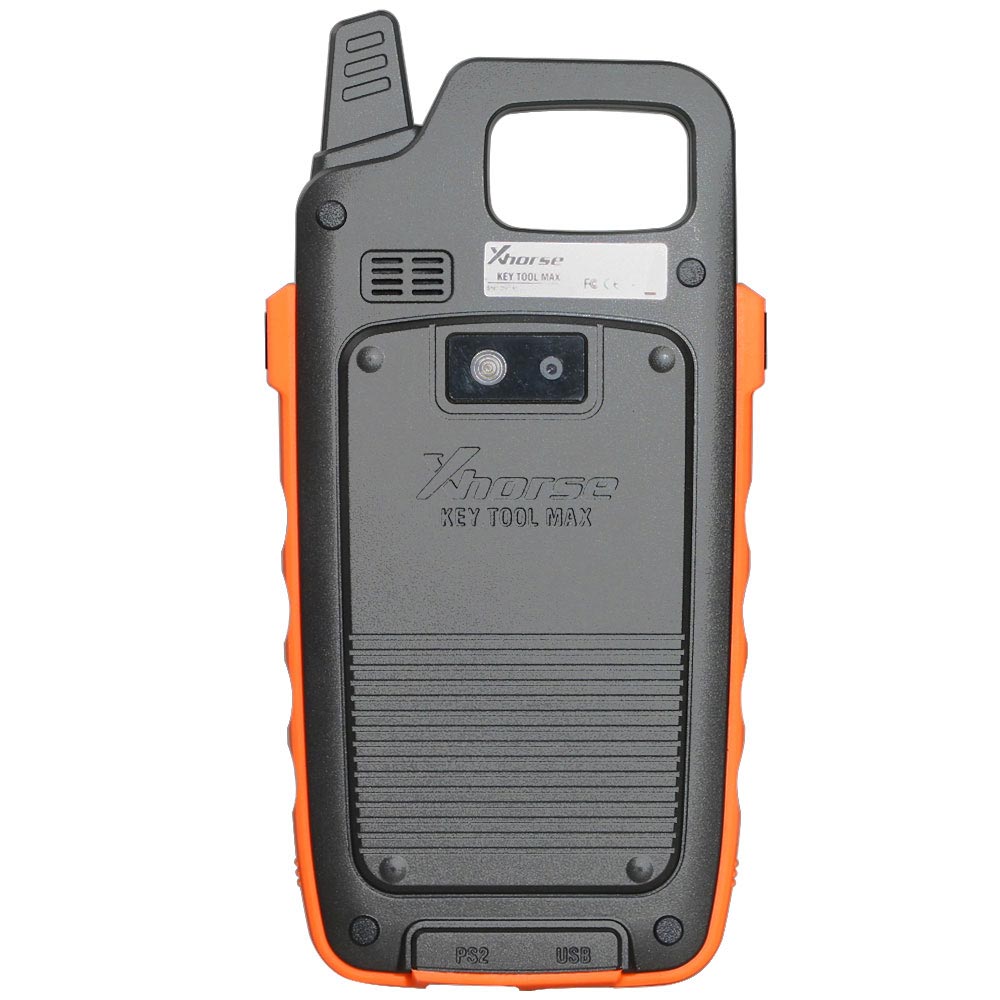

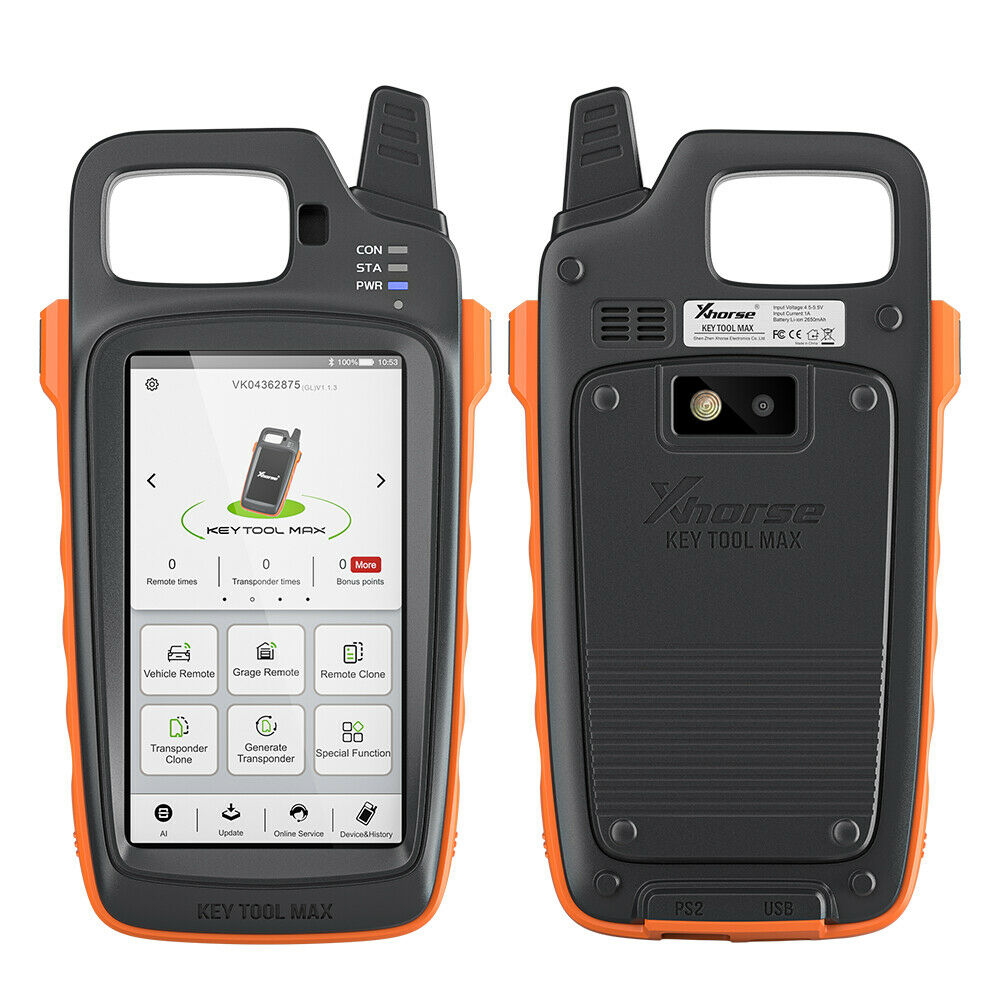

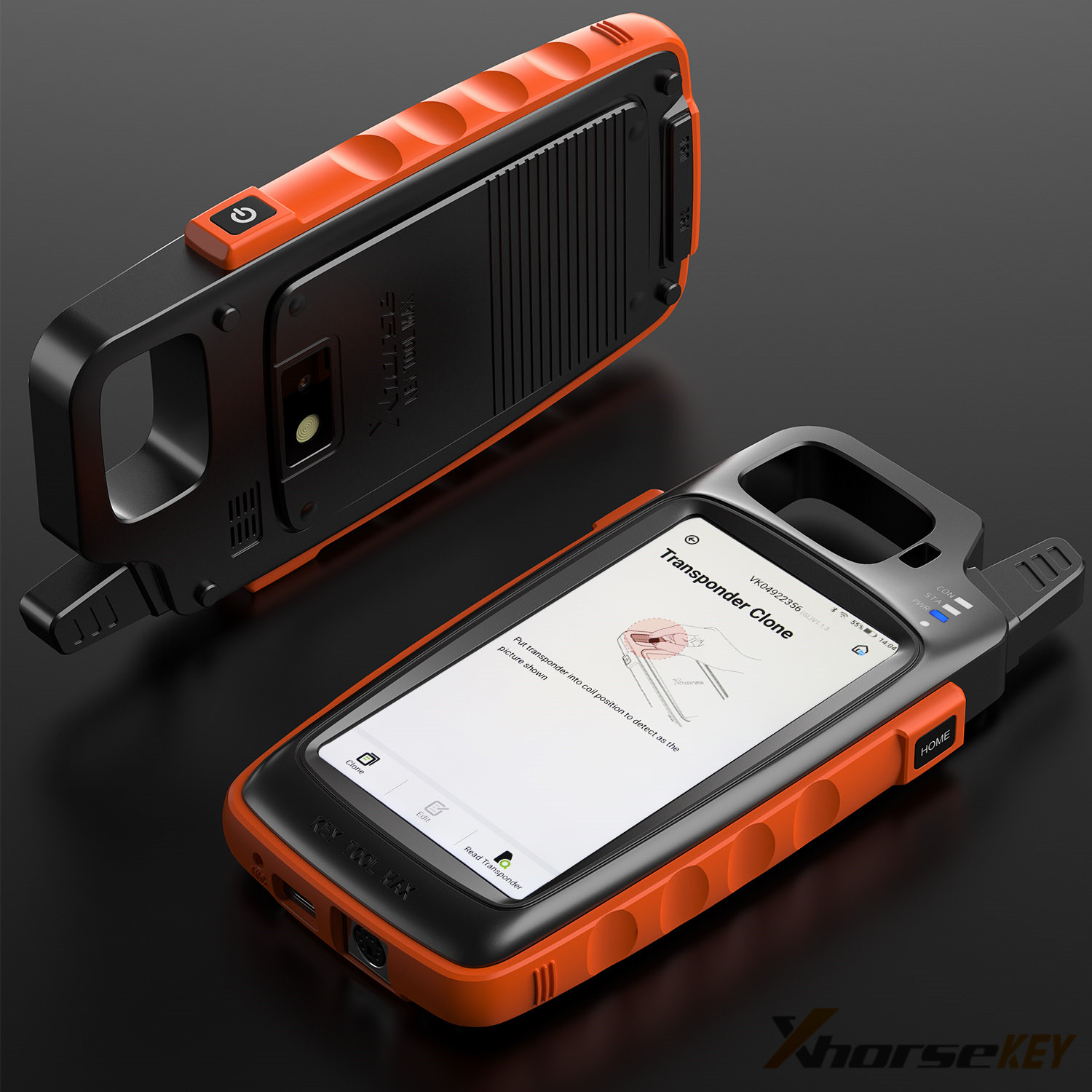

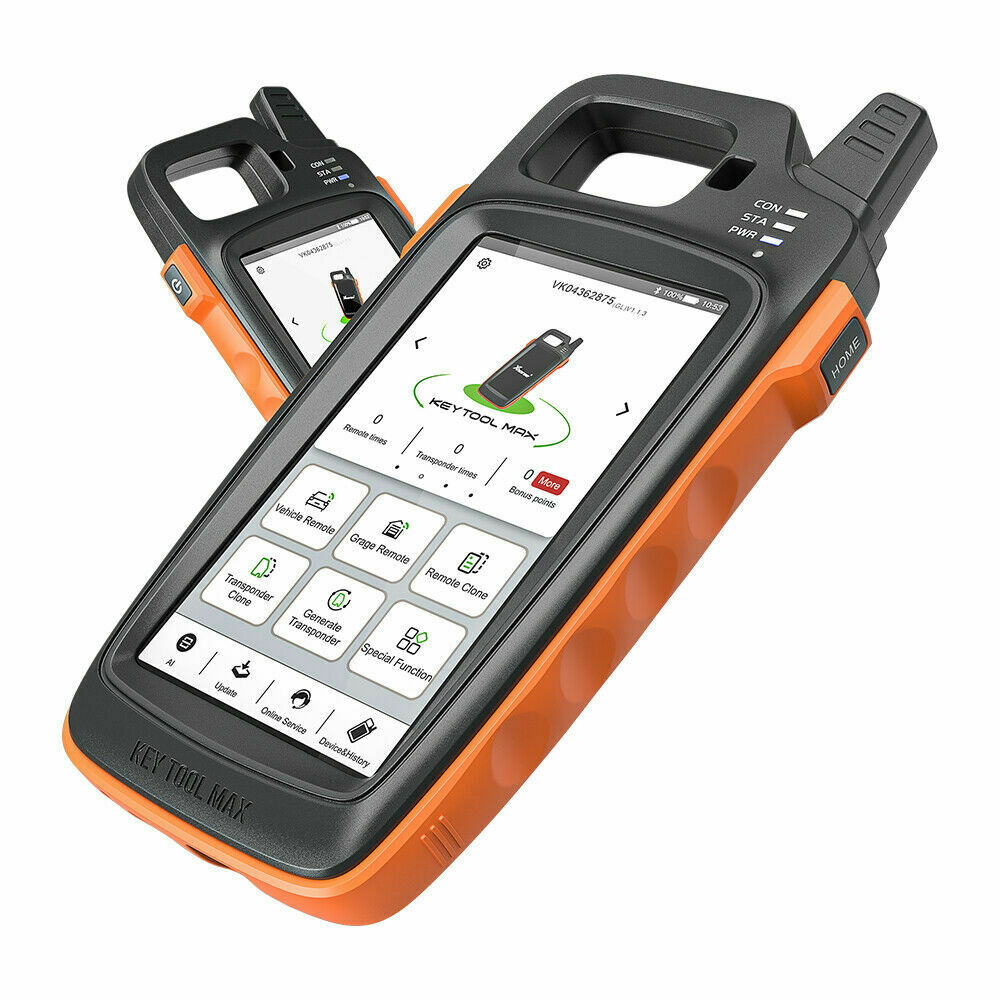

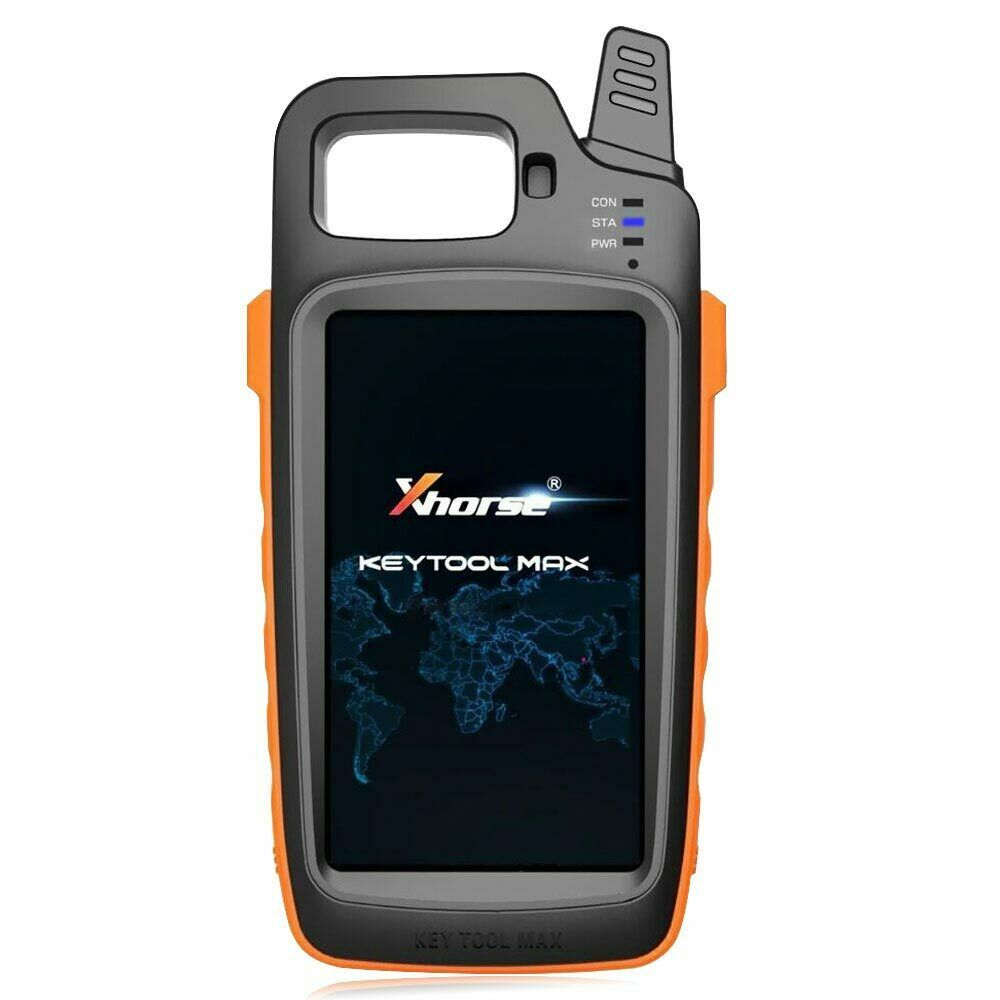

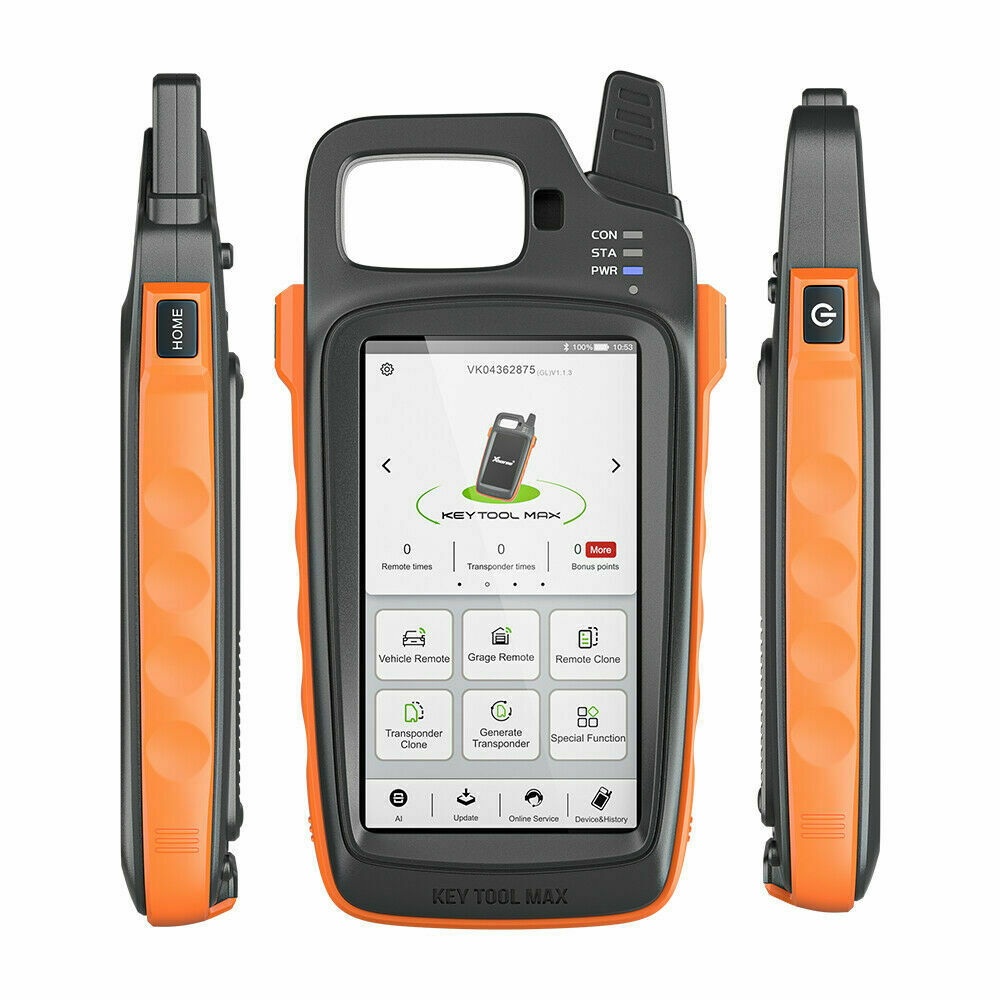

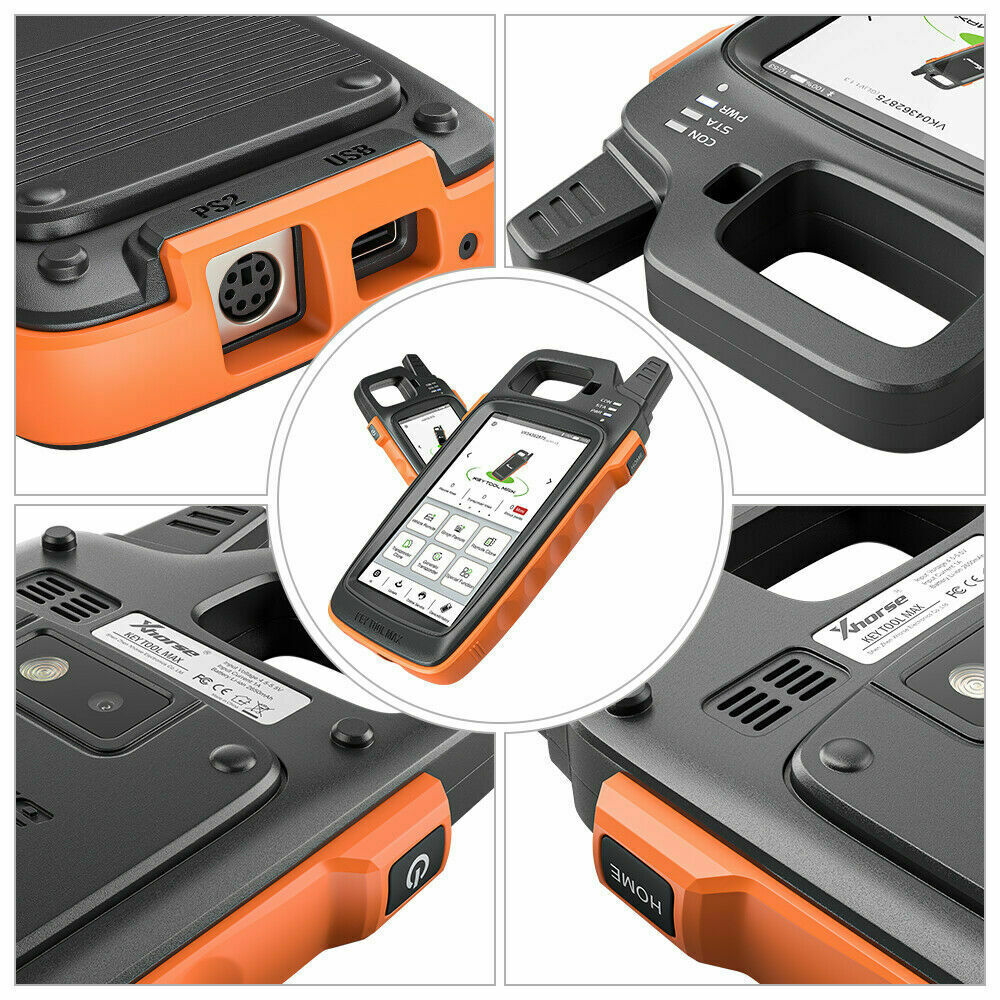

Product Display:
Specification:
Battery capacity: 3375mAh
Battery life>6 hours
Standby time>5 days
Recharging current: 1500mAh
Brightness>400nlts
Screen resolution: 1280*720P
Camera resolution: 800W

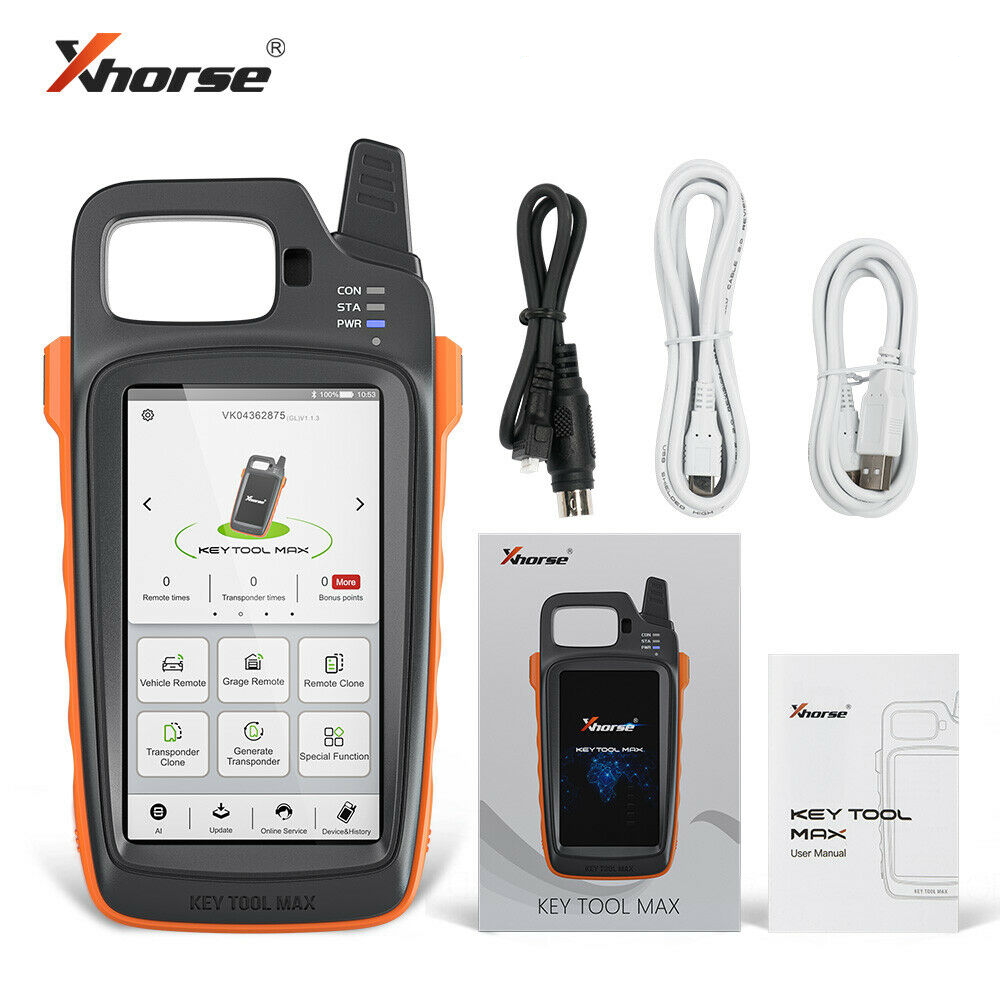

Package List:
1pc x VVDI Key Tool Max device
1pc x USB cable
1pc x Remote generate cable
1pc x User manual
