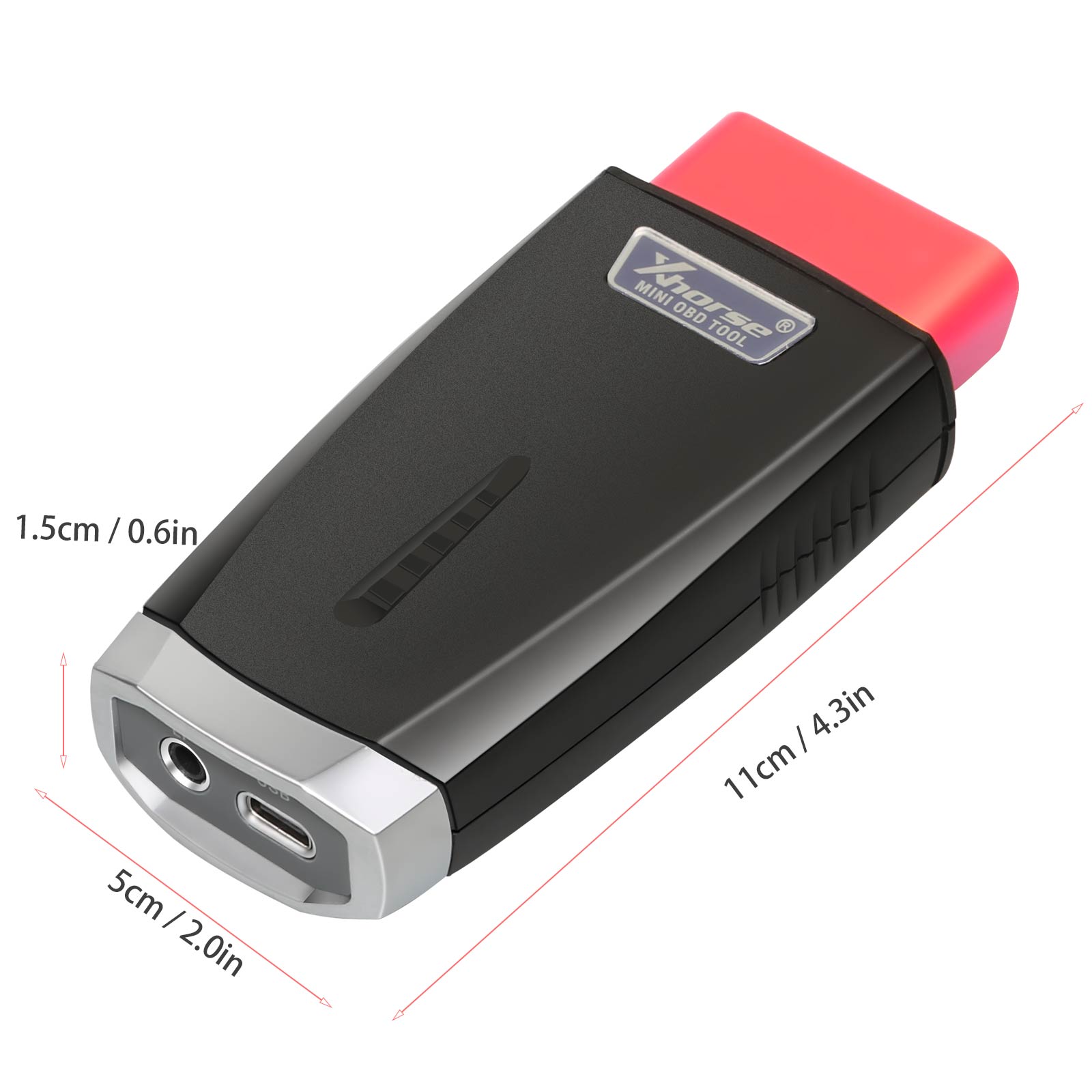

13.2cm*8cm*2.8cm     ( Inch: 5.2*3.15*1.1 )
Kehrt zurück:
Return for refund within 30 days,buyer pays return shipping. Read details »

Zugehörige Download-Dateien


Xhorse VVDI Mini OBD Tool is designed to work in tandem with the VVDI Key Tool Max. It is a wireless OBD vehicular interface that provides diagnostic reporting and manipulation as well as containing immobilizer programming capabilities. If you do any automotive work at all, you're going to want to embrace this new platform.
Xhorse VVDI Mini OBD Tool Work with Xhorse VVDI Key Tool Max/ Xhorse App

MINI OBD TOOL is a multi-function vehicle programming tool with vehicle diagnosis, Immo Programming, Throttle program, Tire pressure light reset, maintenance light reset and etc. It can be used with VVDI Key Tool Max to perform remote function like Generate transponder, Transponder Clone, Generate Remote, Remote Clone, OBD matching transponder/ remote/ smart card.


1. Own ECU Data of Over 850 Car Models of 80 Brands Worldwide
2. Can Connect with Specific Software or Hardware by WIFI, WLAN or USB Interface.
3. Support Work with both Xhorse APP and Key Tool Max.
Please update Xhorse app to newest Version, vvdi mini obd tool can Work With Xhorse APP Now.
4. It's a Wireless OBD Vehicular Interface that Provides Diagnostic Reporting and Manipulation as well as Containing Immobilizer Programming Capabilities.


1. If a Key Cannot be Cloned or All Keys Lost Then OBD is Used
2. Please Update Xhorse App to Newest Version,
vvdi mini obd tool can work with xhorse app
3. The Mini OBD is Just an Extension of The Key Tool MAX. VVDI Mini OBD should work with Key Tool Max. Buy Key Tool Max +Mini OBD Tool

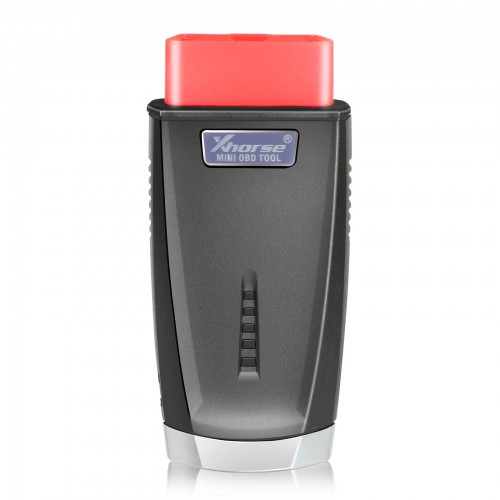

Xhorse VVDI Mini OBD Tool

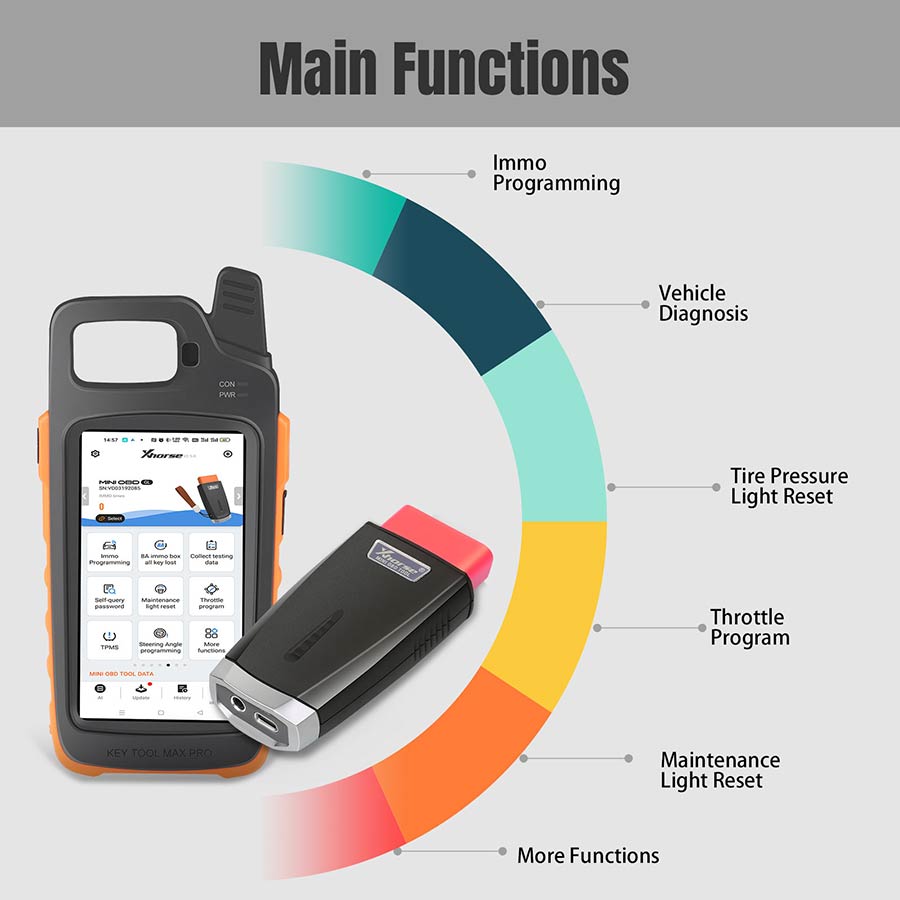

Main Functions:

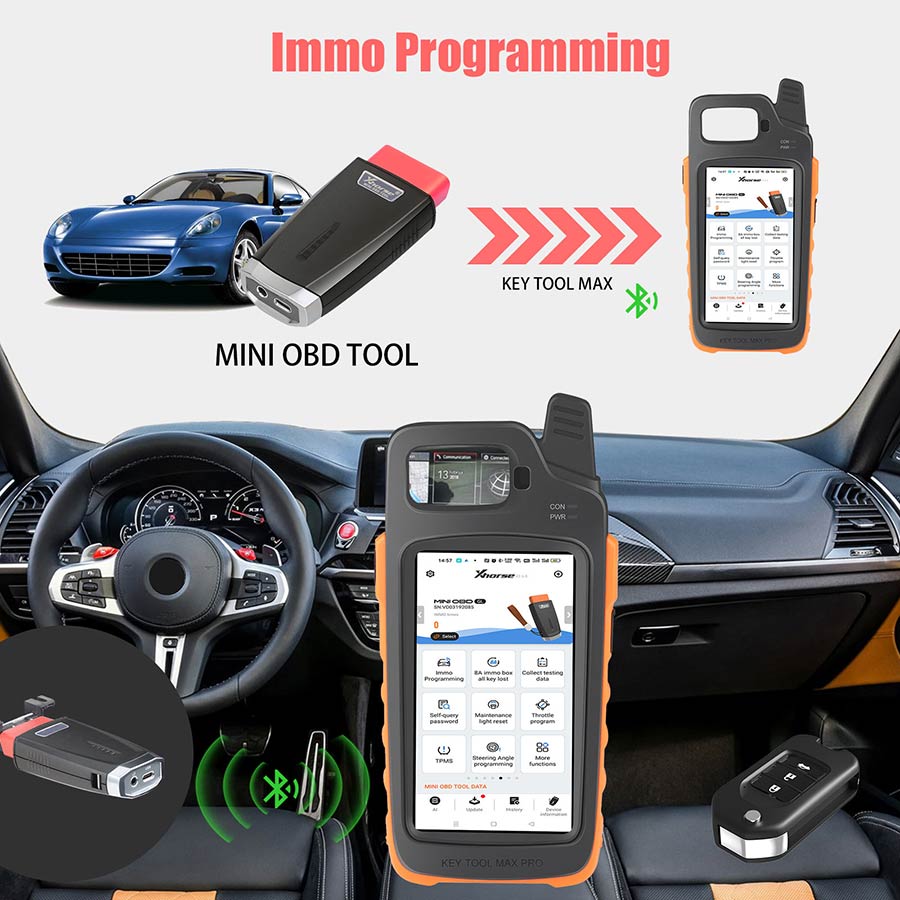

1. IMMO Programming
Own ECU data of over 850 car models of 80 brands worldwide;
Support reading vehicle data (immobilizer, remote, and transponder, etc) while MINI OBD TOOL is plugged into the car. The vehicle data will be directly displayed on the KEY TOOL MAX screen/smartphone, and used to instantly generate transponders and remotes.

2. Vehicle Diagnostic
Support Vehicle Mechanical Failures Detection and Analysis without car disassembly;
Support read vehicle DTC code, vehicle data stream, and clear DTC code via OBDⅡ interface.

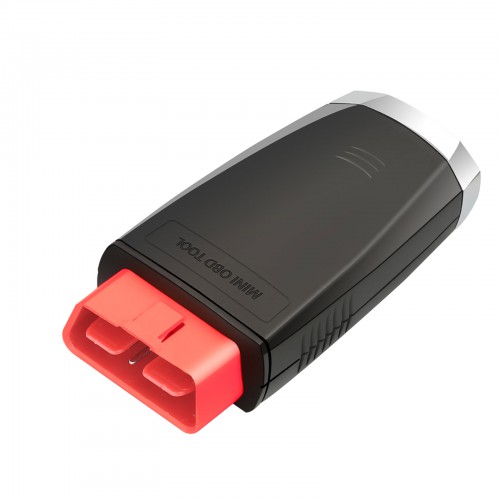

Xhorse VVDI Mini OBD Tool

3. Tire Pressure Light Reset
Support tire pressure light reset after the TPMS sensor fault is cleared up.

4. Throttle Programming
Support throttle reset after cleaning the electronic throttle or after exchanging a new throttle assembly.

5. Maintenance Light Reset (Working with Key Tool MAX or Key Tool Plus to Operate)
Support maintenance light reset after clearing up maintenance light data.

6. 8A IMMO Box All Key Lost (Working with Key Tool MAX or Key Tool Plus to Operate)
Xhorse Mini OBD tool is able to program Toyota 8A chip all keys lost with the help of Xhorse 8A adapter
There are 3 ways to connect the VVDI key tool max to the Xhorse mini OBD tool:
* Connecting Xhorse key tool max with Xhorse mini OBD by USB type-C cable
* Connecting Xhorse key tool max with VVDI mini OBD by WIFI
* Connecting Xhorse key tool max with mini OBD tool by Bluetooth

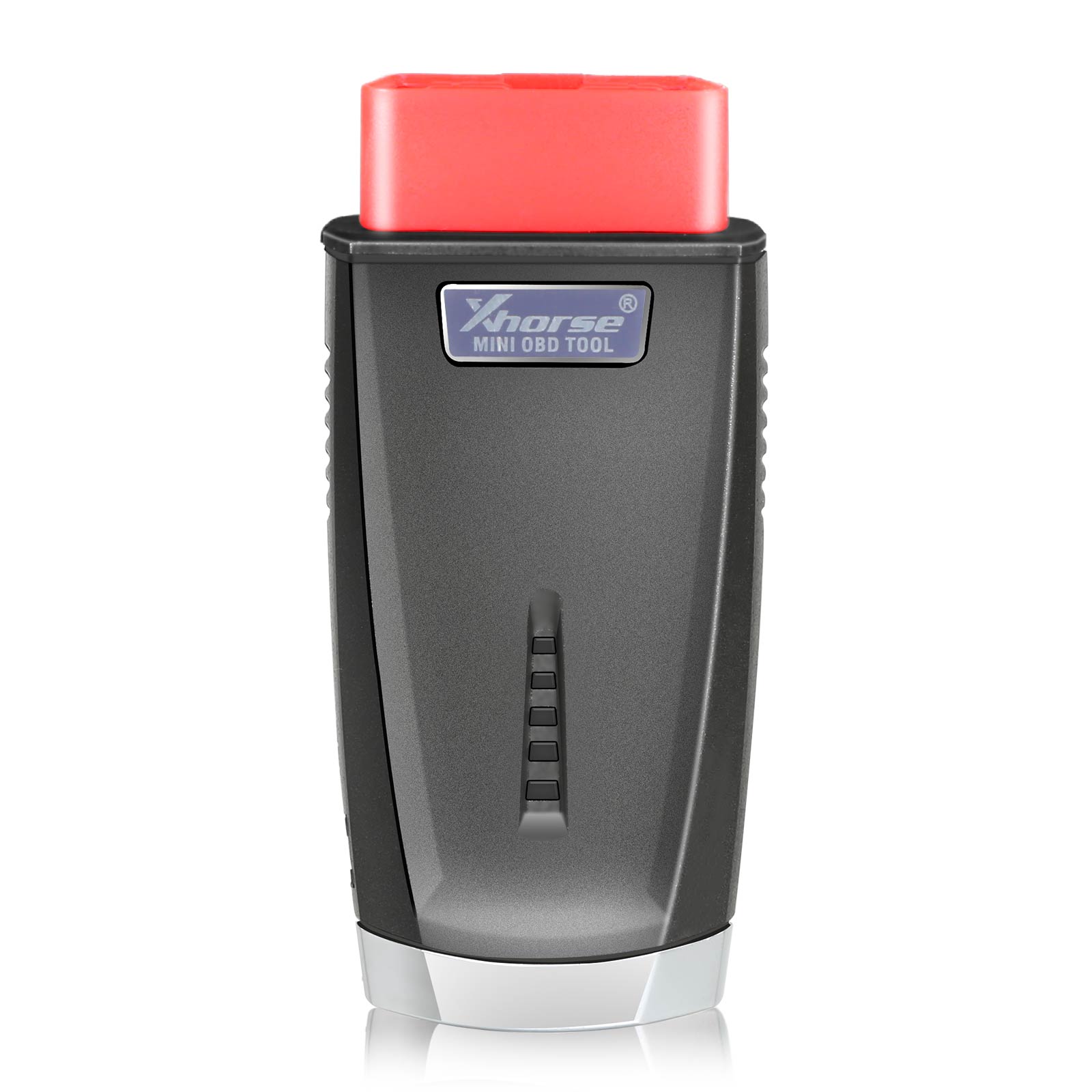

Xhorse VVDI Mini OBD Tool

How to Connect Xhorse Mini OBD Tool with VVDI Key Tool Max:

There are 3 ways for Key Tool Max connect to MINI OBD Tool
1--USBTYPE-C cable
1) Click on the [Select] on the HOME page, available device will be shown on the screen, choose device to connect according to Serial Number
2) Software will detect current device with software interface connection status,WLAN connection status and WIFI connection status.

How to Update VVDI MINI OBD Tool?

1. MINI OBD Tool connect with computer, use xhorse update kit software to update firmware.
2. Or connect mini obd tool with vvdi max to update firmware.
Connect WIFI ensure internet is good.
Update need around 10 minutes, ensure device with enough power at least remain more than 20%.
Don't press Power button while update.

The underlying goal here is to provide you a single system which will guide you through creating a functional key and get it programmed to the vehicle.

Step 1: Read the vehicle data (VIN & immobilizer) via OBD utilizing the Mini OBD Tool and Key Tool Max (required)
Step 2: View the remote and transponder chip information for the vehicle you're plugged into, directly from the Key Tool Max tablet. Utilize that information to instantly generate your chip and key.
Step 3: View the proper keyway (on the Key Tool Max) for cutting on the Dolphin and cut your blade (once you've Lishi'd to determine your cuts).
Step 4: Take your completed key back to the vehicle for immobilizer programming with the Mini OBD Tool and Key Tool Max.
Step 5: Profit!
The diagnostic software suite will include the ability to read and clear check engine codes, modify antilock braking systems, adjust TMPS settings, performance tune the ECM and so much more.
This is truly a one-of-a-kind, comprehensive key-generating platform from some of the most innovative minds in our industry.

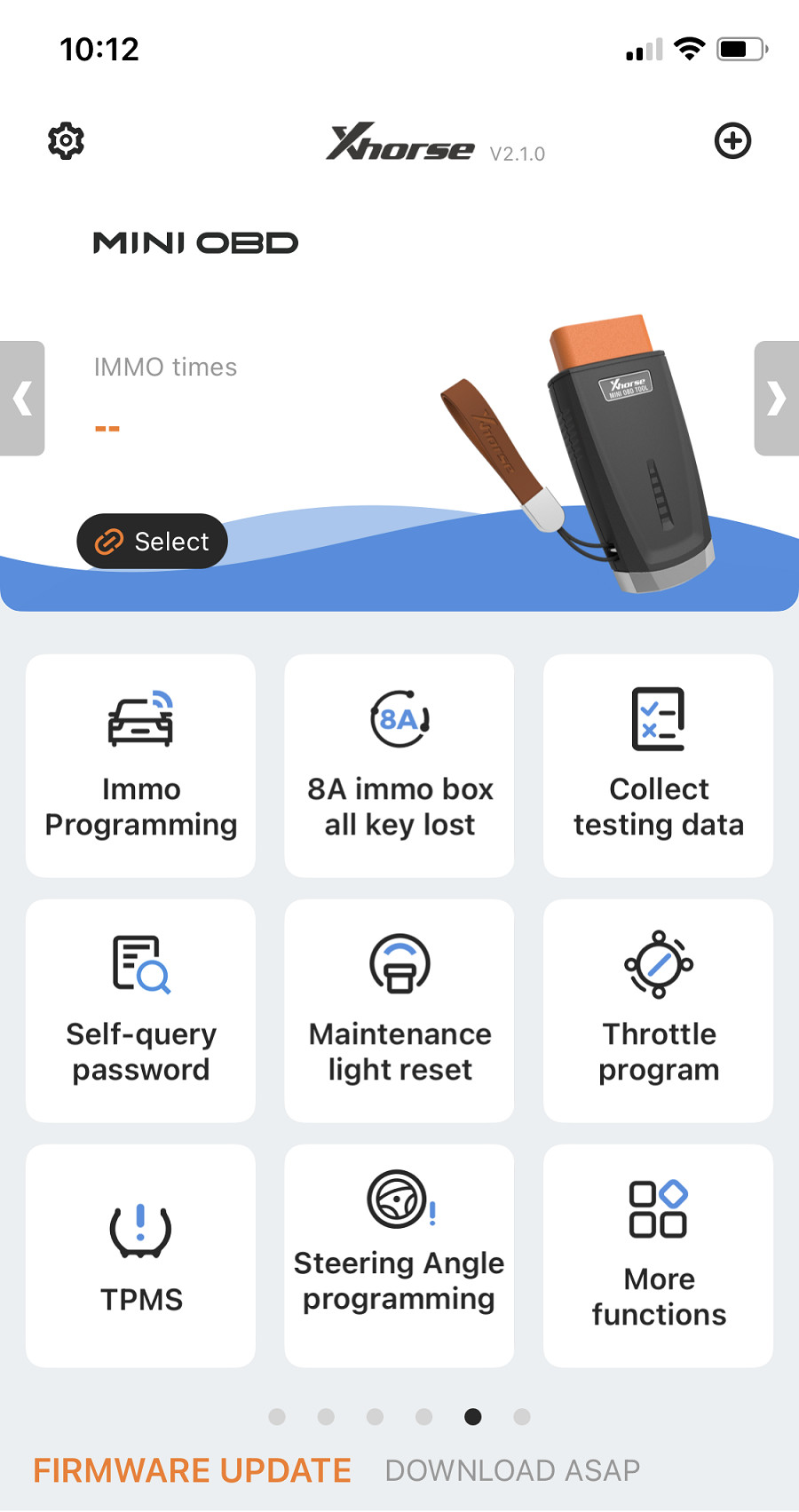

Xhorse App V1.8.5 and Up Adds Xhorse Mini OBD Tool Software

Now just Immo programming function and Collection testing data function release, OBD2 Diagnostic, Immo Programming, Maintenance Light Reset,Throttle body Learning, KM Calibration and more functions are under development

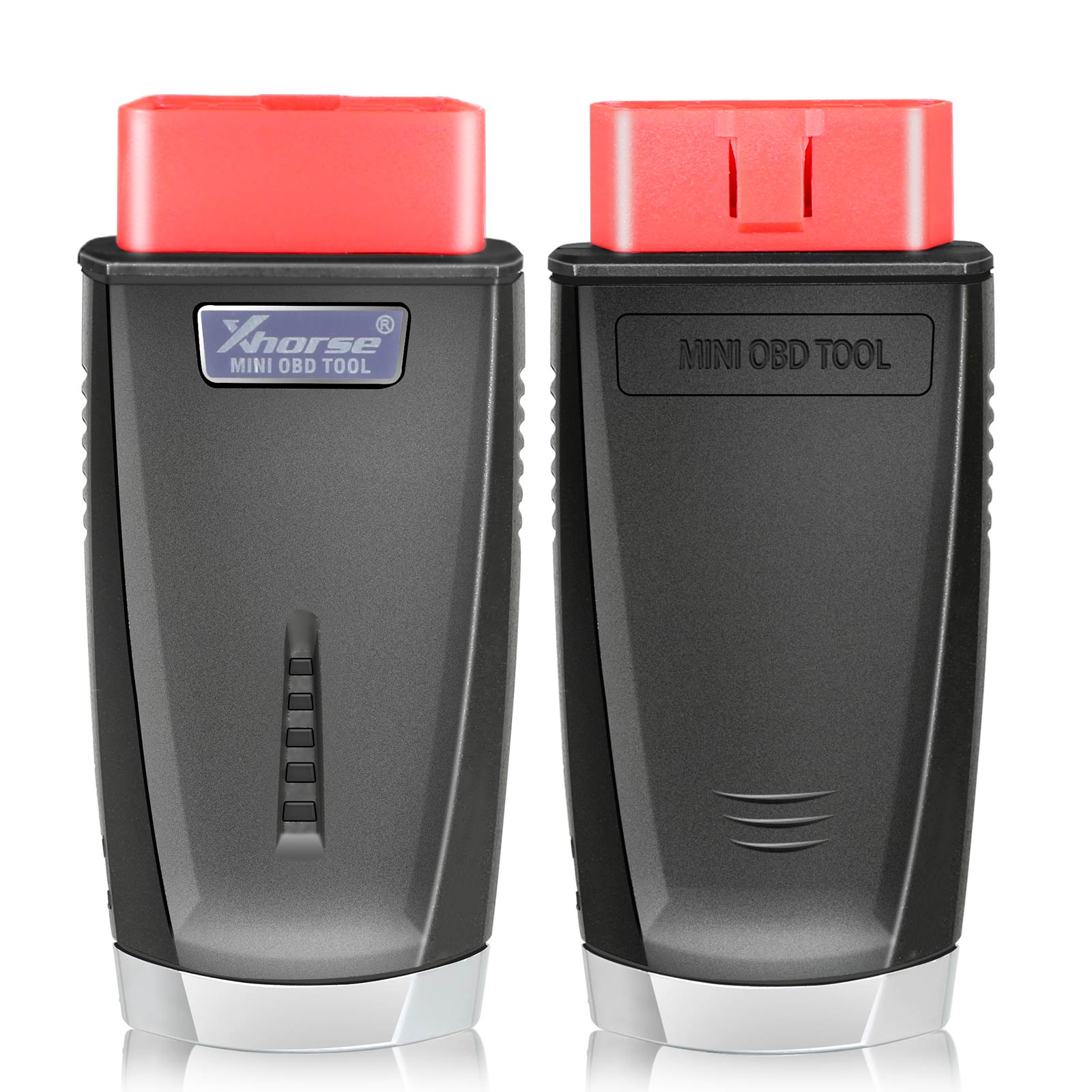

Xhorse VVDI Mini OBD Tool

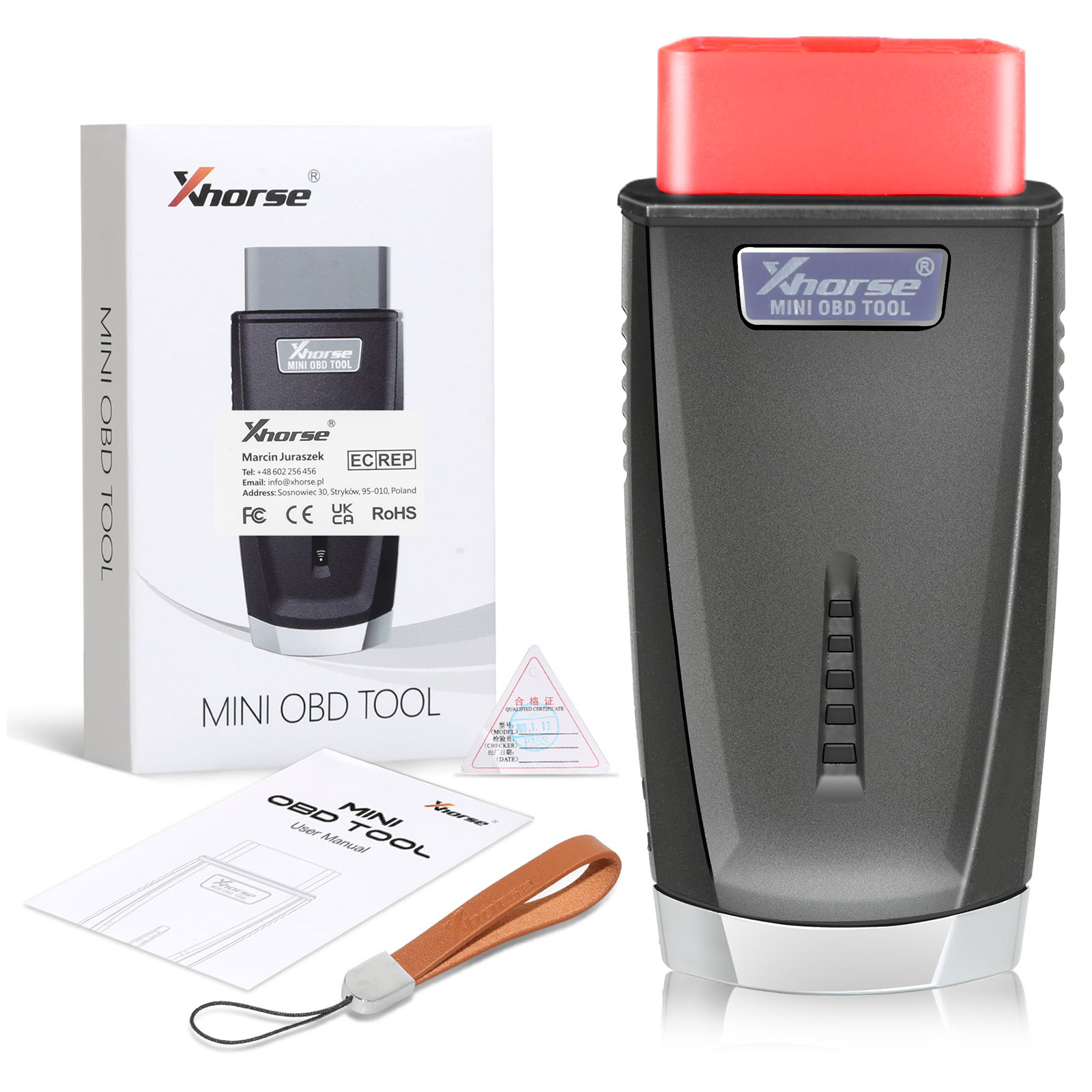

Package List:

1pc x VVDI MINI OBD Tool
1pc x Carton Box
