Xhorse VVDI BE Key Pro Improved Version comes with new design gets more compatibility, with High Stability, High reliability, and Digital Signature

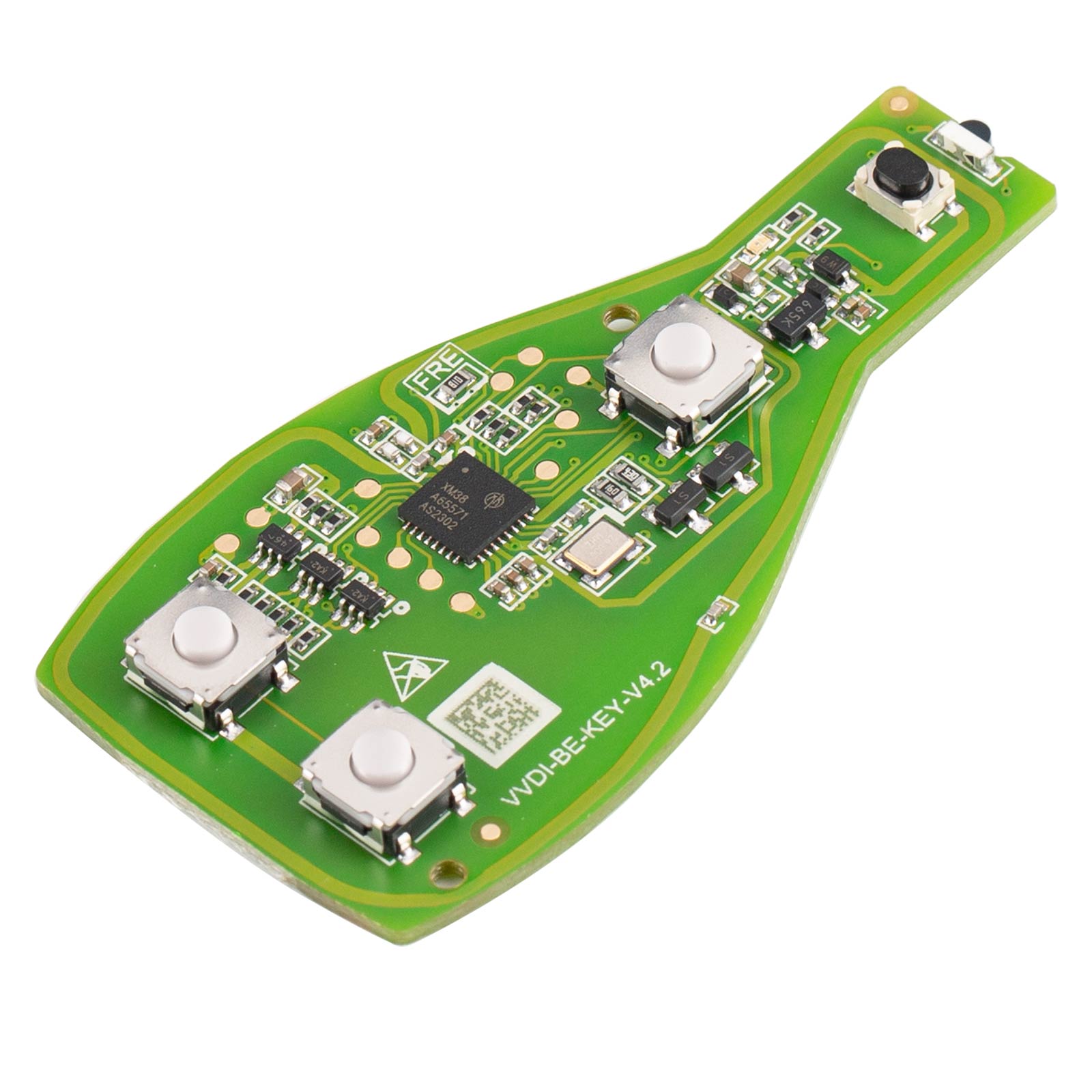

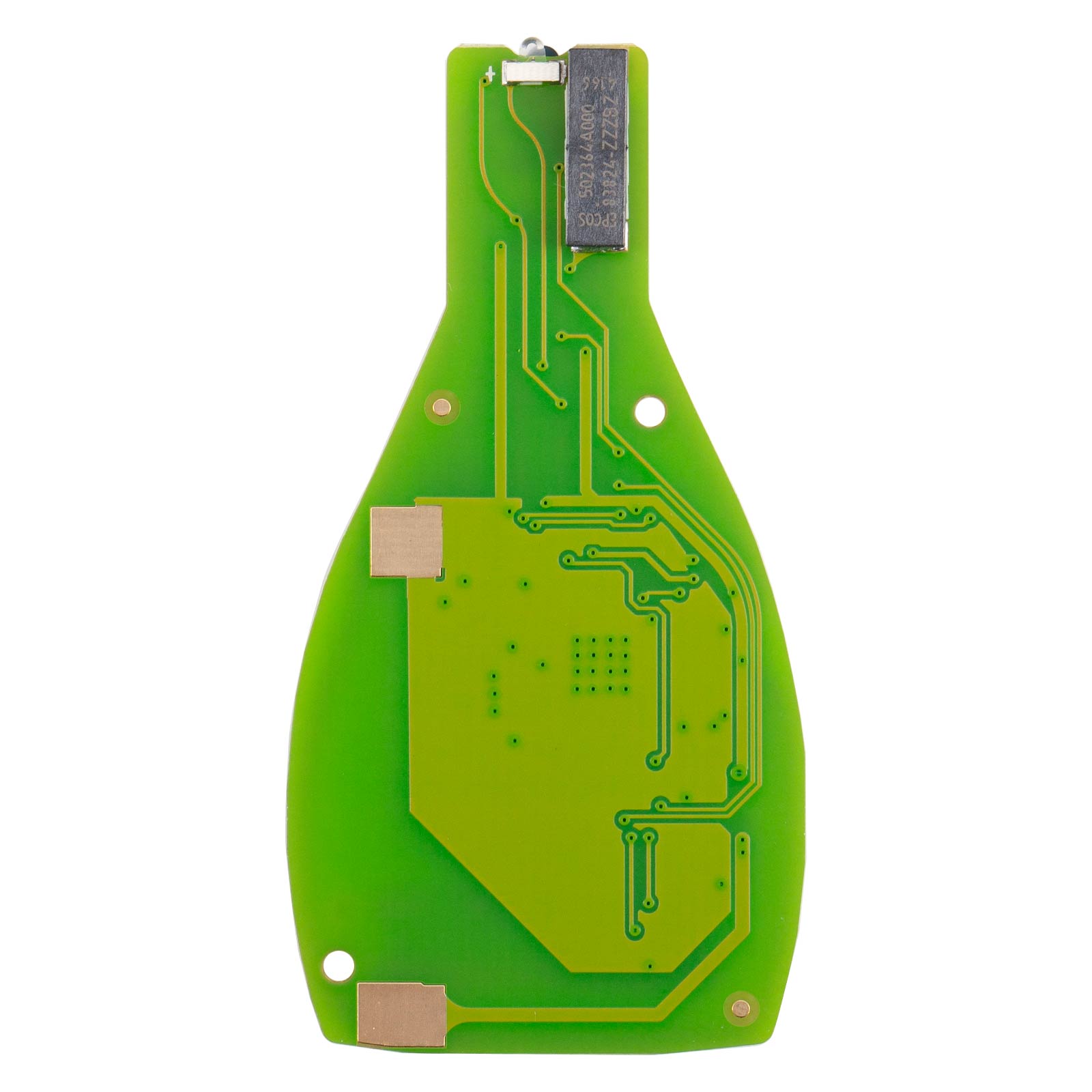

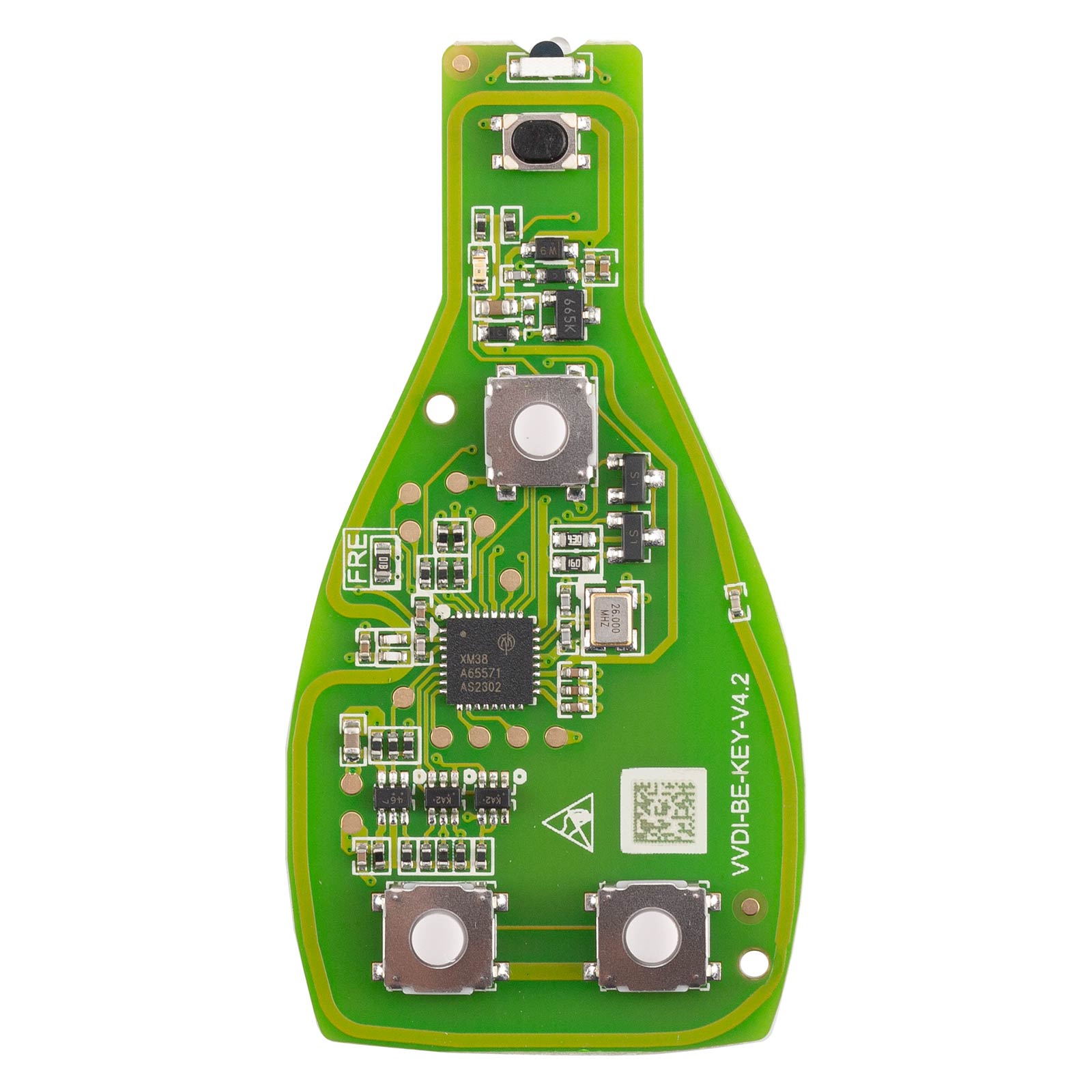

Xhorse XNBZ01EN VVDI BE Key Pro Improved Version (V1.5 PCB) for VVDI MB BGA Tool
Highlights and Notice:
1. Best Quality Benz Key PCB. More Compatibility, Higher Reliability.
(PCB Only withou Case/Shell)
If You Need Both PCB and Key Shell, You Can Buy VVDI BE Key Pro with Smart Key Shell 3 Button Complete Package
2. 1 VVDI BE Key Pro Improved Version = 200 VVDI MB BGA Tool Points= 1 VVDI MB BGA Token, please get the token yourself in APP.
3. Xhorse VVDI BE Key Pro with New Design Gets More Compatibility, with High Stability, High reliability, and Digital Signature
4. 315Mhz/ 433Mhz Can Be Both Supported. You Can Change Frequency via VVDI MB Tool Software or Remove the Resistor.

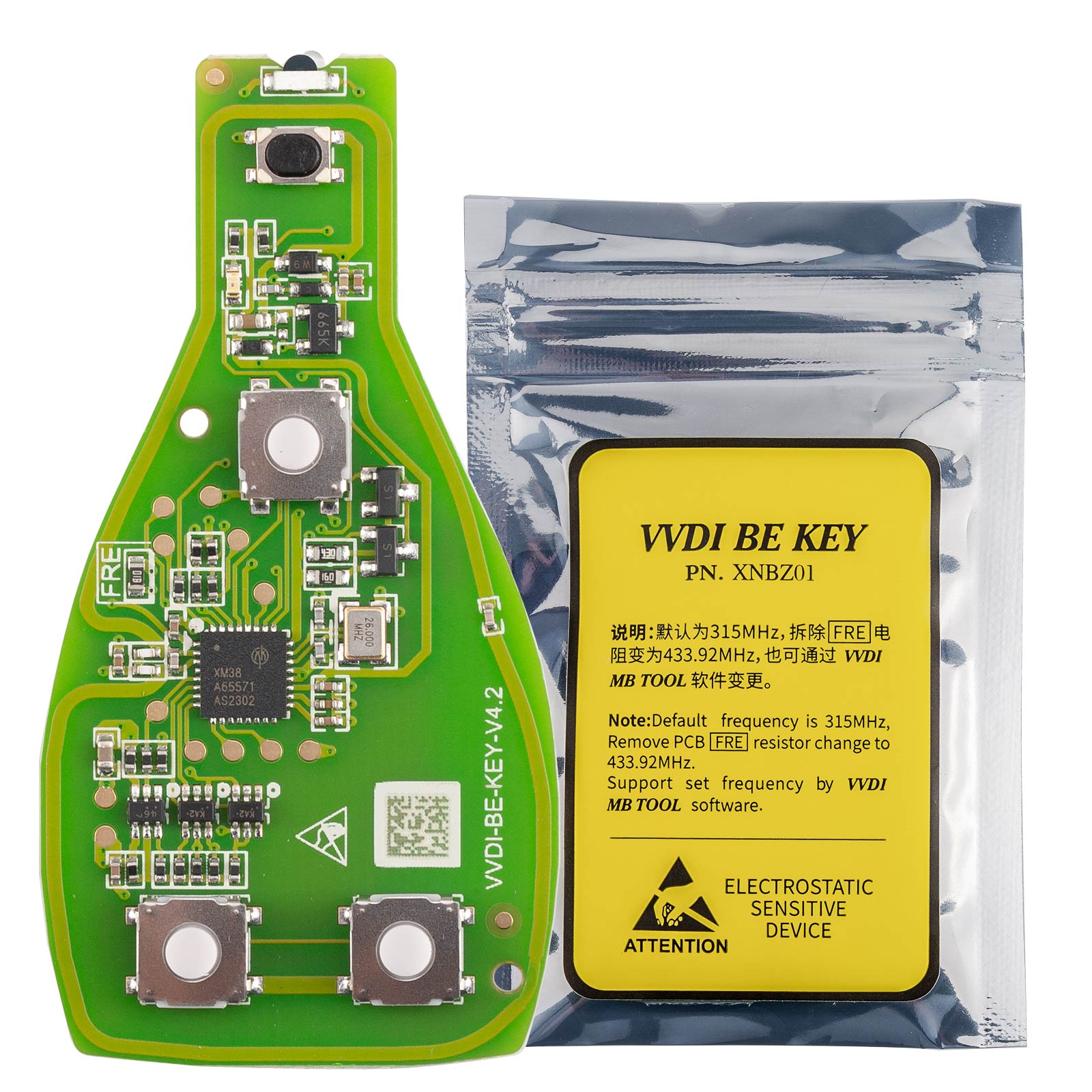

Default frequency is 315MHz. Remove PCB FRE resistor change to 433.92MHz. Support set frequency by VVDI MB TOOL software.

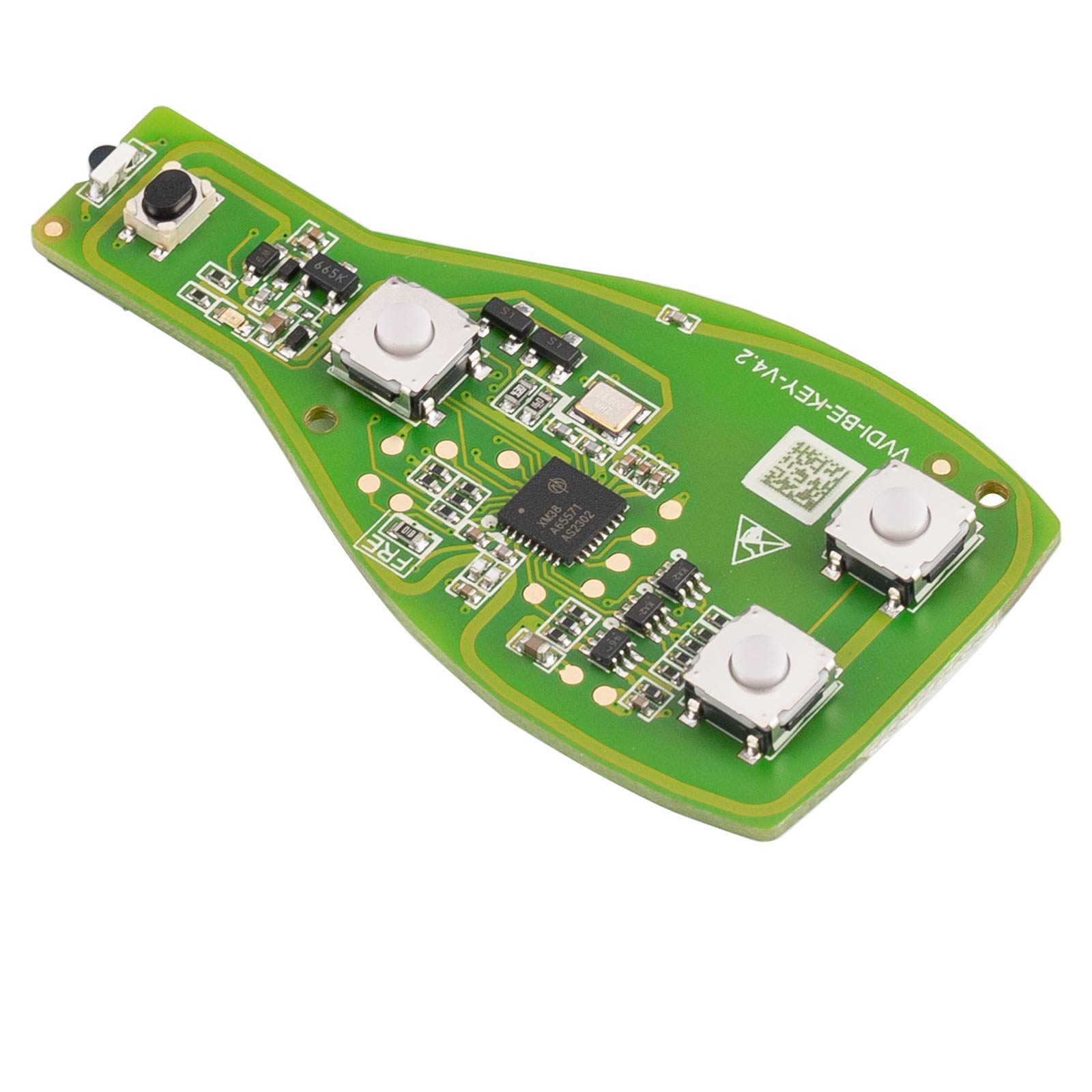

The way to reset the frequency with the PCB SMD resistor: Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.
5. Workable with Autel IM608 and VVDI Mercedes, Can use Xhorse Mercedes Smart Key 3 Button or 2 Button Key and It Worked Lock/ Unlock/ Trunk
VVDI BE Key Pro Improvements:
1. Fix the bug that W164/ W639 EIS data doesn't synchronize the key.
2. Fix the bug/ faultthat the BE key stop work after repeatedly turn ON the ignition without remove key out from EIS/ EZS for example with work on diagnostic...switch IGN OFF---ON for erase faults...then car not start
3. Fix the bug/ faultof trunk remote open on cars where power lifts on trunk door mainly...
4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
5. Modify the rolling algorithm, fix some errors of BE key.
6. Add pre-roll algorithm: the HASH value can roll ahead.
7. Adopt car-grade quartz crystal, improve infrared communication stability.
8. Boost the infrared signal when you press the button.
9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor
Tip: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.
How to Exchange VVDI MB BGA Token Though VVDI BE Key Pro?
Customers need log in the app and link the device to the account, then the customer can exchange the token in the "shop" of Xhorse APP.
Note: 200 points = 1 token, and the vvdi mb points are only can be used for exchange the vvdi mb token.

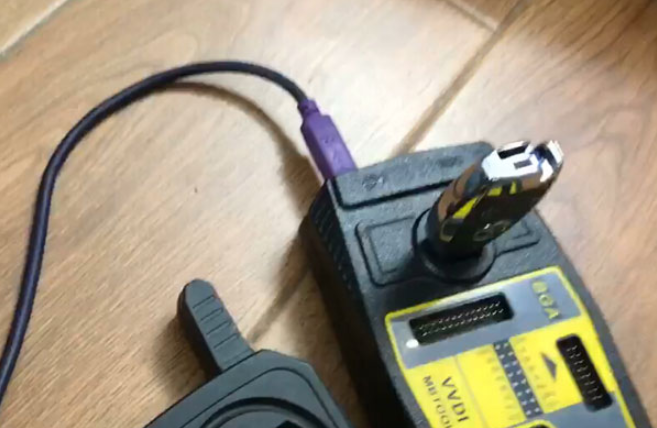

1. Connect vvdi mb and vvdi key tool to computer and run "upgrade kit" for binding vvdi mb to your account
2. Log in your account and link the vvdi mb to your account
3. Use the app of vvdi key tool for exchange tokens as you want

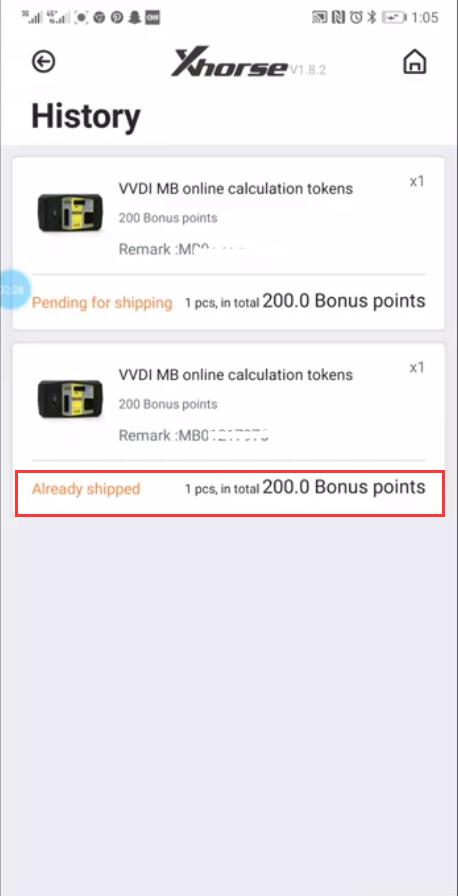

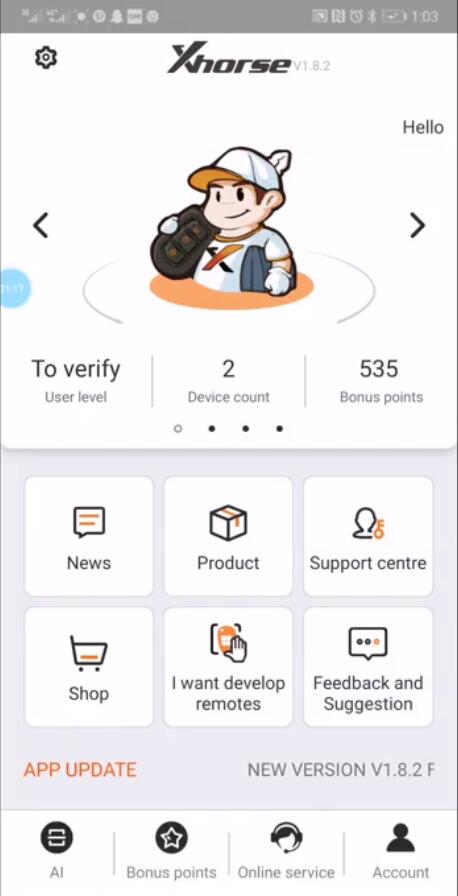

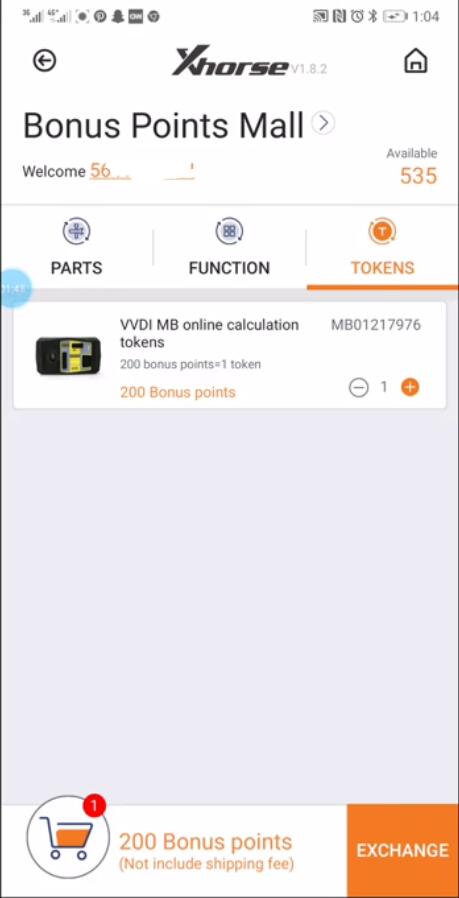

Open Xhorse App, create an account and combine your xhorse devices. Go to Shop
Check Tokens, Select bonus points you desired to exchange, i.e 200 points

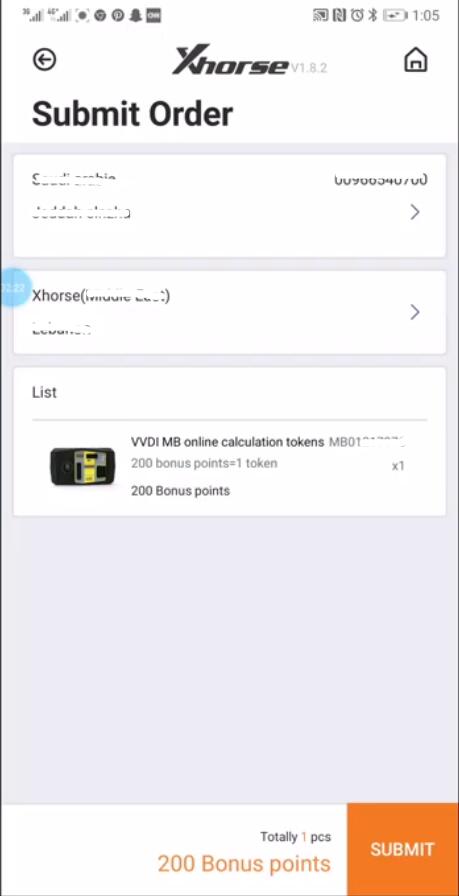

Press EXCHANGE and then Submit, Covert points to token success finally
How to Change Xhorse VVDI BE Key Pro For Benz PCB Frequency?
XHORSE VVDI BE Key Pro For Benz XNBZ01CH Remote Key Chip Improved Version default frequency is 315MHZ,it supported to change frequency to 433mhz. Here we will introduce two ways to change Xhorse For Benz Key PCB frequency.

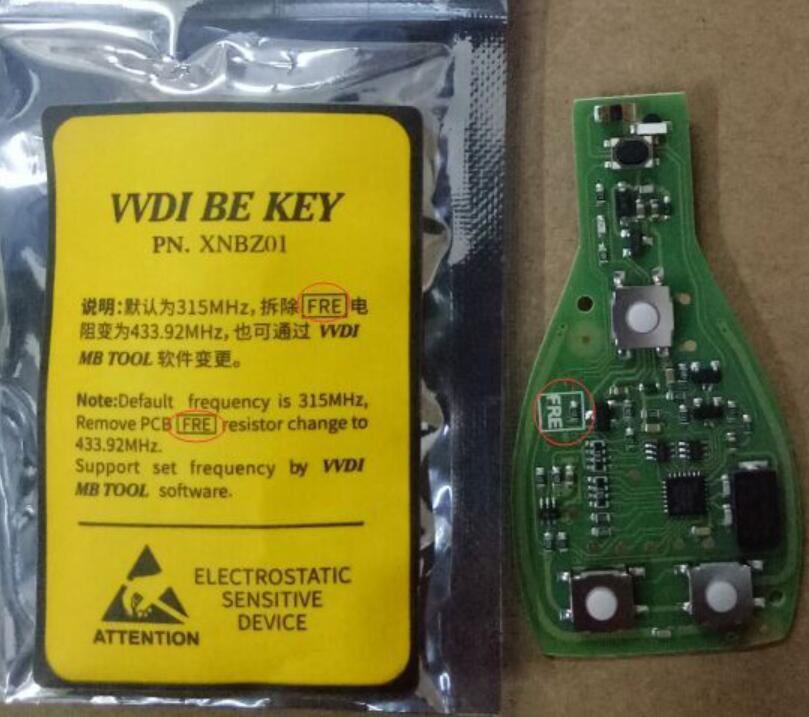

Method 1. Remove PCB FRE resistor change to 433MHZ.
Method 2. Change Via VVDI MB Tool Software.
You can use VVDI MB software check key frequency firstly in EIS Software,other function set frequency. Then it shows 315mhz. when you read frequency. Choose 433mhz to set, and check frequency again.

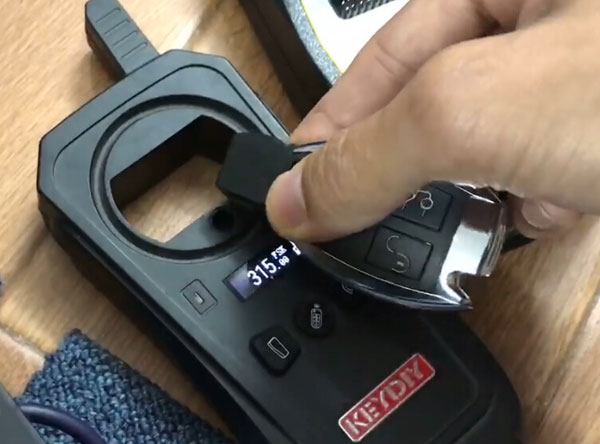

1) OEM Frequency: 315MHz

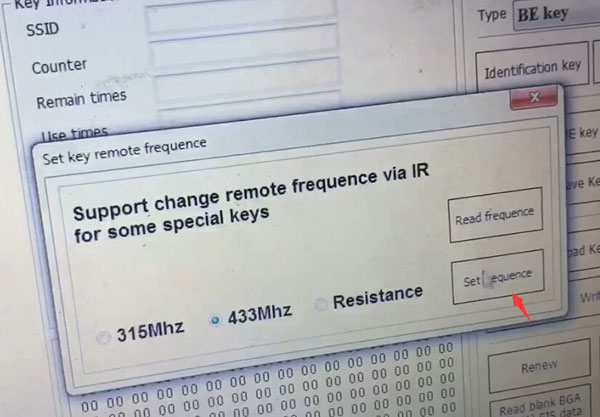

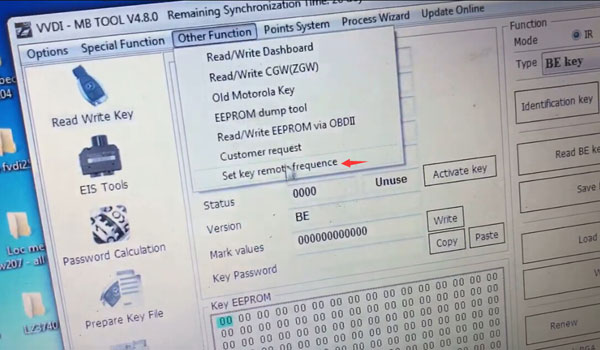

2) In VVDI MB software, select Set key remote frequency. Choose 433MHz and set frequency

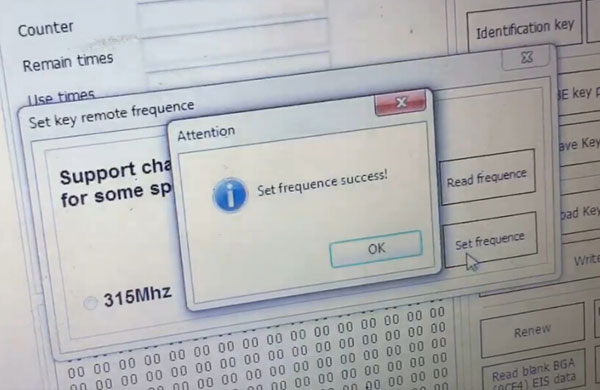

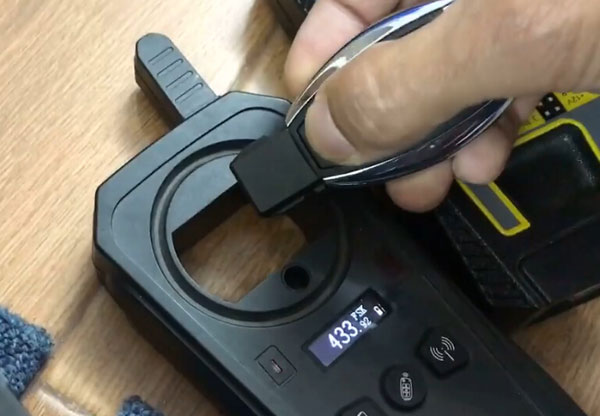

4) Change frequency to 433MHz success
VVDI BE Key Pro FAQs:
Q: When excahnge BGA Token,it got the error "this device cannot exchange tokens, please contact your dealer to update device combine status!"
A: Please contact VVDI MB Tool the seller to set staus for you, then it is OK to exchange.
Q: Can i transfer VVDI BE Key points to my VVDI2? Or my vvdi2 points can exchange BGA Token?
A: This SA1783 benz key points only can exchange BGA Tokens, can not transfer to VVDI2. But other device points,like vvdi2,can used to exchange BGA token.
Q: The xhorse vvdi benz pcb can not fit my Benz key shell, how to solve?
A: The key shell we sell on vvdishop.com is suitable. You can check SA1794, SA1794-1, SA1794-B.

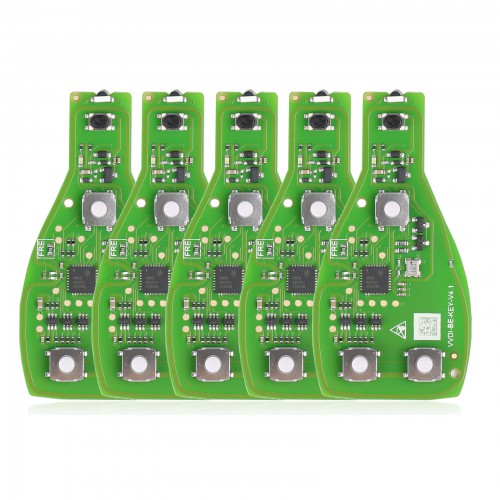

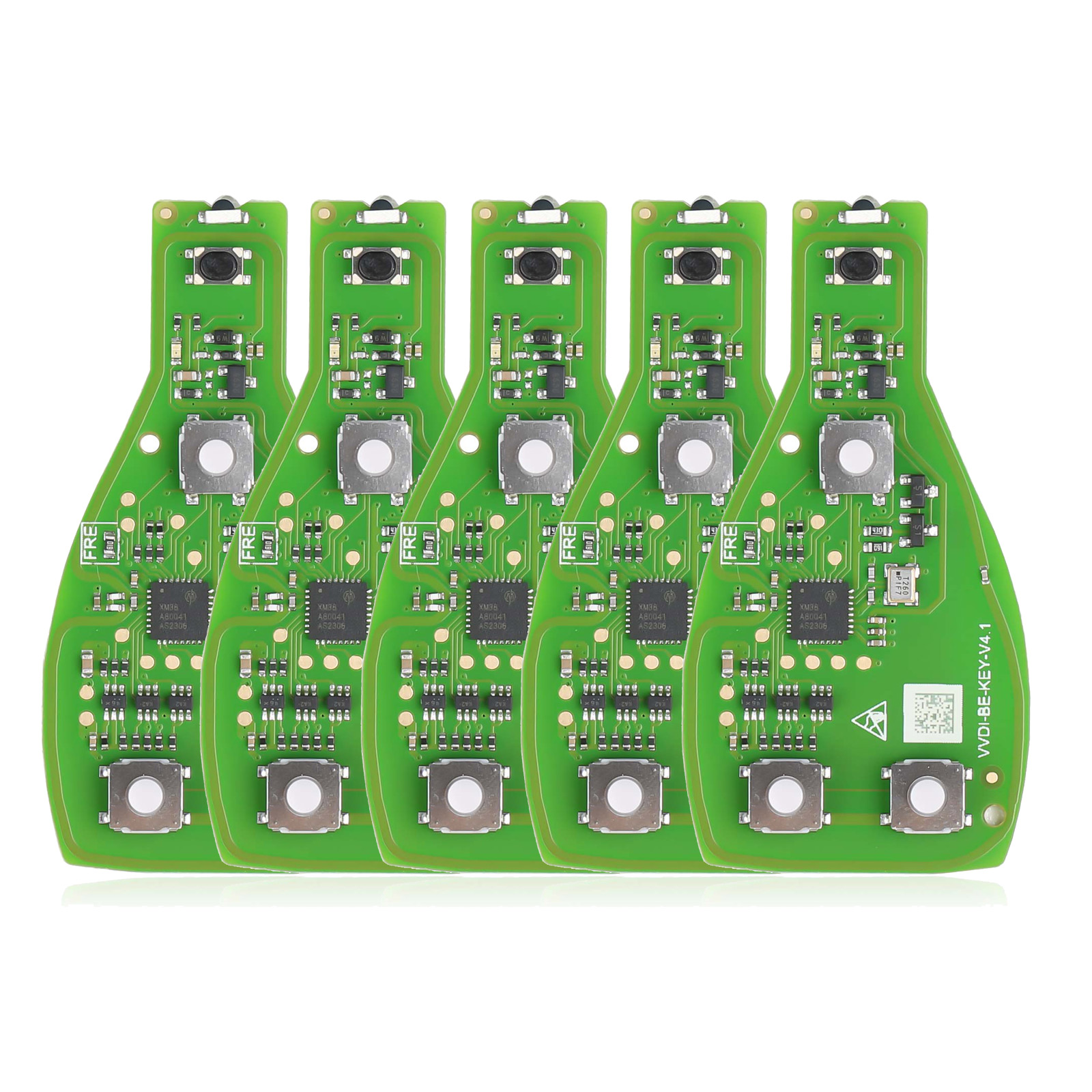

5pcs x Xhorse VVDI BE Key Pro Improved Version (PCB Only withou Case)
