10pcs Xhorse VVDI BE Key Pro Improved Version with Smart Key Shell 3 Button Get 5 Free Token for VVDI MB Tool
Xhorse XNBZ01EN VVDI BE Key Pro Improved Version (V1.5 PCB) for VVDI MB BGA Tool
Highlights and Notice:
1. Best Quality Benz Key PCB. More Compatibility, Higher Reliability.
(PCB Only withou Case/ Shell)
2. This is PCB and Key Shell Complete Package for Sale.
The PCB is original from Xhorse, suit for the Key Shell
made in China.
3. 1 VVDI BE Key Pro Improved Version = 200 VVDI MB BGA Tool Points= 1 VVDI MB BGA Token, please get the token yourself in APP.
4. Xhorse VVDI BE Key Pro with New Design Gets More Compatibility,
with High Stability, High reliability, and Digital Signature
5. 315Mhz/433Mhz Can Be Both Supported. You Can Change Frequency via VVDI MB Tool Software or Remove the Resistor.
Default frequency is 315MHz. Remove PCB FRE resistor change to 433.92MHz. Support set frequency by VVDI MB TOOL software.

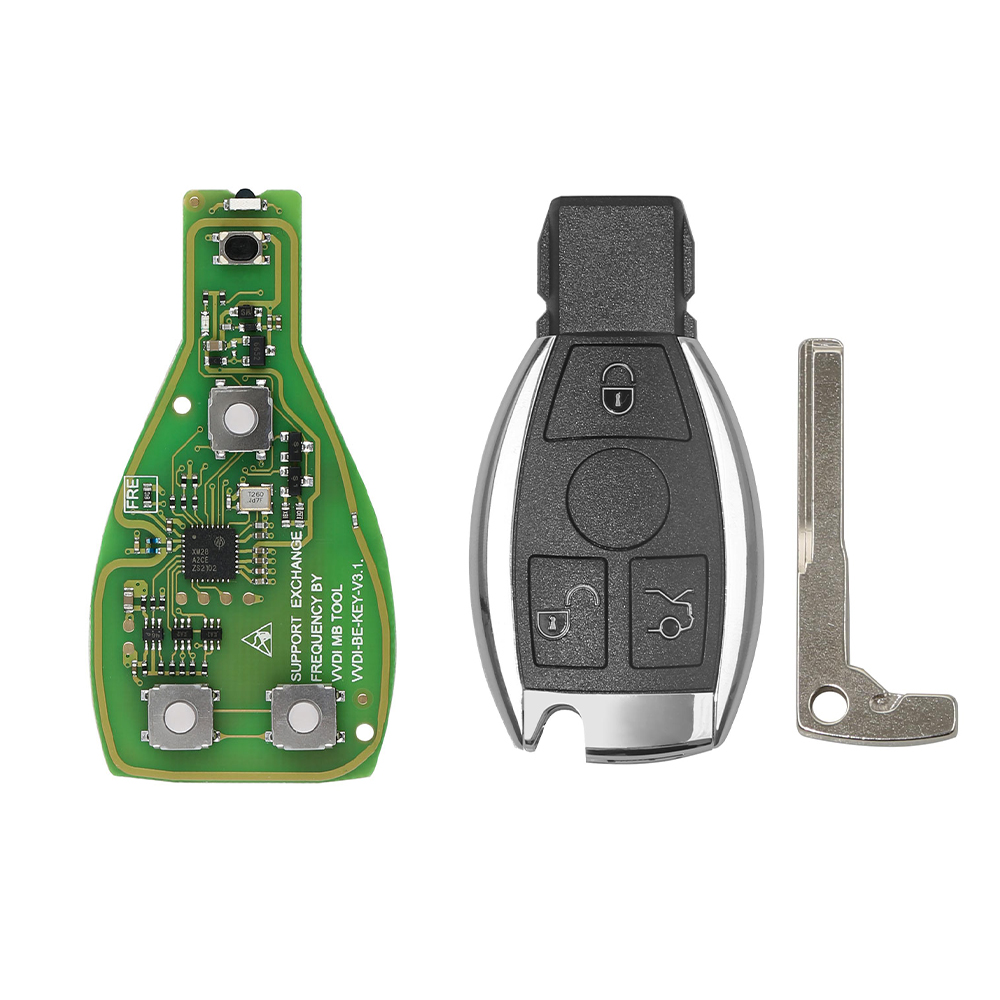

The way to reset the frequency with the PCB SMD resistor: Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.
VVDI BE Key Pro Improvements:
1. Fix the bug that W164/ W639 EIS data doesn't synchronize the key.
2. Fix the bug/ faultthat the BE key stop work after repeatedly turn ON the ignition without remove key out from EIS/ EZS for example with work on diagnostic...switch IGN OFF---ON for erase faults...then car not start
3. Fix the bug/ faultof trunk remote open on cars where power lifts on trunk door mainly...
4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
5. Modify the rolling algorithm, fix some errors of BE key.
6. Add pre-roll algorithm: the HASH value can roll ahead.
7. Adopt car-grade quartz crystal, improve infrared communication stability.
8. Boost the infrared signal when you press the button.
9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor
Tip: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.
How to Exchange VVDI MB BGA Token Though VVDI BE Key Pro?
Customers need log in the app and link the device to the account, then the customer can exchange the token in the "shop" of Xhorse APP.
Note: 200 points = 1 token, and the vvdi mb points are only can be used for exchange the vvdi mb token.
1. Connect vvdi mb and vvdi key tool to computer and run "upgrade kit" for binding vvdi mb to your account
2. Log in your account and link the vvdi mb to your account
3. Use the app of vvdi key tool for exchange tokens as you want

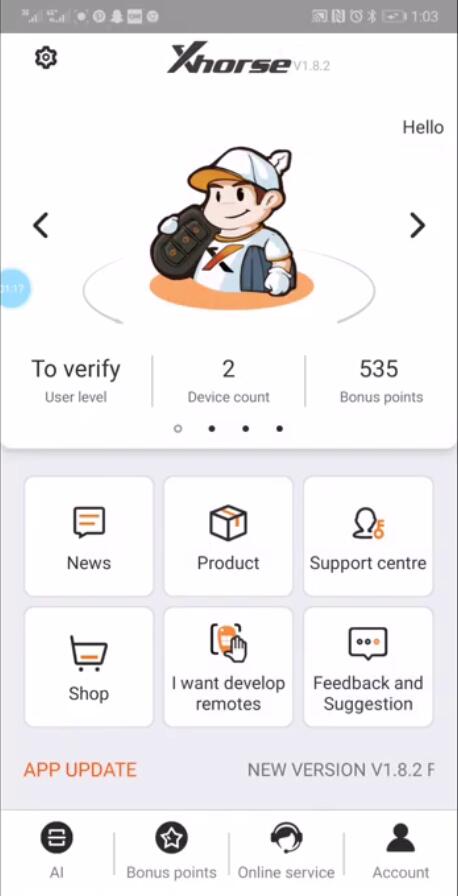

Open Xhorse App, create an account and combine your xhorse devices. Go to Shop

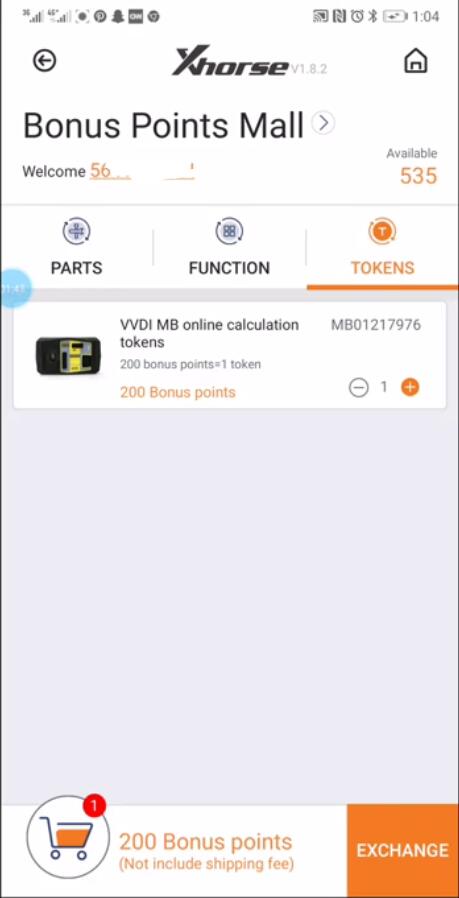

Check Tokens, Select bonus points you desired to exchange, i.e 200 points

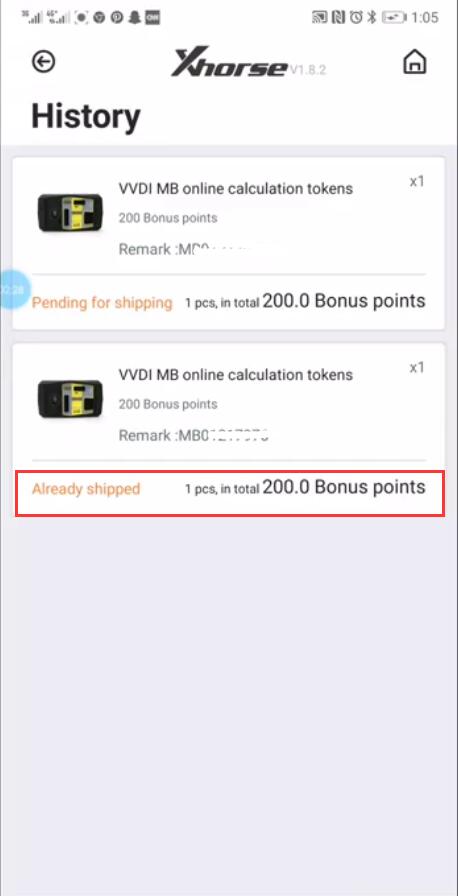

Press EXCHANGE and then Submit, Covert points to token success finally
10pcs x Xhorse VVDI BE Key Pro Improved Version
10pcs x Smart Key Shell 3 Button for Mercedes Benz
