EU Ship No Tax 2024 Xhorse VVDI Key Tool Max Pro Remote Key Programmer CAN FD, Battery Voltage and Leakage Current Functions

Art.-Nr. SK391 Auf Lager. Geschichte 344 verkauft.

Letzter Preis: 469.00
Kaufe jetzt: 425.00 9% off
Xhorse Xmas Limited Offer>>>
Buy Key Tool Plus Advanced Version,Get Free One Year Unlimited BGA and ID48 Token

Need Better Price, Please Contact:
Email: sales@XhorseShop.de
Whatsapp:+86-19947586579
Versand:
Kostenloser Versand Express Shipping Service Estimated delivery time: 3-5 Days.See details »
Gewicht:
1.6KG
Paket:
24cm*15.2cm*10.8cm     ( Inch: 9.45*5.98*4.25 )
Kehrt zurück:
Return for refund within 30 days,buyer pays return shipping. Read details »


Produktbeschreibung

Xhorse VVDI Key Tool Max Pro is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse key cutting machines. It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, and maintenance light reset.
Xhorse VVDI Key Tool Max Pro Remote Key Programmer

Xhorse Key Tool Max Pro comes with all the features of the existing Key Tool Max and has more functions than it. Designed with locksmiths in mind this device has all the staple features of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

Highlights:

1. Combines functions of Key Tool Max and Mini OBD Tool
2. Comes with Integrated CAN FD for GM Vehicles
3. Support Partial Toyota 8A/ 4D Add Key and All Keys Lost
4. Supports Toyota H All Keys Lost with 8A AKL Adapter
5. Support BMW CAS1- CAS3 Key Programming and Mileage Repair

6. Newly Adds the Function of Battery Voltage Measurement and Leakage Current Measurement
7. Work with Dolphin XP-005, XC-MINI PLUS, Dolphin XP-005L, XC-MINI PLUS II
8. App Multi-Language Supported: English, German, Spanish, French, Italian, Korean, Polish, Portuguese, Russian (App language has no limitation. Free to switch now, database language is English)
9. Generate 10 Unversal Remotes to Get ID48 96bit Cloning Function: Please use VVDI Key Tool Max Pro to generate new Xhorse remote key 10pcs, after collect points,2 hours later, server will open ID48 96bit function free.

Xhorse VVDI Key Tool Max Pro

Features:

Combines functions of Key Tool Max and Mini OBD Tool
Comes with integrated CAN FD for GM vehicles
Adds battery voltage measurement, and leakage current measurement
Supports Toyota H all keys lost with 8A AKL adapter
Control Xhorse Condor/Dolphin key cutting machines
2022 Xhorse VVDI Key Tool Max Pro remote maker and key programmer
The Xhorse Key Tool Max Pro comes with all the features of the existing Key Tool Max and has more functions than it.
Designed with locksmiths in mind this device has all the staple features of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal.
It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

Note: The product comes with an OBD cable which supports programming directly via the Key Tool Max Pro instead of buying a separate programmer. Moreover, the device receives power via OBD so you don't need to worry about power shortage during working.

Xhorse VVDI Key Tool Max Pro

NEW- BMW CAS3/ Toyota Models Programming

To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add programming feature of BMW CAS3 and some Toyota models.

Support BMW CAS3+and Lower Modules

CAS1 IMMO system
EWS IMMO system
CAS2 IMMO system
ECU ISN
CAS3/CAS3+IMMO system
Instrument mileage repair

Xhorse VVDI Key Tool Max Pro

Support Partial Toyota 8A/4D Add Key /All Key Lost

Support List
Corolla
Highlander
Camry
REIZ
VIOS
LEVIN
CROWN
RAV4
Hiraks
Lexus
PRADO/LAND CRUISER PRADO/LAND CRUISER
*Currently not supported: 8A-A9 type all key lost, 4A/8A-AA type add/all key lost

Xhorse VVDI Key Tool Max Pro

Main Functions:

Immobilizer programming

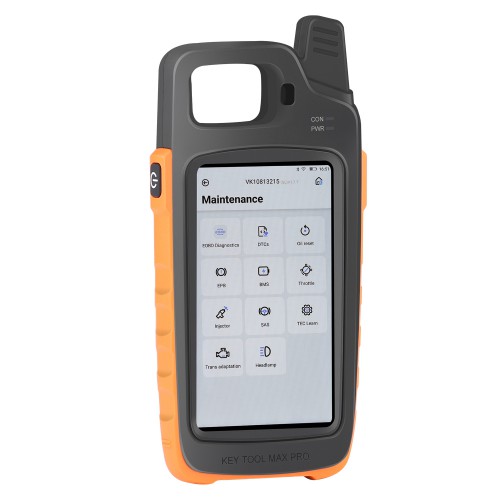

Service reset
Generate remote
Clone remote
Generate transponder
Copy transponder
Generate special function
Unlock/Renew remote
Identity/Copy ID card
Generate/Copy garage remote
Detect frequency
Detect remote battery/voltage

Xhorse VVDI Key Tool Max Pro
Xhorse VVDI Key Tool Max Pro

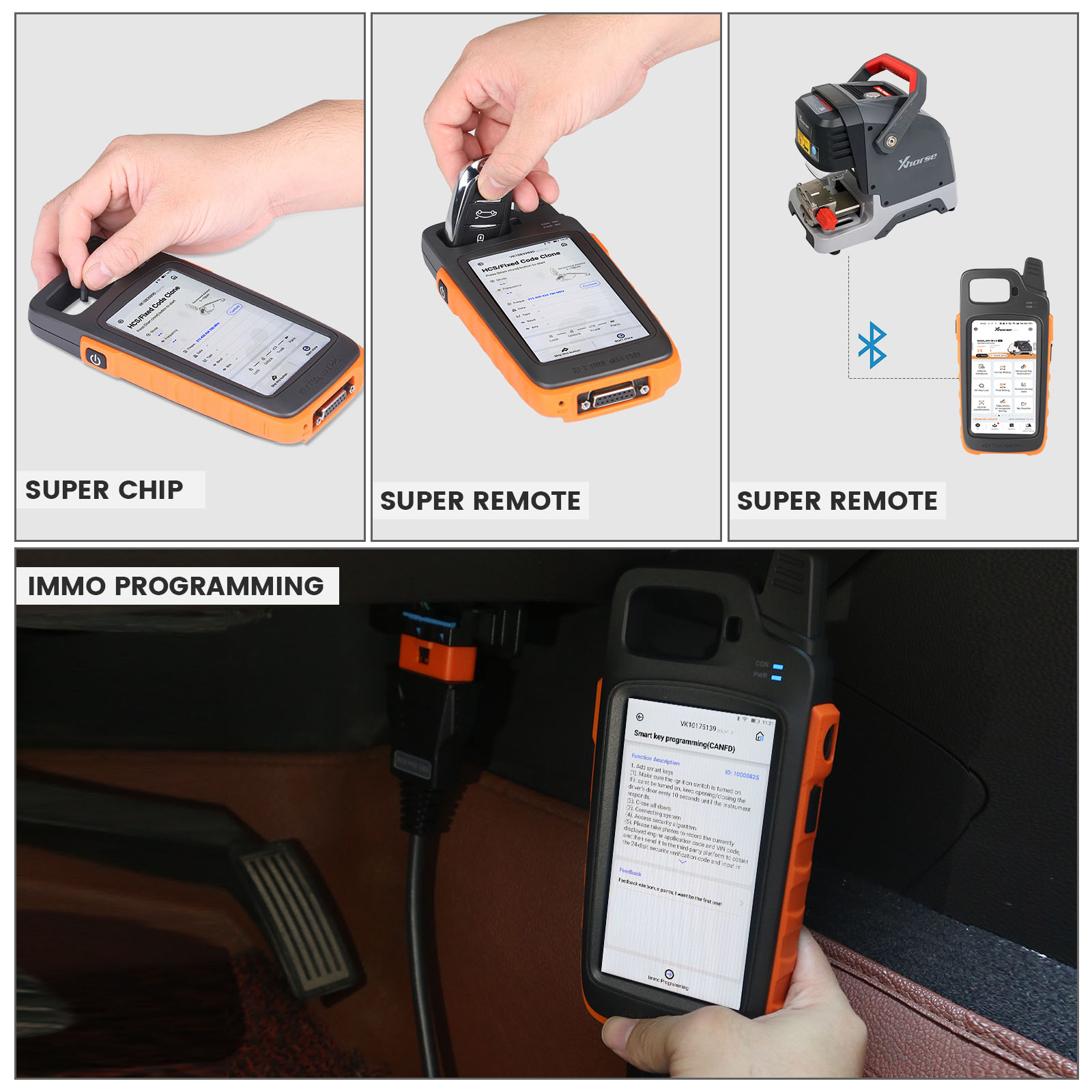

1. Newly Added OBD Module

KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo programming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

2. Built-in CAN_FD Module, Expanded Function:

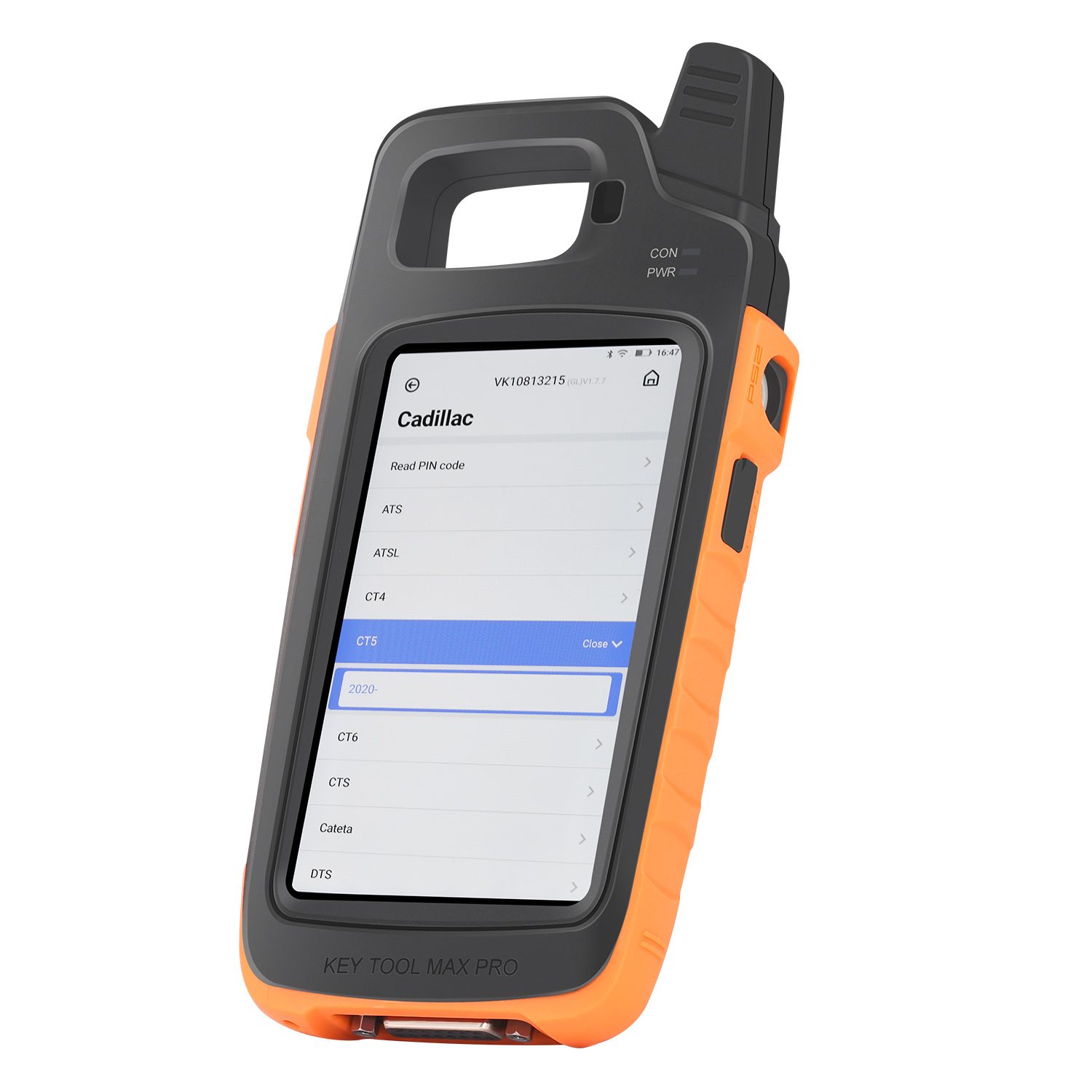

Concerning immo programming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo programming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

Xhorse VVDI Key Tool Max Pro

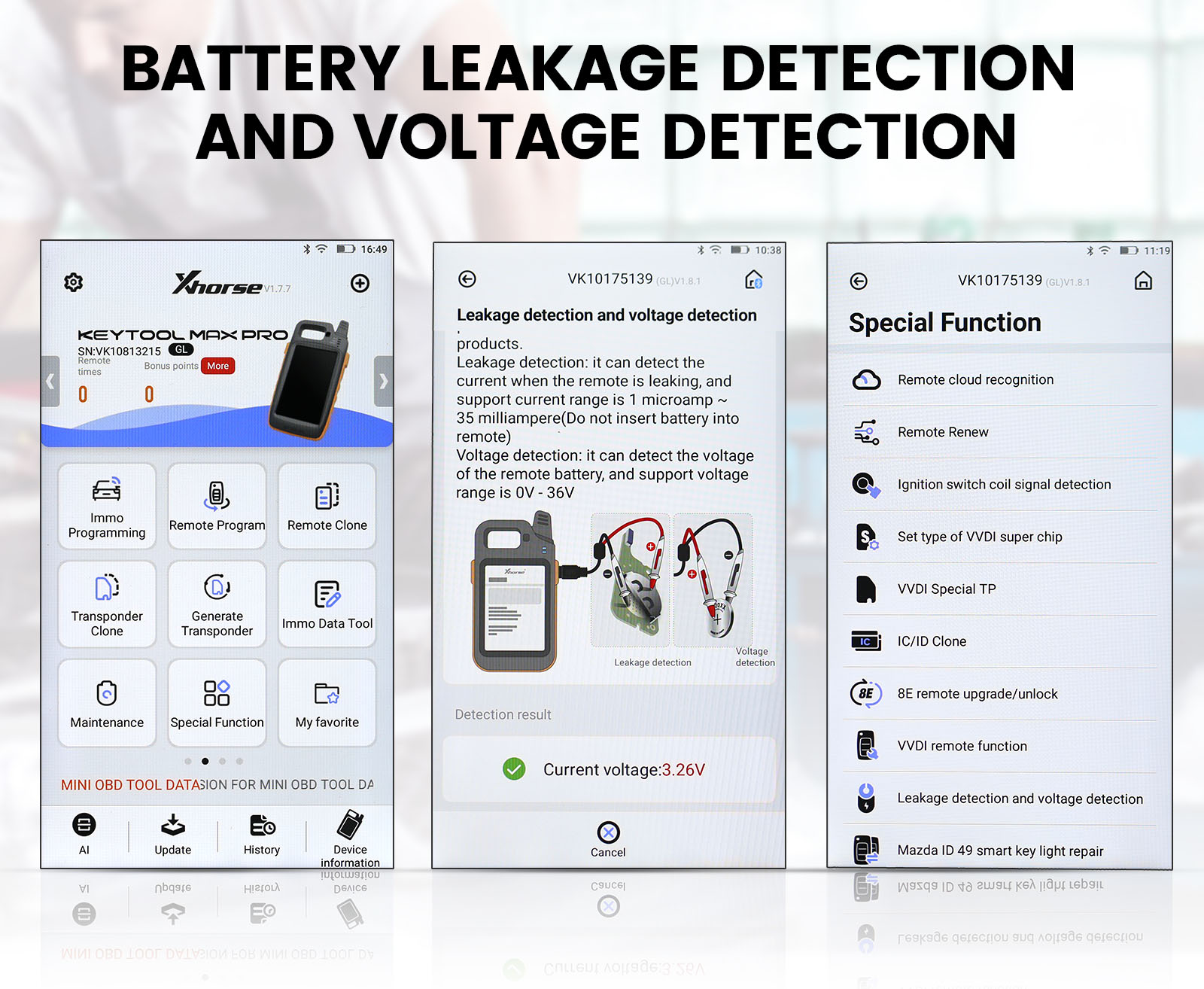

3. Read Voltage and Leakage Current:

This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.
Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)
Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V

Xhorse VVDI Key Tool Max Pro

Xhorse VVDI Key Tool MAX PRO vs Key Tool Max

Item Xhorse Key Tool Max Xhorse Key Tool Max Pro
CPU Quad core CPU Quad core CPU
RAM 1G+8G 1G+8G
OBD module External Mini OBD Tool Built-in
CANFD module  No Yes
OBD Power Supply No, power by USB only Power by OBD or USB cable
Battery Voltage Test No Yes
Software Comparison
Immobilizer programming With Mini OBD Built-in
Cadillac CT4/CT5 CAN FD No Yes
Buick GL8/ ENCLAVE CAN FD No Yes
Chevrolet Cavalier / Trax  CAN FD No Yes
Service Reset With Mini OBD Yes, built-in
Generate remote (remote, smart card, Toyota XM remote, garage remote) Yes Yes
Copy remote Yes Yes
Identify/copy chip Yes Yes
Generate chip Yes Yes
File make key (Immo data tool) Yes Yes
Other special functions Yes Yes

Xhorse VVDI Key Tool Max Pro

Specification:

Battery capacity: 3375mAh
Battery life>6 hours
Standby time>5 days
Recharging current: 1500mAh
Brightness>400nlts
Screen resolution: 1280*720P
Camera resolution: 800W
WIFI & Bluetooth: 802.11a/ b / g / n / ac & 4.2 BLE

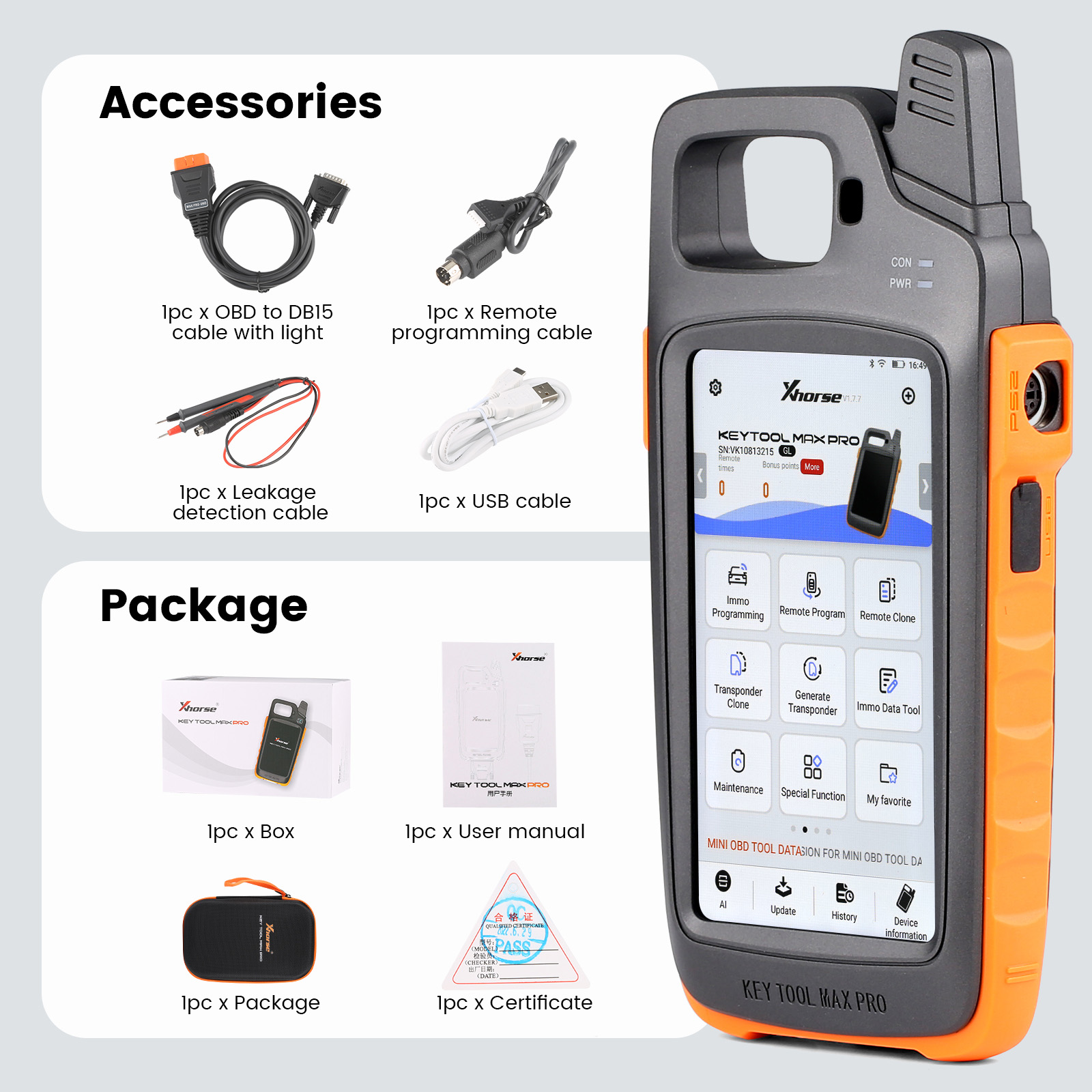

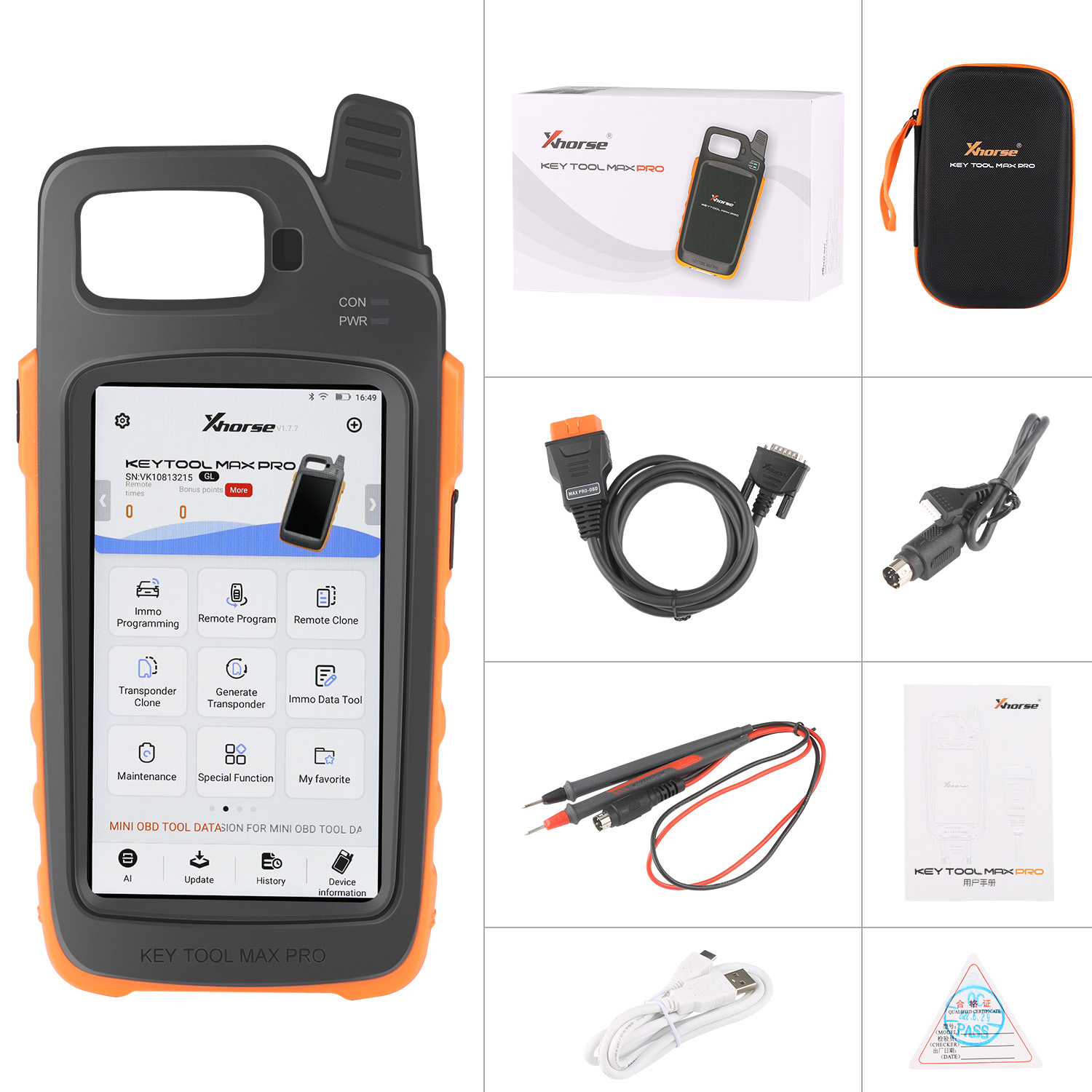

Package List:

1pc x KEY TOOL MAX PRO deivce
1pc x OBD to DB15 cable with light
1pc x Remote programming cable
1pc x Leakage detection cable
1pc x USB cable
1pc x User Manual

Xhorse VVDI Key Tool Max Pro



Xhorse XDMLB0 VVDI MLB Tool

Xhorse XC002 PRO


Contact us:

Email: sales@XhorseShop.de
Whatsapp:+86-19947586579
                  +86-13429866263

Wechat:    +86-13429866263

Videos

How to Register VVDI Key Tool Max Pro?

Xhorse Training Class:KEY TOOL MAX PRO-Episode 1

Xhorse Training Class:KEY TOOL MAX PRO-Episode 2

Xhorse Training Class:KEY TOOL MAX PRO-Episode 3

Xhorse VVDI Key Tool Max New Function Display and Test

Technical Support

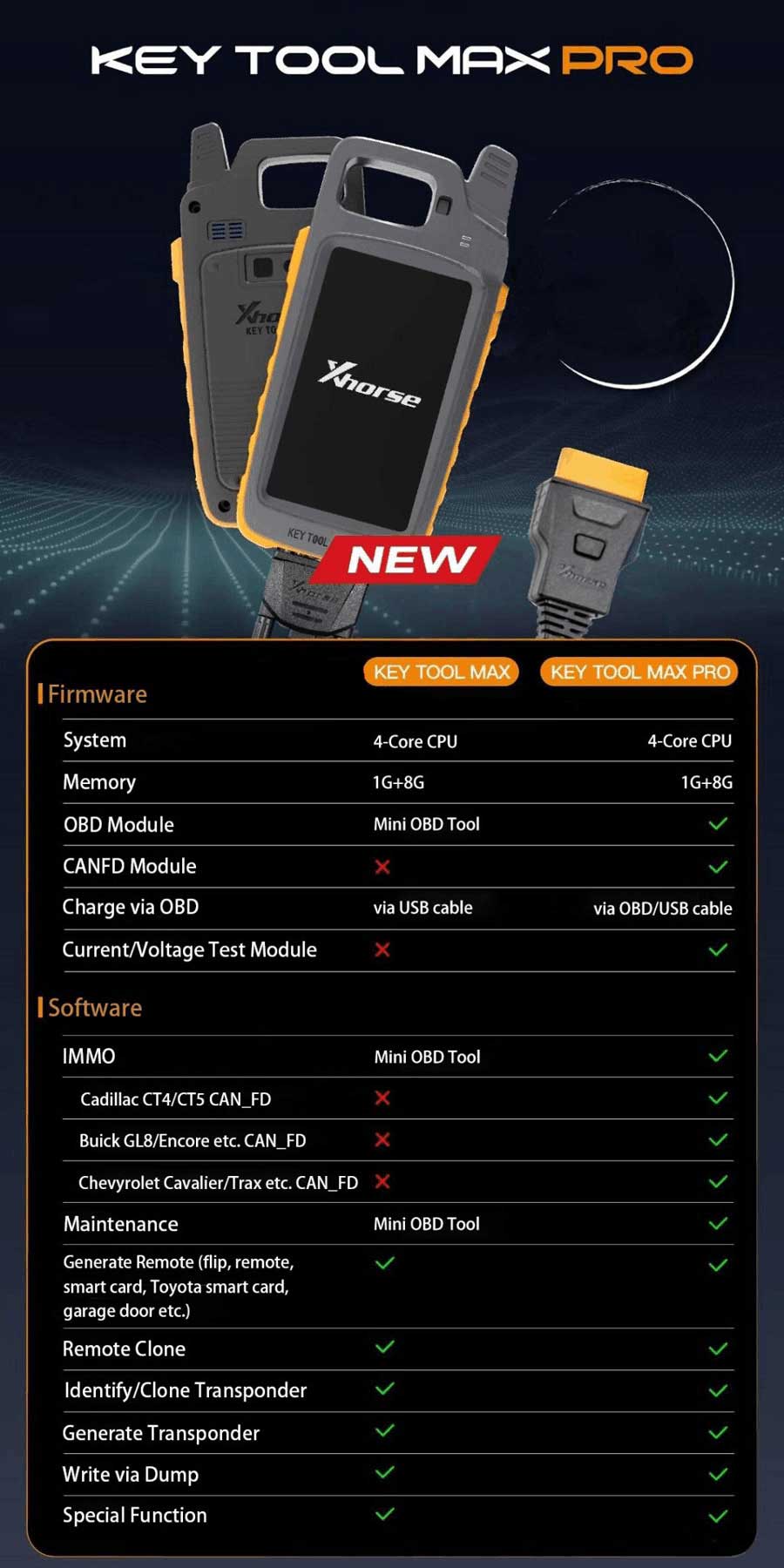

Key Tool Max vs Key Tool Max Pro

  Key Tool Max Key Tool Max Pro
Hardware
System 4-Core CPU 4-Core CPU
Memory 1G+8G 1G+8G
OBD Module Mini OBD Tool
CANFD Module ×
Charge via OBD ×,  via USB cable √, via OBD/USB cable
Current/Voltage Test Module ×
Software
IMMO Mini OBD Tool
  Cadillac CT4/CT5 CAN_FD ×
  Buick GL8/Encore etc. CAN_FD ×
  Chevrolet Cavalier/Trax etc. CAN_FD ×
Maintenance Mini OBD Tool
Generate Remote (flip, remote, smart card, Toyota smart card, garage door etc.)
Remote Clone
Identify/clone Transponder
Generate Transponder
Write via Dump
Special Function


What is New Features of Xhorse VVDI Key Tool Max Pro?
  • Built-in OBD Module
  • Built-in CANFD Module
  • Battery Test Module
  • BMW CAS3/ TOYOTA Programming

Battery Test Module
Remote Current (1μA~35μA)
Battery Voltage (0V~36V)


FAQ:

Q1. How to get ID48 96bit function of Key Tool Max Pro?
A: Same as key tool max, you need to generate 10 new VVDI remote to get.
