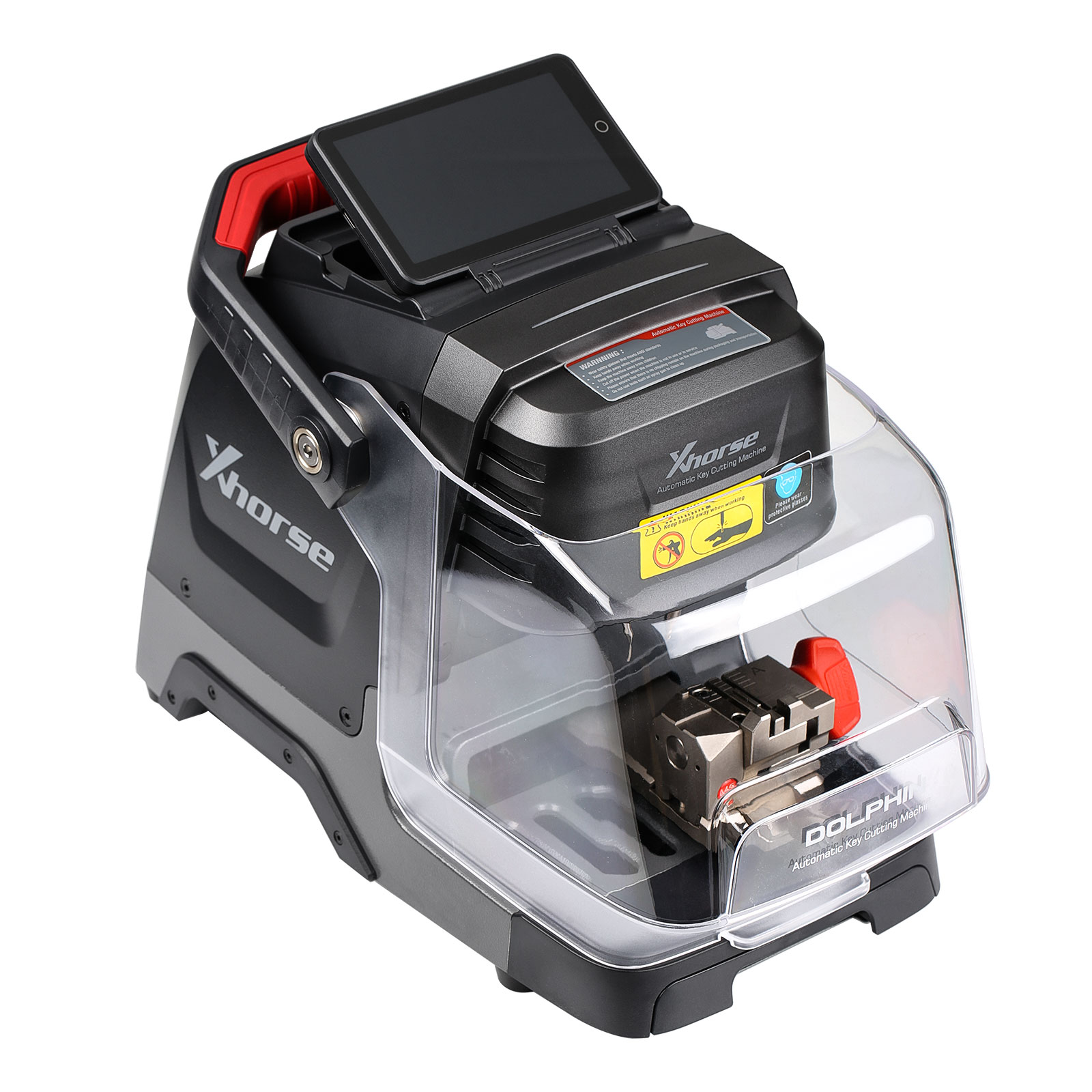

EU Ship No Tax 2024 Xhorse Dolphin II XP-005L XP005L High Sec Portable Key Cutting Machine for All Key Lost with Adjustable Touch Screen

Art.-Nr. SL480 Auf Lager. Geschichte 268 verkauft.

Letzter Preis: 2,099.00
Kaufe jetzt: 1,923.00 8% off
3 Xhorse Dolphin II XP-005L: Xhorse Dolphin II XP005L XP005L 2024 Xhorse Dolphin II XP-005L XP005L High Sec Portable Key Cutting Machine for All Key Lost with Adjustable Touch Screen
Xhorse Xmas Limited Offer>>>
Buy Key Tool Plus Advanced Version,Get Free One Year Unlimited BGA and ID48 Token

Need Better Price, Please Contact:
Email: sales@XhorseShop.de
Whatsapp:+86-19947586579
Versand:
Kostenloser Versand Express Shipping Service Estimated delivery time: 3-5 Days.See details »
Gewicht:
1.8KG
Paket:
49.5cm*40cm*36cm     ( Inch: 19.49*15.75*14.17 )
Kehrt zurück:
Return for refund within 30 days,buyer pays return shipping. Read details »


Produktbeschreibung

Xhorse Dolphin XP-005L is with an angle-adjustable 5-lnch capacitive touch screen. build-in powerful database covers over 100 car brands, 2000 car modsls and 20000 key data Accurate key data, detailed parameters, and clear key graphics. Supprt Multi-purpose Clamps, directly upgrade online via WiFi connection. Control the machine by Xhorse APP on your smartphone or other Intelligent terminals via Bluetooth.

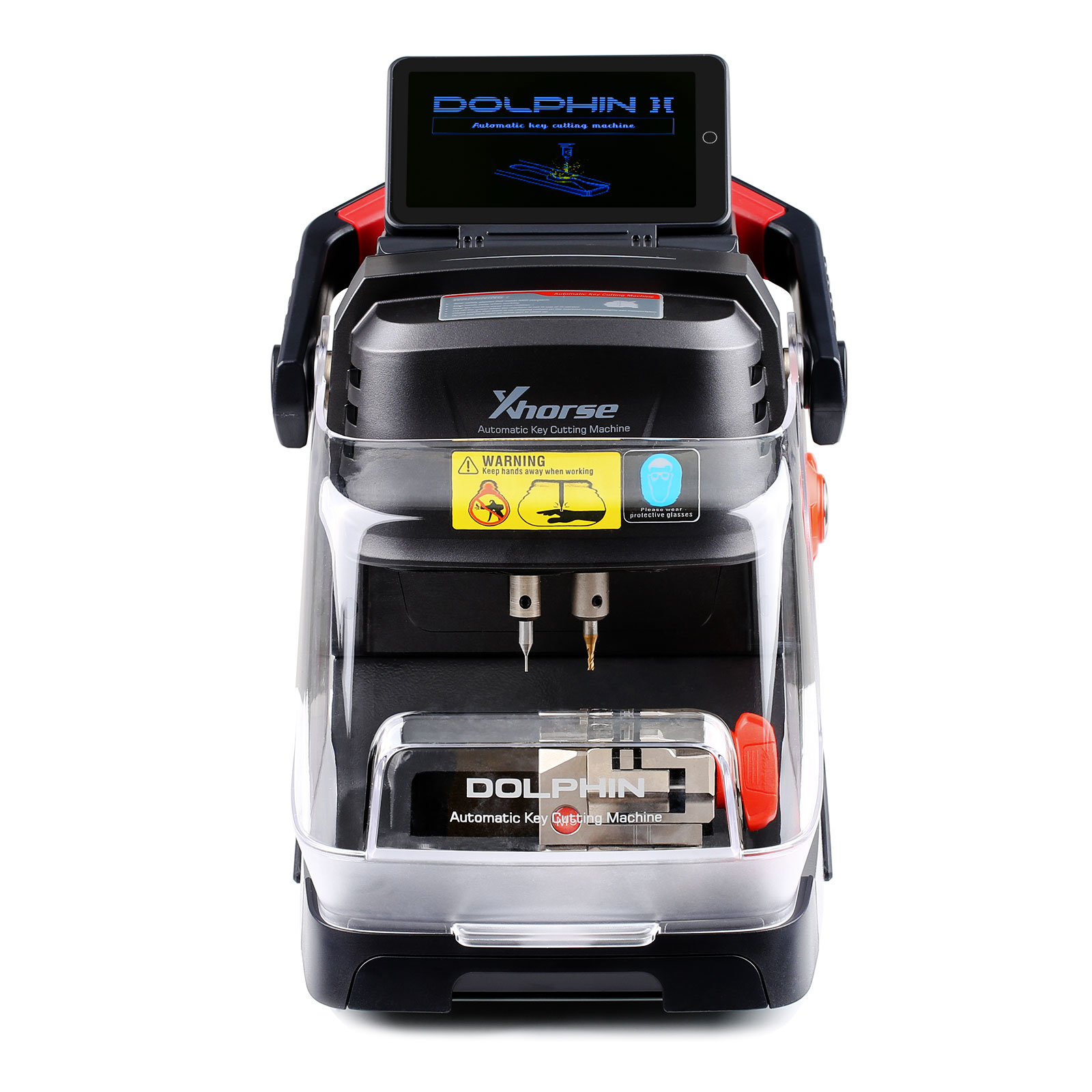

Xhorse Dolphin II XP005L XP005L High Sec Portable Key Cutting Machine

DOLPHIN XP-005L, a smarter and safer key cutting machine with whole new appearance and features. Featuring HD touchscreen with self-developed system, a protection shield providing a cleaner and safer working environment and 3 intelligent indicator light, Dolphin II XP-005L has all the capabilities of the Xhorse Dolphin XP-005 but with improved safety and smart capabilities. A newly-added transparent protective cover can be moved freely to witness the key cutting process clearly at all times, and the working status is clear at a glance. Prevent key debris from splashing around, combining cleanliness and safety. The workbench is upgraded and lengthened, the working space is expanded and optimized, the stability is enhanced, and the multi-directional safety protection brings you more security.

Xhorse Dolphin II XP005L XP005L

Highlights:

1. With Adjustable Touch Screen, and Blade Skimmer Preview
2. With Movable Protective Shield and Colorful Indicator Lights
3. Database Covers 100 Car Brands, 2000 Car Models, 20000 Keys.
4. Built-in lithium battery, compact and lightweight design for ease carry.
5. All Aluminum Body Structure, Strong & Accurate.
6. Ships with Multipurpose M5 Clamp (M1 and M2 in 1)

Notice:

Engineer will test the key cutting machines to ensure there is no problem before the delivery.
Testing the key blads may generated tiny iron filings, that's not means is a used machine or a second hand machine.


Software Overview

Supporting Sself-Calibration
Supporting key duplication and cutting for vehicle keys
Supporting universal key decode for multiple key types
Operation on APP through Bluetooth
Build-in key database
Update online: Machine firmware and database upgrade via WiFl directly

Xhorse Dolphin II XP005L XP005L

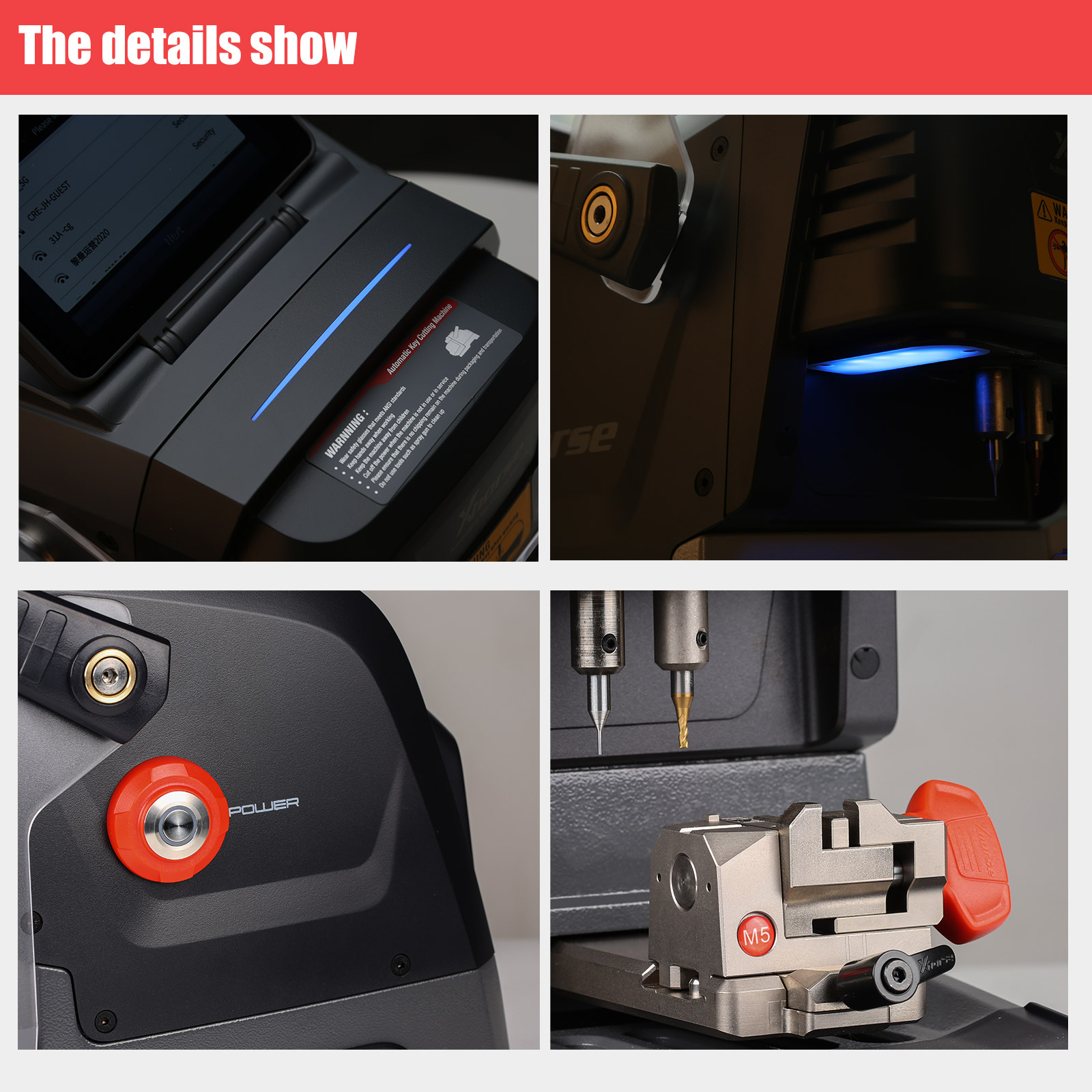

Key Features

1. HD Touch Screen
* Users can directly complete operation on the screen. High definition screen minimizes eye fatigue.
* The machine adopts an angle-adjustable 5-inch capacitive touch screen. You can set the angle of the screen based on actual needs.

2. Innovative Colorful Indicator Lights
* The indicator light changes color with the change of real-time working status.

3. Massive Vehicle Database
* Built-in powerful database covers over 100 car brands, 2,000 car models and 20,000 key data. Accurate key data, detailed parameters, and clear key graphics. We provide a lifelong database upgrade service for free!

4. Portable Solution
* Thanks to its compact design, lightweight, much easier to take it outside and provide users outdoor and roadside services.
* Built-in well-known lithium battery, stable and reliable, support cutting works without power supply access.

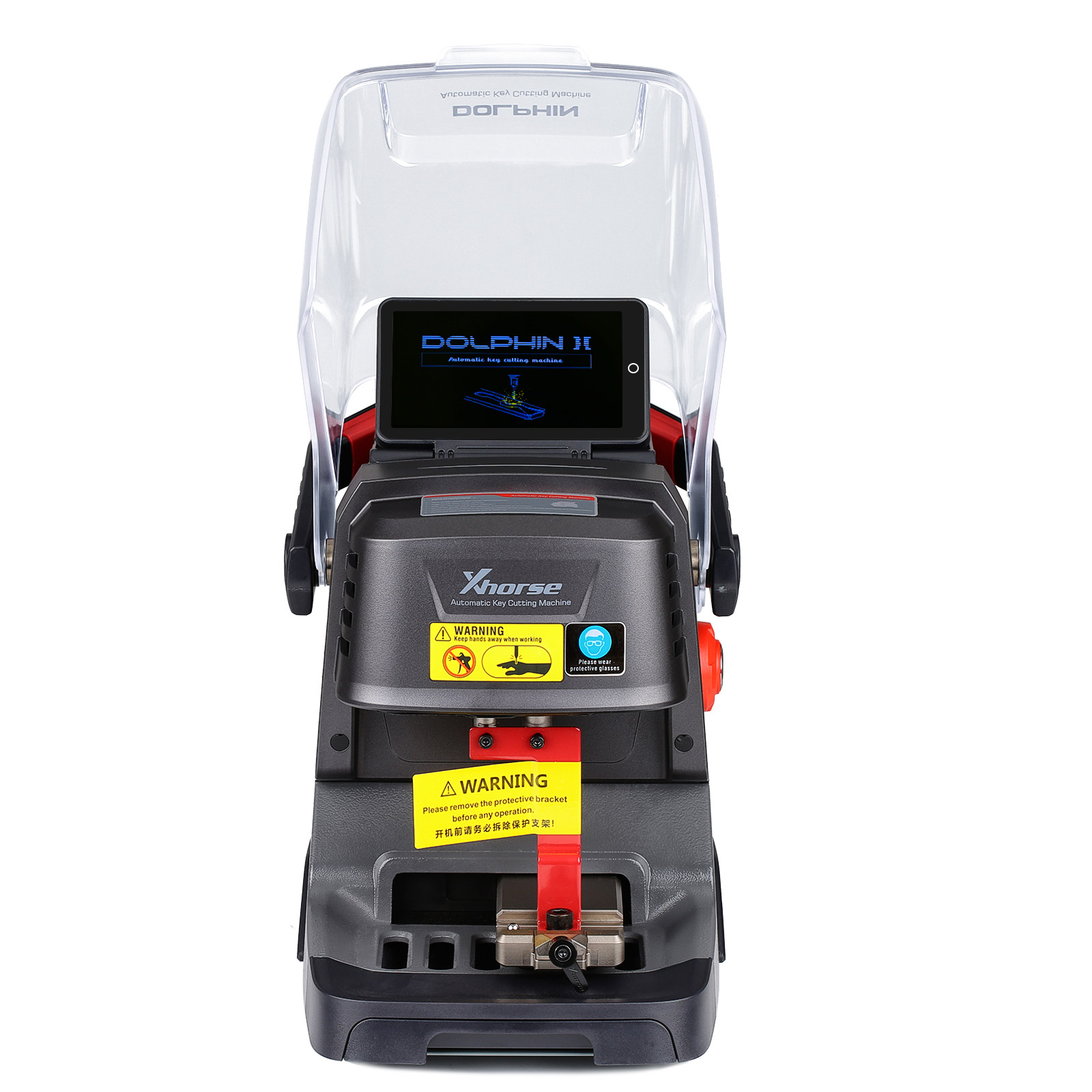

5. Transparent Protective Shield
* The transparent shield enables users to check the real-time working status while preventing metal debris from spattering.

6. Manufacture Craftsmanship
* All-aluminum body structure; Manufactured by German-made DMG CNC machine to guarantee high precision cutting results. The finished keys passed the rigorous testing of the Optical Instrument.
* A wider workbench, strong and steady, make your works more productive.
* Maintain excellent performance even under extreme weather.

Xhorse Dolphin II XP005L XP005L
Xhorse Dolphin II XP005L XP005L

7. Support Bluetooth and WiFi
* Support directly upgrade online via WiFi connection.
* Control the machine by the Xhorse APP on your smartphone or other intelligent terminals via Bluetooth.

Multi-Purpose Clamps

A wide duplication availability guaranteed by a variety of functional clamps, support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track internal, F021 & Citroen SX9 keys, residential keys, etc.

1. Standard Clamps:

M5 Clamps (M1 and M2 2 in 1)
The device adopts M5 clamp with 2 sides of A and B. User can turn the clamp surface to cut according to cutting needs. It's no need to repeated install and uninstall to replace different clamps. Here are the method of using the M5 Clamp
1) Loosen the "key lock knob" counterclockwise to make the right silier of the clamp to the right limit
2) Turn the movable module clockwise, and turn the clamp from side A to side B. Tighten the "Key lock knob" clockwise to lock the clamp

Xhorse Dolphin II XP005L XP005L

2. Optional Clamps:

1) M1 Clamp for Standard Single/ Double Sided Key
2) M2 Clamp for 4 Track External, 2 Track External, 4 Track Internal, Channel Track, Dimple Keys
3) M3 Clamp for Ford FO21 Citroen SX9
4) M4 Clamp for house keys

Xhorse Dolphin II XP005L XP005L
Xhorse Dolphin II XP005L XP005L

Xhorse Dolphin XP-005L vs Dolphin XP-005

Item Xhorse Dolphin XP-005L Xhorse Dolphin XP005
Touch Screen An angle-adjustable 5-inch capacitive touch screen, and users can directly complete operation on the screen.LCD resolution 1280*720. Null
Protective Shield Yes, moveable transparent protective shield prevent metal debris from spattering. Null
Smart status indicator With colorful indicator lights
(in blue:working;
in yellow:information notification;
in red: false alarm /error warning)
Null
Bluetooth Yes. Control the machine by the Xhorse app on your smart phone or other intelligent terminals via bluetooth No,XP-005 not have WIFI module, but support online update by Xhorse APP with smart phone via WIFI
Wifi Yes, directly upgrade online via wifi connection Yes, online update via Xhorse APP with smart phone
Multiple Clamps Standard equipped M5 clamp (M1 and M2 2 in 1), and M3 Clamp(optional) , M4 Clamp(optional) Support clamps M1, M2, M3(optional) and M4 (optional)
Hexagon bar wrench 2mm+4mm 3mm hexagon bar wrench, 3mm hexagon bar wrench,6mm hexagon bar wrench 2mm hexagon bar wrench,  4mm hexagon bar wrench
Battery With built-in lithium battery With built-in lithium battery
Language English English
Update online Machine firmware and database upgrade via Wifi directly Online software update on APP, update through Xhorse"Upgrade Kit"
Support Key types Support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track Internal, F021 & Citroen SX9 keys, residential keys, etc Same
Key database Built-in powerful database covers over 100 car brands, 2,000 car modsls and 20,000 key data Accurate key data, detailed parameters, and clear key graphics Same
Function Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types
Target users Provide users outdoor and roadside services Provide users outdoor and roadside services

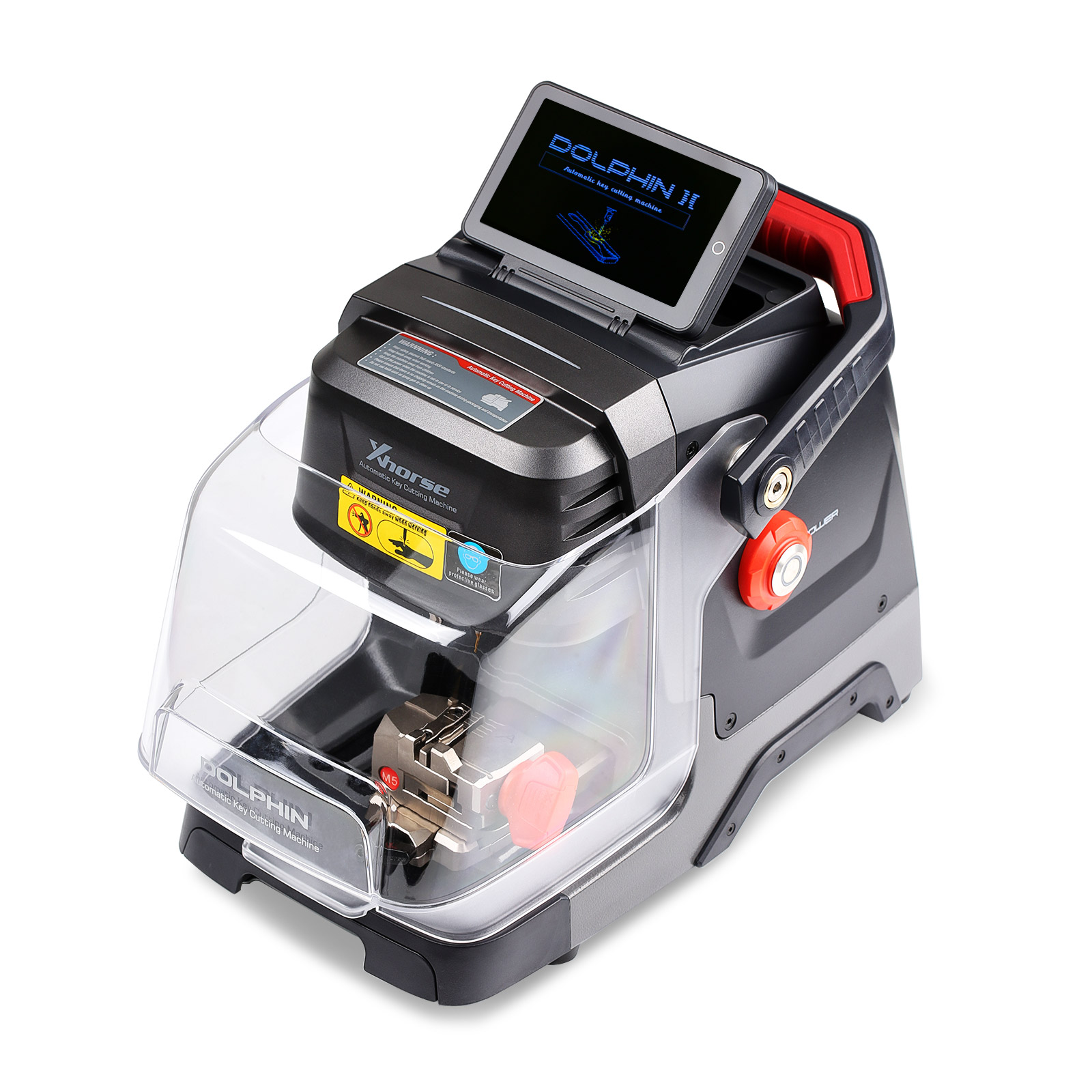

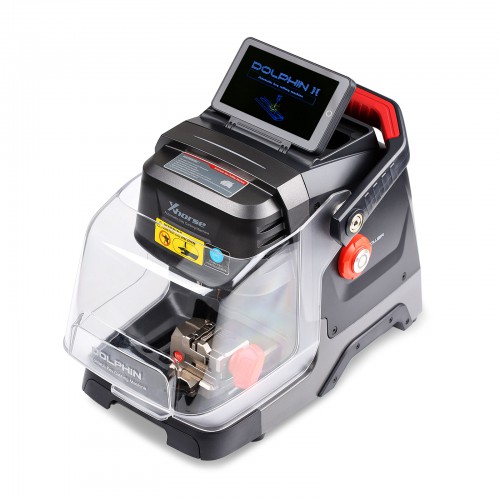

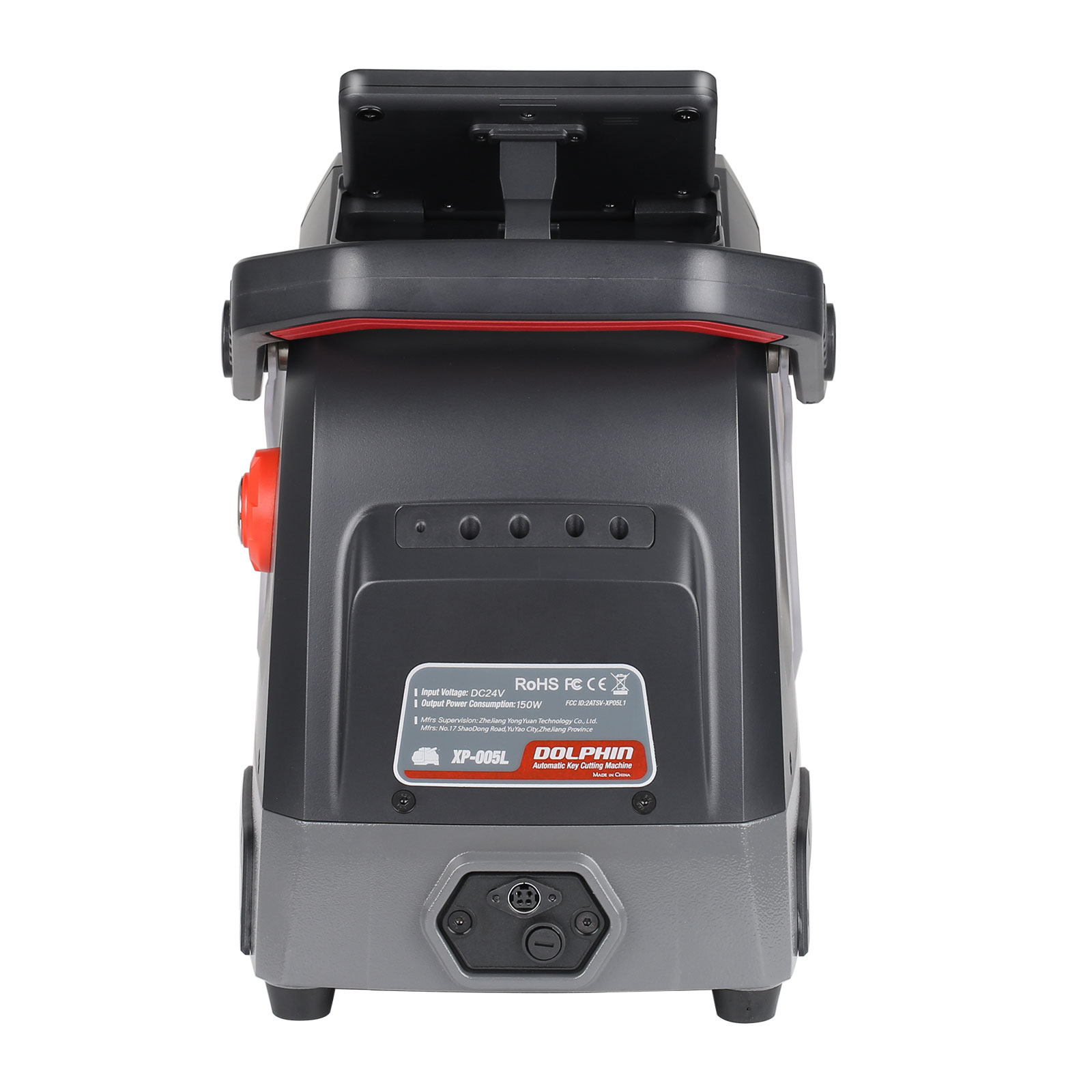

Product Display:

Xhorse Dolphin II XP005L XP005L
Xhorse Dolphin II XP005L XP005L

Specification:

Input voltage 24V DC
Power 160W
Principal axis rotation speed 12500rpm
Motor Torque 0.15N.m
LCD resolution 1280*720
Working temperature -10-50℃
Humidity 10-90%

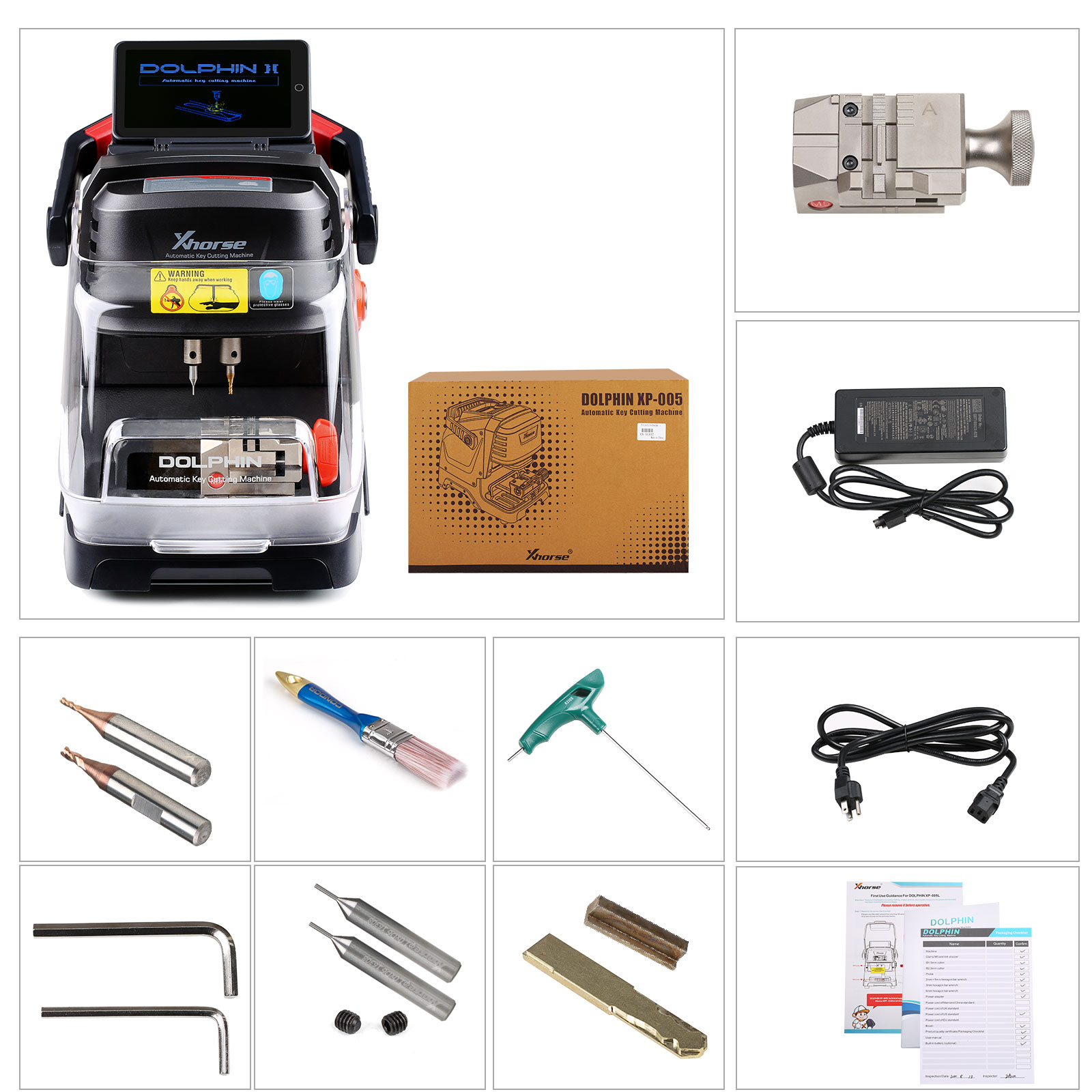

Package List:

1pc x Machine
1pc x Clamp M5 and link stopper
1pc x Clamp M3 ( optional )
1pc x Clamp M4 ( optional )
1pc x 1.5mm cutter
1pc x 2.5mm cutter
1pc x Probe
1pc x 2mm+4mm 3mm hexagon bar wrench
1pc x 3mm hexagon bar wrench
1pc x 6mm hexagon bar wrench
1pc x Protective bracket
1pc x Power adapter
1pc x 1.5m Power cord of Mainland China standard
1pc x 1.5 Power cord of UK standard (optional)
1pc x 1.5 Power cord of US standard (optional)
1pc x 1.5 Power cord of EU standard (optional)
1pc x Built-in battery (optional)
1pc x Brush
1pc x Product qualitty certificate
1pc x User manual

Xhorse Dolphin XP-005L  package list



Xhorse XDMLB0 VVDI MLB Tool

Xhorse XC002 PRO


Contact us:

Email: sales@XhorseShop.de
Whatsapp:+86-19947586579
                  +86-13429866263

Wechat:    +86-13429866263

Video

Xhorse DOLPHIN XP005L | M5 Clamp Cutting Calibration

Xhorse DOLPHIN XP005L ¦ M5 Clamp Cutting Calibration

Technical Support

Error Code/ Prompt:
ERROR CODE: 5
ERROR CODE: 6
ERROR CODE: 33
ERROR CODE: 2
Not support current data
1. Solution for ERROR CODE: 5 Detected probe
XP005L

Step 1: Update firmware to the latest version and do Height calibration and Clamp calibration

Step 2: Check blade position.
            e.g. Aligned with the 2nd line on the right side of required clamp

Step 3: If error still remains, do Electrical Conductivity Test, take a video, and send it to us.


2. Solution for ERROR CODE: 6 Detected cutter

Step 1: Change clamp setting
            Path: System>>Machine Parameter>>Cutting setting>>Clamp setting>>M5
            After clamp setting changed, here will show "M5" instead of "M1".

Step 2: If clamp still can't move, do X-axis motor test to see if it could return to the left.
            If not, remove back cover, check if X-axis cable gets loose.


3.ERROR CODE: 33 cutter diameter too large

Switch to a cutter with small diameter.
Path: System>>machine parameter>>cutting setting>>cutter diameter 1.5mm

4. Solution for ERROR CODE: 2 Not detected probe

Solution:Remove back cover of machine, check sensor of Z-axis is broken.

5. Solution for Not support current data

Update database to the latest version. (if it is the latest version, update again)

If error still remains, machine doesn't support this blade type yet.
e.g. XP005L supports HU49 6/ 7-cut key while doesn’t support HU49 9-cut keys
