Solutions for XP005L Error Code


Passendes Produkt:

2024 Xhorse Dolphin II XP-005L XP005L High Sec Portable Key Cutting Machine for All Key Lost with Adjustable Touch Screen

EU Ship No Tax 2024 Xhorse Dolphin II XP-005L XP005L High Sec Portable Key Cutting Machine for All Key Lost with Adjustable Touch Screen

Letzter Preis:1,999.00
1,923.004% off
  • Art.-Nr. SL480
  • Kostenloser Versand
Xhorse Dolphin XP-005L is with an angle-adjustable 5-lnch capacitive touch screen. build-in powerful database covers over 100 car brands, 2000 car modsls and 20000 key data Accurate key data, detailed parameters, and clear key graphics. Supprt Multi-purpose Clamps, directly upgrade online via WiFi connection. Control the machine by Xhorse APP on your smartphone or other Intelligent terminals via Bluetooth.
Error Code/ Prompt:
ERROR CODE: 5
ERROR CODE: 6
ERROR CODE: 33
ERROR CODE: 2
Not support current data
1. Solution for ERROR CODE: 5 Detected probe
XP005L

Step 1: Update firmware to the latest version and do Height calibration and Clamp calibration

Step 2: Check blade position.
            e.g. Aligned with the 2nd line on the right side of required clamp

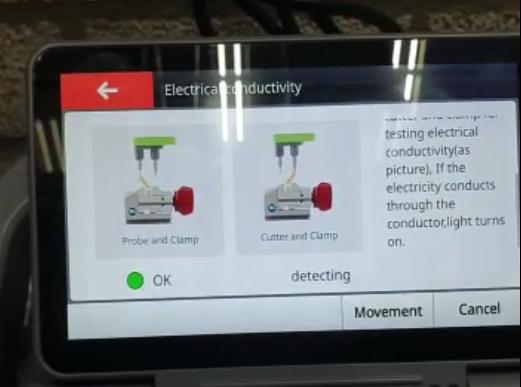

Step 3: If error still remains, do Electrical Conductivity Test, take a video, and send it to us.


2. Solution for ERROR CODE: 6 Detected cutter

Step 1: Change clamp setting
            Path: System>>Machine Parameter>>Cutting setting>>Clamp setting>>M5
            After clamp setting changed, here will show "M5" instead of "M1".

Step 2: If clamp still can't move, do X-axis motor test to see if it could return to the left.

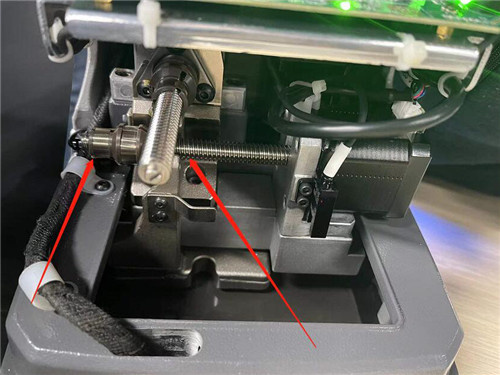

            If not, remove back cover, check if X-axis cable gets loose.


3.ERROR CODE: 33 cutter diameter too large

Switch to a cutter with small diameter.
Path: System>>machine parameter>>cutting setting>>cutter diameter 1.5mm

4. Solution for ERROR CODE: 2 Not detected probe

Solution:Remove back cover of machine, check sensor of Z-axis is broken.

5. Solution for Not support current data

Update database to the latest version. (if it is the latest version, update again)

If error still remains, machine doesn't support this blade type yet.
e.g. XP005L supports HU49 6/ 7-cut key while doesn’t support HU49 9-cut keys
