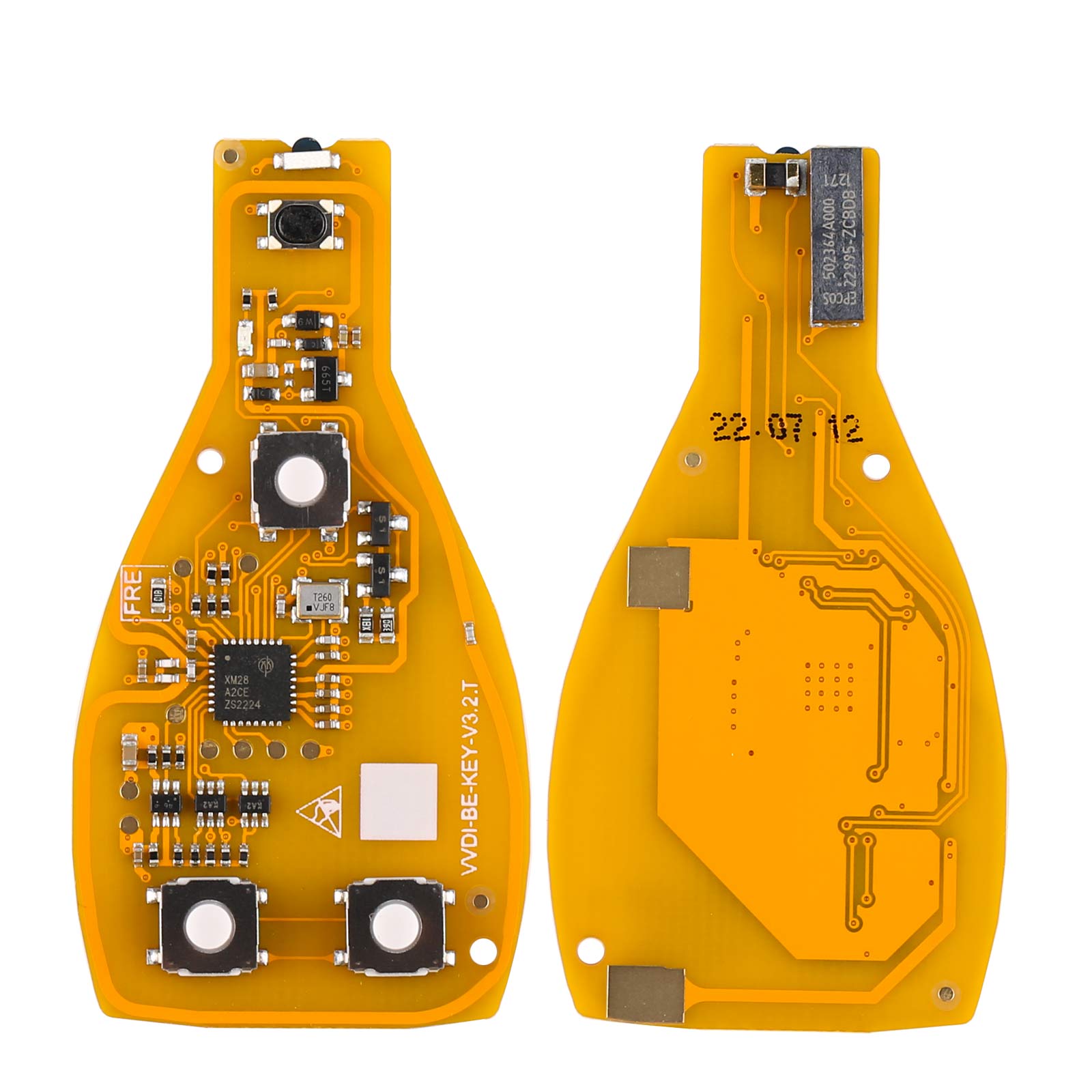

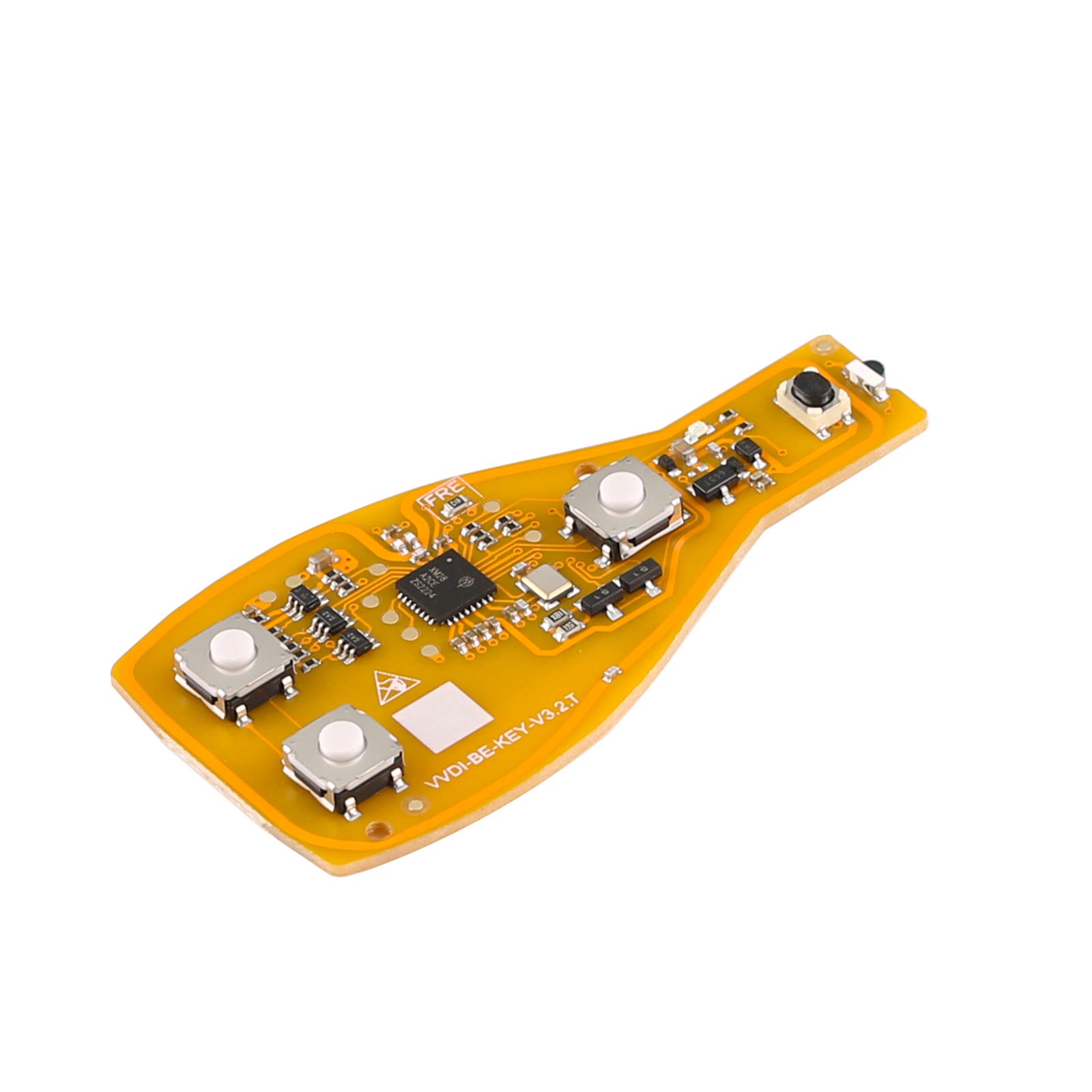

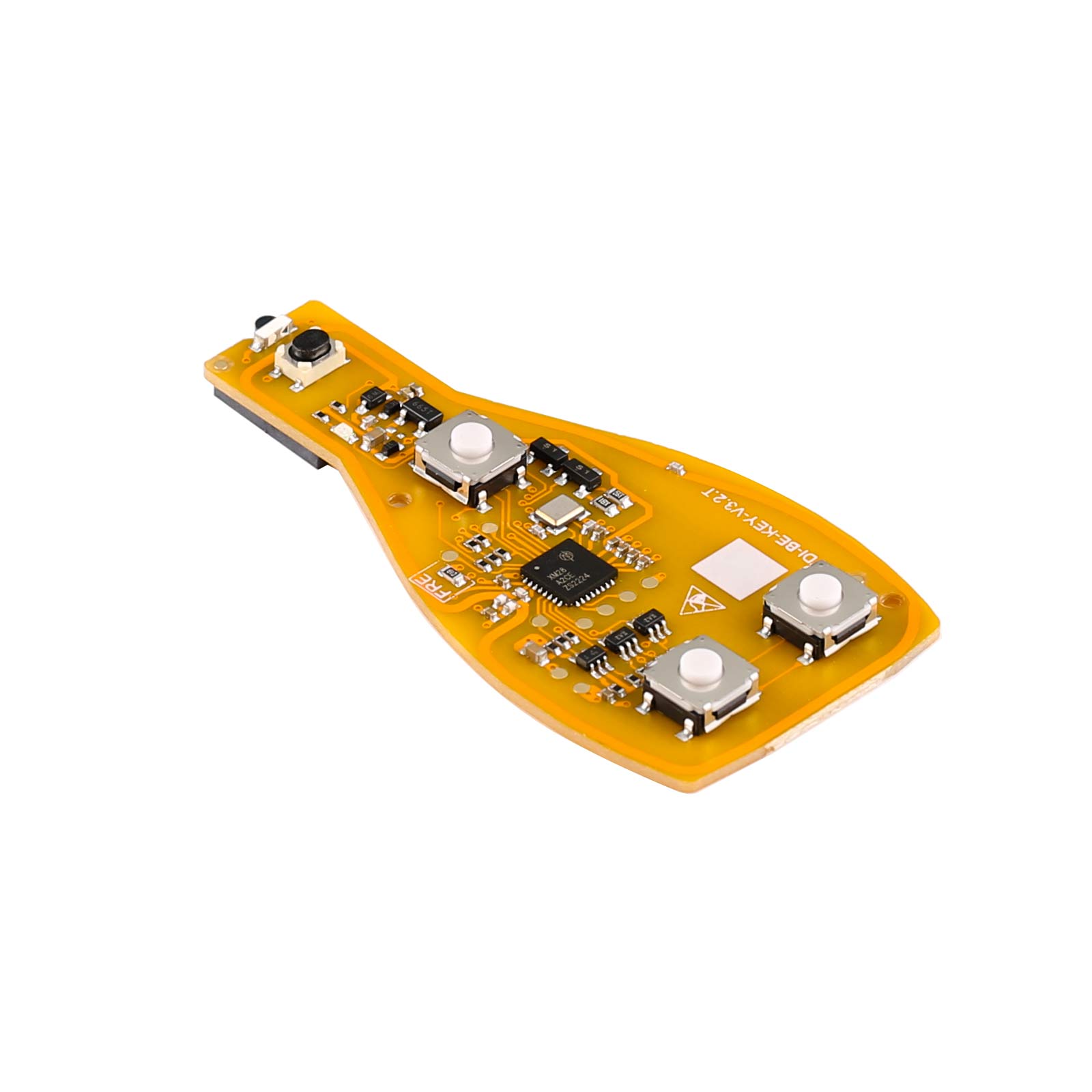

50pcs Xhorse VVDI BE Key Pro Improved Version for Mercedes Benz Yellow Board without Tokens/ Points
Xhorse VVDI BE Key Pro For Benz Yellow Board No Points
Highlights and Notice:
1. PCB Only withou Case/ Shell.
If You Need Both PCB and Key Shell, You Can Buy VVDI BE Key Pro with Smart Key Shell 3 Button Complete Package
3. Applicable Chip Models:
705 Moto(1997-2000) NEC(2001-2005) NEC(2006-2010) BGA(after 2011)
4. Programmed by:
All kinds of MB key programmer such as Digimaster-III ,CKM100, VVDI MB TOOL, AK500 , MBE MB-KEY OBD2, NEC-57 MB-PRO,etc.
5. Frequency: 315Mhz/ 433Mhz Can Be Both Supported.
You Can Change Frequency via VVDI MB Tool
Software or Remove the Resistor.
Default frequency is 315MHz. Remove PCB FRE resistor change to 433.92MHz. Support set frequency by VVDI MB TOOL software.
The way to reset the frequency with the PCB SMD resistor: Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.
VVDI BE key Pro Version Features:
High quality with ressonable price
No points will be accumulated
VVDI BE Key Pro improvements:
1. Fix the bug that W164/W639 EIS data doesn't synchronize the key.
2. Fix the bug that the BE key fails to turn on the ignition after repeat try.
3. Fix the bug of trunk remote open
4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
5. Modify the rolling algorithm, fix some errors of BE key.
6. Add pre-roll algorithm: the HASH value can roll ahead.
7. Adopt car-grade quartz crystal, improve infrared communication stability.
8. Boost the infrared signal when you press the button.
9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor
Note: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.

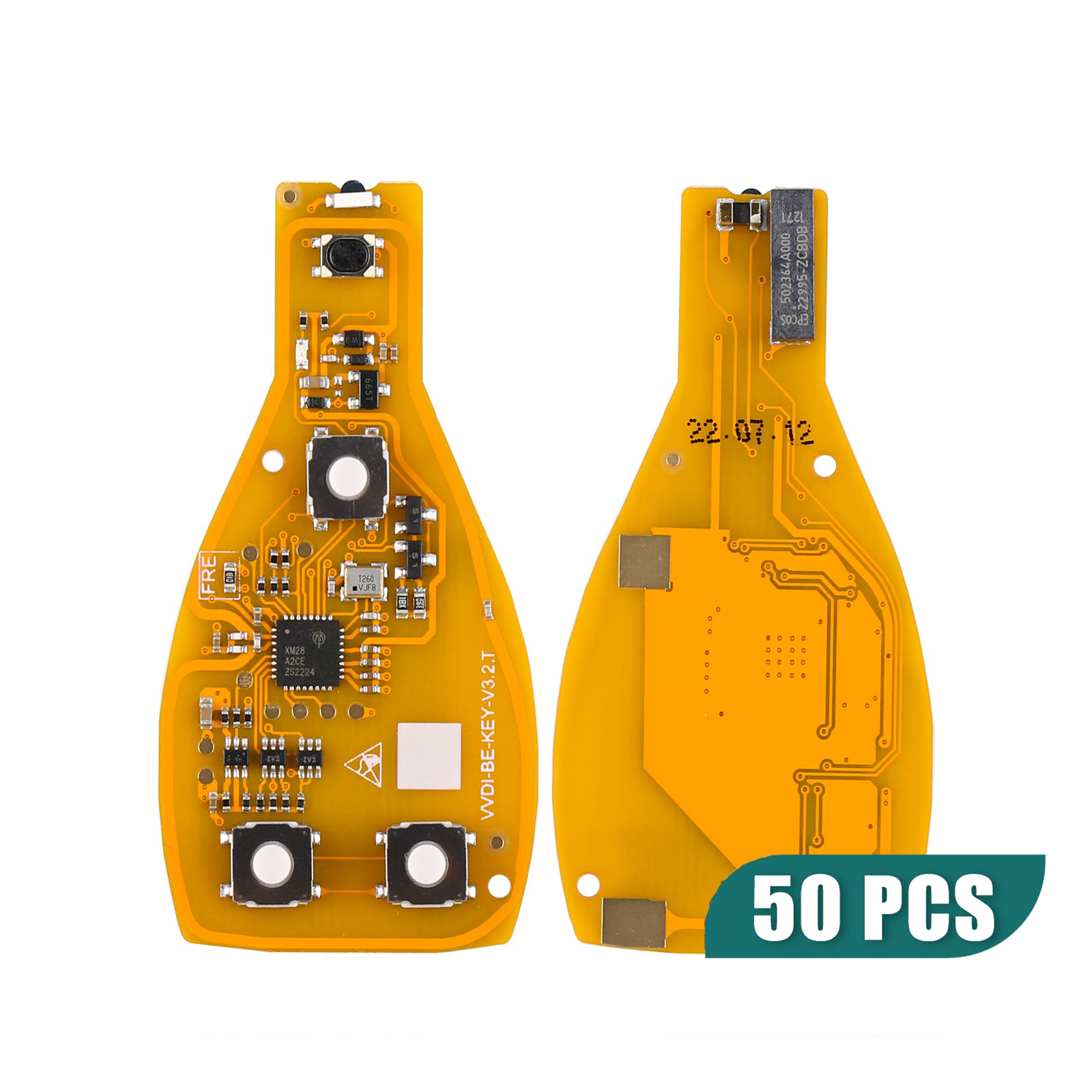

50pcs x VVDI BE Key Pro improved version
Contact us: Email: sales@XhorseShop.deWhatsapp:+86-19947586579
