Produktbeschreibung
SMART KEY BOX is a newly designed tool by Xhorse, aiming to help users achieve a non-remote driving experience. By installing the tool into your car, your smartphone is able to work as an independent car key. Usually, it inherits all of the functions of your original remote, including lock, unlock, panic and trunk. Furthermore, keyless entry is also a function that can be performed on your smartphone.

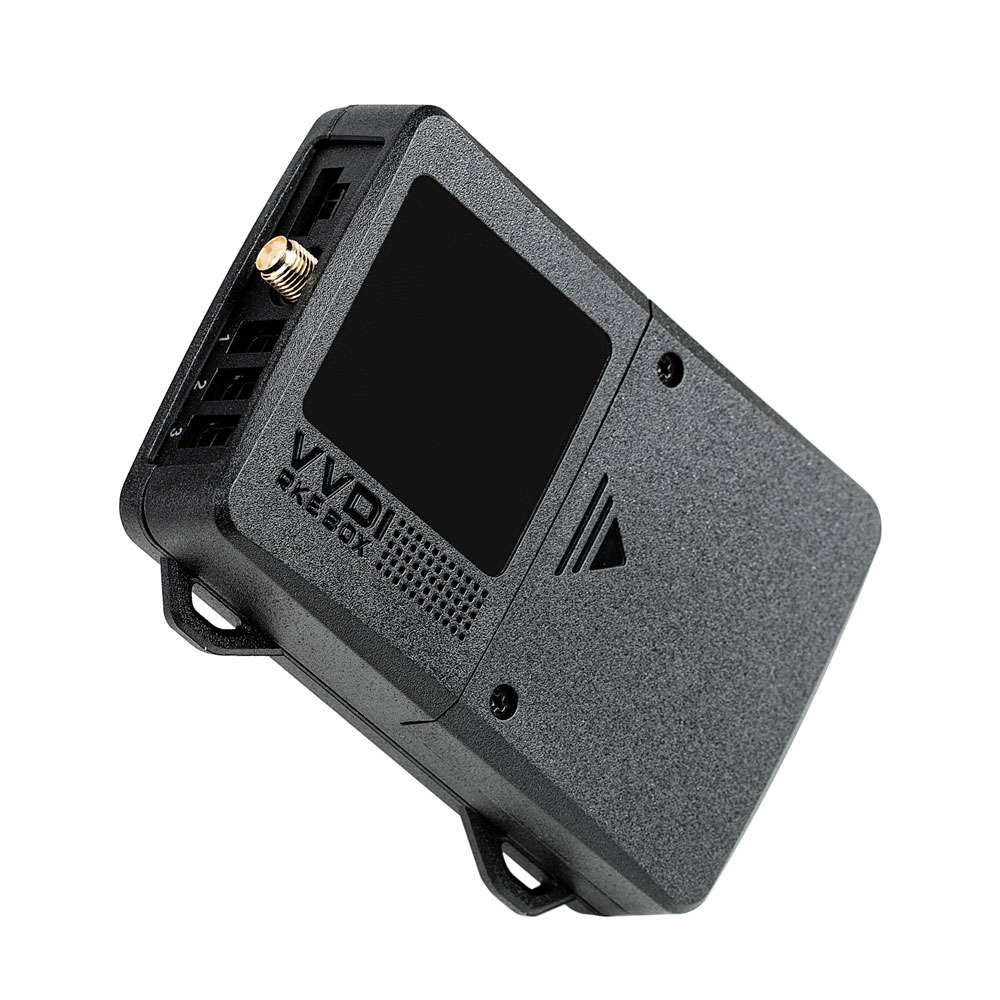

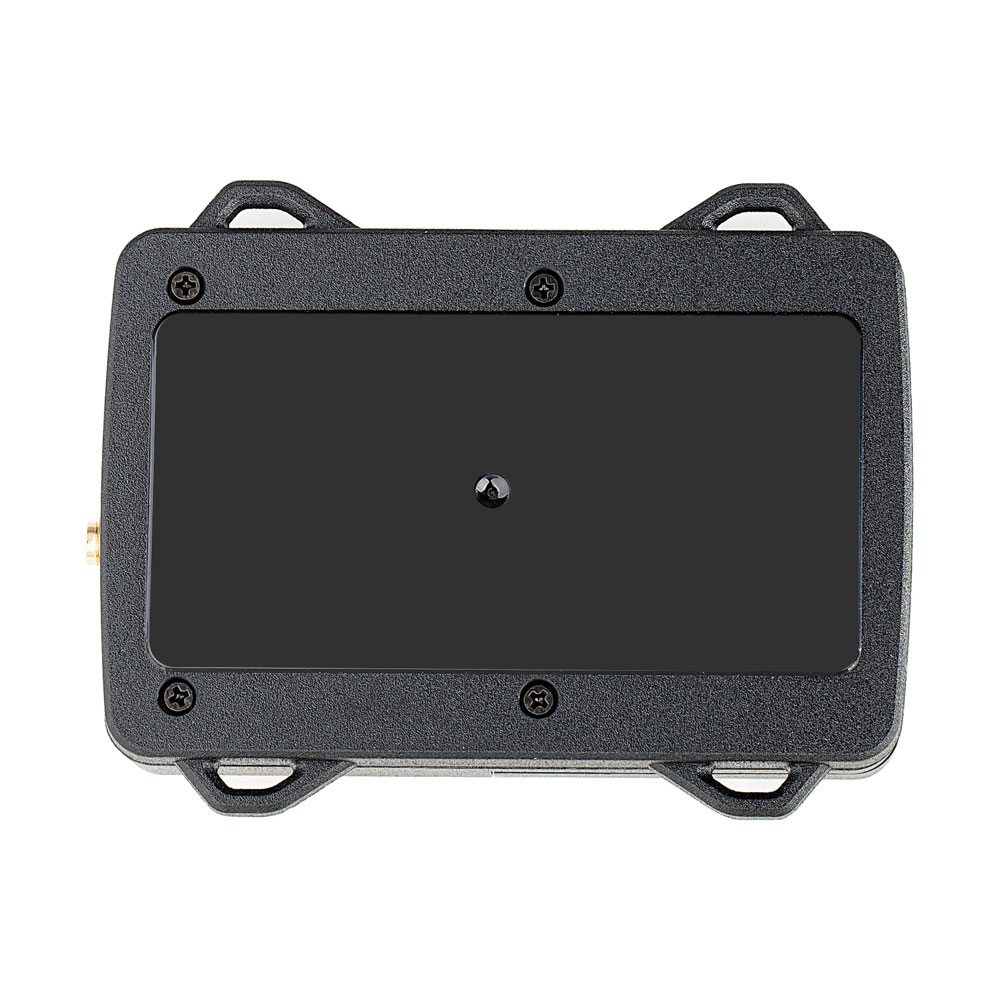

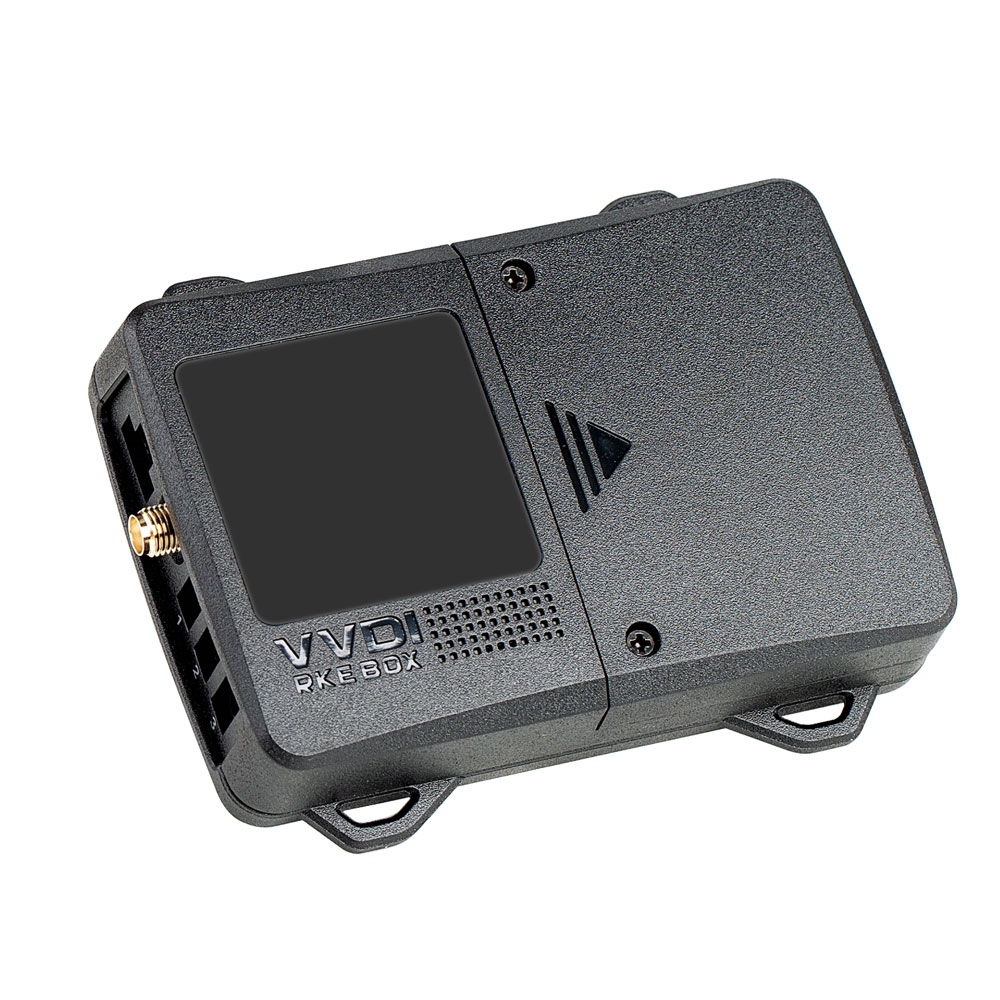

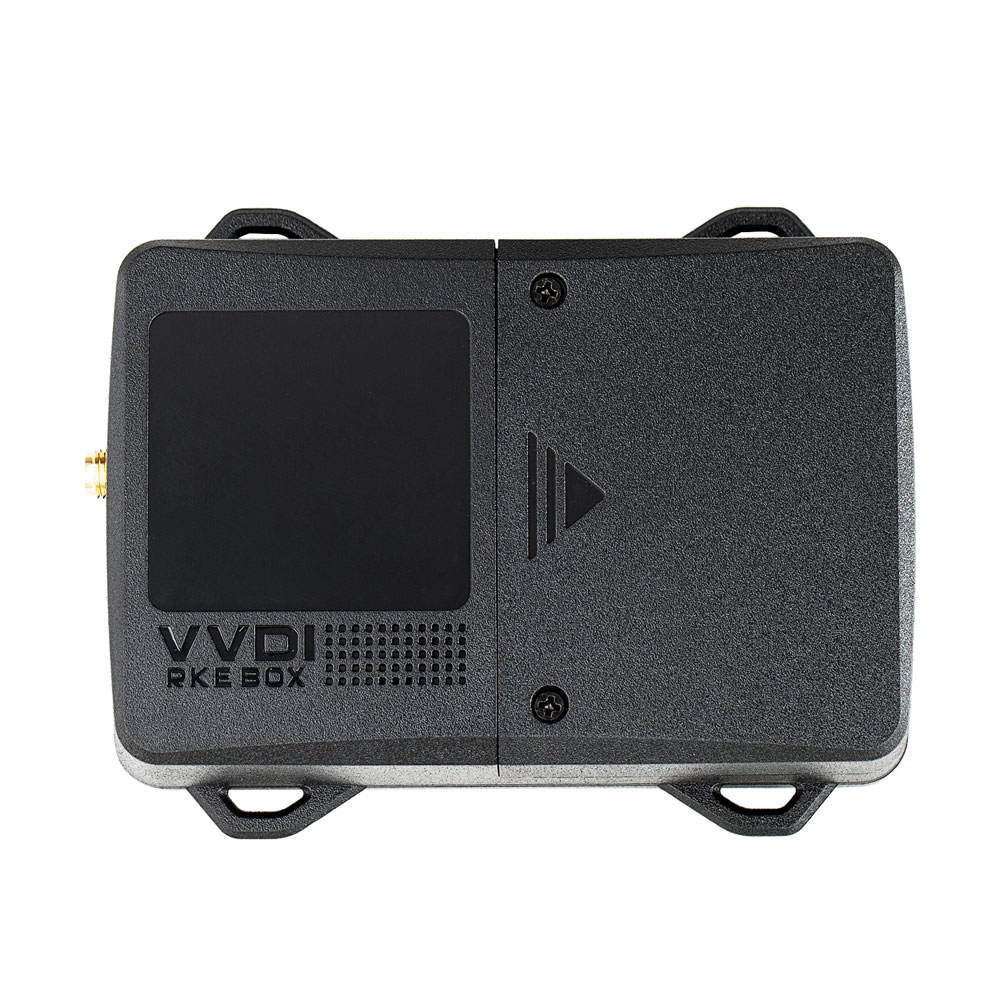

Xhorse Smart Key Box - Enter The Era Of Digital Keys
SMART KEY BOX is a newly designed tool by Xhorse, aiming to help users achieve a non-remote driving experience. By installing the tool into your car, your smartphone is able to work as an independent car key. Usually, it inherits all of the functions of your original remote, including lock, unlock, panic and trunk. Furthermore, keyless entry is also a function that can be performed on your smartphone.
Features:
1. Support Add Smart Key for Car
2. Support Add or Modify the Keyless-Enter Function
3. With Simple Installation and Reliable Performance.
4. Use VVDI Device to Generate Remote Control. Support Device:
MINI Key Tool,
Key Tool Max,
Key tool Plus,
VVDI2
5. It is Developed and Produced for the Aftermarket. It adpots advanced RF technology and is suitable for the car with push start function.
6. Vehicle-Standard Design, Advanced RF Technology and Software Algorithm Help Driver Extremely Short-Time Delay and Quick Response
Wide Vehicle Application
With wide applicability and general practicability, Smart Key Box supports the majority of common vehicles (with push button start functions)
How to Install Xhorse Smart Key Box?
1. Take out the original remote control, solder the cable according to the soldering diagram of the original remote control, pay attention to the direction.
2. Connect the RF antenna, LF antenna (connect any two interfaces of Lfantenna), and the original remote control to be transferred.
3. Find the Vbat wire and ground wire from fuse box, OBD interface or other locations.
4. Find the ACC signal line( the original car radio, the line with electricity after the navigation power onor the instrumentlight on).
5. Connect the Vbat wire, ground wire and ACC wire of thepower supply cable to the car.
6. Setting DIP switch
7. Bindings of remote control and mobile phone (refer to binding instruction
8. Install complete
9. After installed, take a key close to the car, test the automatic unlock and lock function if you stay away (test other keys in the same way
10. Test unlock, lock, trunk and car panic function after connecting with APP

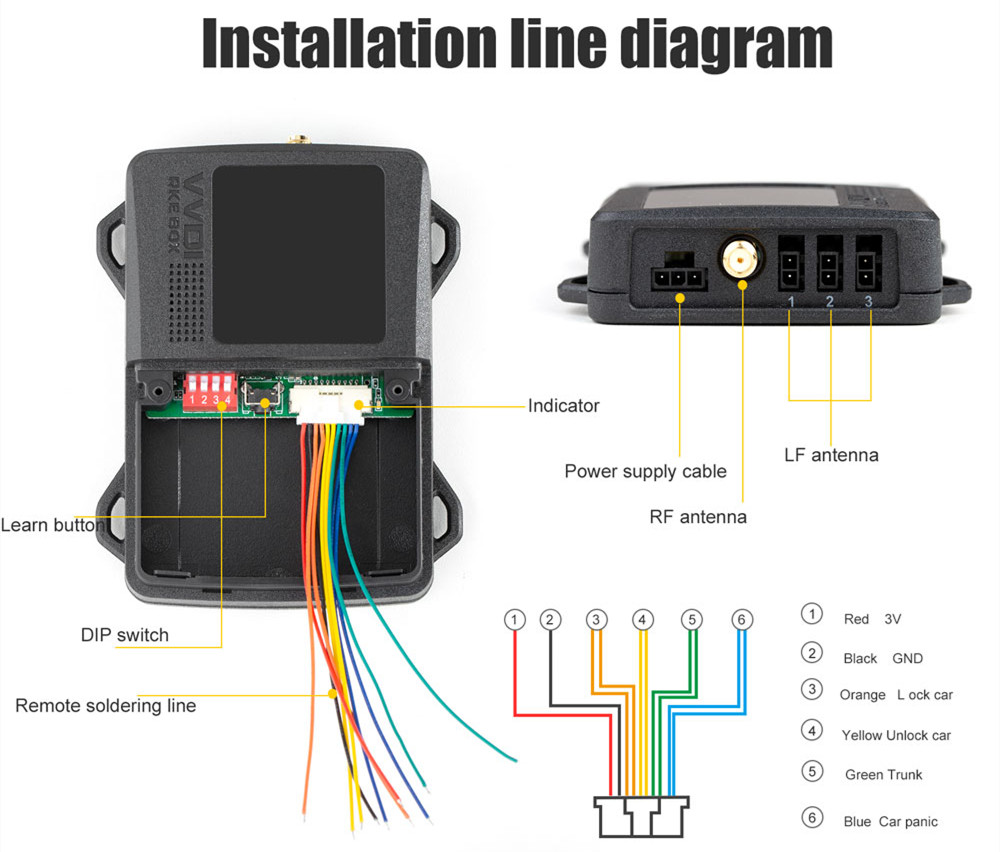

Installation Line Diagram

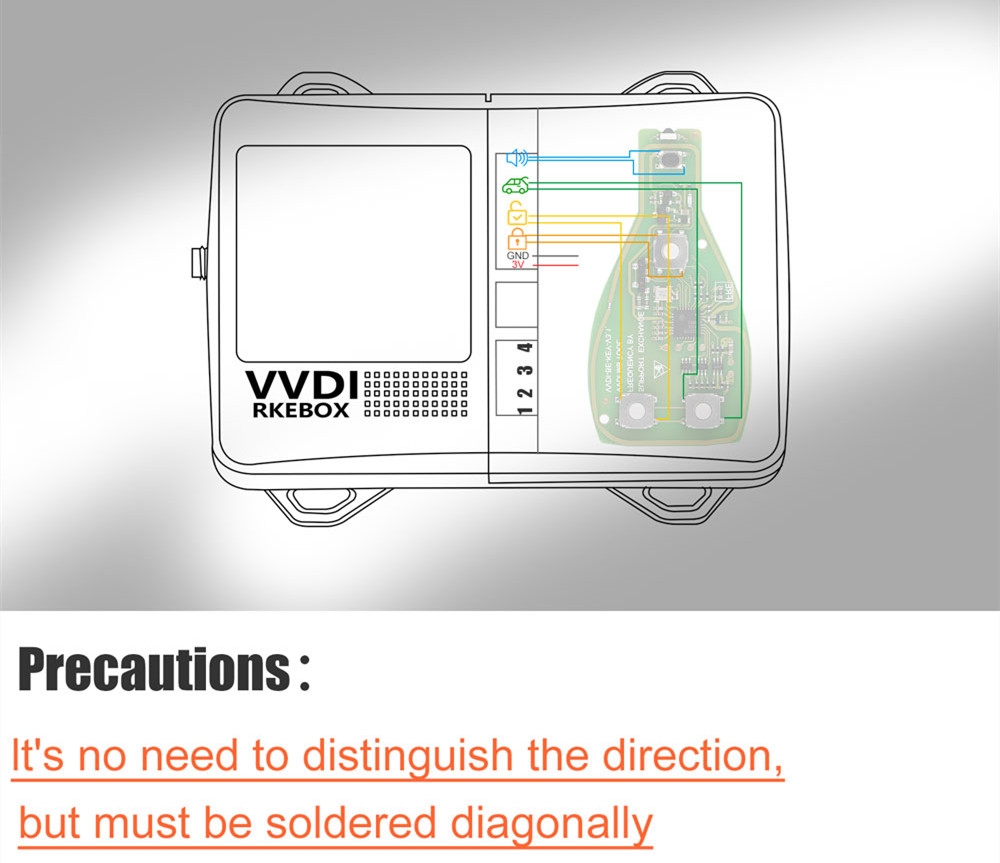

* Remote Control Button with 4 or 5 Pins
It's no need to distinguish the direction, but must be soldered diagonally
* Remote Control Button with 2 pins
It's no need to distinguish the direction, solder the left and right pin
DIP Switch Settings
If the original key needs regular power supply, turn the DIP switch NO.1 to the ON

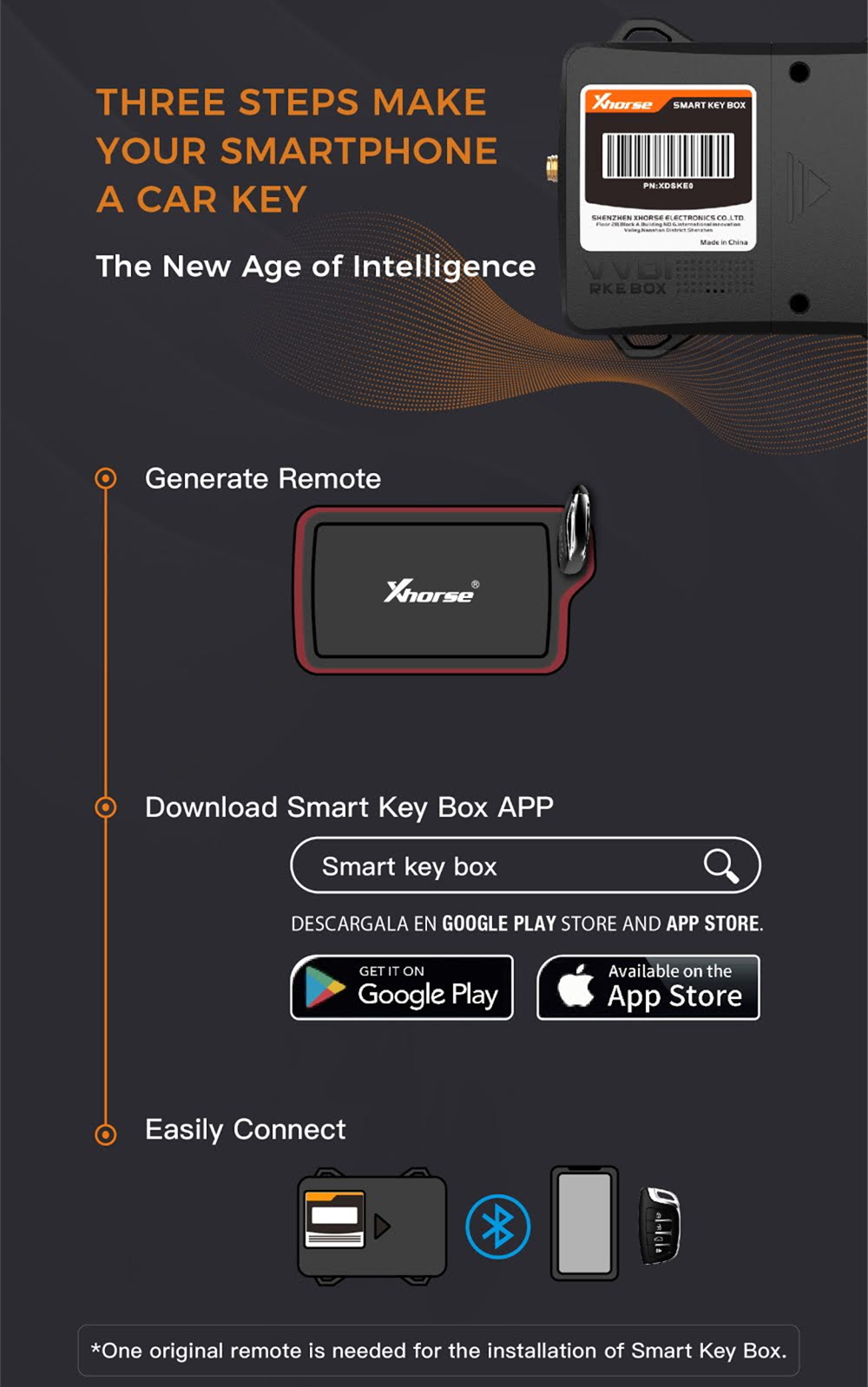

Remote Control, Mobile Phone Bindings
1. Remote Control Generation:
Use VVDI device to generate remote control (Mini KeyTool e.g.). Enter vehicle remote and search Xhorse in brand list. Then choose VVDI PKE Box 445 Option.
Support Device:
MINI Key Tool,
Key Tool Max,
Key Tool Plus,
VVDI2.
2. APP Download on Smart Phone
Scan the QR code below with your phone, download and install the smart key APP
3. Enter Learning Mode:
Long press the learning button or operate on APP, the buzzer will beep for 3S, and the indicator will light up. All the previous bound keys and mobile phone information will be cleared after entering the learning mode
4. Bind Remobte Control and Mobile Phone
1) Network Certification:
Make phone under network and connect with Box via bluetooth (name start with KE03, such as KE03000000) for activation authentication. The remote and APP can be learned only after the authentication is successful or the buzzer will beep 3 quickly to remind that user is not authenticated.
2) Remote bindking
Press any button on remote and buzzer get one beep-> two beep->one beep after learned a remote-> tow beeps-> learned a remote, bind remotes as the same method. A maximum of 6 meters can be bound, the buzzer will beep 5 times quickly if exceed 6 remotes to remind that the bound keys have reached the limite
3) Mobile Phone Binding
Open the APP and connect the bluetooth of BOX, click the learning button on the APP prompt, the buzzer get 2 beeps->phone prompts learning success-> bind phones as the same method after disconnect. A maximum of 6 phones can be bound, the buzzer will beep 5 times quickly if exceed 6 phones to remind reach the limit
Package List:

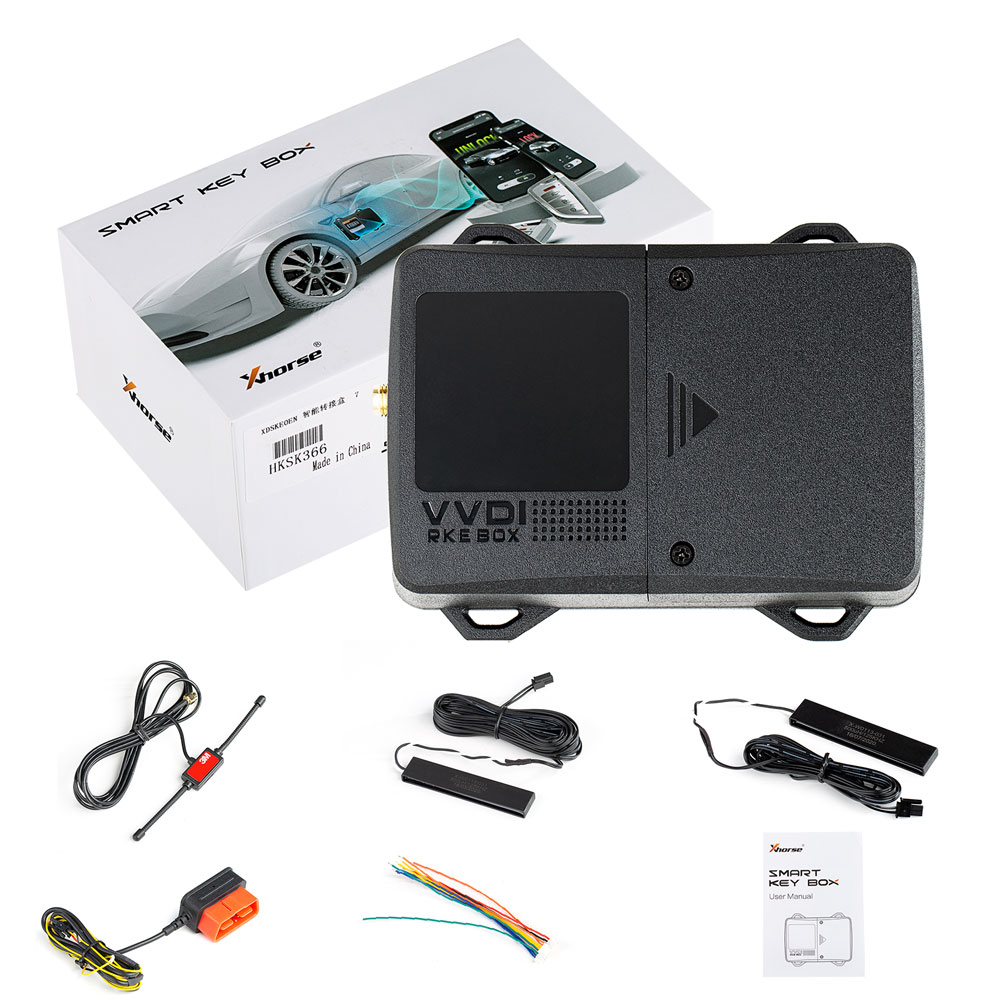

1pc x Machine
1pc x LF antenna
1pc x RF antenna
1pc x Power supply cable
1pc x User manual
1pc x Product quality certificate
Contact us: Email: sales@XhorseShop.deWhatsapp:+86-19947586579
+86-13429866263Wechat: +86-13429866263
