Xhorse FCA 12+8 Cable for Chrysler/ Dodge/ Jeep Work With Key Tool Plus

Produktbeschreibung

Xhorse FCA 12+8 Cables for Chrysler/ Dodge/ Jeep Work With Key Tool Plus

Main Functions

1. Work Together with Xhorse Key Tool Plus Pad
2. Used in Key Programming and Cluster Calibration via OBD2
3. Used with Other Diagnostic Devices to Read and Clear Fault Code
4. To Correct Mileage or Reset Oil via OBD2 for 2018 and up FIAT/ CHRYSLER/ ALFA ROMEO Vehicles.
5. Break the Restrictions Caused by SGW.



Support Vehicle List:


FIAT	2018-FIAT
MASERATI	2018-MASERATI AND GHIBLI
CHRYSLER	2018-2021 CHRYSLER 300 2018-2021 CHRYSLER 300C 2018-2020CHRYSLER 300 PACIFICA 2018-GRAND VOYAGER
DODGE	2018-2021 DODGE CHALLENGWER 2018-2021 DODGE CHARGER 2018-2020 DODGE DURANGO 2018-DODGE JOURNEY 2018-2021 RAM 2018-2019 COOLWAY
JEEP	2018-JEEP CHEROKEE 2018-2020 JEEP GRAND CHEROKEE 2020- GLADIATOR 2018-JEEP COMPASS 2018-2020JEEP WRANGLER 2019-JEEP RENEGADE 2020-JEEP RENEGADE 2018-COMMANDER 2017-GUIDE

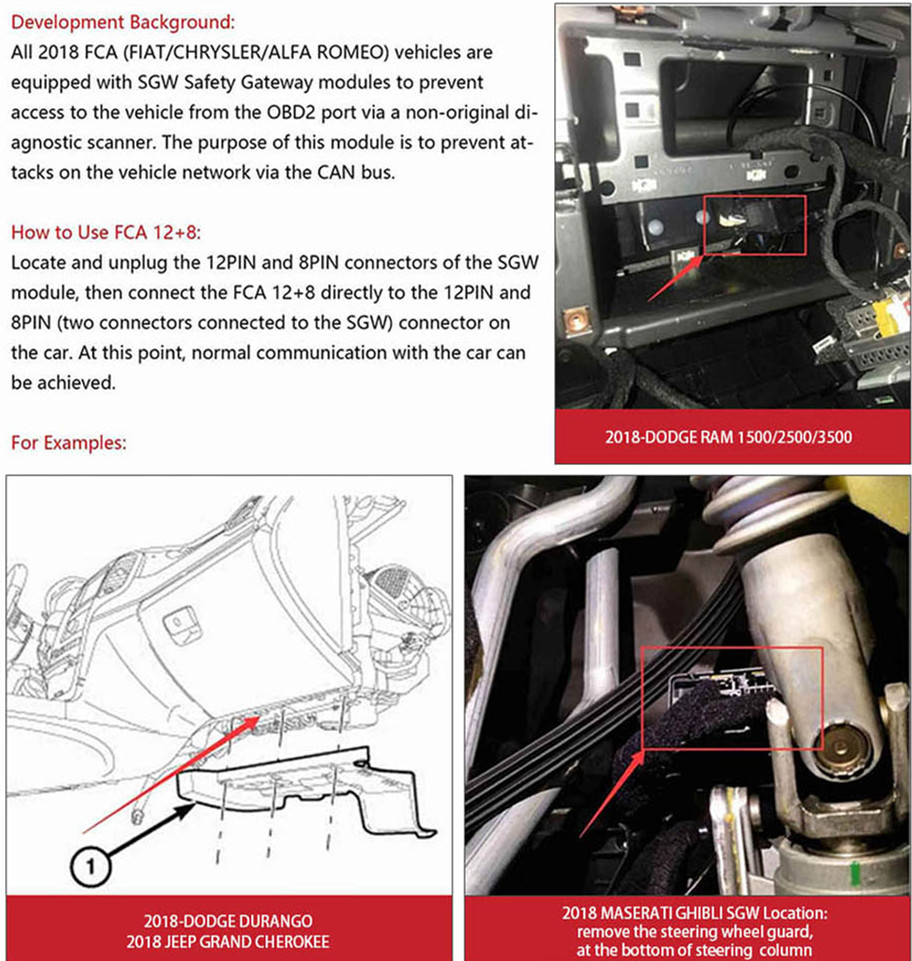

The position of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.

How to Use Xhorse FCA 12+8 Universal Adapter:

You are supposed to see this message when scanning a for Chrysler with the Security Gateway Module(SGW): Device is unable to communicate with the
control unit. No worries, please follow the steps below to quickly solve this problem.
Step One: Locate and unplug the 12pin and 8PIN connectors of the SGW module.
Step Two: Connect the FCA 12+8 directly to the 12pin and 8pin connectors(two connectors that are connected to the SGW) on the car.
Then the normal communication function with the vehicle can be achieved.
The position of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.



Package List:

1pc x Xhorse FCA 12+8 Cables







---
