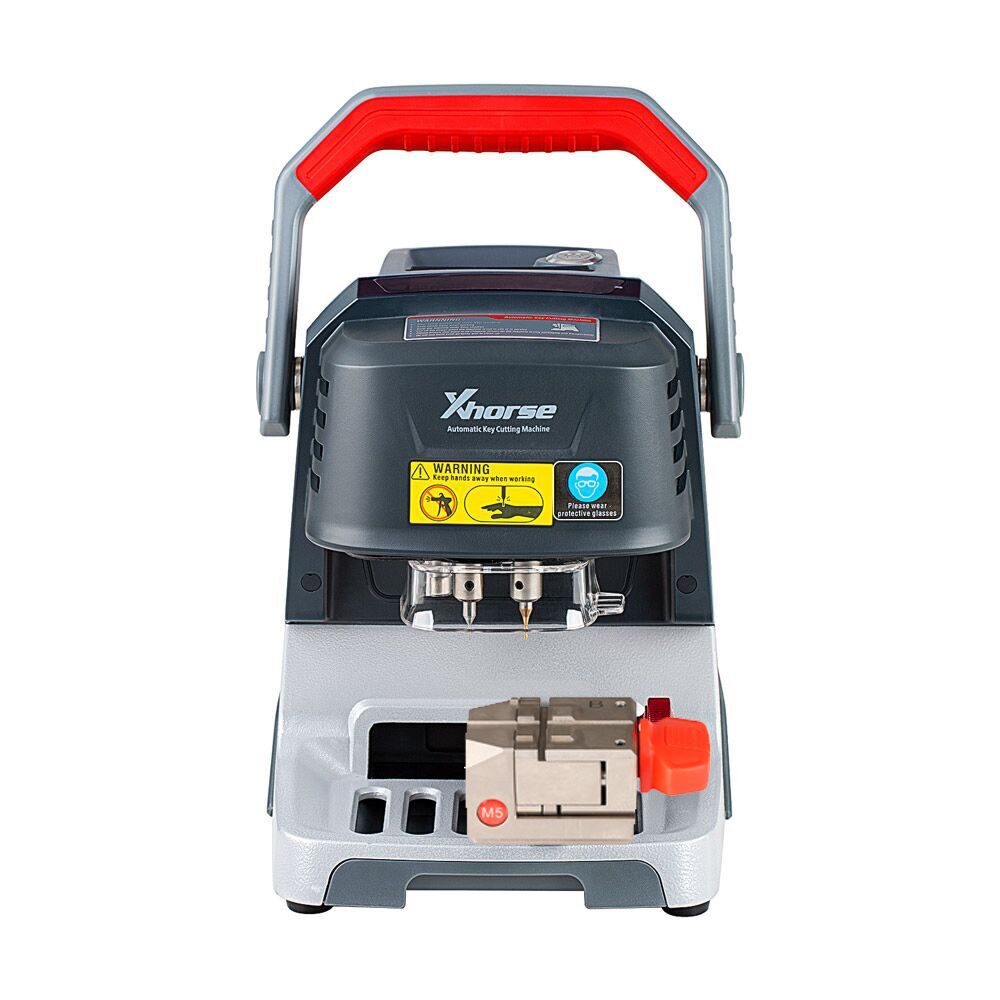

Xhorse Dolphin XP-005 Key Cutting Machine with M5 Clamp for All Key Lost
Xhorse XP-005 XP0502EN is the third generation key CNC machine, it is often used for duplicating automobile mechanical keys, changing key bitting, and solutions when all keys are lost. As a portable CNC machine, it is preferred by locksmiths to take out for work by car. Moreover, Xhorse XP-005 supports online upgrade and can update the new key data in time.
Note:
No built built-in battery, can work without battery, but needs to connect with power supply. If you need battery, can buy separately to add.
Can Only Send from China Now,NO EU STOCK!!!

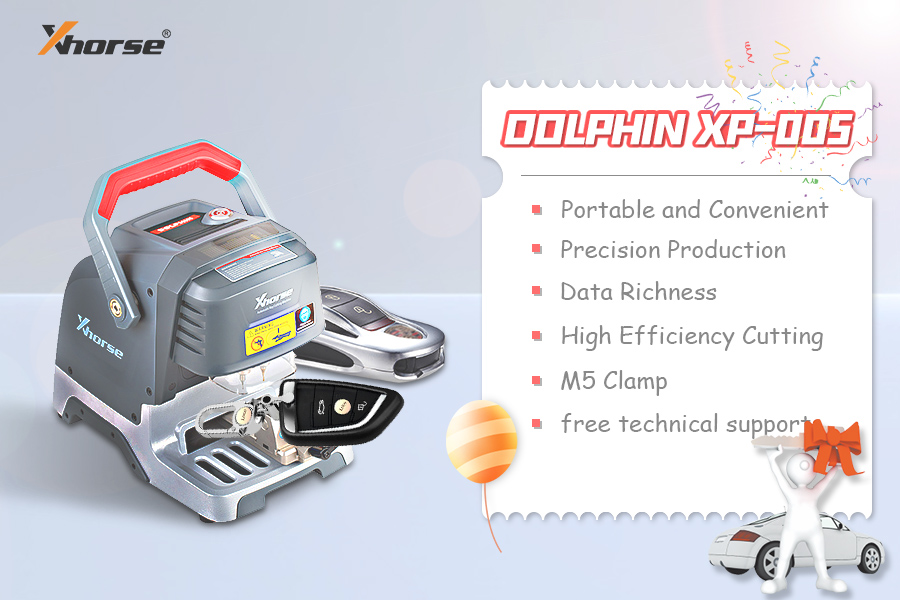

Product Features:
Portable and Convenient
Attractive appearance, full of technology, portable design, compact structure, small body leading the industry. The portable handle design and light body weight make it more convenient to carry.
Precision Production
All aluminum body structure, Manufactured by Germany-made DMG CNC machine
Intelligent Control
Provide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.
Data Richness
Provide rich vehicle data, blank key data, the best tool of all key lost.
High Efficiency Cutting
Use American famous brushless motor and screw rod, high efficiency and stability, create high precision cutting quality.

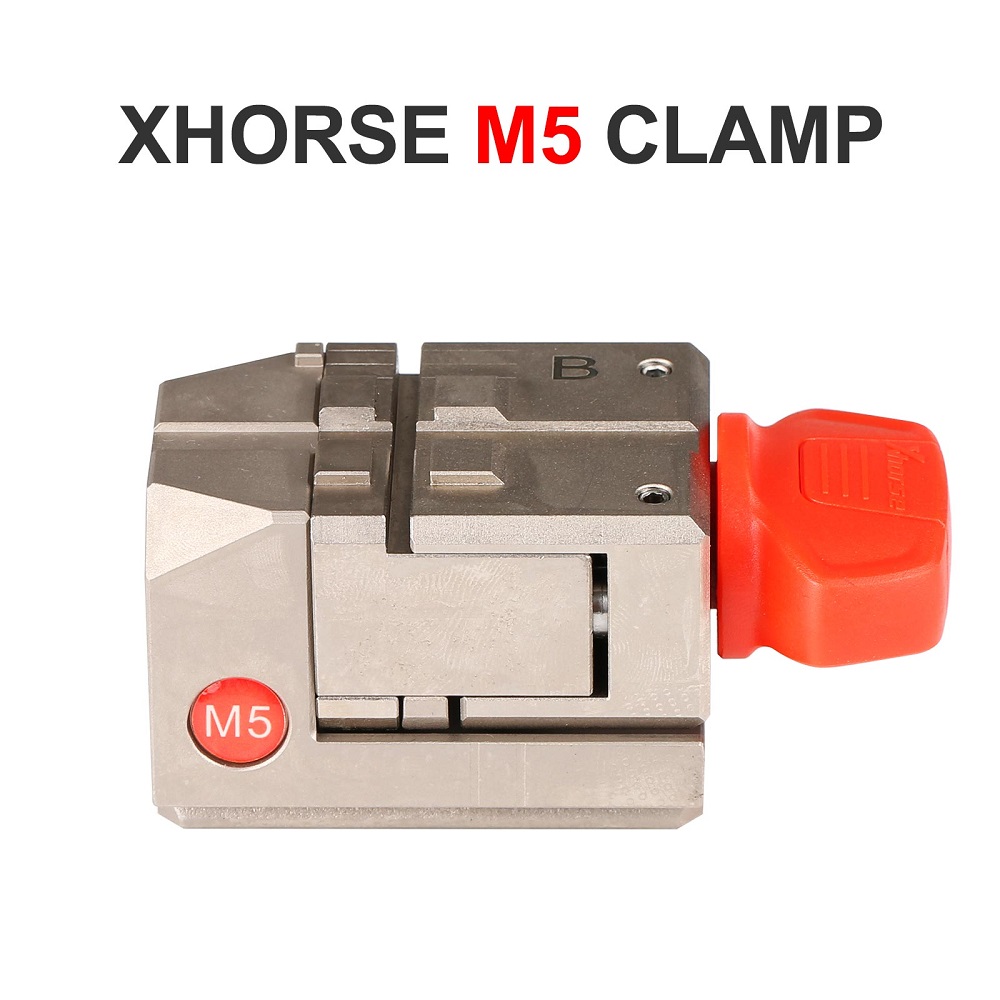

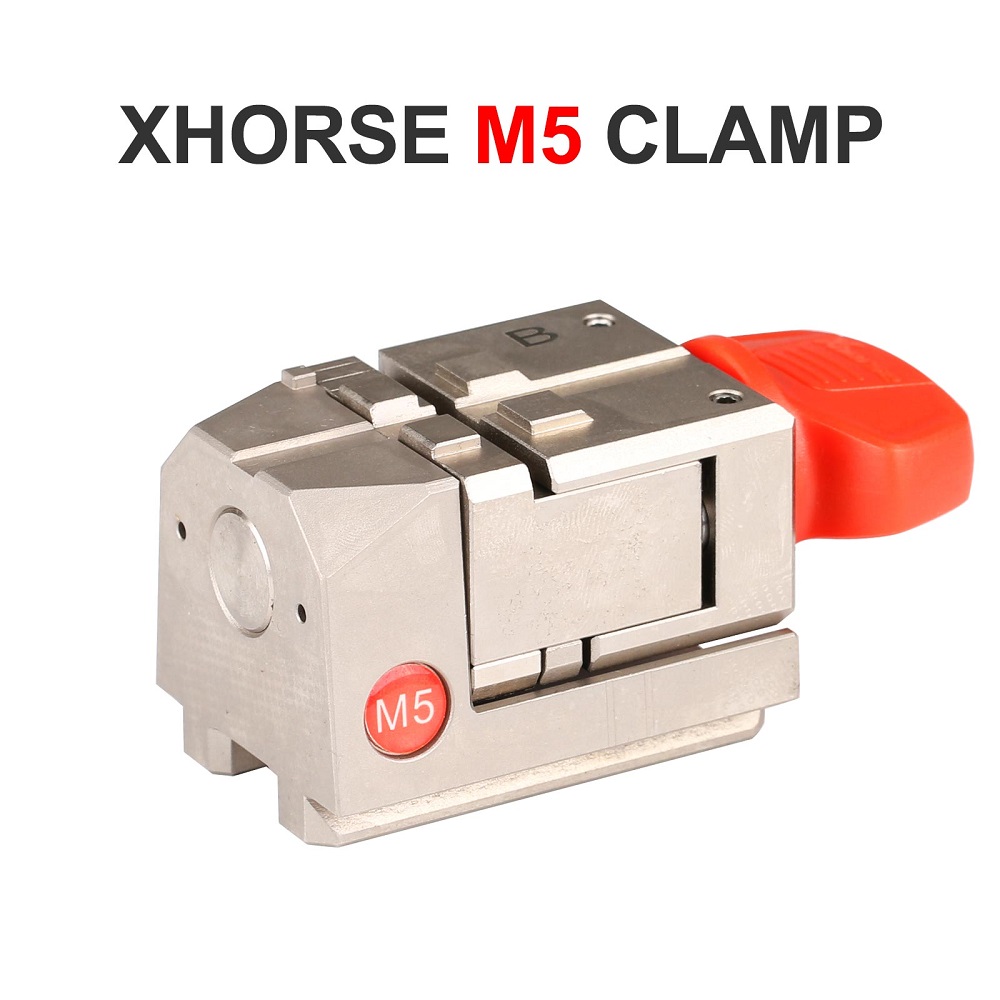

M5 Clamp
M5 clamp supports 4 track external, 2 track external, 4 track internal, Channel track. M5 clamp has two sides of A and B. Users can turn the clamp surface to cut according to cutting needs. There is no need to repeated install and uninstall to replace different clamps.
It can also be used with special fixtures to cut special Ford Citroen keys. It supports the connection of photo-taking, tooth-reading and optical imaging equipment. Non-conductor keys (plastic keys) can be cut.
Free Upgrade
Provide free software upgrade service, software function and database.
Technical service
One year warranty, free technical support, online service to provide remote control support.
Key Database
The built-in genuine key database is convenient for the tooth shape query when all keys are lost.
Bluetooth Connection
XP-005 can be connected to a mobile phone or tablet computer through Bluetooth for operation, and can also be used with key tool max and tablet computer.
Product Comparison:
Model |
DOLPHIN XP-005 |
Condor XC-MINI PLUS |
Picture |
|
|
Screen |
Small screen showing Bluetooth status |
LED Display 1024×600 Adjustable Touch-Screen |
Spindle |
Mechanical shaft +60W DC motor ( foreign brand) |
Electric spindle brushless 300W, built-in angular contact bearing |
Transmission Mechanism |
T-shaped screw + anti-backlash nut |
Ball screw |
Guide |
Roller guide |
Cross-track |
Shell |
Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting |
Plastic outer casing body is formed by body alloying die casting |
Operating System |
Mobile phone APP |
Stand-alone/Mobile phone APP |
Battery |
No built-in battery |
(optional) Power supply adapter with Battery |
Built-in Database |
Yes |
Yes |
All Keys Lost |
Yes, with network connection |
Yes, offline operation |
Fixture |
Standard fixture |
Two sets of standard fixtures |
Operation |
No touch screen, no built-in database |
Quick start, with touch screen, built-in database |
Offline Operation |
No |
Yes |
Dedicated App |
Yes |
Yes |
Protecting Mask |
Simple protective cover |
Comprehensive protection |
VVDI MB Binding |
Yes. After binding, VVDI MB is one token free everyday. |
Yes. After binding, VVDI MB is one token free everyday. |
Cutting Speed |
1X SPEED |
2X SPEED |
Weight |
18KG |
24KG |
Warranty |
1 year |
3 years |
Update |
Update online via Xhorse Update Kit |
Update online via Xhorse Update Kit |
Product Specifications:
Series |
DOLPHIN Key Cutting Machine Series |
Model |
XP-005 |
Working temperature |
-10~50℃ |
Working Humidity |
10%~90% |
Input voltage |
12-24V |
Cutting power |
100W |
Standby power |
15W |
Motor Rotation Speed |
10000-13000RPM |
Rated torque |
0.15N.m |
USB Port |
USB2.0 |
Machine Dimension |
315*218*270mm |
Package Dimension |
510*315*345mm |
Net Weight |
15kg |
Gross Weight |
18kg |

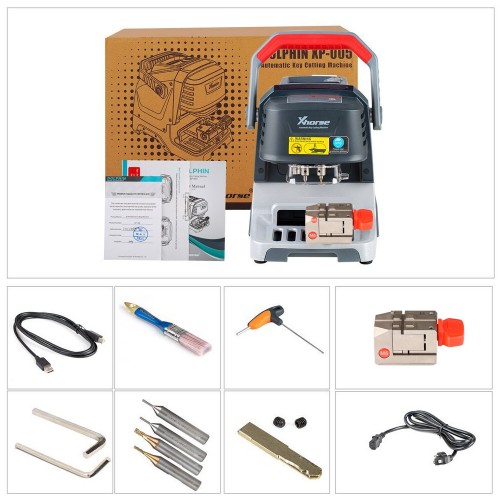

Package Includes:
1pc x Condor Dolphin Machine Body
1pc x M5 Clamp
1pc x 1.5mm Cutter
1pc x 2.5mm Cutter
2pc x 1.0mm Probe
1pc x Power cord
1pc x Power Supply Adapter
1pc x USB cable
1pc x Brush
