Xhorse VVDI BIMTOOL Pro is designed for both locksmiths and BMW engineers, which can be used for BMW key programming & E/ F/ G programming/ coding/ Doip vehicle programming via Ethernet port and more. It supports the key programming function from the old EWS to CAS (CAS1, CAS2, CAS3, CAS3++ CAS3++istap, CAS4, CAS4+) and the latest FEM/BDC anti-theft system.
VVDI BIMTool Pro BMW E F G Programming & Coding Guide

BMW E/ F/ G programming and coding is the most important new feature of Xhorse VVDI BIM Tool Pro Tool.The ethernet interface will speed up the writing data instead of the USB cable previously used to connect to the BMW Tool.

Part 1. Program/ Code BMW Exx

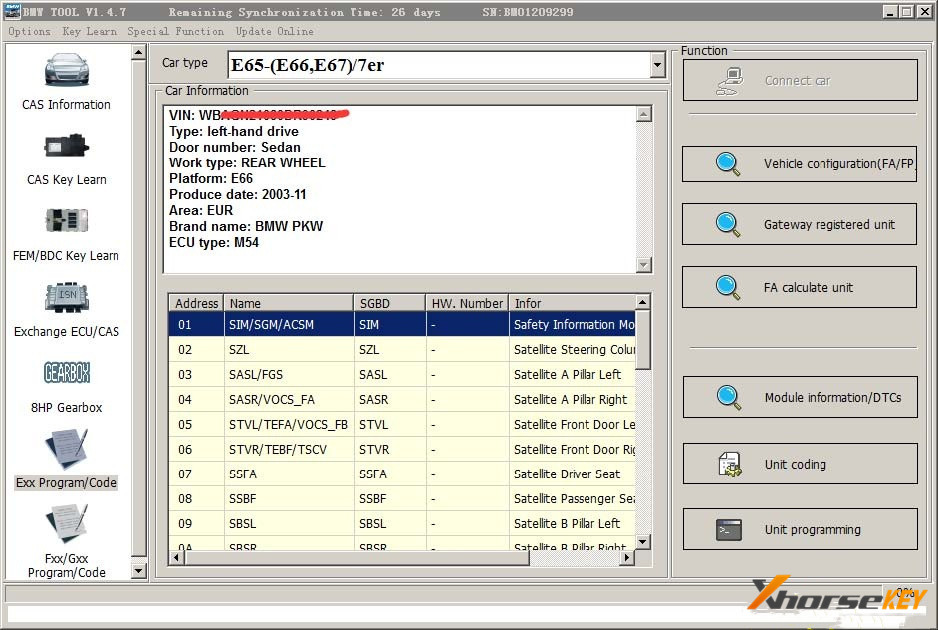

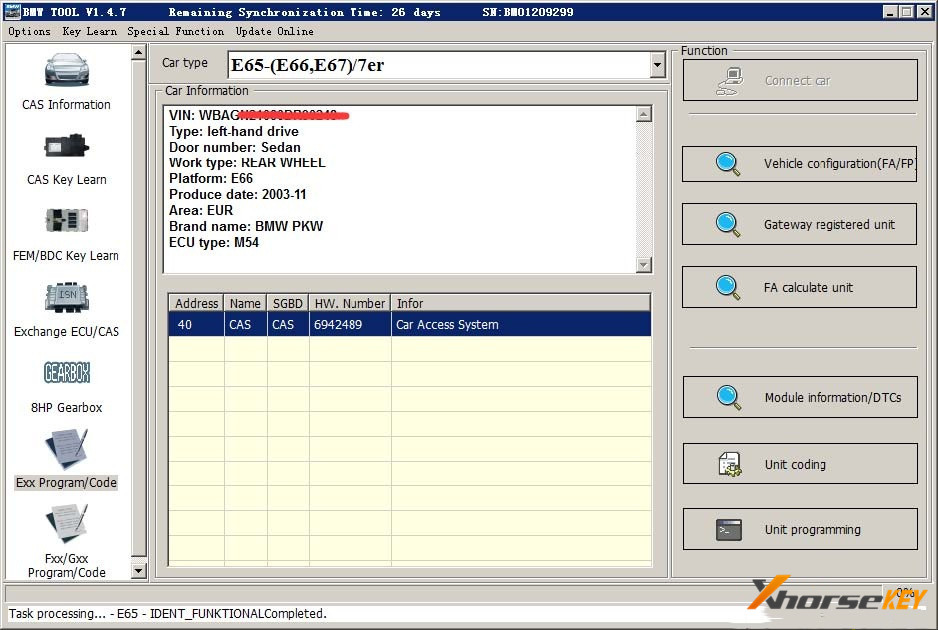

1. Connect Car
Can auto detect vehicle model, read module information, support chassis: E36, E38, E39, E46, E52, E53, E60, E63, E64, E65, E66, E67, E70, E71, E72, E83, E85, E86, E89, E90, E91, E92, E93, K1X, K24, KH2, R50, R52, R53, R55, R56, R57, RR1,.etc chassis

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

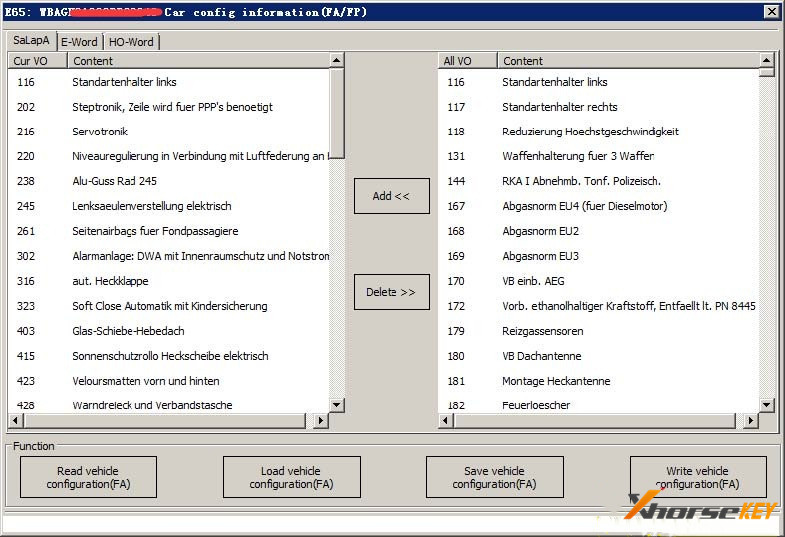

2. Read and write Vehicle configuration (FA/ FP)
Can read the configuration information inside of vehicle module, and to change the vehicle configuration information for replacing second-hand module.

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

3. Registered unit information from gateway / Calculate adaptive control unit
Read registered unit information from gateway
Calculate adaptive control unit-calculate all control units of the current vehicle based on configuration information

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

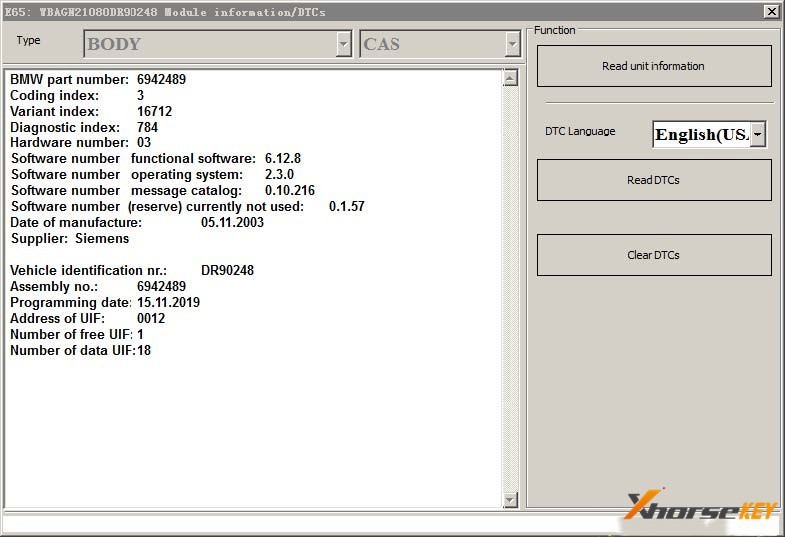

4. Module information/ DTCs
Read the specific information of selected module, then read and clear DTCs .,etc

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

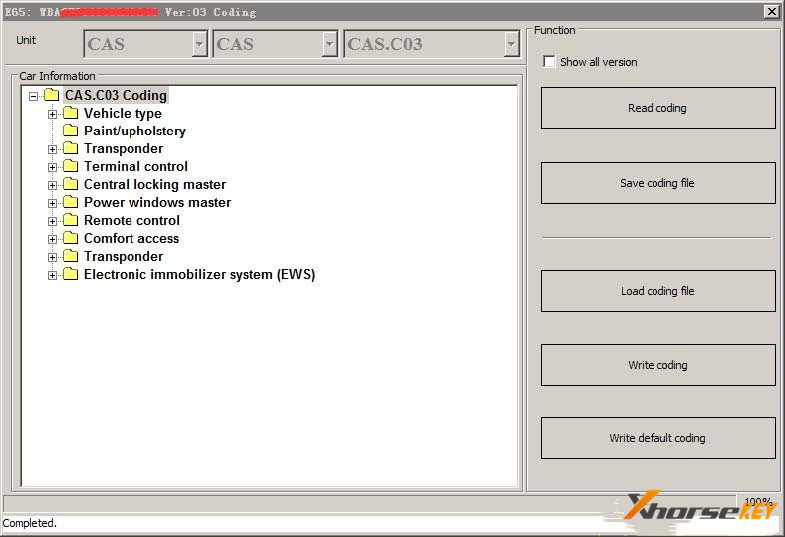

5. Unit coding
Read the coding information of selected unit, save coding, load coding, write coding and  calculate the default coding based on the vehicle configuration information etc.

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

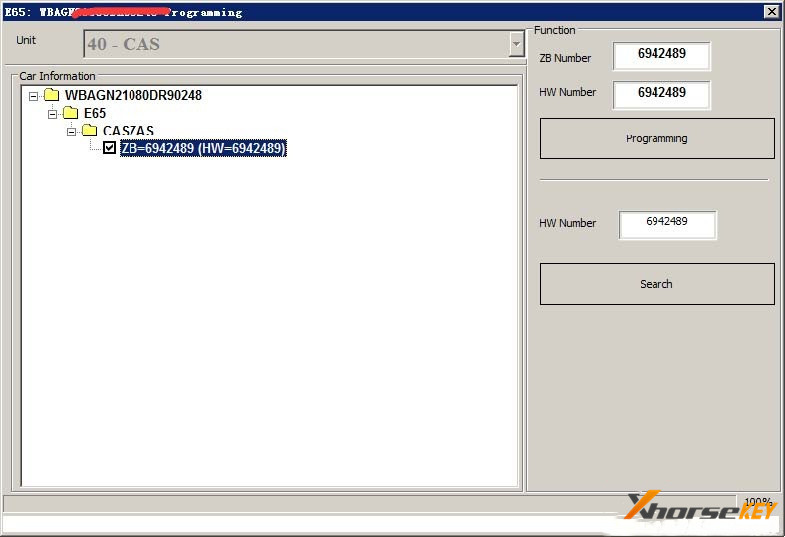

6. Module programming
According to the hardware version number and ZB version number in the current module, search for the supported programming files and perform programming functions

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

Part  2. Program / Code Fxx / Gxx

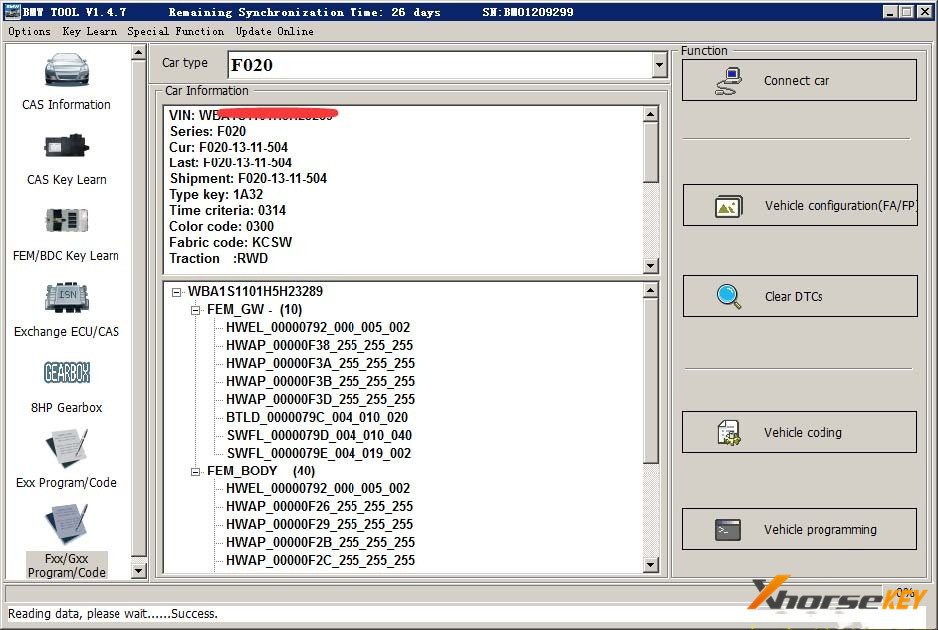

1. Connect to car
Auto detect vehicle model, and read the information inside of module.

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

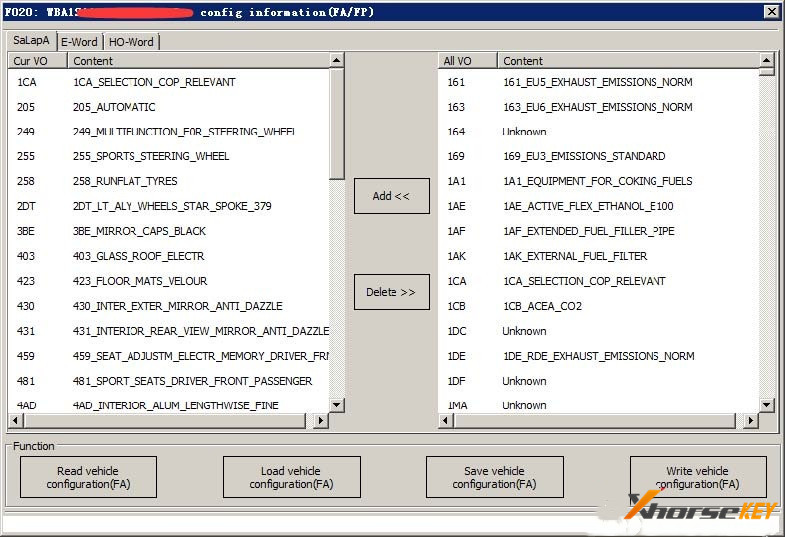

2. Read & write vehicle configuration (FA/FP)
Can read the vehicle configuration information inside of module, and change the vehicle configuration information for replacing second hand module.

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

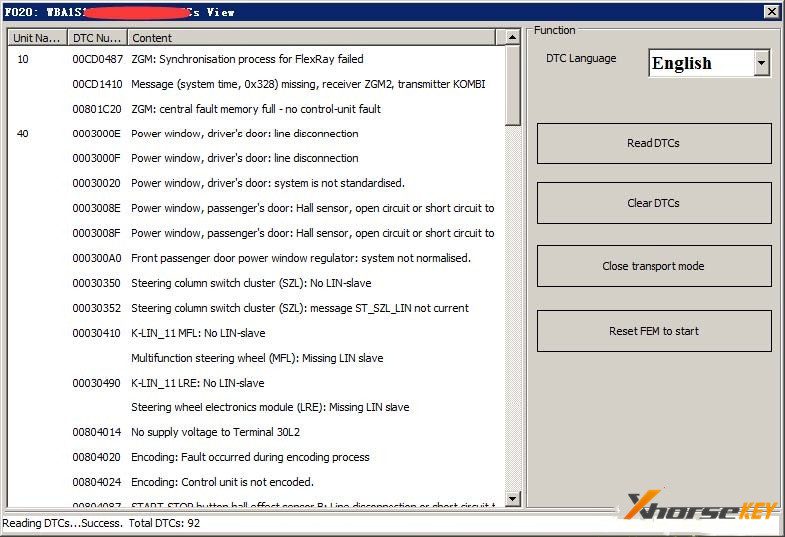

3.Read / Clear DTCs
Can read and clear DTCs for vehicle maintenance

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

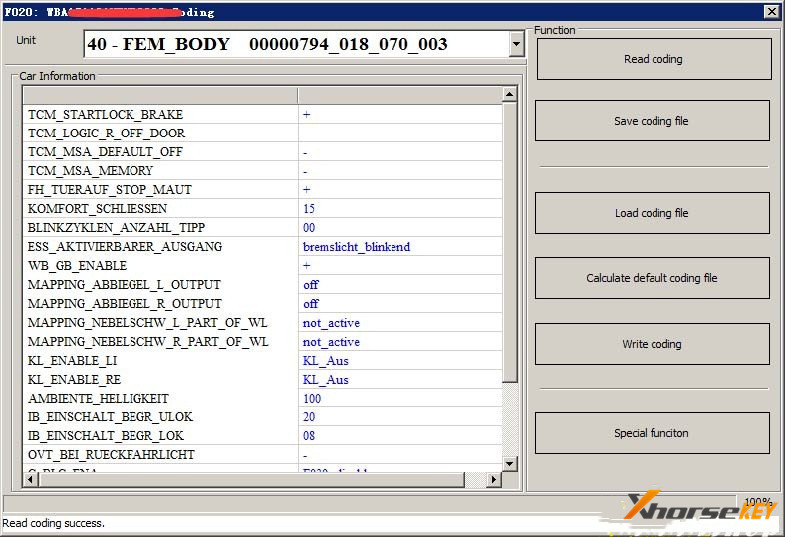

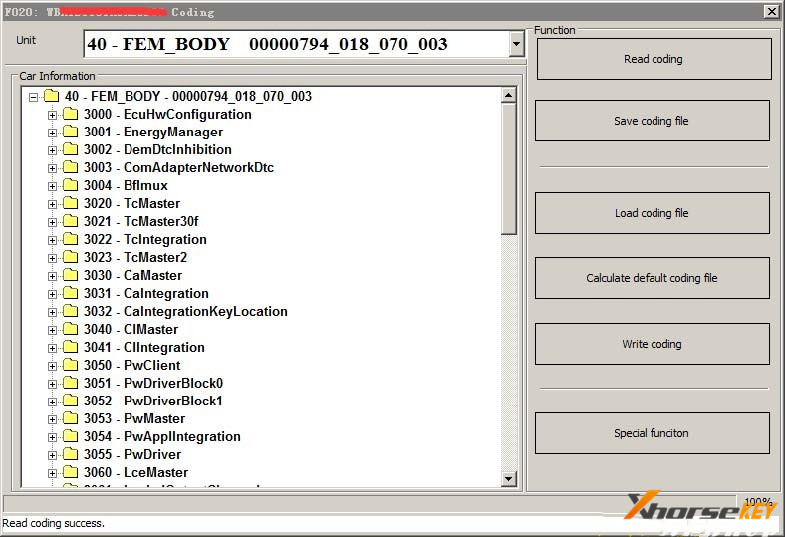

4. Vehicle coding
Can read out the coding information inside of module, the user can change the corresponding value as required to realize some configuration functions.

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

Features:

1). Read the coding: read the code information in the module
2). Save coding file: Save the coding information to a file
3). Load coding file: Load the coding file that is saved.
4). Calculate the default coding: If the default coding of module is lost, it will be calculated according to the vehicle configuration information
5). Write coding: write the coding to the module
6). Hide function: We have re-organized some of the frequently-used configuration changes option, see the figure below:

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

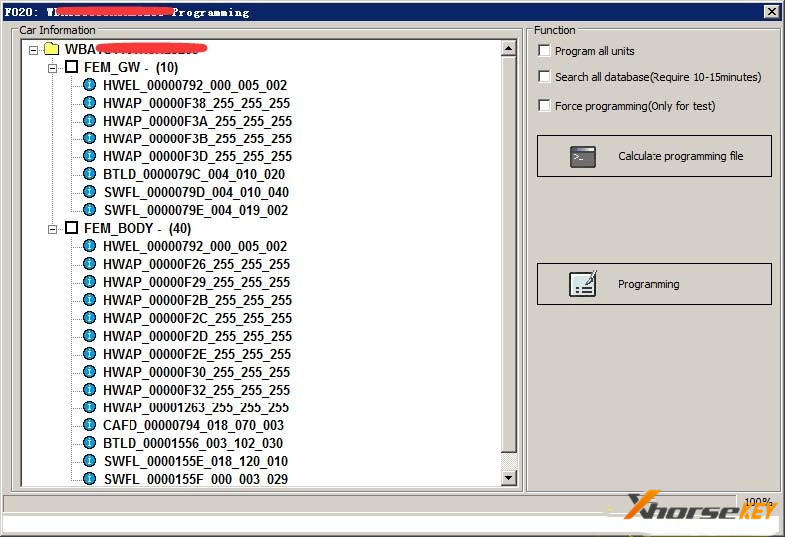

5. Vehicle programming
From vehicle configuration information to calculate the related module flash information, and write to module.

User Manual of VVDI BIMTool Pro BMW E F G Programming & Coding

Function description:

1). Program all units: From module configuration information to calculate vehicle all control units programming information
2). Search all database: Search all database, will not compare module inheritance hierarchy information
3). Calculate programming file: From configuration information to calculate module programming file, it takes time arrange around 10 seconds to tens of minutes.
4). Programming: Select related programming file and programming module
