Produktbeschreibung
XHORSE 35160DW adapter works together with VVDI Prog, can fix the red dot without emulator, it can perform as the same stable and reliable as the original one.
Xhorse 35160DW Chip Work with VVDI Prog Replace 35160WT Adapter
Features and Notes:
1. Do Not Support 35128WT.
2. Replaced M35160WT XDPG31CH Adapter, Stable and reliable
3. Eliminate RED DOT Problem: Temper DOT Direct Read Over SOIC-8 Connector, No Need Simulator Soldering
4. Work Together with VVDI Prog Programmer, Can Fix the Red Dot Without Emulator. it can perform as the same stable and reliable as the original one.
5. Support Replacement Chip Models: M35080/ M35080-3/ M35080-6/ M35050V6/ M35080VP/ D80D0WQ/ 160D0WQ/ 35160WT
6. It is for the New BMW. If you use the current market equipment to adjust the mileage, the meter will display a red dot. What is the support for replacing the following chip? It is a chip that is specially used for this chip.
How to Use Xhorse 35160DW Chip with VVDI Prog?
Instruction: This chip used as replacement for ST company 35080xxx, 35160xx, 080D0xx, 160D0xx ,.etc types

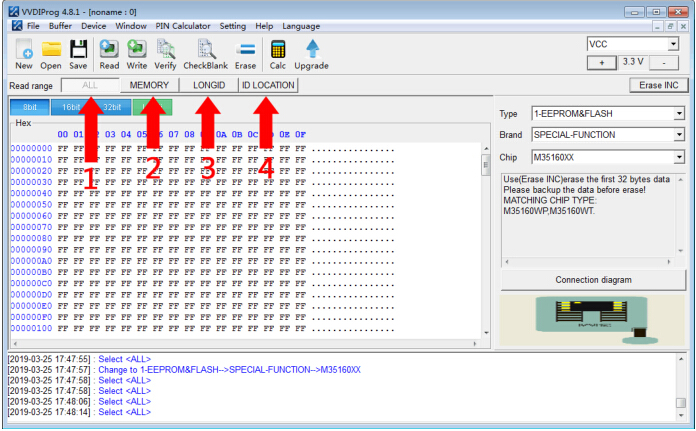

1. Backup data: Read and Save the dashboard original IC from 3 partitions(MEMORY+LONGID+ID LOCATION) or ALL option (ALL=MEMORY+LONGID+ID LOCATION), shown as sample picture
2. Write data: After replace original chip by Xhorse 35160xx chip, please write step1 saved 3 dumps to each partition on xhorse chip by VVDI PROG.
3. Mileage correction: "Erase INC" button is for erasing the front 2 lines, after erase INC operation then select ALL or MEMORY option to Read data for verify,
Reading data the front 2 lines should all "00", manually enter the targert mileage, then click Write option, operation completed.
4. Verify data: Soldering back the Xhorse chip to dashboard, check whether working well without red dot
Package List:
1pc x Xhorse 35160DW Chip
