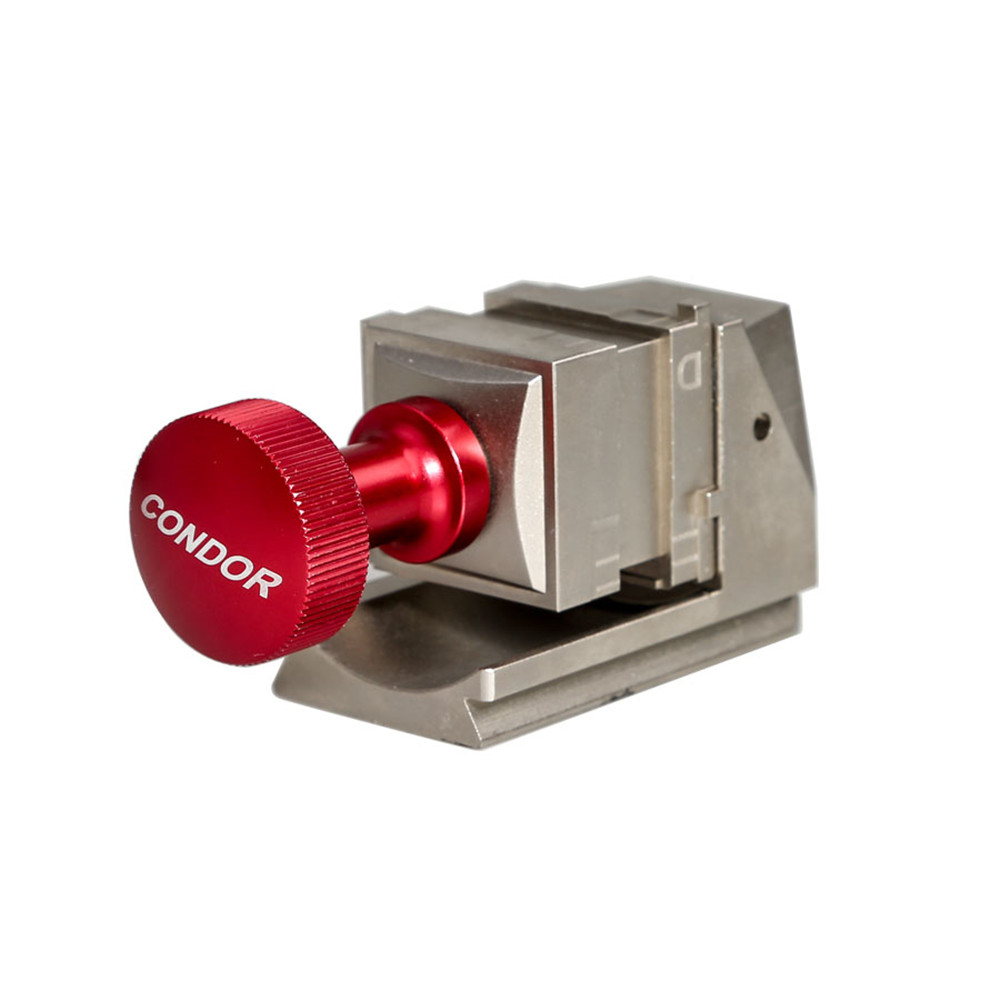

Original Xhorse M2 Key Clamp for Xhorse iKeycutter CONDOR XC-MINI Master Series/ Dolphin XP005 Automatic Key Cutting Machine

Produktbeschreibung

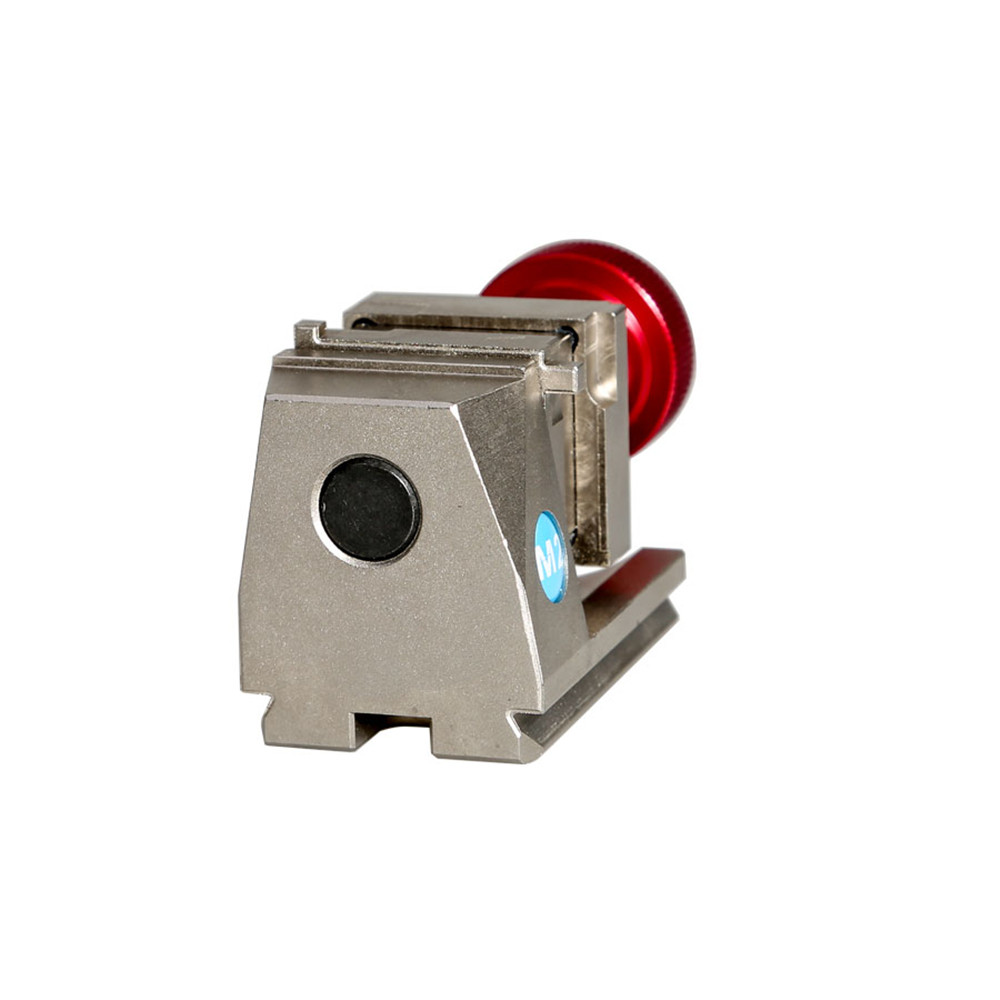

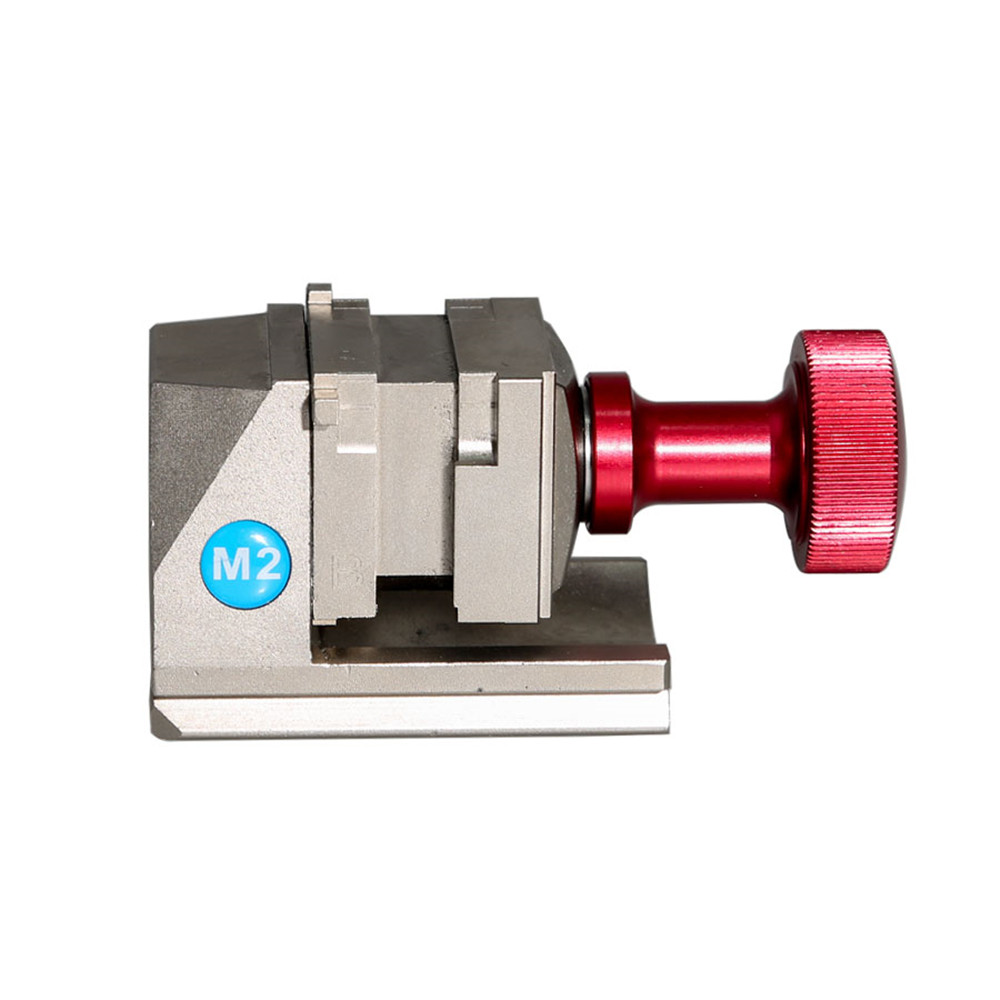

Xhorse XCMN02EN M2 Key Clamp for Xhorse iKeycutter CONDOR XC-MINI Master Series/ Dolphin XP005 Automatic Key Cutting Machine

Notice:

1. Already included in the CONDOR XC-MINI Plus package. If yours is broken, you can buy it again.
2. Function: Works with CONDOR XC-MINI Master Series Automatic Key Cutting Machine.

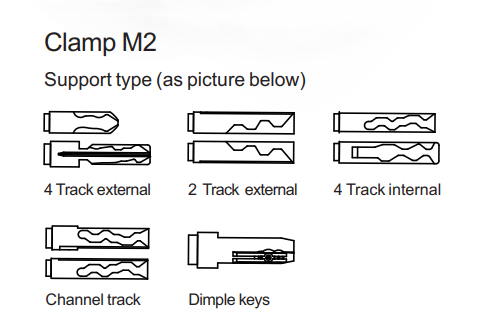

3. Support Type: 4 Track External, 2 Track External, 4 Track Internal, Channel Track, Dimple Keys

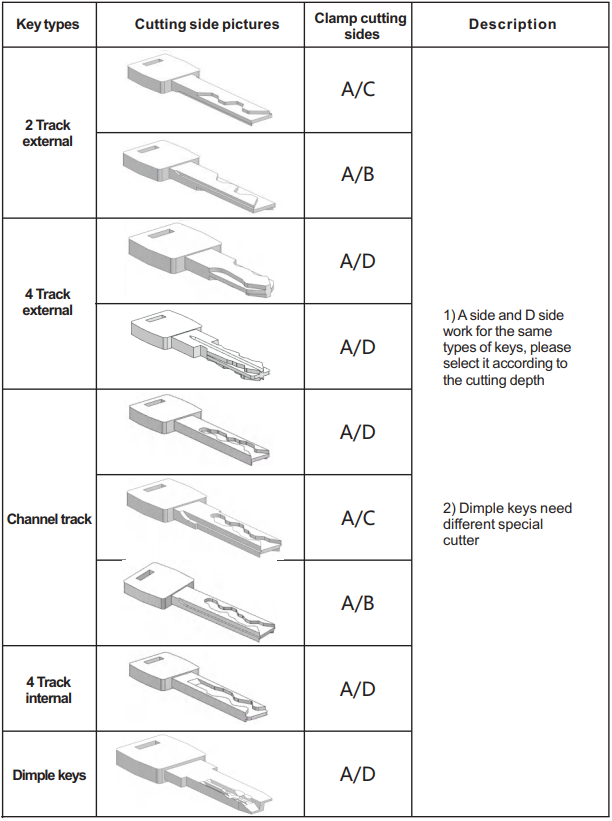

Clamp M2 Sides Selection



M2 Clamp Calibration

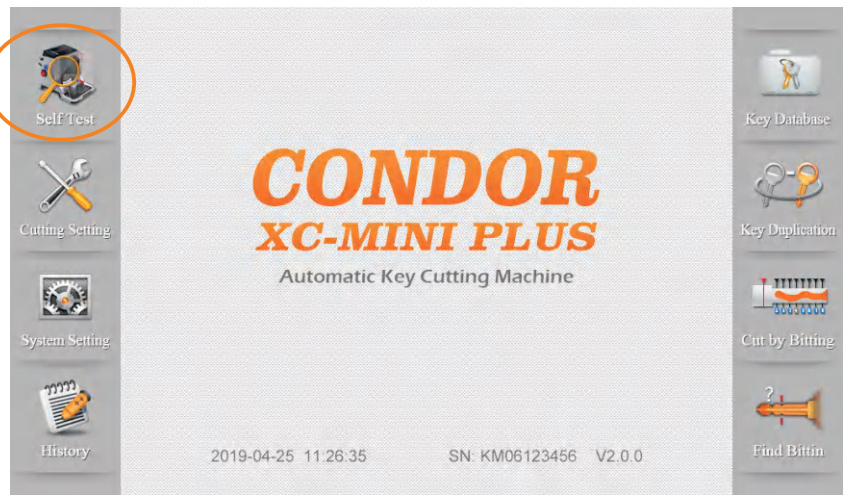

1) Enter main interface and click on "Self Test".

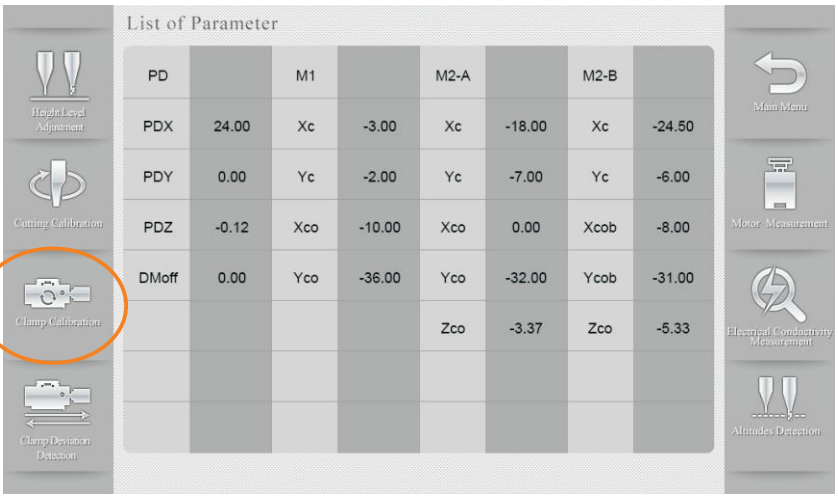

2) Click on "Clamp Calibration"

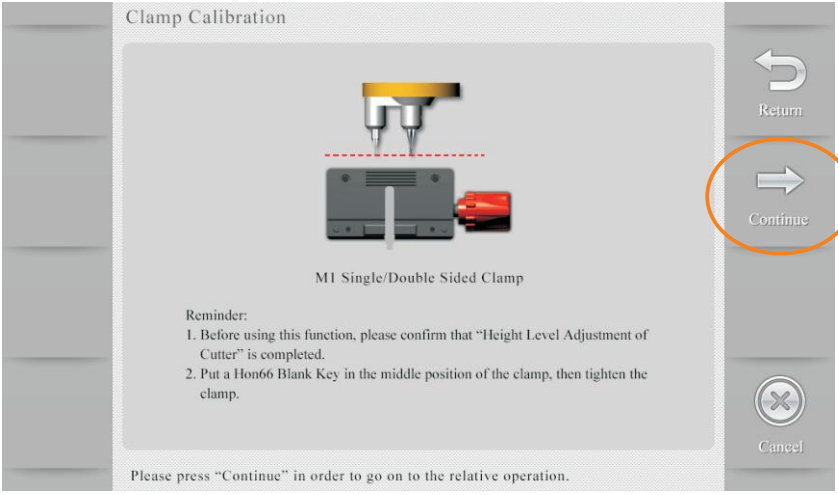

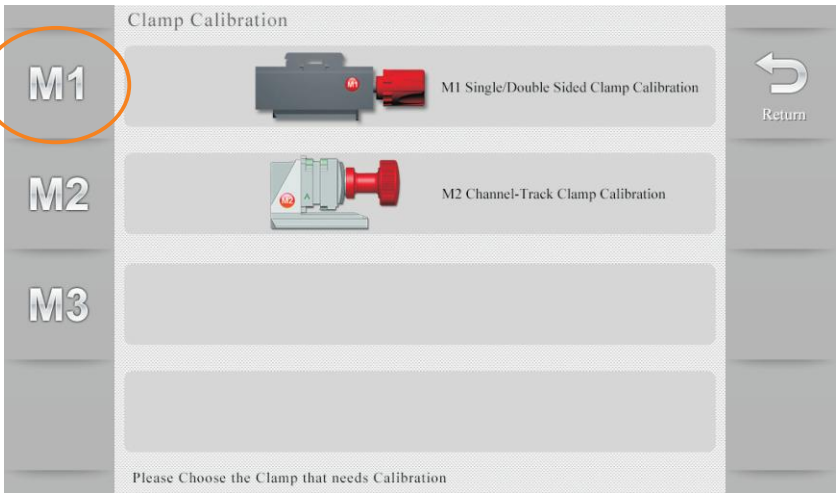

3) Select Clamp M1 and Proceed by following the tips on the screen.



4) Please Put the HON66 Key Blank According to the screen, then tighten the clamp, click on "Continue", calibration finished

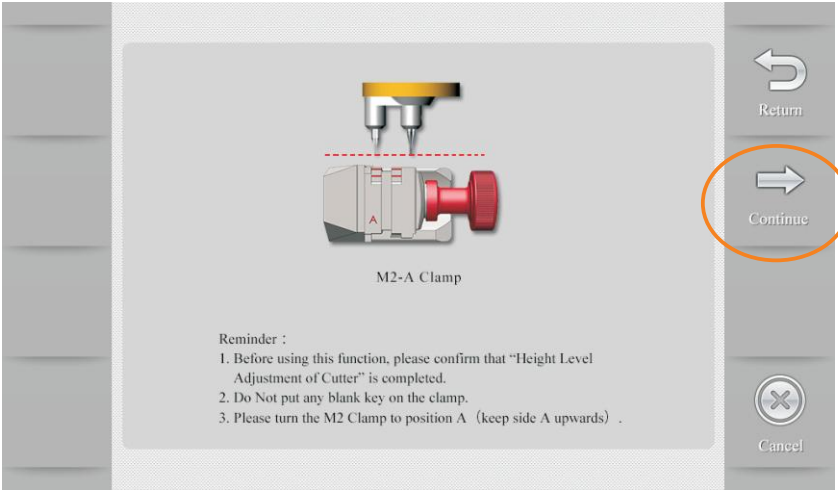

5) Enter Clamp M2 Calibration, rotate side A upward and do not put any keys on the clamp.

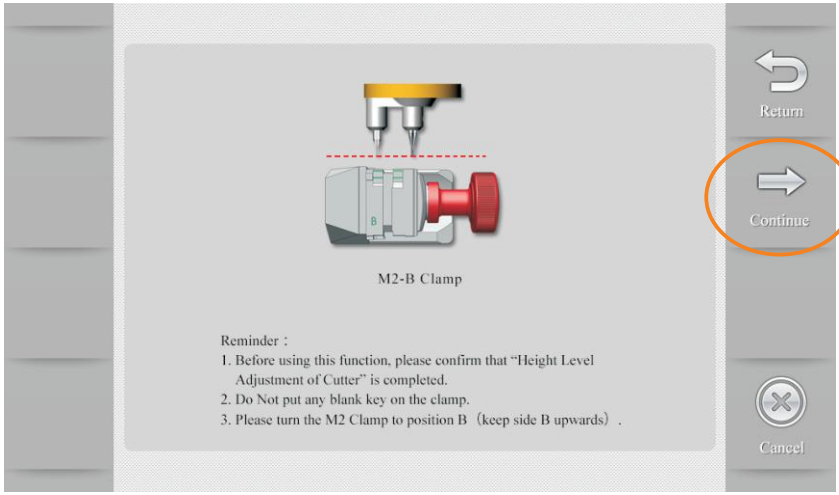

6) Follow The Tips On the Screen, rotate side B, C, D upward one by one to calibration until M2 clamp calibration finished.



Package List:

1pc x Xhorse XCMN02EN M2 Clamp







---
