GODIAG GT105 OBD II Break Out Box ECU Connector Plus Full Protocol OBD2 Universal Jumper

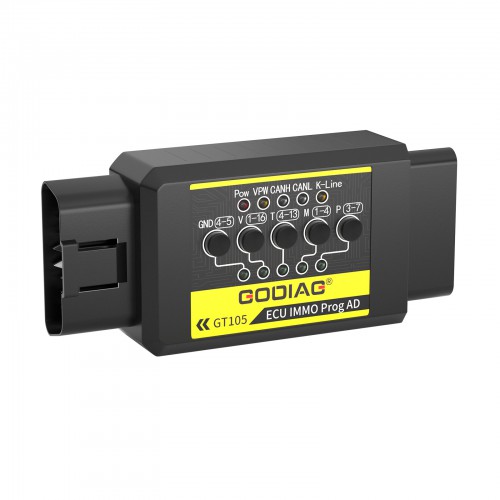

GODIAG ECU IMMO Prog AD GT105 is a special connection adapter developed for automobile maintenance technicians, IMMO matching technicians, ECU programming engineers, etc. It is used for short-circuiting OBD2 in the car for IMMO activation matching, ECU diagnosis and programming connection, and drawing power from the vehicle’s battery for outdoor on-site vehicle maintenance. GT105 is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate. GT105 is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.
1. Standard OBD2 Independent PIN4, PIN5.
2. The DC Connector Has a Resettable 7A Fuse.
3. DC Power Interface, Dedicated Laboratory Power Connector.
4. A full-protocol ECU connection line for ECU programming power adjustment
5. OBD2 Independent PIN 4 Body GND, PIN5 signal GND for Special Programming of Some Modules.
6. PIN4 and PIN5 Can be Switched Between Short-Circuit and Non-Short-Circuit.
7. Pure Copper Female Seat Supports Repeated Insertion and Removal, and Has a Long Service Life.
8. Battery Clip Treated with Environmentally-Friendly Salt Spray, with a Thickness of 0.5mm.
9. The DC Car Battery Cable Adopts 0.75mm² 2-Core Sheathed Cable, Which Supports DC5.5*2.5/ DC5.5*2.1 Interface.

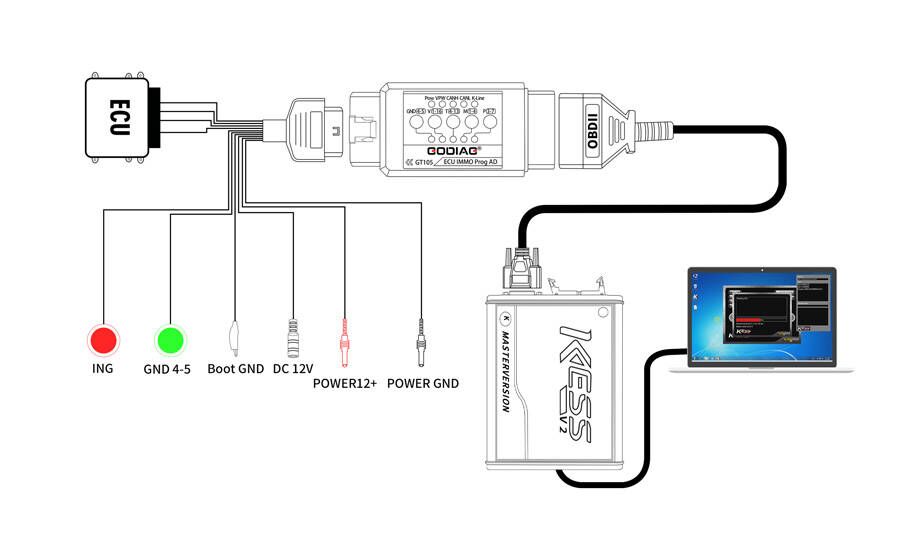

10. Full Protocol OBD2 Universal Jumper is Used to Connect ECU for ECU Programming via OBD2 Way such as MMPS, FGTECH, KESSV2, BYSHUT, DISPROG, etc.

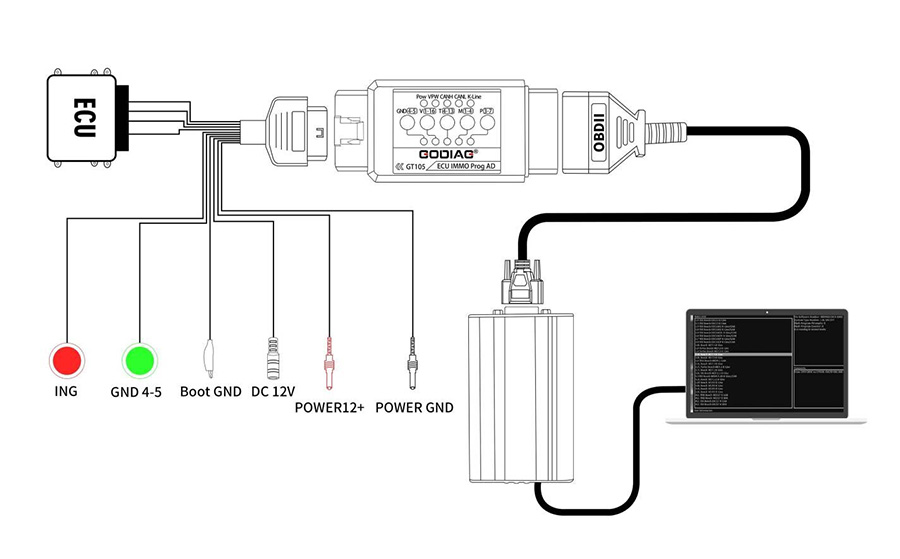

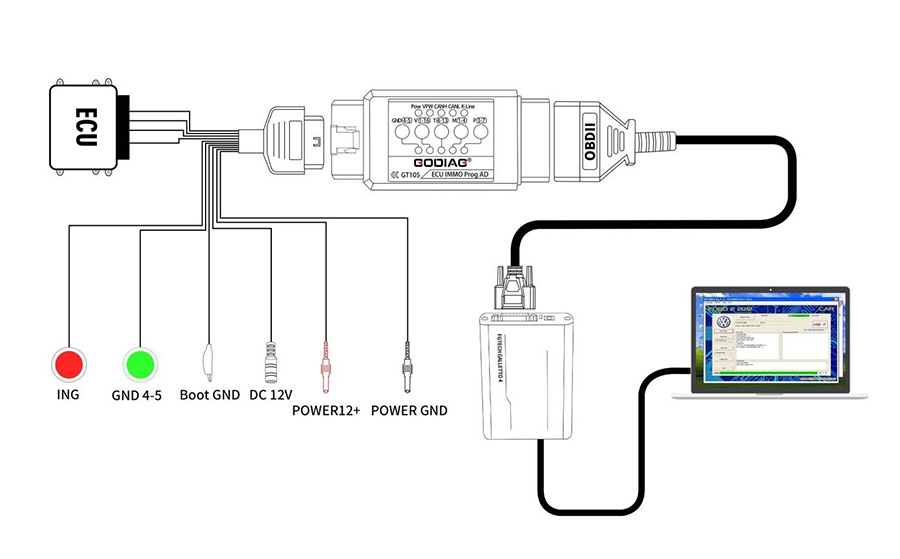

1. The OBD2 universal jumper is connected to the ECU, and the ECU module is diagnosed by the programming diagnostic equipment. (With MPPS, FGTech, Kess V2, etc, for ECU data reading and writing, ECU cloning, ECU tuning)

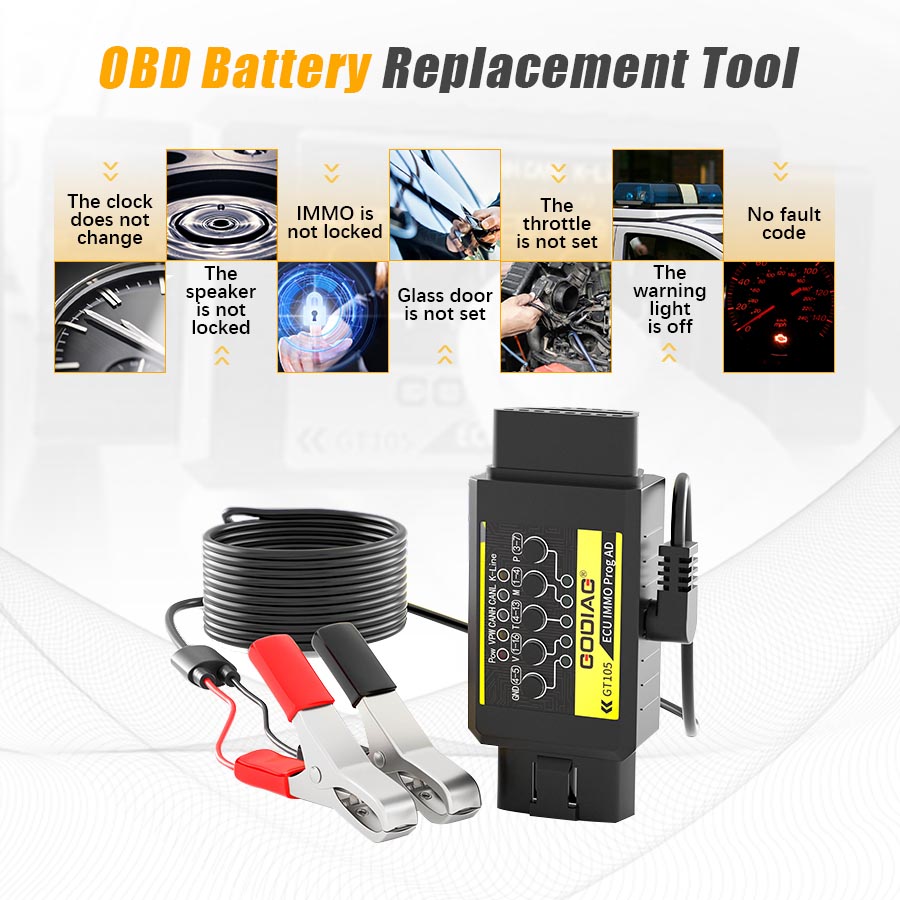

2. GT105 provides uninterrupted power supply during the car battery replacement process to protect the car ECU data from being lost due to the power failure. The audio system is not locked, the IMMO data is not lost, the remote control does not need to be reset, the window regulator does not need to be reset, and the throttle valve does not need to be re-matched. The fault light will not be illuminated. No fault codes will appear. GT105 provides internal insurance for users.

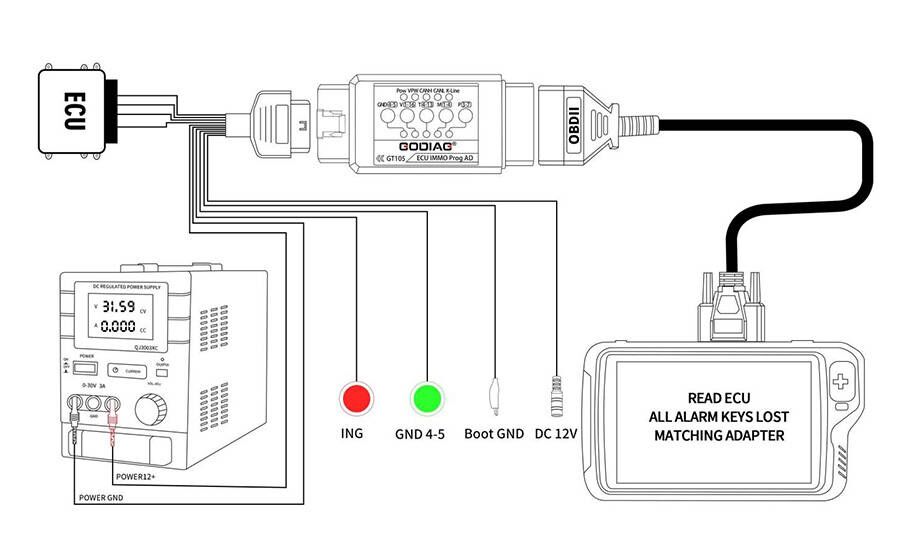

3. GT105 can obtain 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, read BMW, BENZ, IMMO ECU outdoors, or provide 12V power supply for reading other car's ECU data. Provide power for 12V powered key cutting machines to realize outdoor faulty vehicles on-site repair.
4. After 2016, all Ford smart keys are lost, GT105 cooperates with VVDI equipment (OBDSTAR AUTEL) and other IMMO matching equipment to program the keys.
5. GT105-All car keys lost matching---wake up the meter or wake up the IMMO ECU. (Support VAG 4th and 5th generation IMMO, Toyota ECU synchronization, auxiliary Mitsubishi all-key-lost matching or all-key-lost remote control
key setting, old Porsche Cayenne car for IMMO key learning.)
6. The VPW CANH CANL K-Line indicator light can judge the communication status between the vehicle and the diagnostic programming device. (If the connected device can determine whether the device can send communication, simply determine whether the diagnostic programming is normal.)
7. Universal Jumper -support DC and safety protection banana head super programming power supply dedicated connection port.
8. Universal Jumper -independent GND4 and GND5 meet the needs of special ECU programming. (Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.)
9. Universal Jumper-with ignition analog switch, equipped with 1 large and 2 small ignition dedicated connecting cables. (After the ING ignition switch is pressed, the “ING12V” line will have 12v. This is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.)
10. With boot GND 4# clip. Cooperate with MPPS, FGTECH, KESSV2, etc. [Double K line, double CAN line] 3 large and 2 small power plugs, 4 large GNDs, and 4 small GNDs are designed to meet the programming connection needs.
Full Protocol OBD2 Jumper Functions:
1. Supports DC power supply
2. Support safety protection banana head super programming dedicated connection port power supply.
3. Independent GND4, GND5 [meet the needs of special ECU programming].
4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].
Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.
6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.
8. Equipped with CAN protocol communication resistance.
A. Connect ECU module, special power supply to read and write ECU data, ECU clone, programming and adjustment.
B. GT105 provides uninterrupted power supply during the car battery replacement process to protect the car ECU data.
Indicator Light Meaning
1. Manufactory custom
9. Manufactory custom

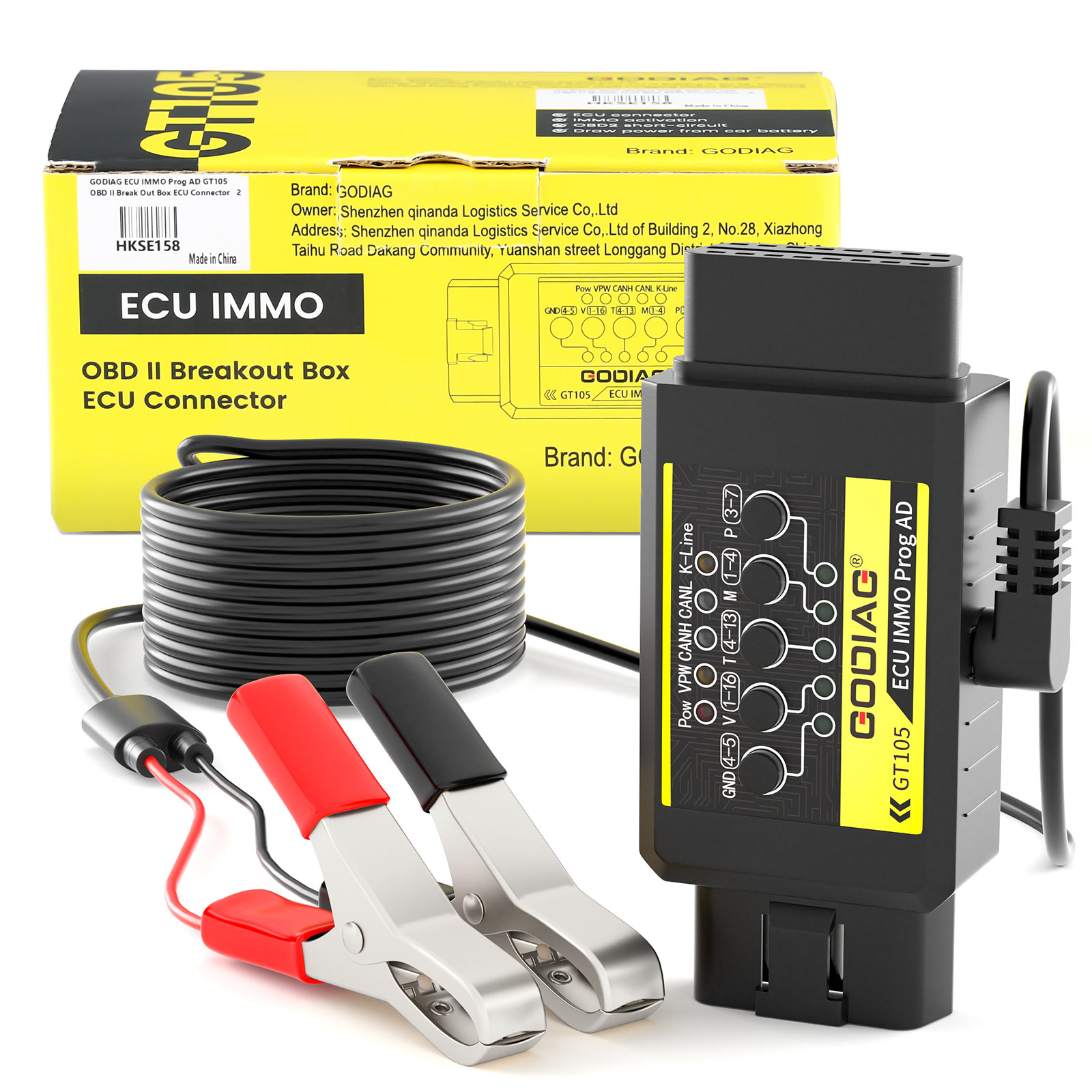

1pc x GT105 host
1pc x Power cord with battery clip

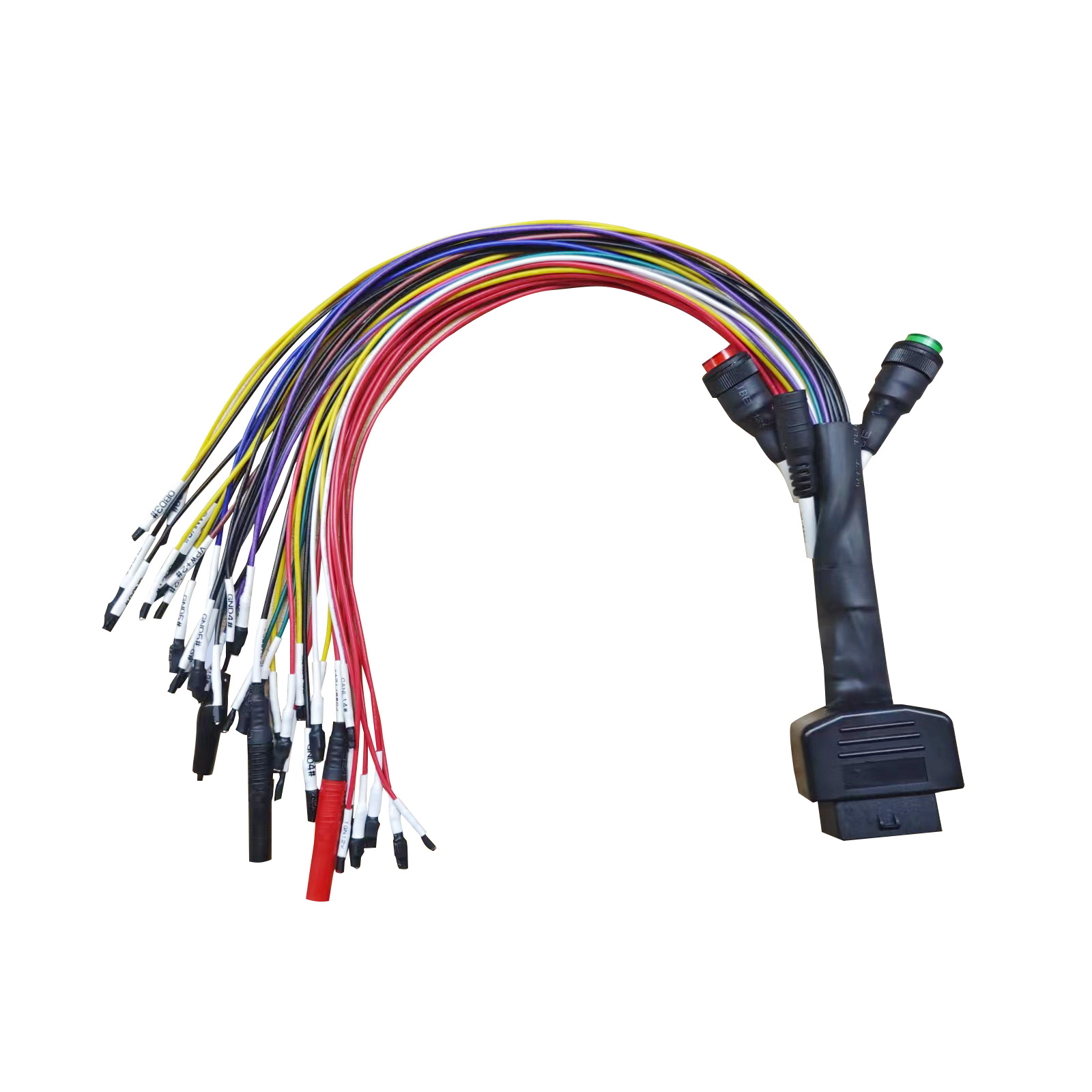

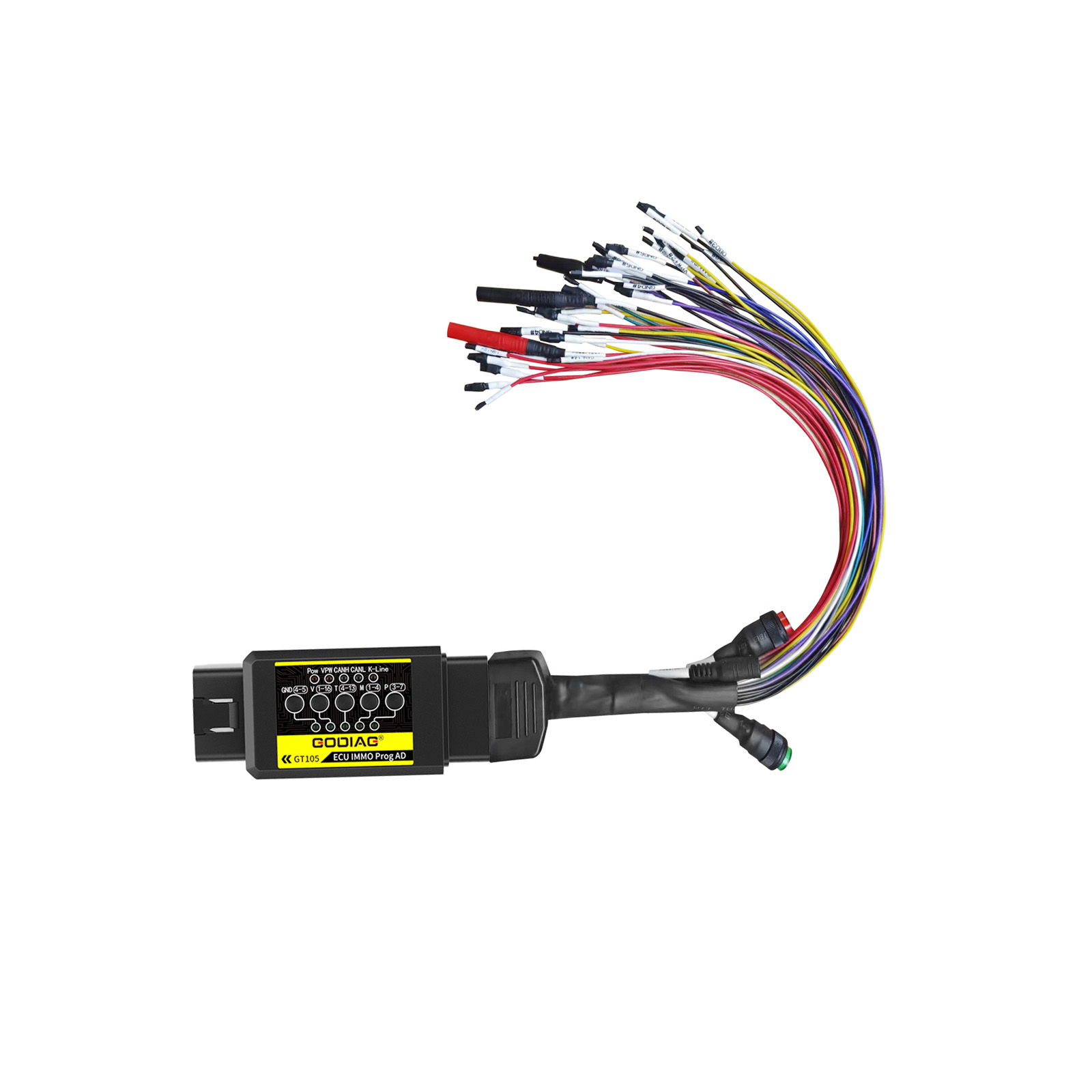

1pc x Full protocol OBD2 jumper

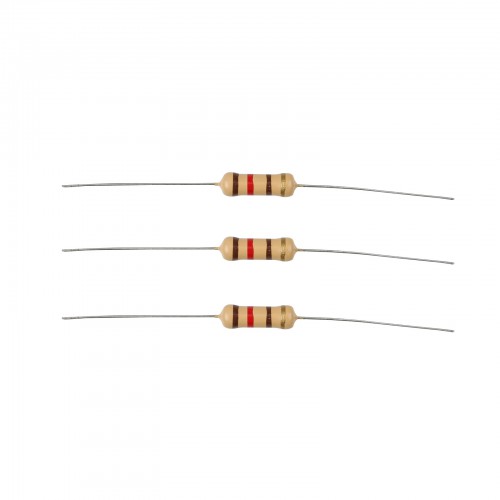

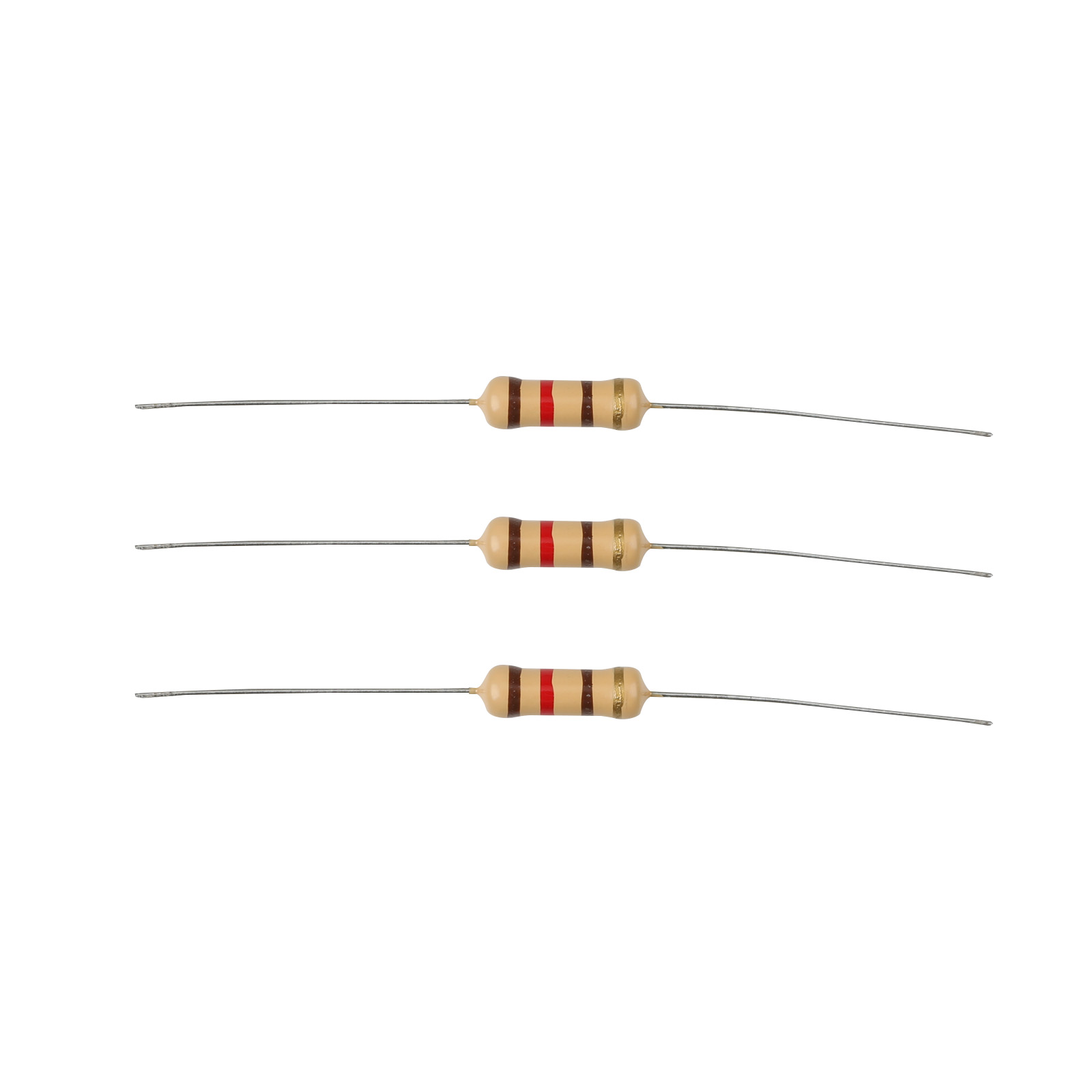

3pcs x Electrical resistance
