GODIAG Full Protocol OBD2 Jumper Adapter Used to Connect ECU for ECU Programing

Art.-Nr. SF347 Auf Lager. Geschichte 6 verkauft.

Kaufe jetzt: 23.00
Xhorse Xmas Limited Offer>>>
Buy Key Tool Plus Advanced Version,Get Free One Year Unlimited BGA and ID48 Token

Need Better Price, Please Contact:
Email: sales@XhorseShop.de
Whatsapp:+86-19947586579
Versand:
Kostenloser Versand Standard Flat Rate Shipping Service Estimated delivery time: 7-18 working days.See details »
Gewicht:
0.2KG
Paket:
18cm*8cm*2cm     ( Inch: 7.09*3.15*0.79 )
Kehrt zurück:
Return for refund within 30 days,buyer pays return shipping. Read details »

Produktbeschreibung

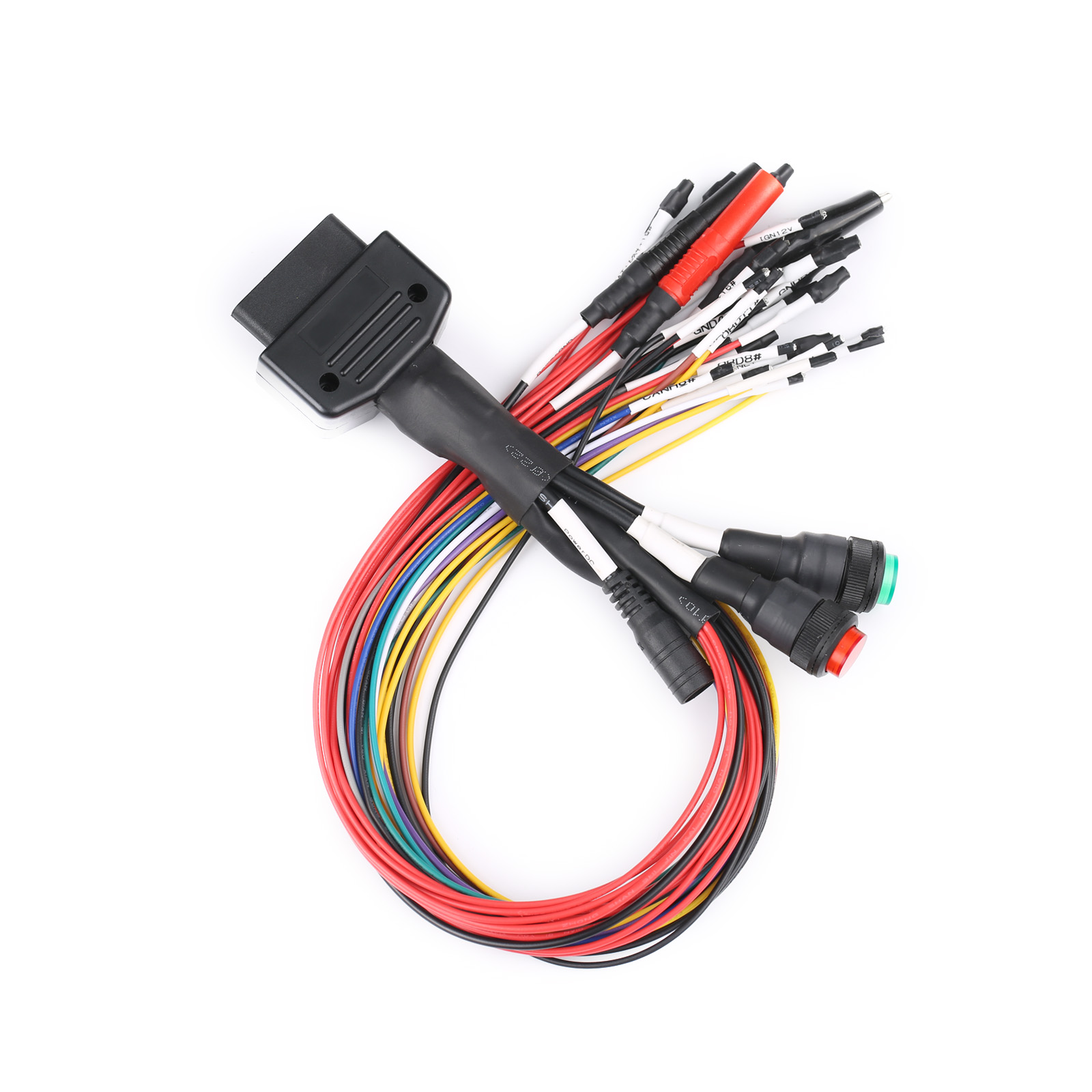

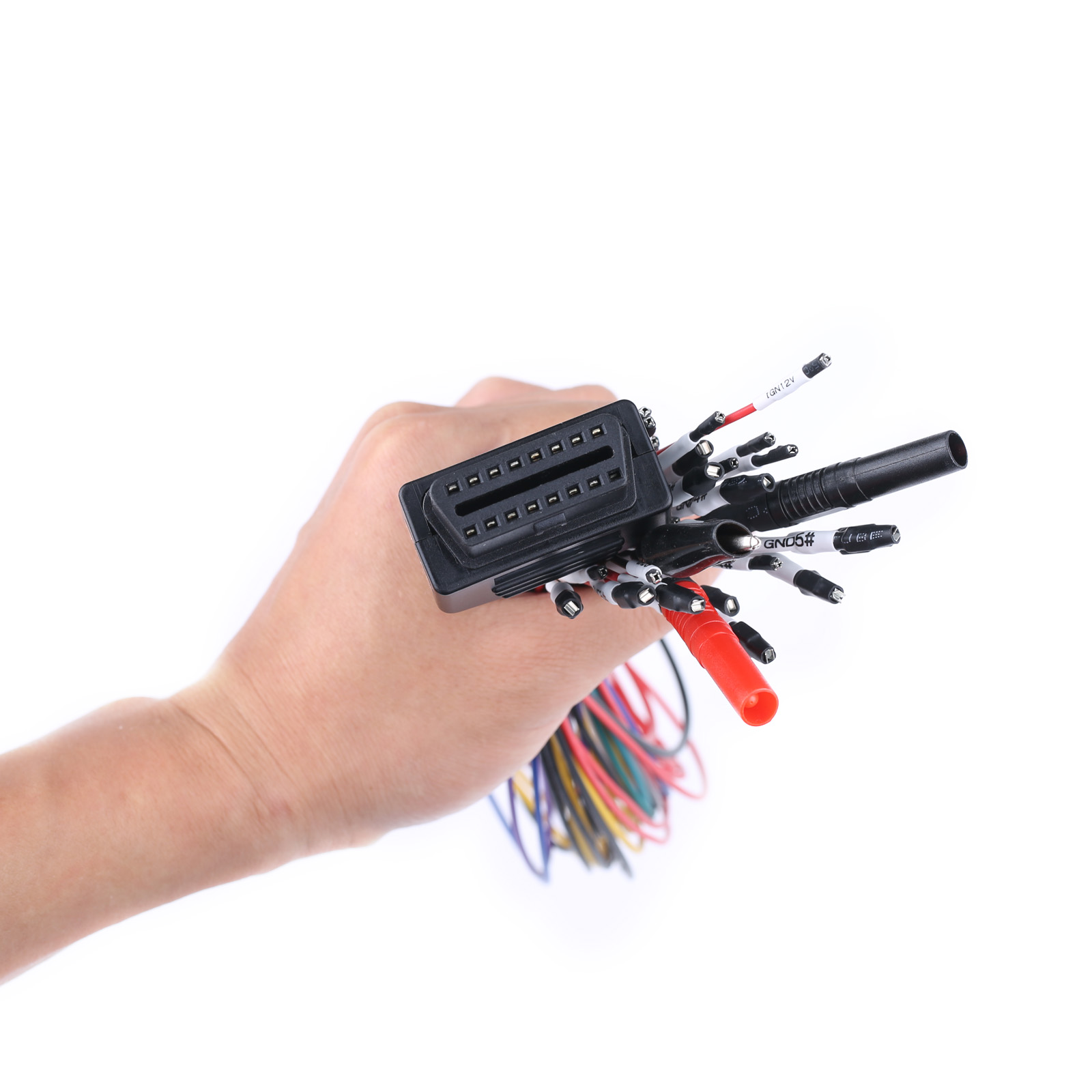

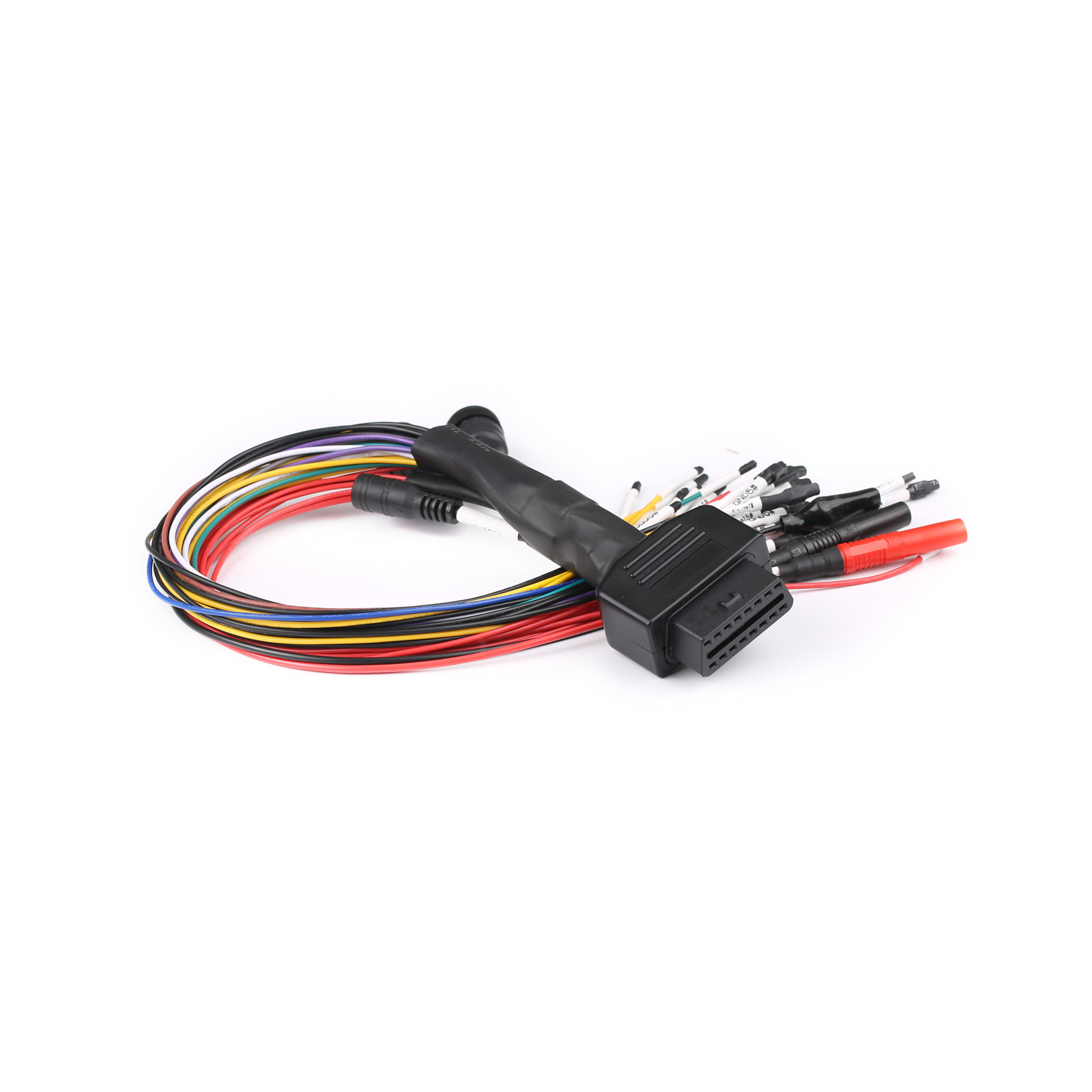

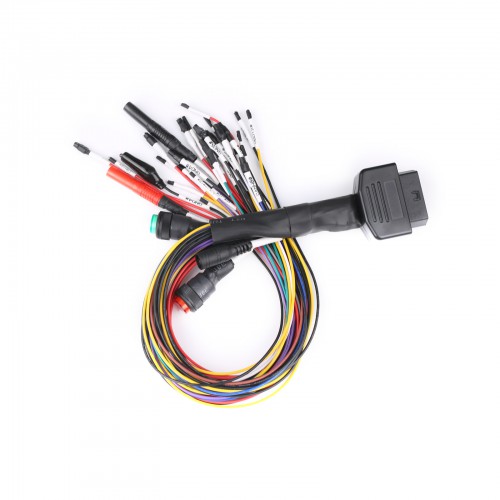

GODIAG Full protocol OBD2 jumper is used to connect ECU for ECU programming via OBD2 way
GODIAG Full Protocol OBD2 Jumper Adapter Used to Connect ECU for ECU Programing

Product Introduction:

Full protocol OBD2 jumper is used to connect ECU for ECU programming via OBD2 way such as MPPS, FGTECH, KESSV2, BYSHUT, DISPROG, etc.

Product Functions:

1. Supports DC power supply

2. Support safety protection banana head super programming dedicated connection port power supply.

3. Independent GND4, GND5 [meet the needs of special ECU programming].

4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.

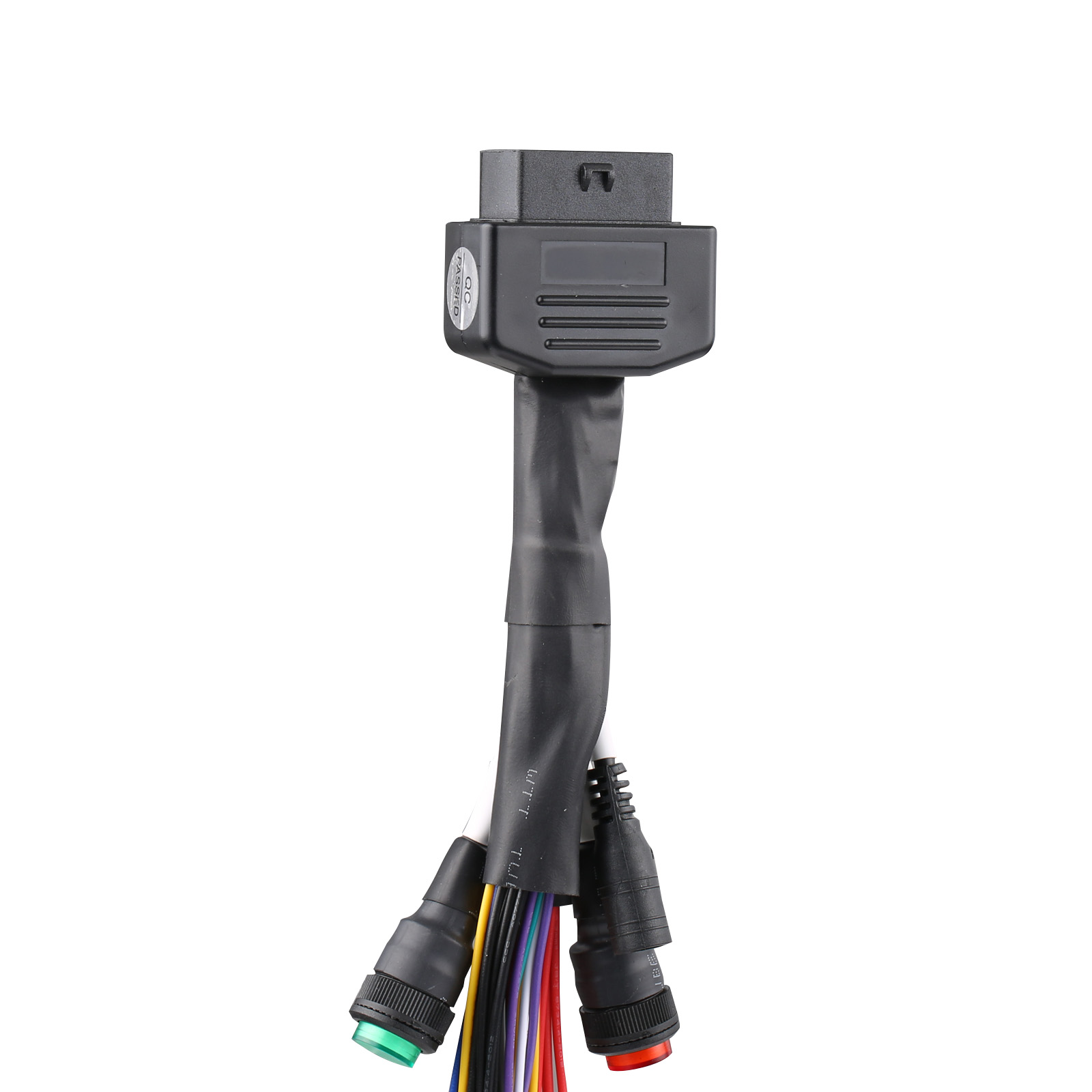

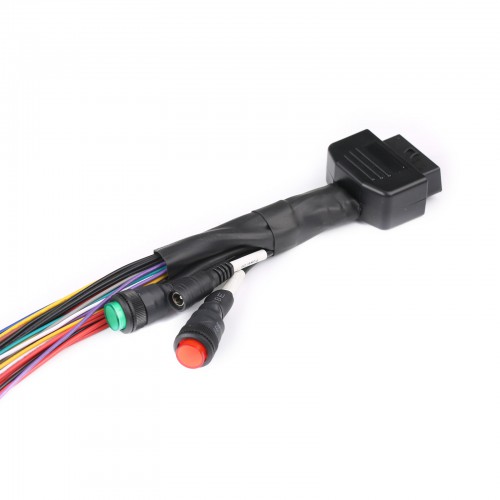

5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].

Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.

6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].

7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.

8. Equipped with CAN protocol communication resistance.



Connection diagram of the dedicated programming power connector.



FGTECH programming connection diagram




MPPS  ECU connection diagram


KESSV2 ECU connection diagram



What is the analog ignition switch?

After the ignition switch is pressed, the line marked with ING12V will have 12v, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.

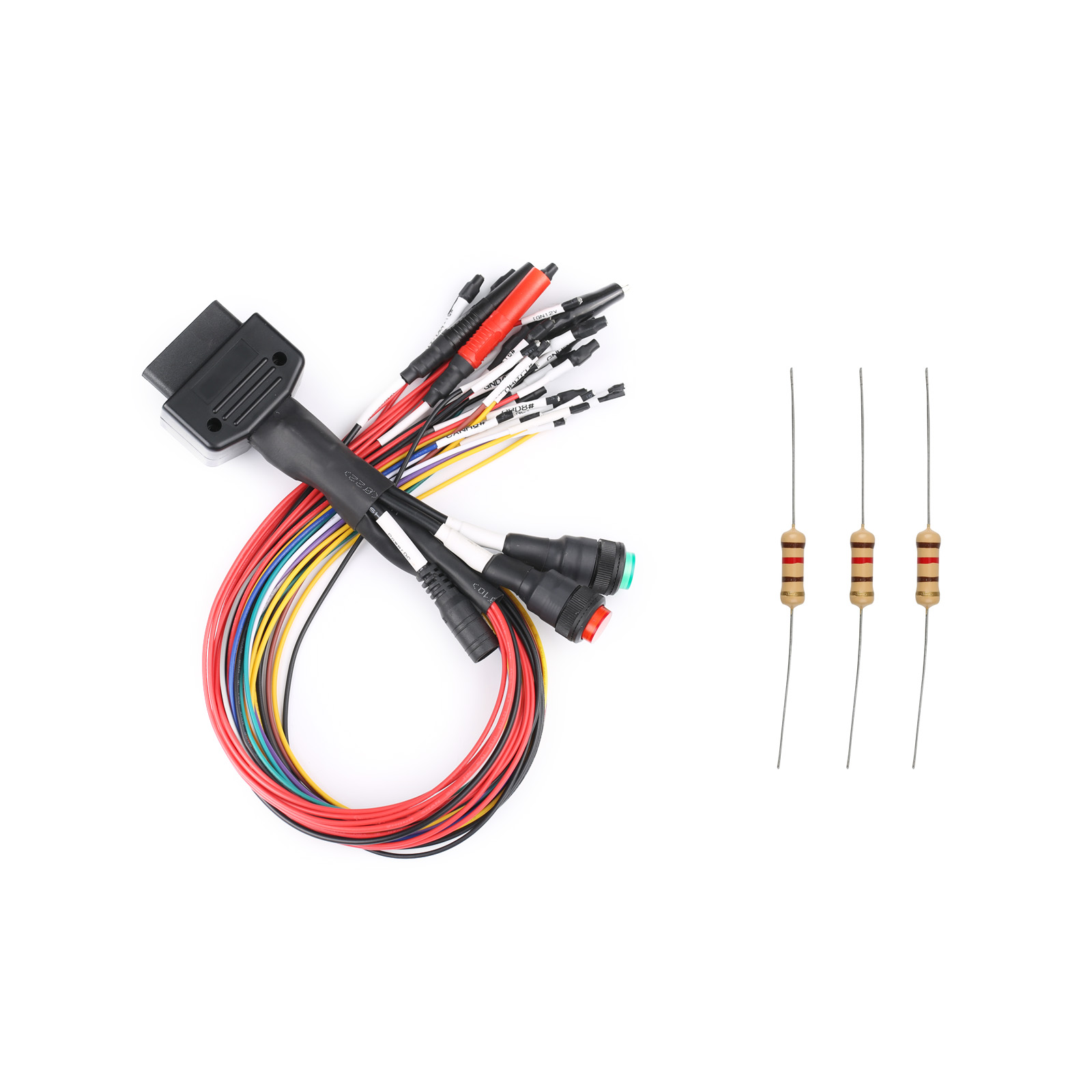

Package Includes:

1pc x Full protocol OBD2 jumper

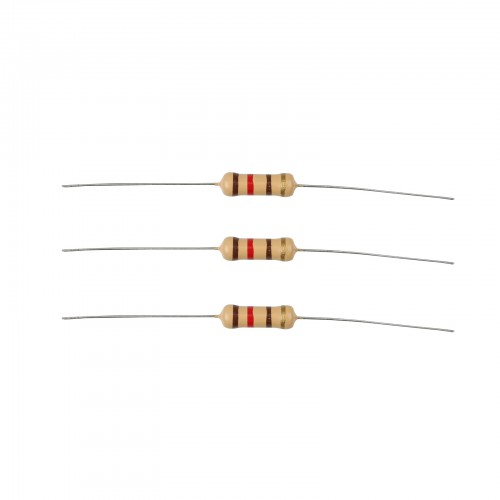

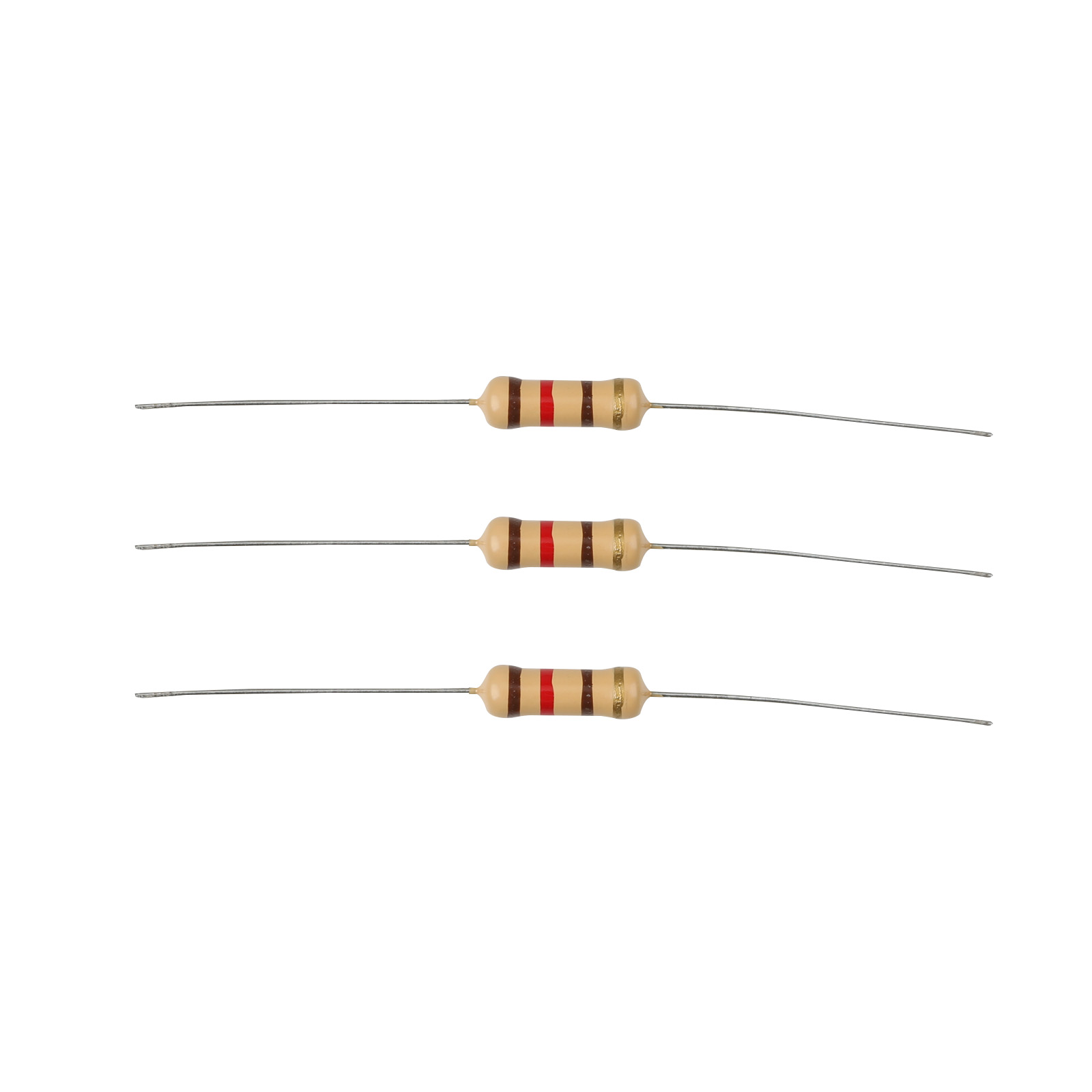

3pcs x Electrical resistance
